Lewmar - Size 41 Low Profile Hatch Flange Base
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Premium Marine Hatch for Enhanced Safety and Ventilation

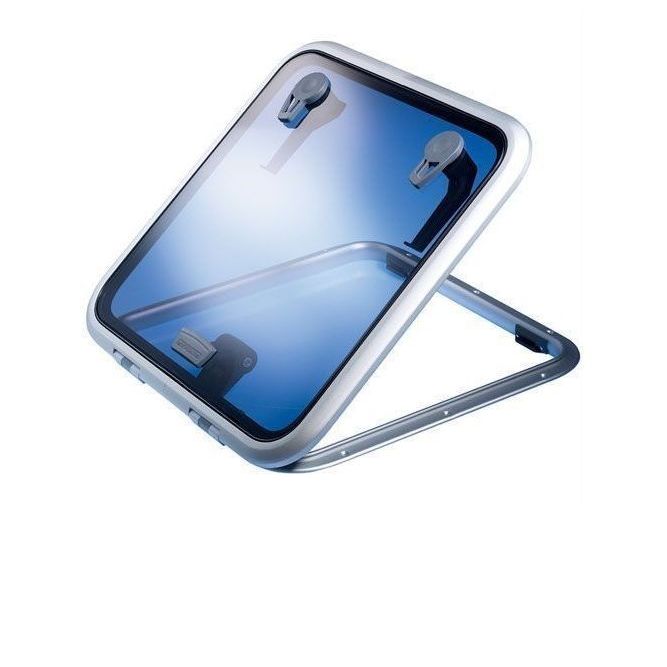

The Lewmar Size 41 Low Profile Hatch with a flange base is designed to provide exceptional durability and functionality for marine applications. Crafted with precision, this self-supporting hatch ensures smooth operation while offering superior resistance to harsh marine environments. The sleek, low-profile design integrates seamlessly with boat surfaces, enhancing both aesthetics and performance.
Ideal for use on sailboats and powerboats, this hatch features a smoke grey acrylic window, providing excellent light transmission while reducing glare. The robust construction and secure fastening system make it a reliable choice for boat owners seeking enhanced ventilation and easy access to cabin spaces.
Technical Specifications
- Support System: Self-supporting
- Lower Frame Thickness: 9/16 inch
- Acrylic Window Color: Smoke Grey
- Hatch Weight: 5.5 lb
- Acrylic Window Thickness: 5/16 inch
Product Dimensions
- Overall Length (X): 9 11/16 inches
- Overall Width (Y): 19 5/16 inches
- Overall Height (Z): 1 inch
- Radii (R): 2 7/8 inches
- Cut-Out Length (X1): 6 15/16 inches
- Cut-Out Width (Y1): 16 9/16 inches
- Cut-Out Radii (R1): 1 11/16 inches
Mounting Instructions
For optimal installation, fit the hatch onto a flat surface with a maximum tolerance of +/- 1mm. Use the following fastening specifications:
- Hinge Section Fastening Size: M6 (1/4 inch)
- Lower Frame Fastening Size: 5mm CSK screw No.10 UNC 2 BA
Highlights
- Sleek, low-profile design for seamless deck integration
- Durable, self-supporting system for smooth operation
- Smoke grey acrylic window enhances light control and visibility
- Lightweight yet sturdy construction for long-lasting performance
- Secure mounting system ensures reliable sealing against water ingress
The Lewmar Size 41 Low Profile Hatch is the perfect solution for boat owners looking for a premium, well-engineered marine hatch that delivers both style and functionality on the water.
