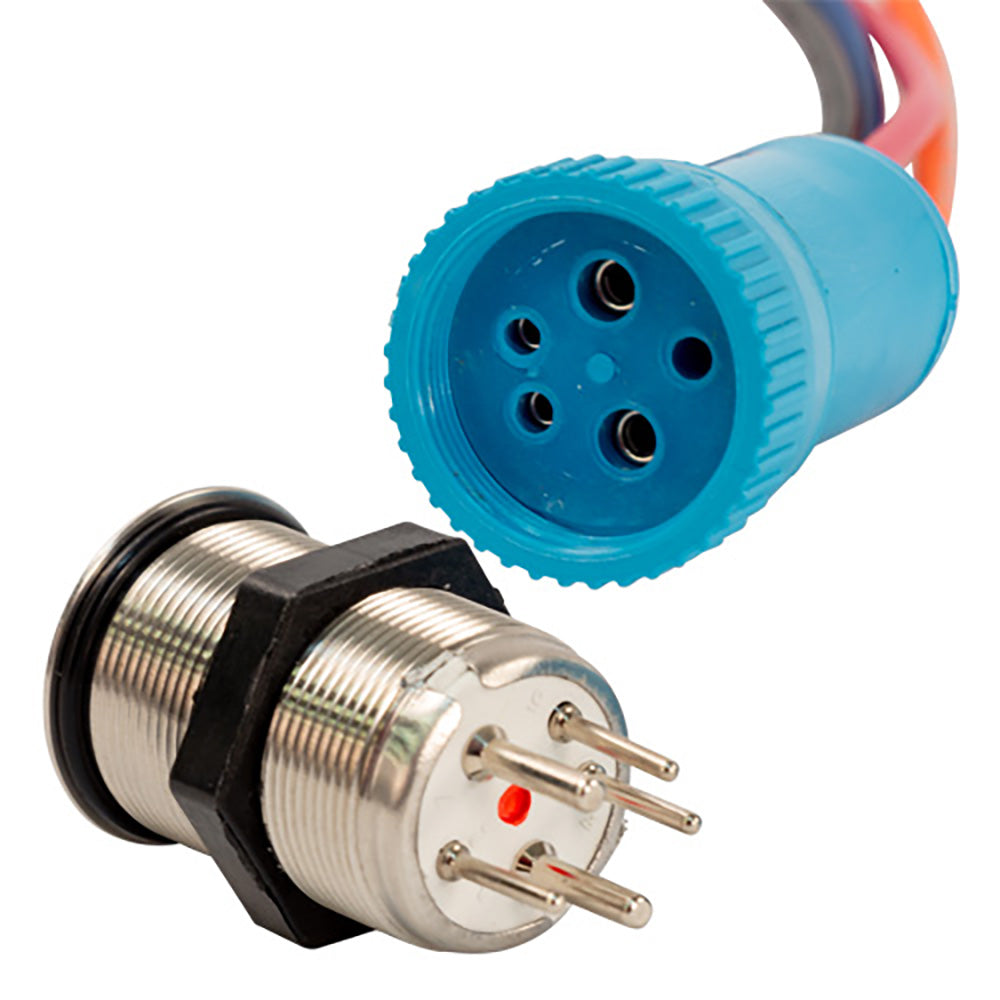

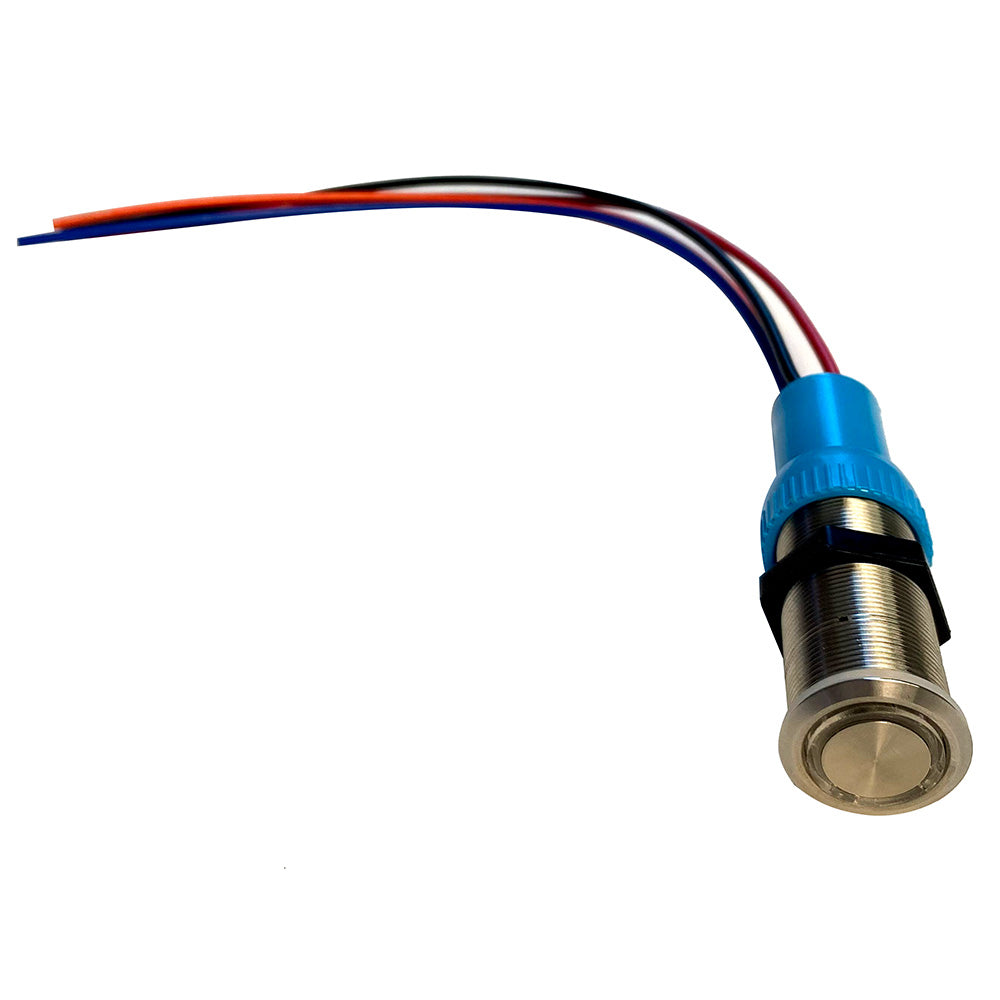

Bluewater - Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 1' Lead
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Sleek and Functional Marine Control
Introducing the Bluewater 22mm Push Button Switch, designed to enhance your marine dashboard with both style and functionality. This stainless-steel plated metal button features an Off/(On) momentary contact, making it an essential addition for any marine vessel. Its modern design, combined with advanced functionality, ensures that your marine controls are both visually appealing and highly efficient.
Robust Design for Marine Conditions
Engineered to withstand the harsh marine environment, the Bluewater Push Button Switch boasts an IP69K waterproof rating, providing maximum protection against water and dust. The included gasket and durable stainless-steel construction ensure long-lasting performance, even in the toughest conditions. This switch is designed to offer unparalleled visibility with its blue LED backlighting, which changes to red when activated, giving you clear indication of its status at all times.
Key Features
- Waterproof Rating: IP69K for maximum protection against water and dust.
- LED Indicators: Blue for off state, changing to red when the function is on.
- Durable Construction: High-quality stainless steel for longevity.
- Easy Installation: Simple setup with color-coded contacts for safety and convenience.
- Momentary Contact: Off/(On) functionality for precise control.
Technical Specifications
- Function: Off-(On) (momentary contact)
- LED Colors: Off: Blue; On: Red
- Rear Mark Page: Green dot
- Switch Rating: 15A / 12-24VDC
- Material: Stainless steel
- Mechanical Life: 50,000 cycles
- Electrical Life: 10,000 cycles
Compact and Efficient Design
Product Dimensions
- Size: 22mm diameter
- Lead Length: 1 ft
Built for Marine Excellence
Premium Finishes
- Stainless Steel Body: Provides a sleek, modern look while ensuring durability and resistance to corrosion.
- IP69K Rating: Ensures the switch remains waterproof and dustproof, suitable for all marine environments.
Installation Made Simple
Installing the Bluewater Push Button Switch is straightforward:
- Drill a 22mm Hole: Suitable for materials up to 6mm thick.
- Connect Contacts: Attach the 3 color-coded contacts for the button and the 2 contacts for the LED.
Customizable Options for Different Needs
Variations List
- 22mm Model: Standard size, perfect for most marine applications.
- 19mm Model: Slightly smaller option for more compact installations.
Experience the Difference with Bluewater
Upgrade your marine dashboard with the Bluewater 22mm Push Button Switch. Designed for both functionality and style, this switch offers unparalleled performance and durability in any marine environment. Whether you’re navigating through rough waters or docked at the marina, this switch ensures your boat’s controls are always clear and easy to use. Illuminate your adventures with the trusted reliability of Bluewater.
