Attwood Marine Flush Mount Fuel Vent, SS316, 5/8 in Hose, 7/8 in Max Hull, 1-3/8 in Hole
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Attwood Marine Alloy Flush Mount Fuel Vent is a 316 stainless steel fuel tank vent for boats that need a clean hull finish without a protruding exterior cap. It fits 5/8 inch inner diameter vent hose, installs through a 1-3/8 inch hole, and is suitable for hull thicknesses up to 7/8 inch.
This vent is built for marine fuel venting applications where the outside fitting should sit close to the hull and stay less exposed to bumps, dock contact, and routine washdowns. The cap can be removed with a hex head wrench, giving access for filter cleaning and fuel system pressure testing without replacing the whole fitting.
Key features
- 316 stainless steel alloy construction helps resist corrosion in saltwater and freshwater environments.
- Flush exterior profile reduces the chance of damage from hull scrapes, dock contact, or gear brushing against the fitting.
- Accepts standard 5/8 inch inner diameter marine fuel vent hose.
- Fits hulls up to 7/8 inch thick with a 1-3/8 inch installation hole.
- Removable cap allows filter cleaning and fuel system pressure testing with a hex head wrench.
- Supplied with two silicone gaskets to support a sealed installation at the hull.
Variants
This fuel vent is offered in two configurations for different hose routing needs.
The vent body, 316 stainless steel alloy construction, 5/8 inch hose fit, 7/8 inch maximum hull thickness, and 1-3/8 inch installation hole are consistent across the listed versions. The difference is the vent outlet style.

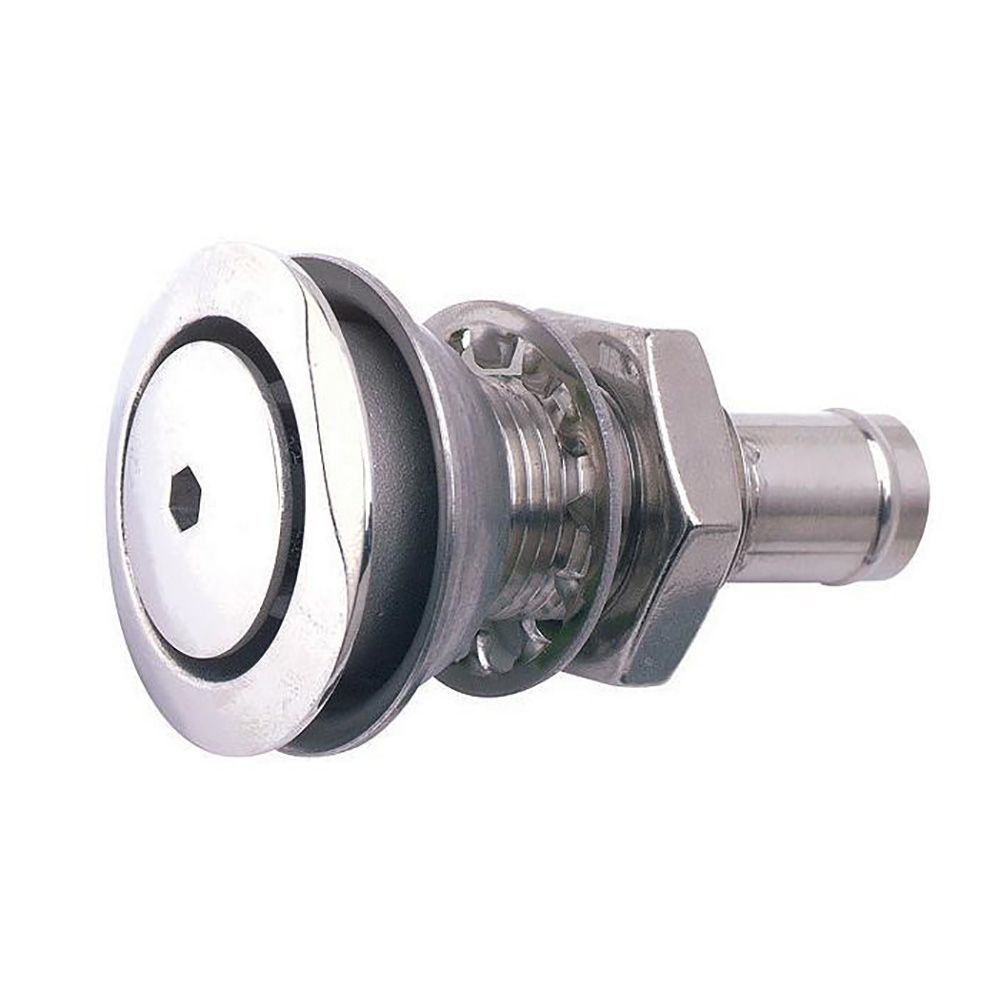

- 66031-3: Straight vent. This version works for installations where the vent hose can run directly from the fitting without needing an immediate change in direction.

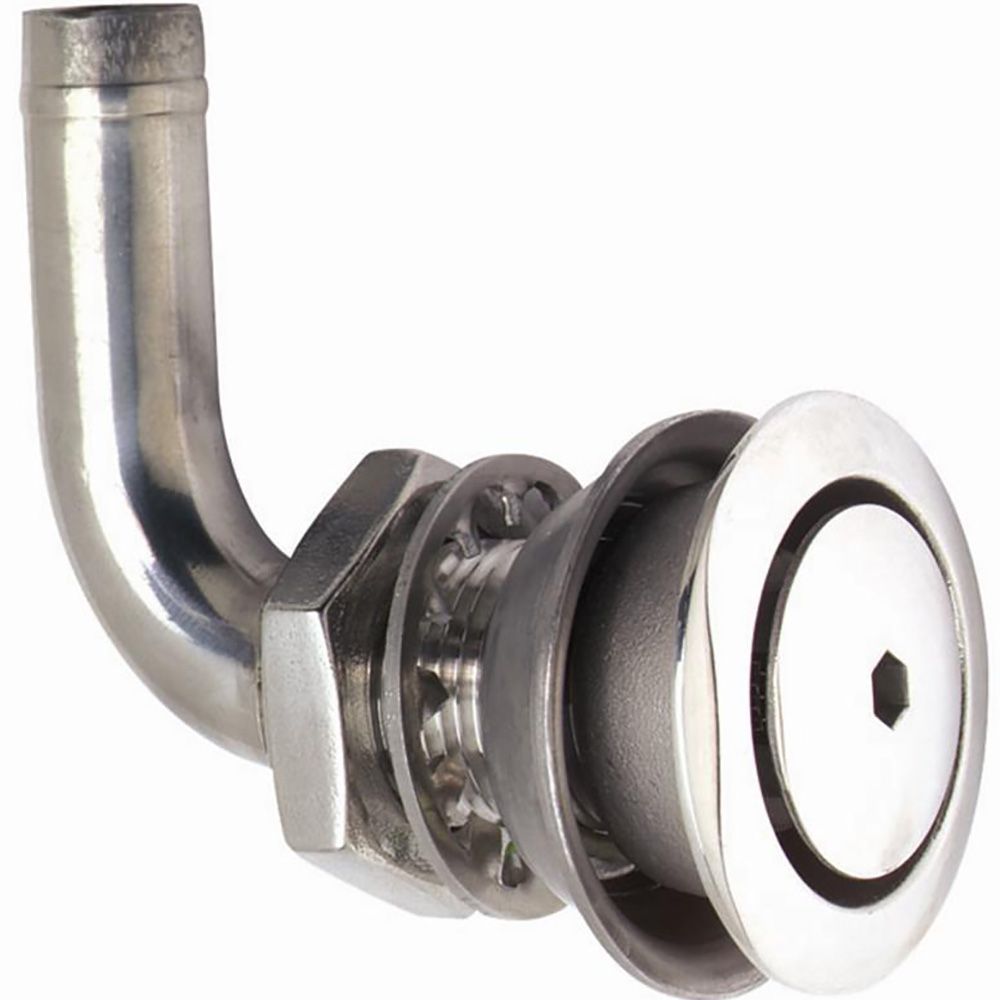

- 66032-3: 90 vent. This version helps when space behind the hull is tighter or the hose needs to turn soon after the fitting.
Installation and fit
Before drilling, confirm the mounting location has enough backing space for the selected straight or 90 degree hose path. The fitting is intended for a 1-3/8 inch hull opening and should be paired with 5/8 inch inner diameter fuel vent hose.
The flush face makes it a good match for hull sides, cockpit-adjacent areas, and exterior locations where a cleaner profile is preferred. As with any fuel system component, the vent should be installed so the hose runs without kinks, low traps, or sharp bends that could restrict tank breathing.
Maintenance and care
The removable cap gives practical access for cleaning the filter and pressure testing the fuel system. Periodic inspection is useful on boats that see salt spray, fuel splash, heavy washdowns, or long storage periods, especially around the gasket area and hose connection.
What’s included
- Flush mount fuel vent
- Two silicone gaskets
