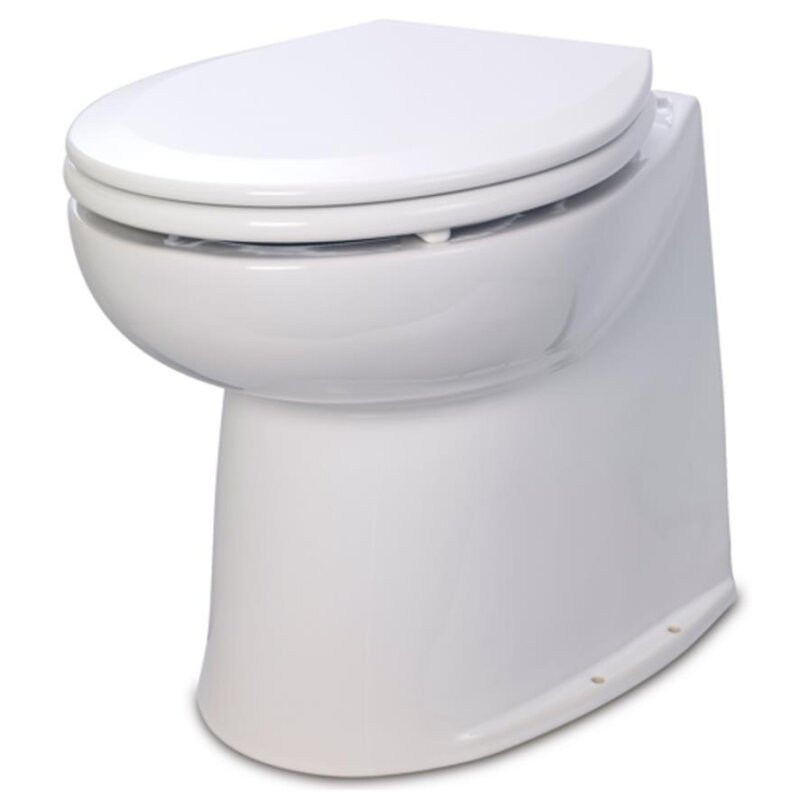

Jabsco Deluxe Flush Electric Marine Toilet, 17 in Height, Straight Back, Fresh Water Flush, Soft-Close Seat

Overview

The Jabsco Deluxe Flush is an electric marine toilet range for boats using an onboard pressurized fresh water supply. This parent listing covers the 17 inch straight back fresh water version with a household size soft-close seat, a white vitreous china bowl, and either 12 VDC or 24 VDC power depending on the selected variant.

It connects to a 19 mm inlet hose and a 38 mm discharge hose, and the fresh water models use a solenoid valve with a siphon breaker for integration with the vessel's pressurized water system. The straight back bowl helps the toilet sit neatly against a vertical bulkhead, which matters in compact heads on cruising boats and larger day boats.

The one-touch control pad gives the user Fill, Quick Flush, Flush, and Empty functions. Quick Flush can use as little as 1 litre of water, so the toilet suits boats where fresh water use and holding tank capacity both matter.

Key features

• Fresh water flush setup for connection to an onboard pressurized water system, rather than a raw-water intake.

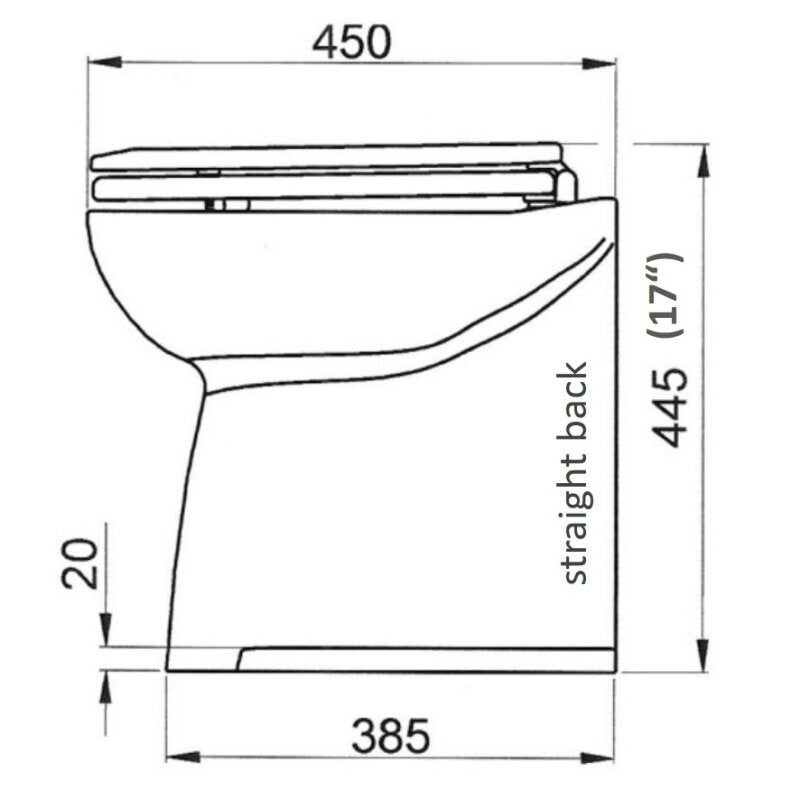

• 17 inch straight back bowl profile for fitting close to a vertical bulkhead in a marine head compartment.
• Household size soft-close seat and lid, giving a more familiar feel than many compact marine toilets.
• White vitreous china bowl with smooth contours that are easier to wipe down after regular cabin use.

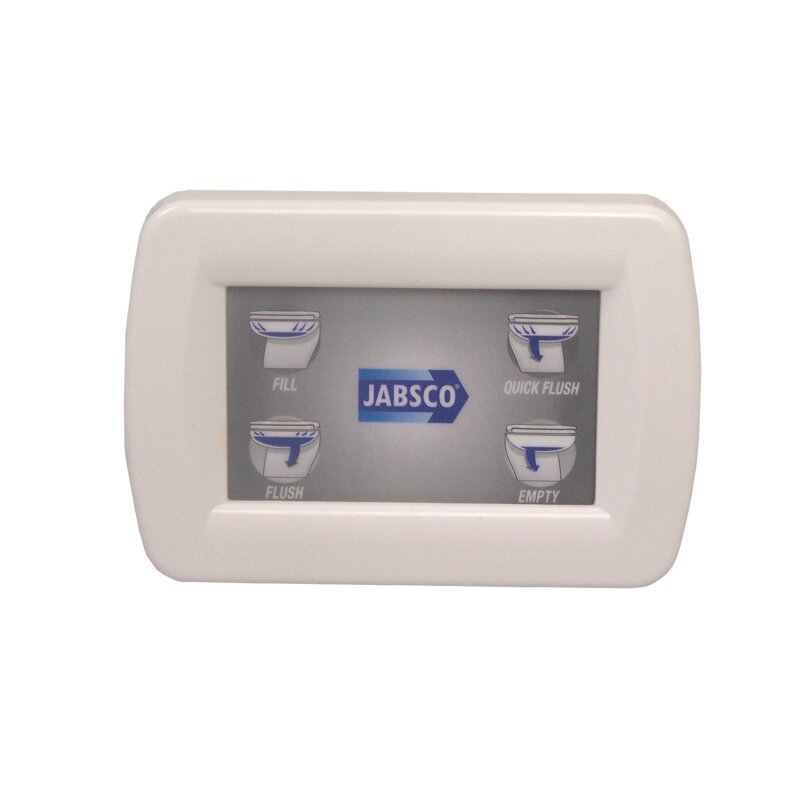

• One-touch control pad with Fill, Quick Flush, Flush, and Empty modes for normal use and bowl clearing.
• Uses as little as 1 litre of water on Quick Flush, helping reduce fresh water demand and holding tank fill rate.
• Large-bore macerator flush pump handles waste before discharge to onboard sanitation plumbing.

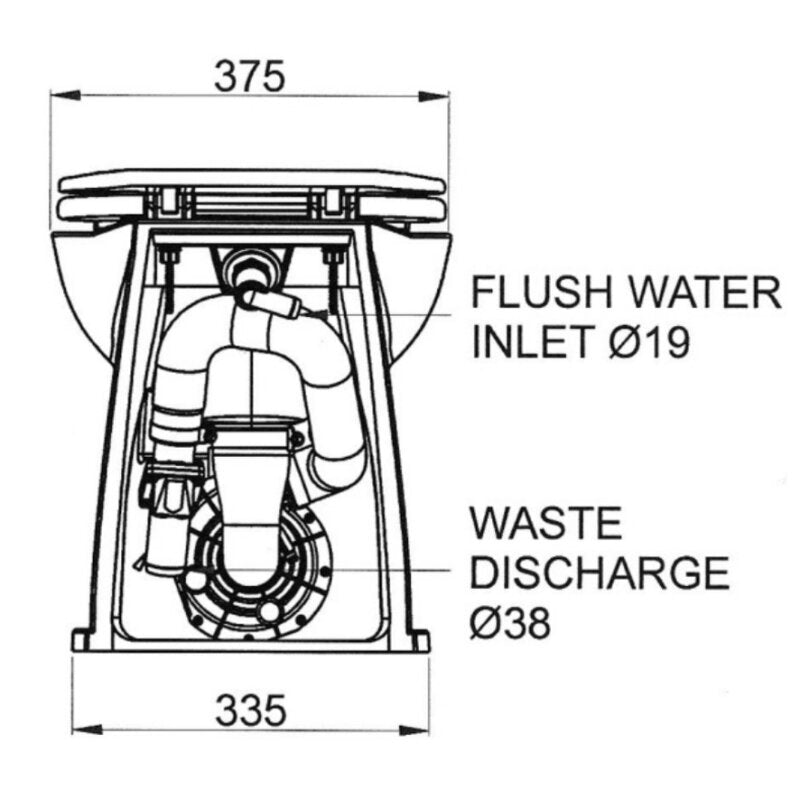

• 19 mm inlet and 38 mm discharge hose connections match common marine toilet plumbing sizes.

Variants

This model is offered in two voltage configurations so the toilet can match the boat's DC system.

The voltage is the varying attribute across these variants. The fresh water flush layout, 17 inch straight back format, soft-close seat, and Deluxe Flush control functions are the same across the listed configurations.

• 58040-3012: 12 VDC. This version matches boats with a 12 V house power system and uses a 25 amp fuse in the circuit.
• 58040-3024: 24 VDC. This version matches vessels with a 24 V house power system and uses a 15 amp fuse in the circuit.

Installation and setup

Install it as part of a marine sanitation system with the correct DC supply, fuse protection, and hose sizes. The fresh water models need a pressurized water system capable of supplying at least 11 litres per minute, and the solenoid valve and siphon breaker help prevent backflow into the potable water system.

The toilet can be used in powerboats and sailboats, above or below the waterline, when installed with the proper plumbing safeguards for the vessel. It fits the needs of owners replacing a manual head with an electric toilet or fitting out a cabin where a domestic seat height and fresh water flush are preferred.

Electrical and system integration

Match the variant voltage to the vessel's DC distribution before ordering. Use clean, protected wiring and keep cable runs sized for the current draw, because voltage drop can reduce rinse and flush performance on electric toilets.

Maintenance and care

Keep hose runs secure, check fasteners and fittings periodically, and inspect electrical terminals for corrosion. For seasonal layup, winterize the toilet and freshwater line so trapped water does not freeze inside the toilet, valve, or hosework.

What’s included

• Deluxe Flush electric toilet assembly with 17 inch straight back bowl
• Household size soft-close seat and lid
• One-touch control pad

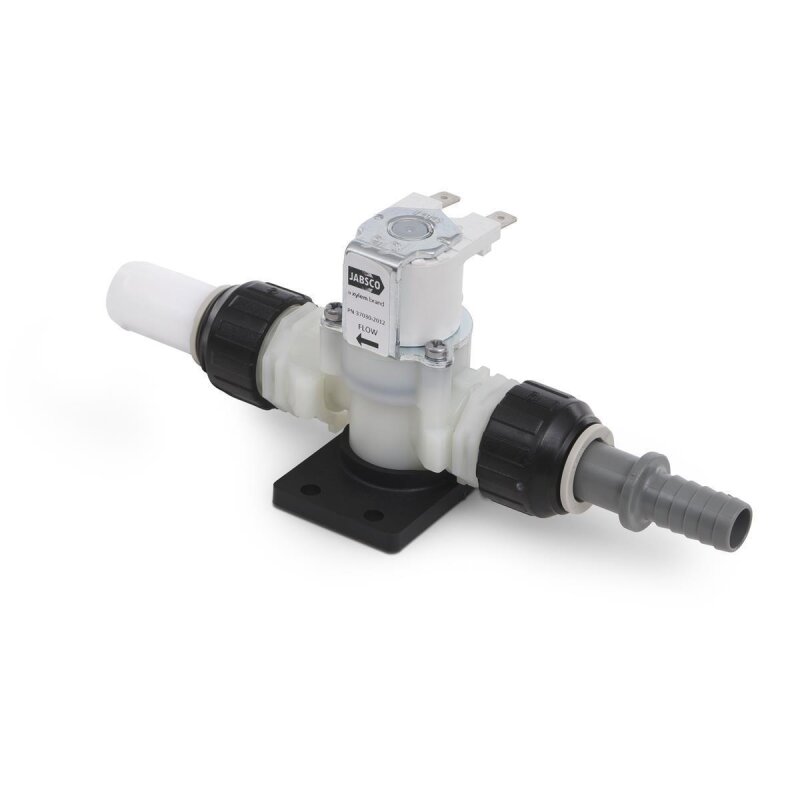

• Solenoid valve and siphon breaker assembly for pressurized fresh water flush
