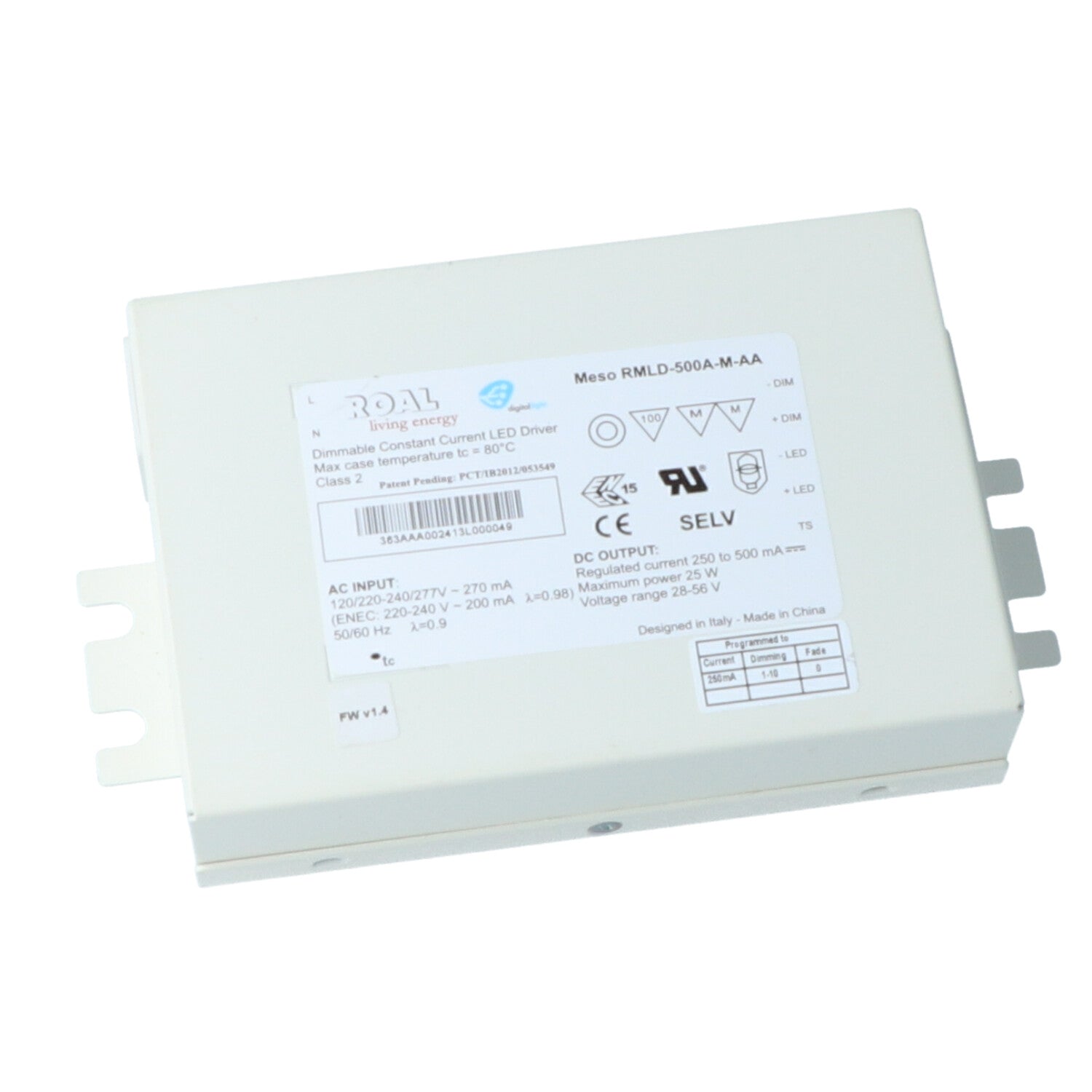

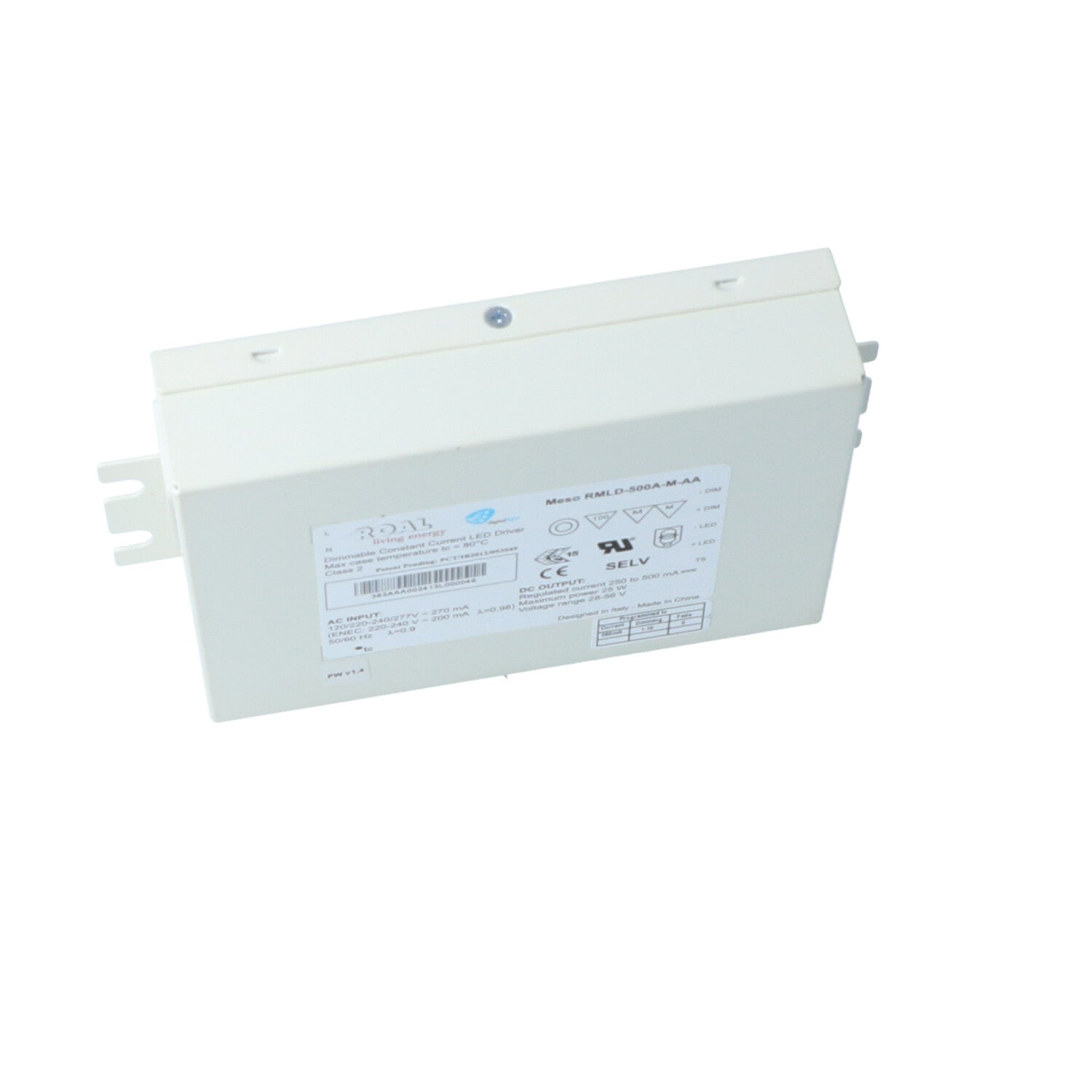

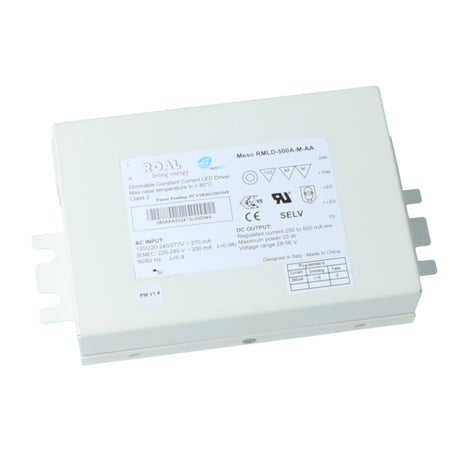

Cantalupi Meso RMLD-500A-M-AA Dimmable Constant Current LED Driver | 25W Max Power | 250–500 mA Output
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Precision Power Control for Marine LED Systems
The Cantalupi Meso RMLD-500A-M-AA delivers advanced dimmable LED control in a sleek, marine-grade driver. Built to supply a regulated constant current between 250 and 500 mA, this driver offers unparalleled efficiency and flicker-free illumination for refined onboard lighting experiences. Whether you’re dimming mood lighting in a salon or powering functional LEDs in technical areas, this driver ensures consistent performance.
Multi-Voltage AC Input for Global Compatibility
Engineered with versatility in mind, this LED driver supports a wide input range of 120V, 220–240V, and 277V AC, operating seamlessly at 50/60 Hz. With an input current of 270 mA, it integrates effortlessly into international marine electrical systems, making it ideal for vessels sailing across varied shore power grids.
Class 2 Safety with Marine-Grade Reliability
Safety is at the heart of the RMLD-500A-M-AA. Rated as a Class 2 power supply, it meets stringent electrical safety standards—minimizing risk and maximizing performance. Designed for the marine environment, it guarantees secure and stable current output while withstanding the rigors of onboard life.
Compact Power with Intelligent Output Regulation
Delivering up to 25 watts of maximum power, this driver intelligently adjusts to match the demands of your lighting system. It operates efficiently within a voltage range of 28V to 56V DC, automatically adjusting to deliver precise current levels that protect your LEDs and extend their lifespan.
Built for Heat Management and Longevity
Reliability is reinforced by a maximum case temperature (Tc) of 80°C, ensuring thermal protection in enclosed or high-temperature installations. The driver’s thermal tolerance safeguards both the unit and connected lighting systems, giving you peace of mind in demanding onboard conditions.
Highlights
- Constant current output: 250–500 mA
- Maximum output power: 25W
- Voltage range: 28–56V DC
- AC input: 120V / 220–240V / 277V at 50/60 Hz
- Input current: 270 mA
- Class 2 rated for safety compliance
- Maximum case temperature (Tc): 80°C
- Ideal for dimmable marine LED lighting systems
Specifications
The Cantalupi Meso RMLD-500A-M-AA is a constant current dimmable LED driver designed for marine-grade lighting control. Its AC input range spans 120V to 277V at both 50 and 60 Hz frequencies, drawing 270 mA. On the DC side, the driver provides a regulated output between 250 mA and 500 mA, suitable for LEDs requiring 28V to 56V. With a maximum power output of 25W, it supports efficient and safe energy delivery. The Class 2 safety rating ensures onboard compliance, while a max case temperature of 80°C maintains performance even in demanding environments. Its compact design and intelligent power regulation make it ideal for high-end yachts and marine installations where safety, elegance, and reliability are key.
