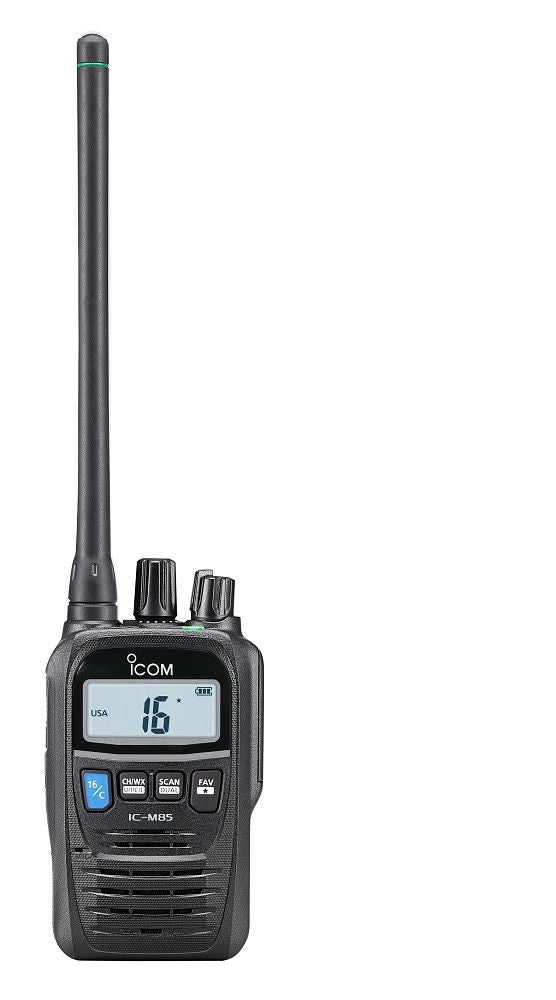

Icom M85UL Hand Held VHF Intrinsically Safe M85UL 31 USA

SKU: QBP792411   Model: M85UL 31 USA   Barcode: 731797043955
Regular price $449.95 USD
Only 2 left
Low inventory - Hurry up!

Got questions? Ask an expert!

Know someone who needs this?
Share it with your crew or mechanic.

Icom M85UL Hand Held VHF Intrinically Safe

Model: M85UL 31 USA
  • AquaQuake™ prevents water-logged speaker
  • Internal VOX capability for hands-free operation
  • Weather channel receiving
  • Self check function checks internal temperature and connected battery voltage
  • Priority scan function
  • Dual/tri-watch function for monitoring CH16 and/or call channel
  • Favorite channel function for quick access to often used channels
  • Built-in voice scrambler (32 codes)*

The M85 is the smallest, lightest and toughest radio on the market today!

The M85 can withstand hazardous and inhospitable environments at sea and on land, as it is built to MIL-STD 810. The IP67 waterproof rating protects the radio, even if dropped in the water. Yacht and commercial customers like the M85 because of the 100 programmable land mobile channels, as well as the easy to use built-in voice scrambler for private communications. The M85 is full of the features you need including an automated emergency alarm.

The M85 user-friendly display includes icons and indicators like transmit power, VOX ON/OFF, battery status, scan, weather channel and more. These icons and indictors improve the user-experience and operation. The M85 also includes a continuous 20-position rotary selector and ON/OFF volume knob, which is tilted for easy access.

For emergency situations the M85 includes the MOB Alarm, Man Down and lone worker functions. If one of these functions is activated, the radio automatically makes an emergency alarm.

The M85* built-in voice scrambler provides private communications between stations. The multi-function button on the top of the radio can be assigned to the scrambler function for easy activation. Or use the multi-function button to simply change from marine to land mobile frequencies.

In addition to VHF marine channels, the M85 covers 136–174MHz land mobile frequencies. Up to 100 programmable channels are available for land mobile use at 2W output power. Each channel is programmable with CTCSS and DTCS tone. Proper licensing is required to operate within the above land mobile frequencies.

Built to withstand the elements, the submersible M85IS* intrinsically safe VHF handheld is perfect for commercial customers working in harsh environments. The M85IS* plus the BP292IS*, HM184IS* all meet ANSI/TIA-4950-A, ANSI/UL 121201 requirements for:

Specifications
General
Frequency coverage
Marine Tx 156.025–157.425 MHz
Marine Rx 156.050–163.275 MHz
Land Mobile Tx/Rx 136.000–174.000 MHz
Usable channels
Marine Channels Tx/Rx INT, USA*, CAN, WX* channel (* Varies according to version)
Land Mobile Channels Tx/Rx 100 LMR channels
Type of emissions (Channel spacing)
Marine 25 kHz
LMR LMR 12.5 kHz
Antenna Impedance 50O
Current drain
Marine Tx 1.5A (at 5W)
Land Mobile Tx 0.9A (at 2W)
x Max. audio 0.45A
Power supply requirement 7.2 V DC nominal
Operating temperature range
Marine -20 °C to +60 °C; -4 °F to +140 °F
LMR -30 °C to +60 °C; -22 °F to +140 °F
Antenna Impedance 50O
Receiver
Sensitivity (at 12dB SINAD) 0.25 µV typical
Adjacent Channel Selectivity
Marine channels 70 dB typical
LMR channels 70 dB typical (Wide) / 55 dB typical (Narrow)
Spurious response 70 dB typical
Hum and noise
Marine channels 40 dB
LMR channels 40 dB (Wide) / 34 dB (Narrow)
Audio output power
Internal SP 700 mW typical (at 10% distortion with 12O load)
External SP 700 mW (at 10% distortion with 8O load)

What's in the Box:
  • M85UL
  • BP-292UL, battery pack
  • FA-SC58V, antenna
  • BC-227, desktop charger
  • MBB-3, Belt clip
  • BC-123SA, AC adapter
  • Hand strap
