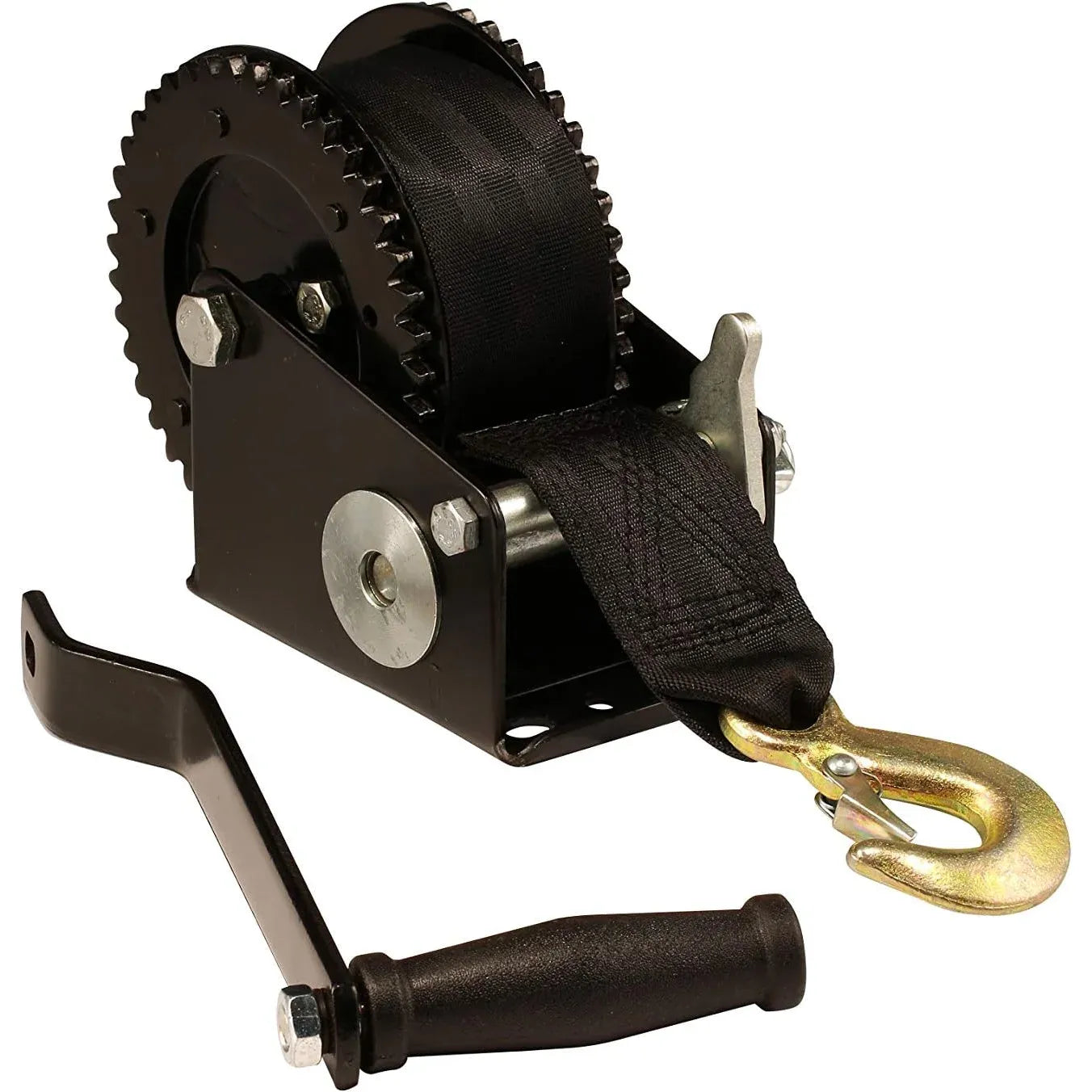

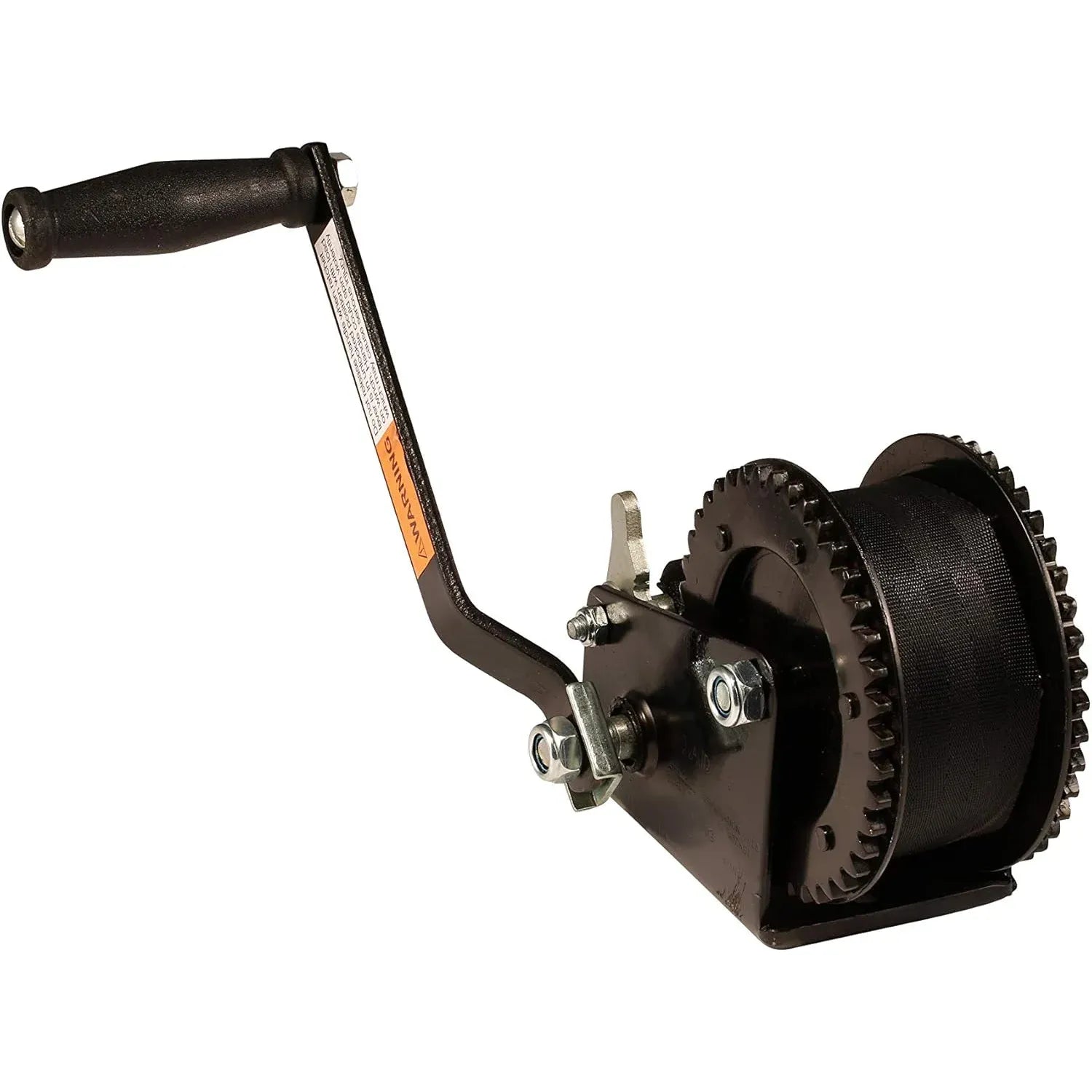

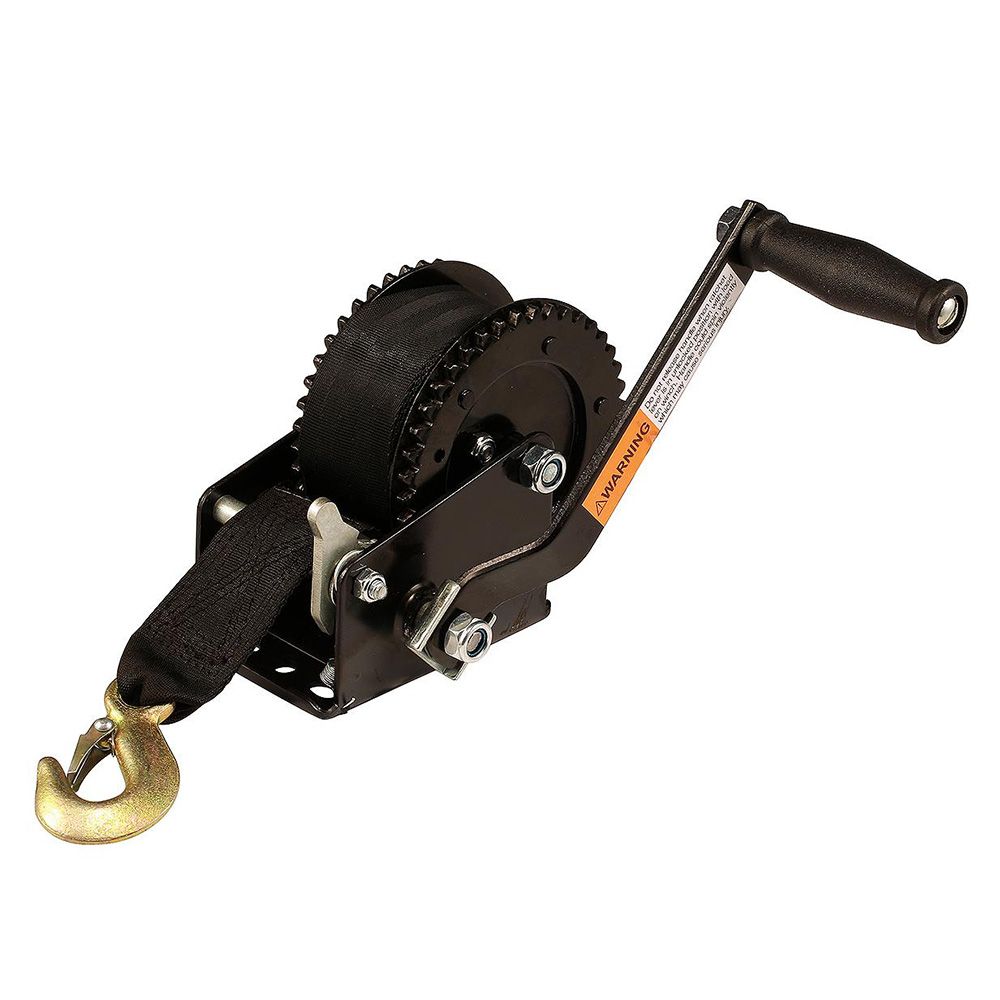

Attwood Marine Boat Trailer Winch, 2 in x 20 ft Nylon Strap, 4.1:1 Gear Ratio, 3-Position Pawl

Overview

This Attwood Marine trailer winch is a manual boat trailer winch range for loading and retrieving trailerable boats with a 2 in x 20 ft nylon web strap. The range covers two drive and capacity options: a 1200lb single-driver version and a 2000lb dual-drive version, each with a 4.1:1 gear ratio.

These winches are built for boat trailer use where simple hand operation, controlled movement, and a secure strap connection matter at the ramp. A three-position pawl supports forward, neutral, and reverse operation, while the included zinc-plated snap hook connects the strap to the boat during launch and retrieval.

Because this is a manual winch, it does not require 12V or 24V wiring, switches, batteries, or marine network integration. Fit should be checked against the trailer winch stand, mounting pattern, boat weight, and the working load needed for the launch conditions.

Key features

• Manual boat trailer winch range with 1200lb and 2000lb rated capacity options.
• 2 in x 20 ft nylon web strap included for boat trailer launch and retrieval work.
• 4.1:1 gear ratio gives controlled hand-crank operation at the ramp.
• Three-position pawl supports forward, neutral, and reverse operation.
• Zinc-plated snap hook provides a direct strap connection to the boat's bow eye.
• Black EDC finish helps the winch stand up to normal trailer exposure.
• Molded textured roller grip gives the handle a more secure feel when cranking with wet hands.
• Dual-drive 2000lb version distributes load across two gear sets to reduce frame torque.

Variants

This Attwood Marine trailer winch range is offered in two configurations for different trailer loads and drive preferences.

The variants differ by drive type and rated capacity. Both configurations use a 2 in x 20 ft nylon web strap, 4.1:1 gear ratio, three-position pawl, black EDC finish, molded textured roller grip, and zinc-plated snap hook.

• 11149-4: Single Driver Winch with 1200lb capacity. This version keeps the setup straightforward for lighter trailerable boats where the winch rating matches the boat, trailer, and ramp conditions.
• 11195-4: Dual Drive Winch with 2000lb capacity. This version uses a dual-drive layout that spreads the load across two gear sets, which helps reduce frame torque during heavier pulls.

Installation and use

Mount the winch on a trailer winch post or stand that matches the winch base and load requirement. The strap should pull in a straight line toward the bow eye whenever possible, with the winch positioned so the strap does not rub against the trailer frame, bow stop, or roller hardware during retrieval.

Before use, confirm that the selected capacity is appropriate for the boat, trailer setup, ramp angle, and launch conditions. The winch is for controlled trailer loading and positioning, not for lifting the boat or replacing proper tie-down straps during transport.

Maintenance and care

After saltwater use, rinse the winch, strap, hook, and surrounding trailer hardware with fresh water and let the strap dry before long storage. Check the strap for cuts, abrasion, UV wear, or stitching damage, and inspect the hook and pawl action before each launch or retrieval.

This winch range is a practical match for boat owners who want a hand-operated trailer winch with a strap rather than cable, especially for small to midsize trailerable boats used for fishing, day cruising, or regular ramp launching.

What's included

• Manual trailer winch
• 2 in x 20 ft nylon web strap
• Zinc-plated snap hook

• 1336978_qbp790684.pdf
