Furuno - 165T-50/200-SS260 DFF3D - Thru-Hull Combo Transducer

Dive Deeper with the Thru-Hull Combo Transducer

Discover the wonders of the marine world with the 165T-50/200-SS260. A unique combination of DFF3D elements, 50/200 kHz elements, temperature and motion sensors offers an unparalleled experience. Designed to connect seamlessly with the DFF3D Multi-Beam Sonar and a sounder, it optimizes both cost and space. Why settle for one when you can have the best of both worlds?

Key Specifications to Marvel At

• Operates at a frequency of 165 kHz for the DFF3D
• Power-packed with 1kW, 50/200 kHz, 20/6 ° beam angles
• Boasts the same sounder elements as the renowned Airmar B164 transducer
• Comes with a 12M Cable, 10-pin Connector for sounder, and a 7-pin connector for the DFF3D

Finishing Touches to Elevate Design

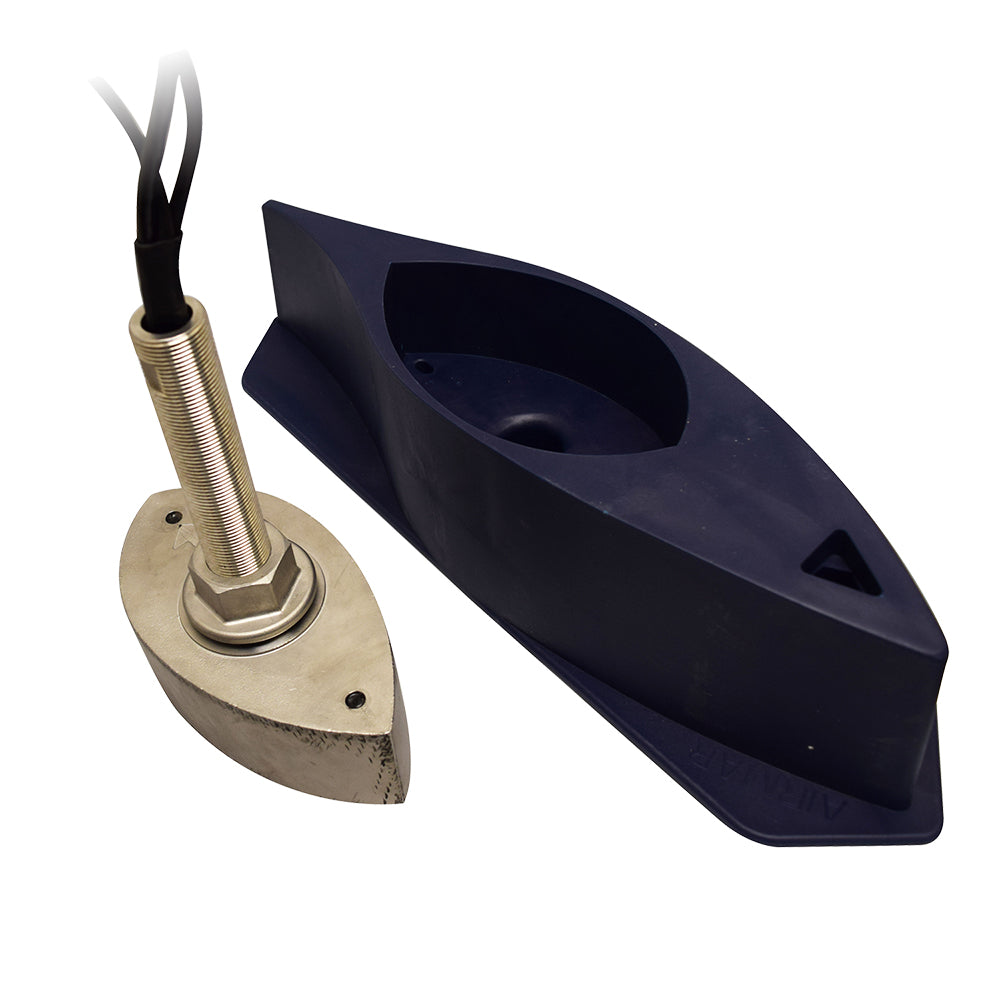

The Stainless Steel Thru-Hull design is not just about aesthetics but also functionality. The high-speed fairing block ensures smooth sailing, while the option for flush mounting in the keel without using the fairing block brings flexibility to the installation process.

Noteworthy Highlights to Spotlight

• Equipped with a built-in motion sensor for precision
• Integrated temperature sensor for real-time readings
• Ideal for TZtouch2 or TZtouch/DFF1, and DFF3D installations

Array of Variants Tailored for You

While the main description highlights the unique combination of the DFF3D and 50/200 kHz elements, we offer a myriad of variants designed to cater to specific needs.
