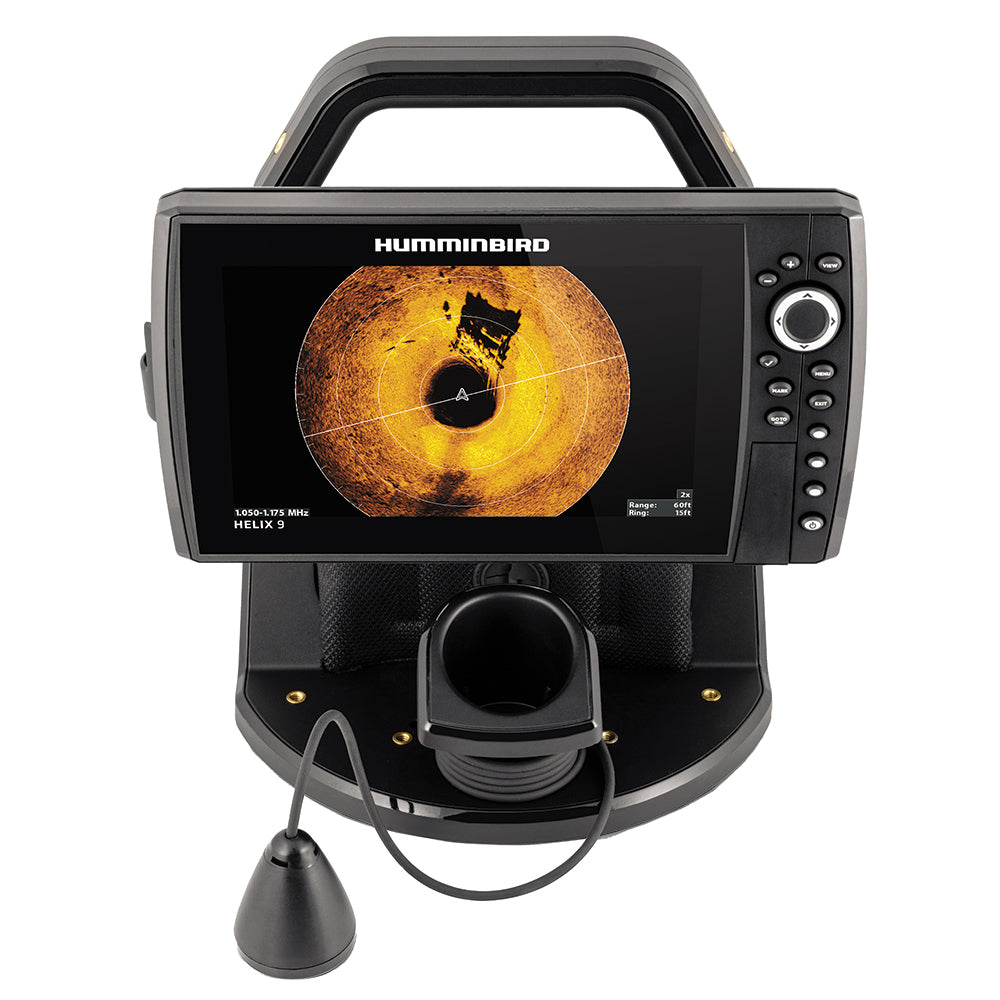

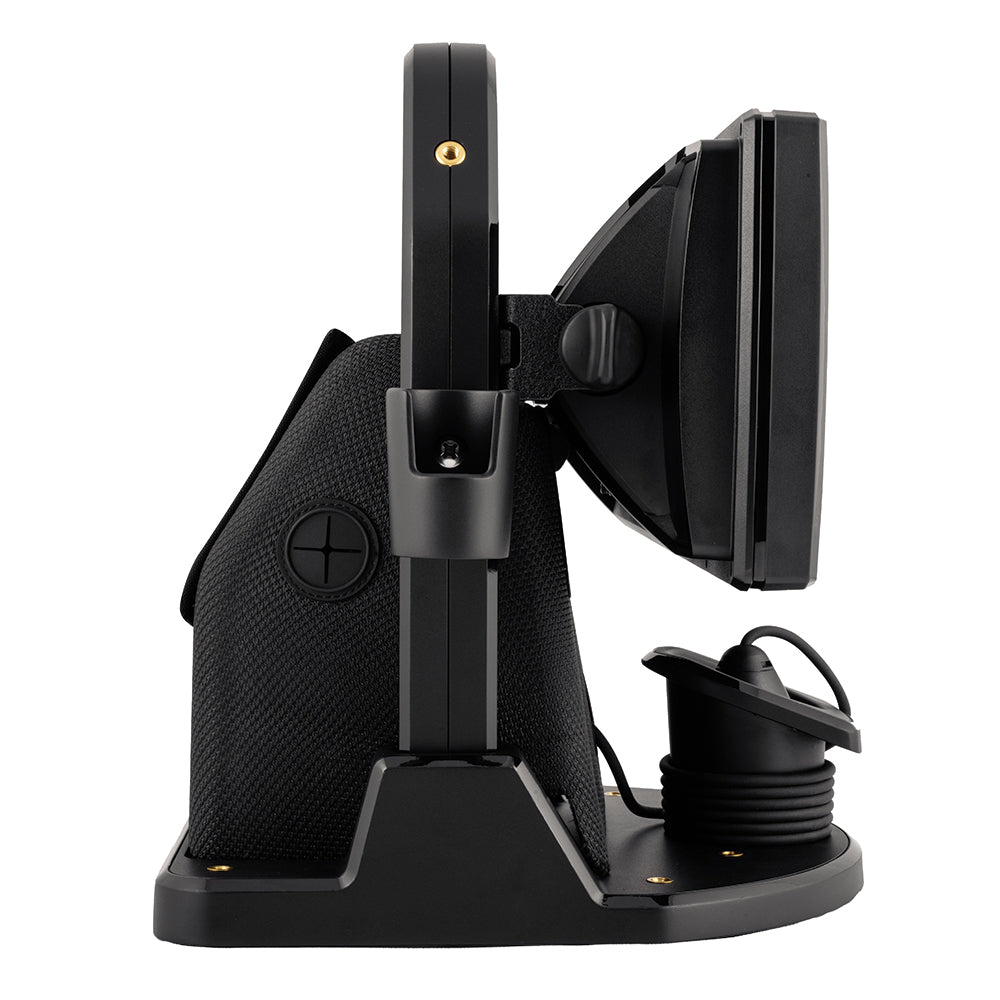

Humminbird - ICE HELIX 9 MSI+ GPS G4N MEGA 360 Bundle

Unmatched Clarity and Precision for Ice Fishing

The Humminbird ICE HELIX 9 MSI+ GPS G4N MEGA 360 Bundle sets a new standard for ice fishing technology. This powerful bundle combines MEGA Imaging®+ with a vibrant 9" HD LCD display, allowing you to see structures, the bottom, and fish up to 125 feet in every direction. Equipped with Dual Spectrum CHIRP Sonar, CHIRP Interference Rejection, and a built-in GPS with Humminbird Basemap, this unit provides everything you need to locate and catch fish with ease. Additional features like AutoChart Live ICE, Jig Charge Mode, and a 20Ah lithium battery make this an indispensable tool for serious anglers.

Key Features to Enhance Your Fishing Success

• MEGA 360 Imaging: Quickly locate fish and structures without drilling excessive holes. Track moving schools and identify their direction with unparalleled detail.
• Dual Spectrum CHIRP Sonar: High-resolution returns of fish, bait, and structures in both flasher and traditional 2D sonar views, with target separation down to 3/4".
• CHIRP Interference Rejection: Six customizable settings keep your screen free of clutter from competing sonar signals.
• Adjustable Sonar Zoom: Focus on specific depths with 2X zoom on the flasher screen or up to 16X zoom on 2D sonar, ideal for spotting fish at any level.
• Built-In Precision GPS: Navigate with ease using internal GPS, mark waypoints, and safely track your location to and from your favorite fishing spots.
• Humminbird Basemap: Provides detailed maps of over 10,000 lakes, including key features like buoys, markers, hazards, and contours.

All-Inclusive Package for Comprehensive Coverage

• AutoChart Live ICE: Create real-time 1-foot contour maps, helping you pinpoint prime fishing areas like humps and drop-offs.
• MicroSD Card Reader: Dual slots for premium mapping, software updates, and saving screenshots, sonar recordings, and waypoints.
• Ultra-Bright LCD Display: Adjustable brightness ensures clear viewing in any lighting conditions, displaying depth, sonar returns, and more.
• Jig Charge Mode: Quickly charge your glow-painted lures and jigs, keeping you in the action.

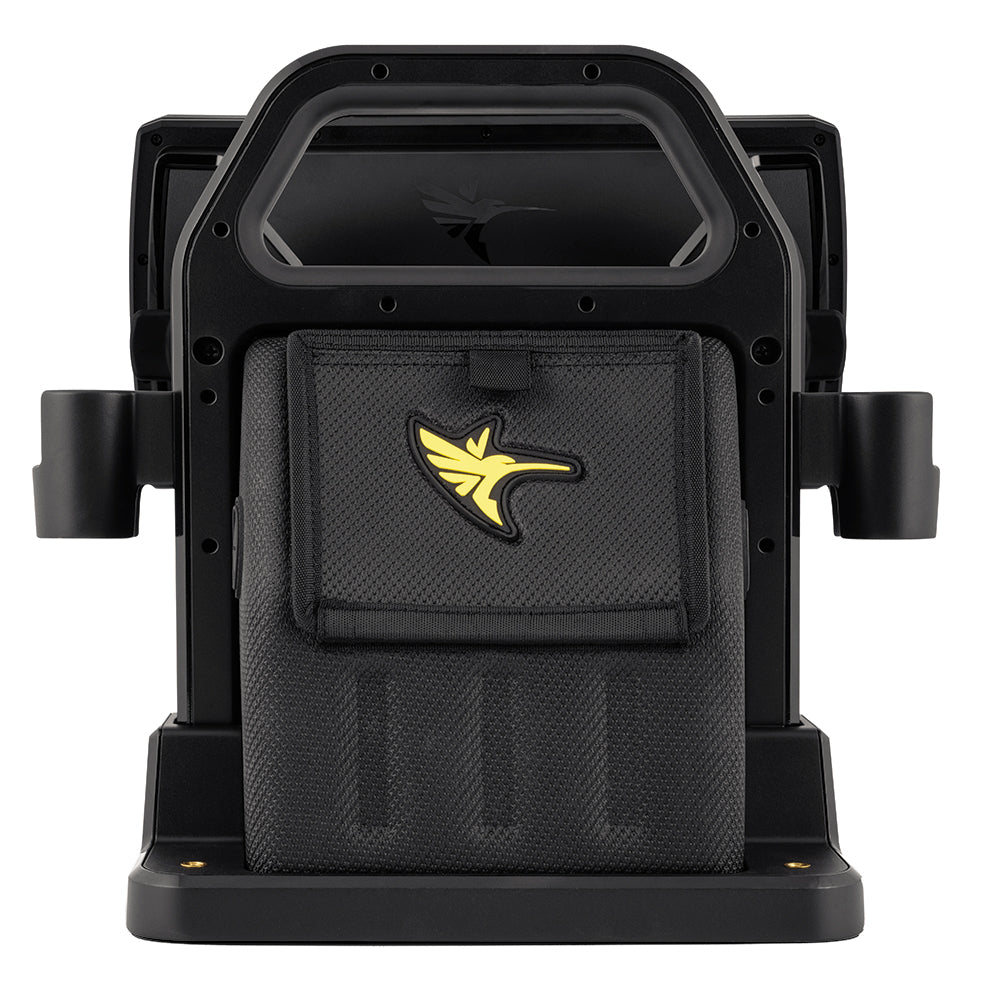

• Premium Shuttle: Features a master power switch, quick-connect SAE power cables, rod holders, cable management, and a protective battery cover.

Specifications for Peak Performance

• Display Size: 9" diagonal with 1024H x 600V pixel matrix
• Sonar Capabilities: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
• Sonar Coverage: Wide range of angles including 20°, 42°, 60°, (2) 86°, and (2) 55° @ -10dB
• Power: 10.8-20 VDC input, 2.4 Amps draw, 8000 Watts peak-to-peak power output
• Depth and Imaging Range: Up to 1200 ft depth (standard), 3500 ft (optional 50 kHz), and various imaging frequencies

Dimensions and Versatility

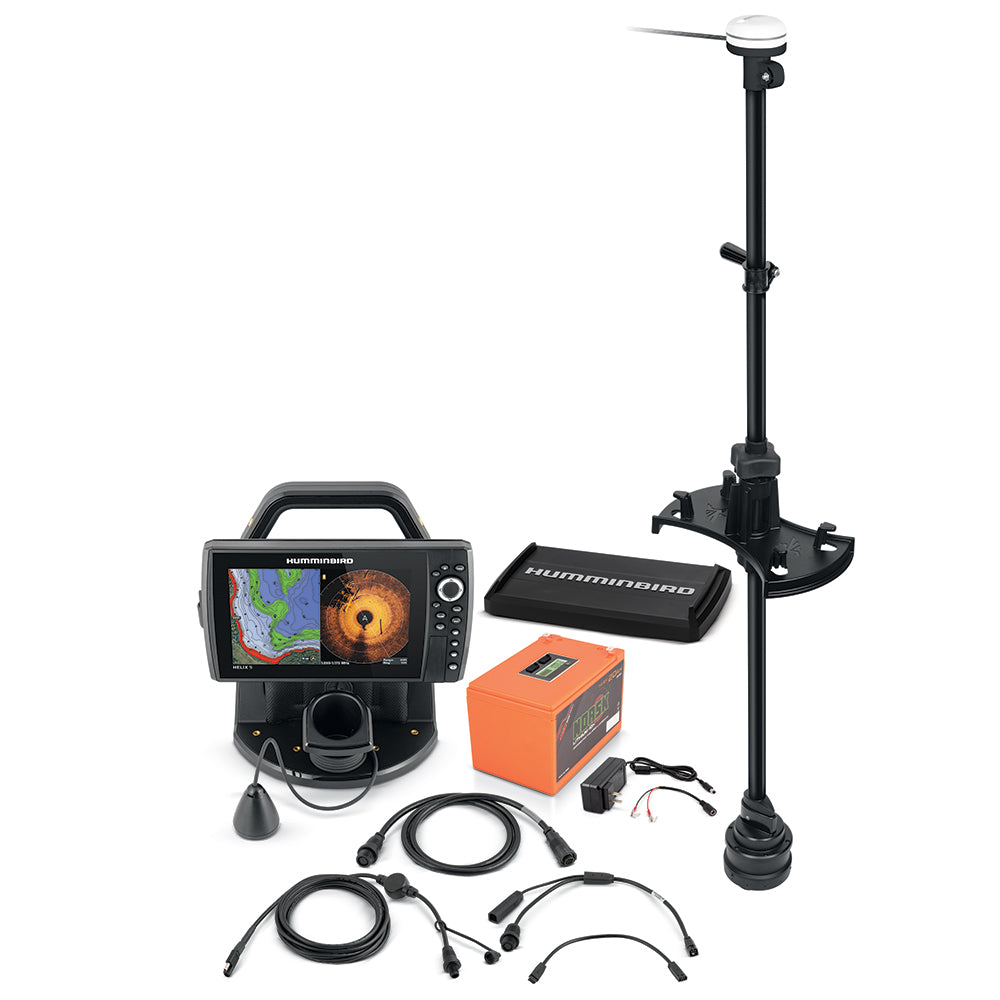

The compact, portable design makes it easy to transport and set up, whether on the ice or on a boat. The package includes the ICE HELIX 9 MSI+ GPS G4N fishfinder, MEGA 360 transducer, ICE Adapter Kit - MEGA 360, Heading Sensor GPS Puck, Dual Spectrum CHIRP ICE transducer, 20Ah lithium battery with USB ports, charger, ICE shuttle, necessary hardware, and a silicone screen cover.

Built to Excel in Harsh Conditions

Designed for durability, the Humminbird ICE HELIX 9 is constructed to withstand extreme ice fishing conditions, offering reliable performance year-round. It’s compatible with a wide range of accessories, including Minn Kota's advanced technologies, making it an integral part of your fishing gear.

Why Choose the Humminbird ICE HELIX 9 Bundle?

This comprehensive bundle provides everything an ice angler needs to succeed. With advanced sonar, GPS, and mapping features, you can fish with confidence and precision. Whether you're mapping out a new lake or returning to a familiar spot, the ICE HELIX 9 ensures you have the best tools at your disposal.

Get the Edge on the Ice

Upgrade your ice fishing experience with the Humminbird ICE HELIX 9 MSI+ GPS G4N MEGA 360 Bundle. From its advanced imaging capabilities to its user-friendly features, this bundle offers unmatched value and performance, helping you make the most of every fishing adventure.
