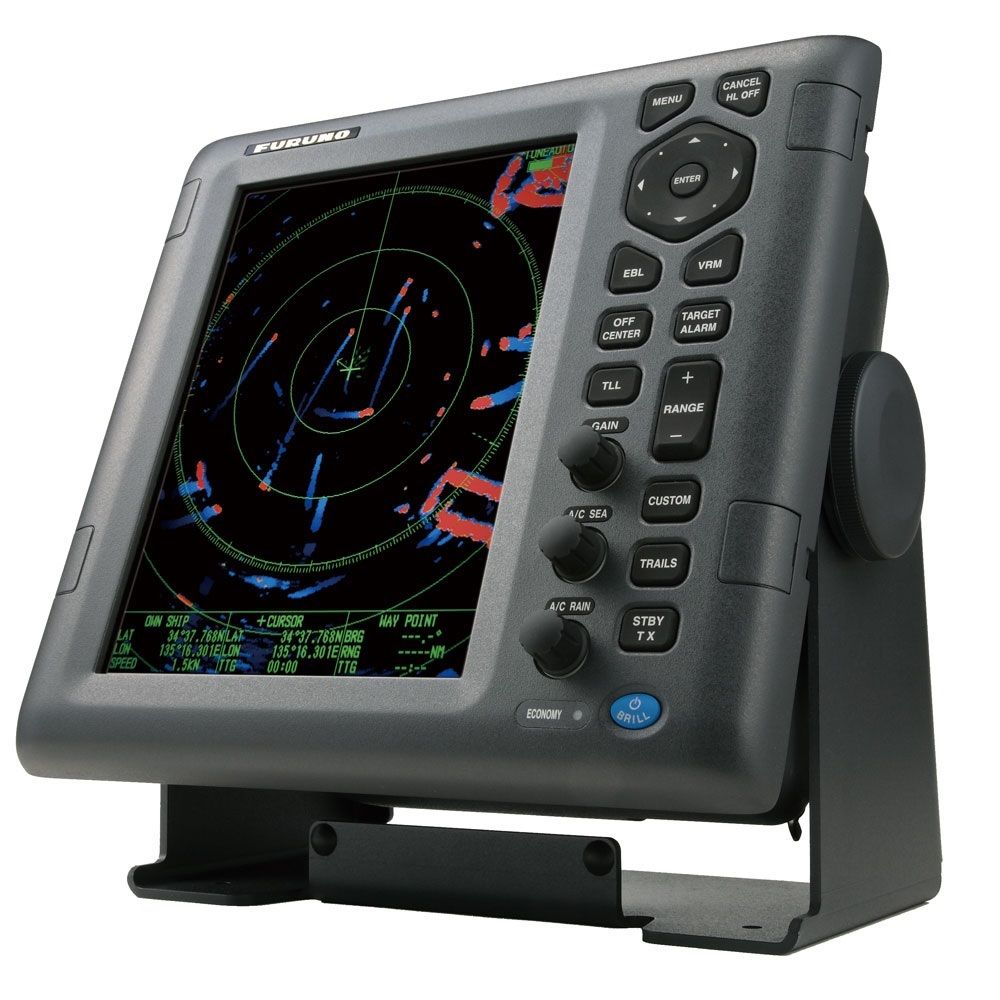

Furuno - FR8065 6Kw 12.1" Color Radar - Requires Antenna

Exceptional Clarity and Precision for Marine Navigation

The Furuno FR8065 12.1" Color Radar delivers superior target detection and enhanced situational awareness, making it an essential tool for high-performance marine navigation. Designed with state-of-the-art signal processing and UHD™ digital radar technology, this system ensures reliable tracking even in adverse weather conditions. The FR8065 effectively distinguishes between rain, sea clutter, and other surface reflections, providing a clear and accurate display for enhanced navigation.

With its 6kW power output and a range of up to 72 nautical miles, this radar system is well-suited for vessels navigating coastal and open waters. The 12.1" SVGA color LCD offers a wide viewing angle, ensuring visibility from multiple positions on the bridge. The True Motion Echo Trail and advanced auto modes allow for seamless tracking of moving objects, delivering real-time data crucial for safe and efficient maritime operations.

Advanced Target Tracking and Display Features

Equipped with advanced tracking capabilities, the FR8065 can continuously monitor and display up to ten targets with its Target Tracking (TT) feature. When integrated with an AIS device, it can track up to 100 additional targets, providing real-time information on heading, speed, and course. The True Trail Mode offers a visual representation of moving objects, allowing for quick decision-making in high-traffic waters.

For improved usability, the system includes multiple display modes, such as Head-up, Course-up, North-up, True View, and True Trail. The Full-Screen and Off-Center modes maximize screen space, offering a detailed and unobstructed radar view.

Technical Specifications

• Maximum Range Scale: 72 NM
• Range Discrimination: 25 meters
• Bearing Discrimination: 1.9° (XN12A4) / 1.35° (XN13A6)
• Minimum Detection Range: 25 meters
• Antenna Length: 4' (XN12A4) / 6' (XN13A6)
• Rotation Speed: 24 RPM
• Wind Load: 100 Kn
• Horizontal Beam Width: 1.9° (XN12A4) / 1.35° (XN13A6)
• Vertical Beam Width: 22°
• Screen Size: 12.1" Color LCD
• Screen Resolution: 800V x 600H
• Interface:Input: NMEA0183 Ver. 1.5/2.0/3.0/4.0, AD-10 format
• Output: NMEA0183 Ver. 1.5/2.0/3.0/4.0
• Input Voltage: 24V DC

Product Dimensions

• Display Unit: 12.6" W x 12.6" H x 6.8" D (without bracket)
• Bracket Addition: Increases height by 1"

Highlights

• High-clarity 12.1" SVGA color LCD with a wide viewing angle
• 6kW power output with a range of up to 72 NM for long-distance tracking
• One-touch auto-adjust settings for Gain, Sea Clutter, and Rain Clutter
• Superior short-range target detection for enhanced safety
• Optional 48 RPM high-speed antenna rotation for high-speed vessels
• True Motion Echo Trail for real-time target movement tracking
• Multiple display modes for adaptable situational awareness
• Full-Screen and Off-Center modes for an optimized radar view
• AIS integration for tracking up to 100 vessels simultaneously
• Programmable radar settings to optimize performance for different sea conditions

Variations List

• XN12A4 Antenna: 4' open array, 1.9° horizontal beam width
• XN13A6 Antenna: 6' open array, 1.35° horizontal beam width

What's in the Box

• RDP154 Display
• Bracket and Knobs
• Sun Cover
• Power Cord
• Owner's Manual
• Operator's Guide
• Installation Manual
• RSB0070-085A Gear Box (6kW)
• 15m Signal Cable

This Furuno FR8065 12.1" Color Radar is an advanced and reliable choice for marine professionals and recreational boaters seeking high-performance radar technology. Whether navigating narrow passages, avoiding collision risks, or optimizing situational awareness, this radar system ensures precise and dependable operation in all maritime conditions.
