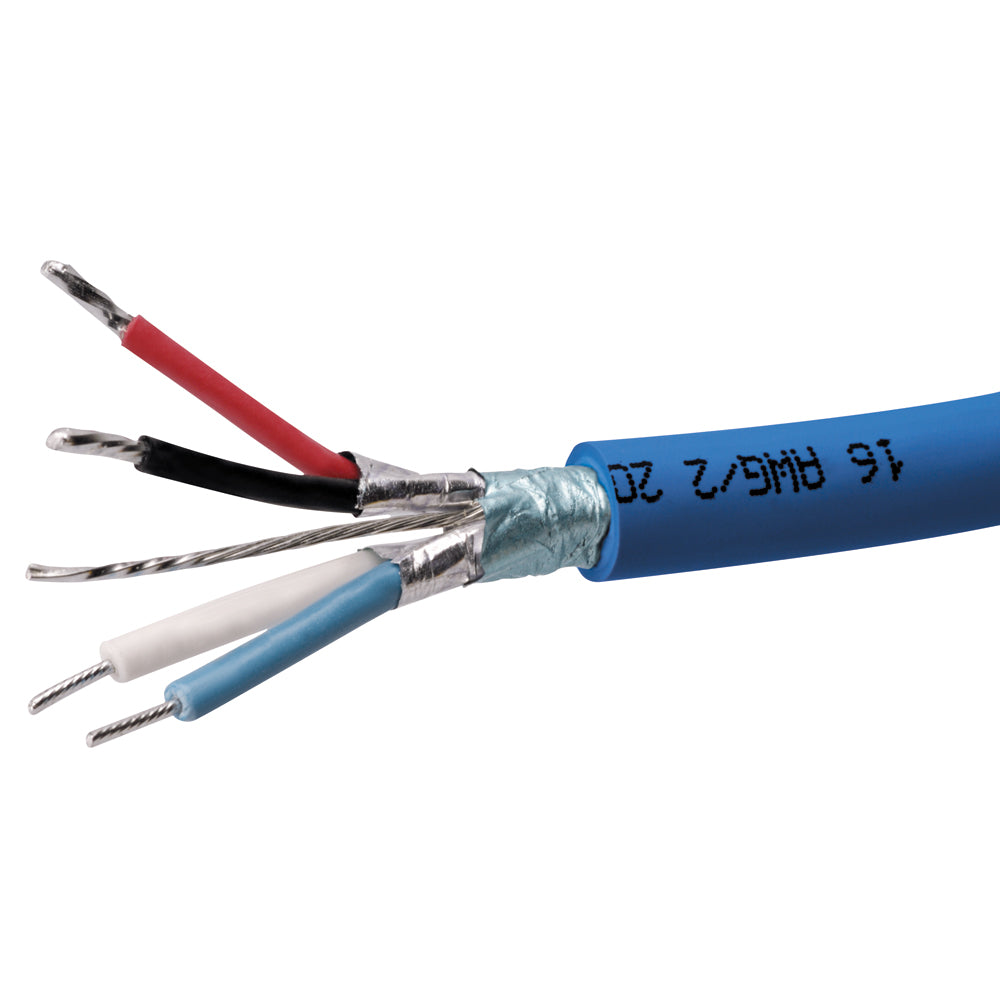

Maretron Mini Bulk Cable - 100 Meter - Blue NB1-100C

• Outer Jacket Mat/Color: PVC/Blue - NB1, PVC/Gray - NG1
• Insulation Material: PE (data), PVC (power)
• Construction: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire
• Shielding (3 Levels): Foil (overall), Foil (power pair), Foil (data pair)

• Wire: 2x15 (1.45mm) AWG
• Resistance/Conductor: 3.44 Ohms/1000 ft max
• Max Amperage: 16 Amps - NB1, 14 Amps - NG1
• Color Code: Red/Black

• Wire: 2x18 (1.02mm) AWG
• Characteristic Impedance: 120 Ohms +/- 10%
• Capacitance: 12 pF/1000 ft Max
• Color Code: White/Blue

• UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 APPROVED
• IEC: IEC-61162-3
