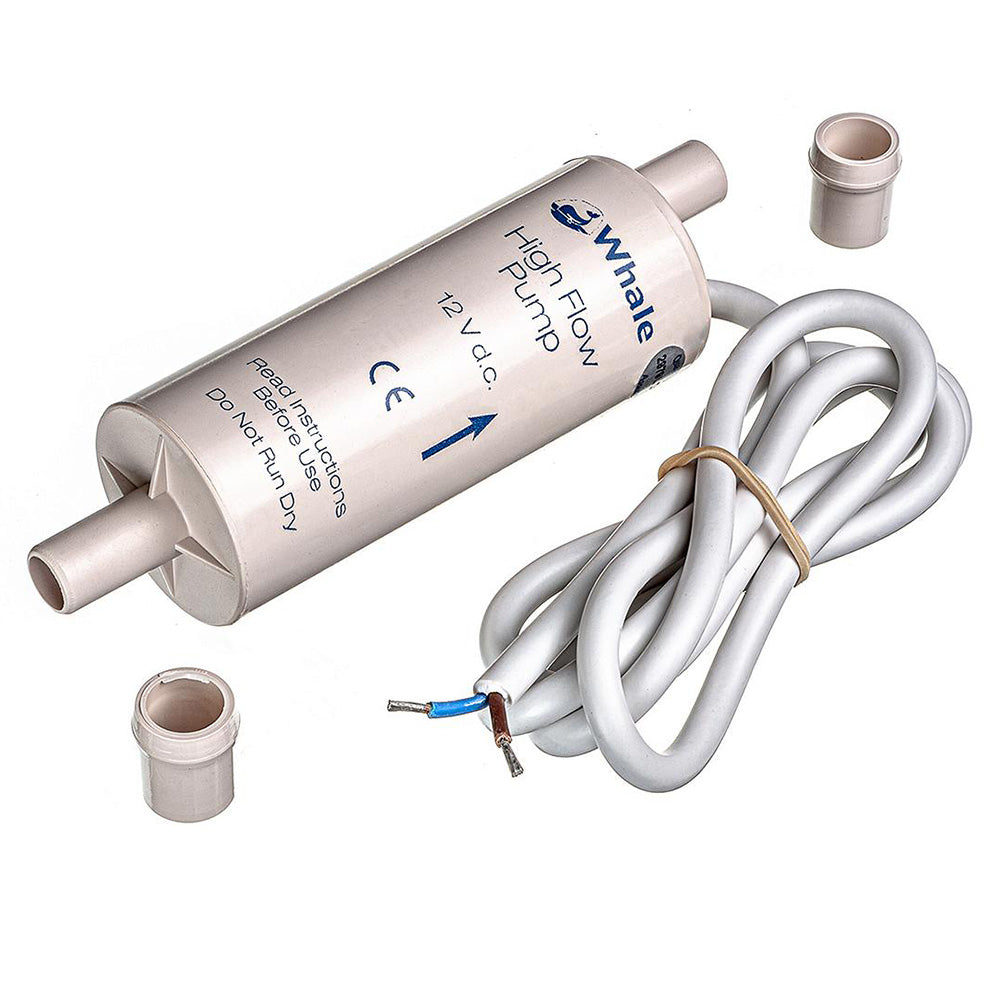

Whale Inline Booster High Flow Electric Galley Pump - 12V GP1692

Inline Booster High Flow Electric Galley Pump - 12V

This high-performance whale pump fits inline to increase the flow rate.

Features:

• The narrow design is ideal for dropping into the water tank
• Compact, quiet, lightweight design for use with pressure switch and microswitch systems
• An inexpensive way to upgrade a manual water system
• Also suitable for pumping diesel
• Low power consumption

Specifications:

• Pump Type: Inline
• Weight: 015 kg (0.3 lbs.)
• Voltage: 12 VDC
• Recommended Fuse Size: 5 amps
• Cable Length: 1m (3 ft.)
• Hose Connection: Suitable for 10 mm (38 in.) or 13 mm (1/2 in.) flexible hose use WX1511B (stern adapter 11-15 mm) and connect WX1504 (15 mm (5/8 in.) equal straight
• Filter Included: No
• Length: 129 mm (5-1/16 in.)
• Width: 36 mm (1-7/16 in.)

Materials:

• Pump Body: ABS
• Seal: Nitrile
• Strainer: Polyurethane
• Impeller: PBT
• Cable: PVC

Performance:

• Discharge Head: Flow rate per minute/current draw @ 12VDC
• 0 m (0 ft.): 15.8 liters (4 US gallons) 3.8 amps
• 1 m (3 ft.): 14.8 liters (4 US gallons) 3.7 amps
• 3 m (10 ft.): 12.8 liters (3.5 US gallons) 3.5 amps

1 Year Warranty:

• CE certified
• ISO 88846
• ISO 10133
• ABYC H-23
• IP67
