FLIR Systems - MTMS Thermal Camera

Advanced Thermal Monitoring for Marine Applications

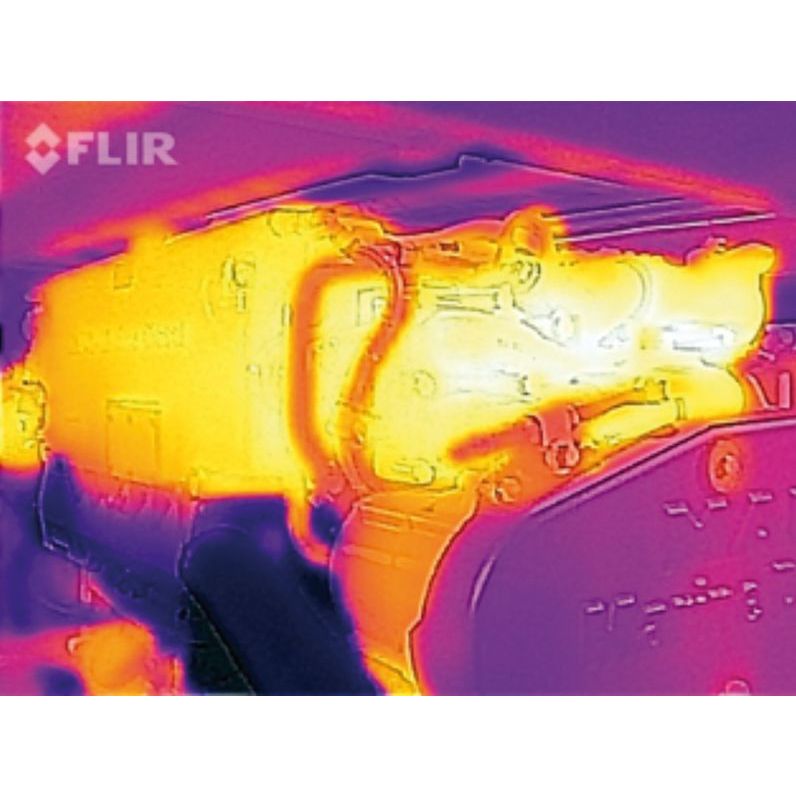

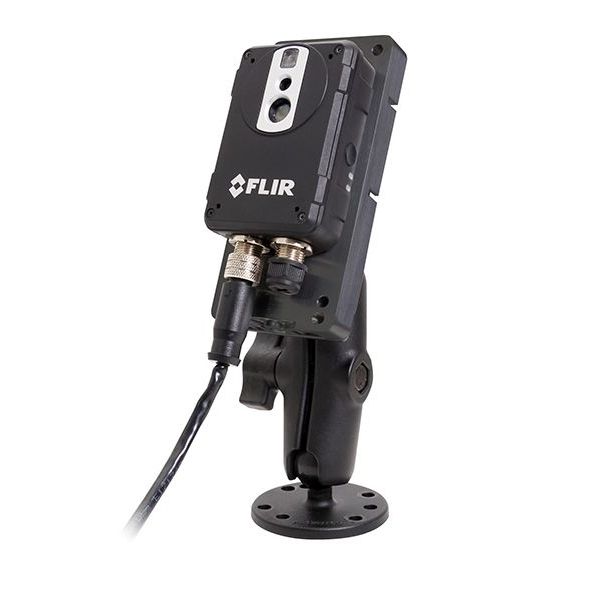

The FLIR Systems AX8 Thermal Monitoring Camera is a cutting-edge solution designed for continuous thermal surveillance of critical onboard machinery. By combining thermal and visible imaging in a compact package, this advanced camera provides real-time monitoring of engines, exhaust manifolds, and other vital components, ensuring vessel safety and efficiency. Integrated with Raymarine multifunction displays (MFDs), it offers automated alarms, live thermal video streaming, and easy-to-use alarm programming. The AX8 helps prevent costly repairs and unexpected failures, making it an essential tool for any marine environment.

High-Precision Thermal Imaging

Equipped with FLIR’s Lepton micro thermal camera, the AX8 delivers exceptional thermal sensitivity and imaging clarity. Its Multi-Spectral Dynamic Imaging (MSX®) technology enhances image details by blending thermal and visible images, making it easier to interpret data and identify potential issues. The system allows for continuous monitoring with audible and visual alarms across the Raymarine network, ensuring vessel operators can take timely action when needed.

Seamless Integration with Marine Systems

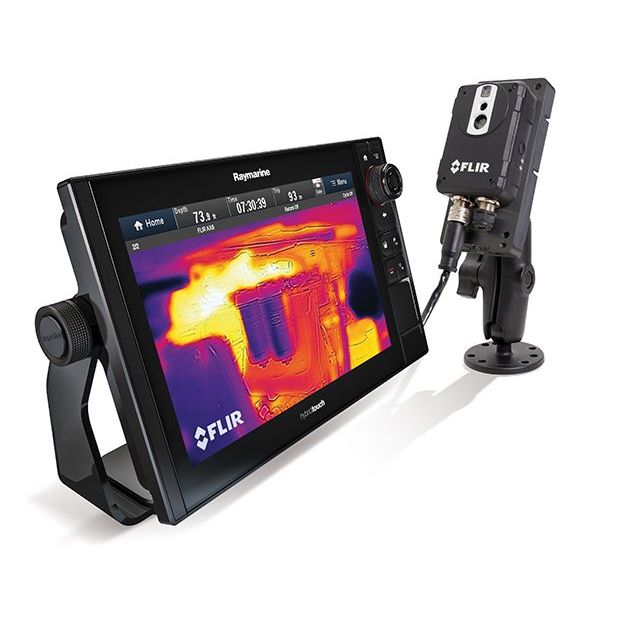

Designed for effortless integration, the AX8 connects directly to Raymarine LightHouse II™ multifunction displays, providing real-time thermal video streaming and recording capabilities. With the ability to connect up to eight cameras via Ethernet, users can expand their monitoring capabilities across multiple critical points on their vessel. The camera also supports easy setup and configuration through a web browser and PC interface.

Technical Specifications

• IR Resolution: 80 x 60 pixels
• Thermal Sensitivity: <0.10°C @ 30°C (100mK)
• Field of View (FOV): 48° x 37°
• Focus: Fixed
• Detector Type: Uncooled Microbolometer
• Object Temperature Range: -10°C to +150°C (14°F to 302°F)
• Accuracy: ±2°C (±3.6°F) or ±2% of reading
• Spotmeter & Area Measurement: 6 spotmeters, 6 measurement boxes with max/min/average tracking

Advanced Alarm and Measurement Functions

The AX8 features customizable temperature alarms that trigger alerts based on pre-set thresholds. Automatic detection of hot and cold spots provides instant feedback on potential issues, helping operators take preemptive action. The system supports multiple alarm functions, including digital outputs, image storage, and email notifications.

Marine-Optimized Connectivity and Streaming

• Ethernet Interface: 100 Mbps, IEEE 802.3 compatibility
• Video Streaming Formats: Motion JPEG, MPEG, H.264
• Image Streaming Resolution: 640 x 480
• Power Over Ethernet (PoE): IEEE 802.3as Class 0
• Marine Electronics Compatibility: Seamless integration with Raymarine LightHouse II multifunction displays

Rugged Design for Harsh Environments

Built for the demanding conditions of marine operations, the AX8 is housed in a durable IP67-rated enclosure, ensuring protection against water, dust, and environmental hazards. The camera operates efficiently in temperatures ranging from 0°C to +50°C (32°F to +122°F) and can be safely stored in extreme conditions down to -40°C (-40°F).

Highlights

• Real-time thermal monitoring of engines, manifolds, and electrical panels
• Integrated MSX® technology for enhanced image clarity
• Automated alarms for overheating detection
• Network compatibility with Raymarine MFDs
• Supports up to eight cameras via Ethernet
• Easy configuration via PC and web browser
• Durable IP67-rated construction for marine use

What's in the Box

• FLIR Systems AX8 Thermal Camera with lens
• Printed documentation and user manual CD-ROM
• Cooling/mounting plate
• PoE injector and PoE cable
• Raymarine RayNet Ethernet cable

The FLIR Systems AX8 is a powerful and reliable thermal monitoring solution, designed to keep vessels operating safely and efficiently by providing early warnings of potential mechanical failures.
