Raymarine Axiom Pro 9 RVX Multifunction Display, No Transducer, RealVision 3D Sonar, 1kW CHIRP Sonar, North America Charts

Overview

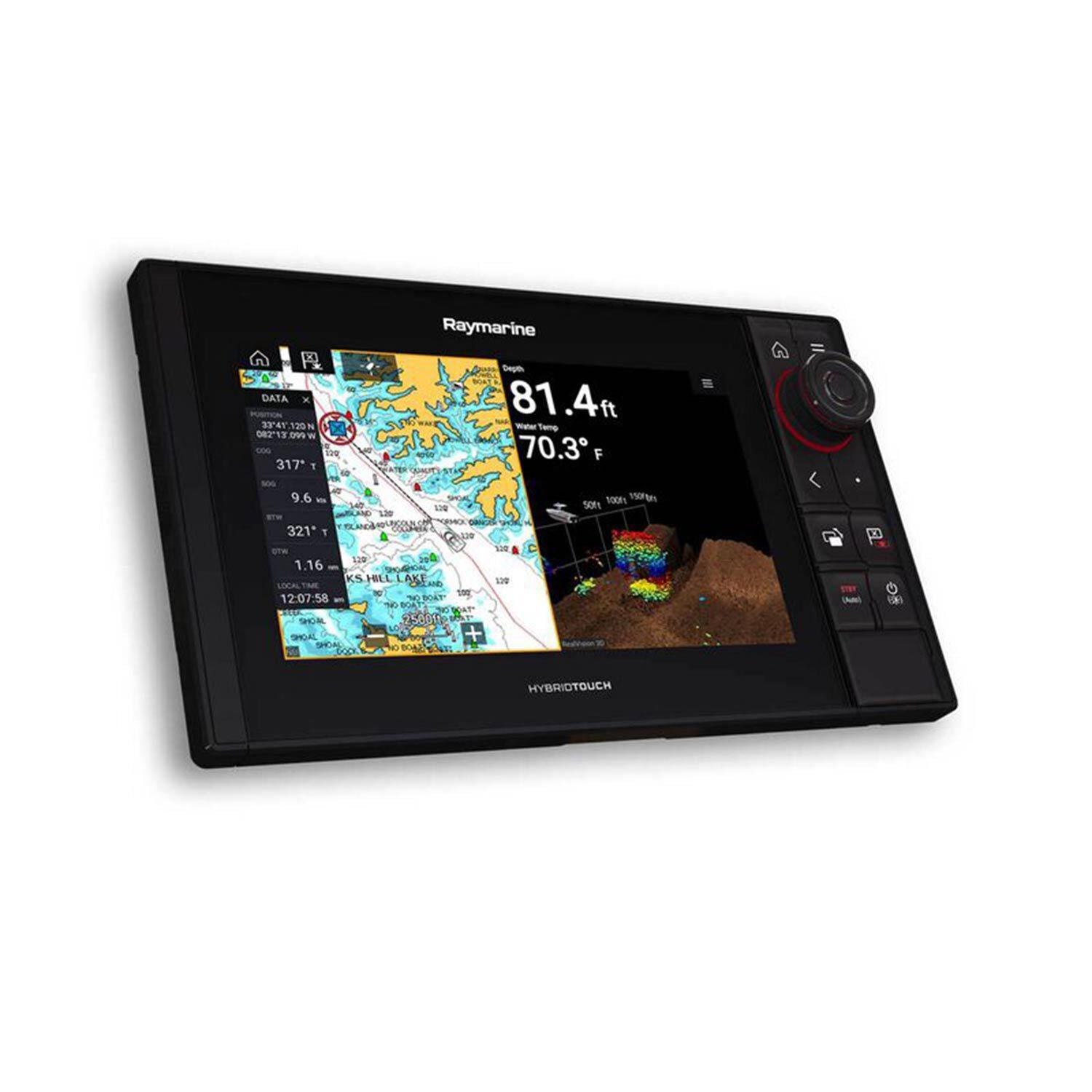

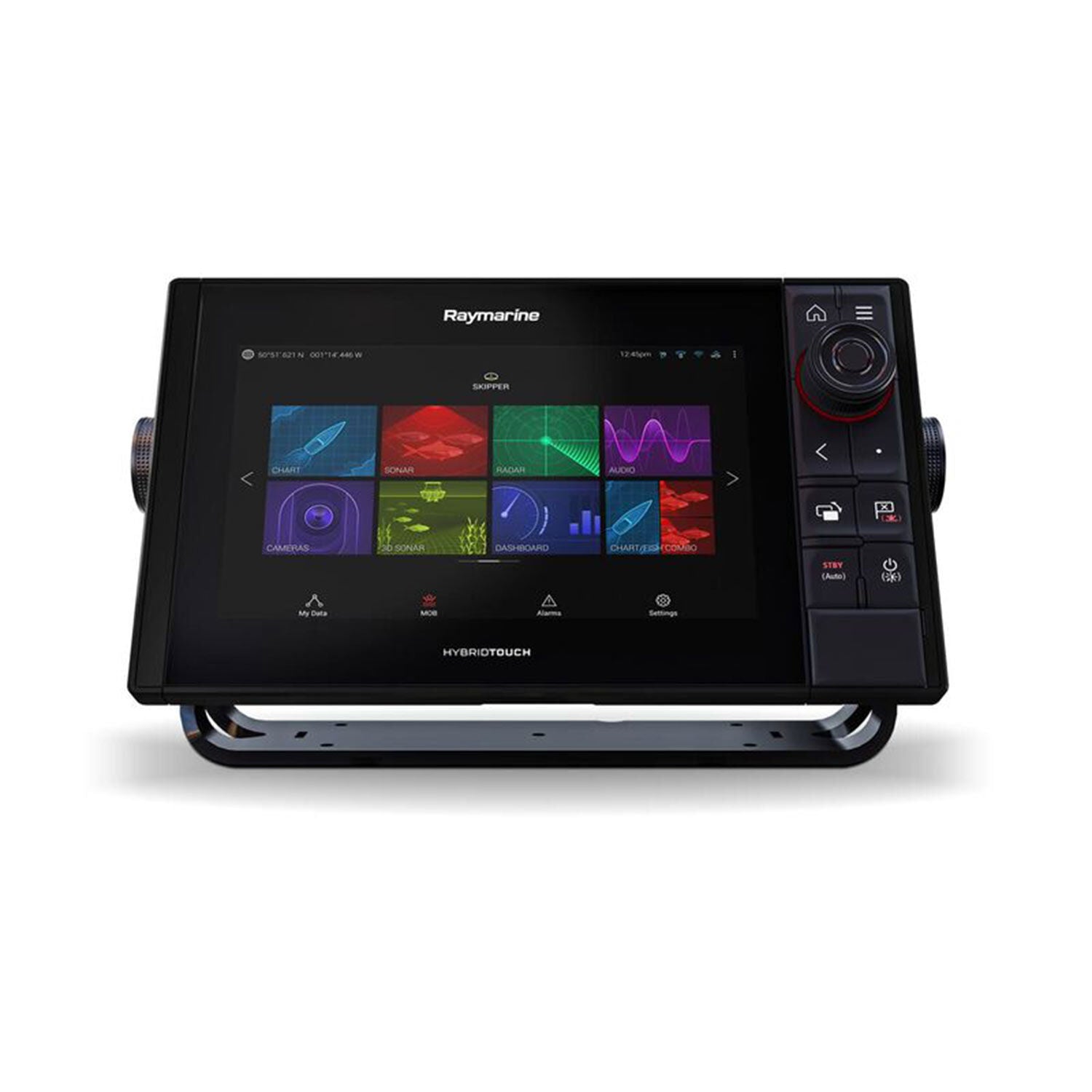

The Raymarine E70371-00-102 is a 9 inch Axiom Pro RVX multifunction display with North America LightHouse charts, built-in RealVision 3D and 1 kW CHIRP sonar capability, and no transducer included. Its 1280 x 720 IPS screen is optically bonded, rated at 1200 nits, and easy to read from wide angles at an exposed helm.

This is the package for boaters who want the display, charting, and network features in place while keeping transducer choice open. It runs on 12 V or 24 V systems with an 8 to 32 V operating range, and the HybridTouch interface gives you touchscreen use in calm conditions plus keypad control when spray, gloves, or rough water make touch-only operation less convenient.

Key features

• 9 inch IPS display with optical bonding, 1280 x 720 resolution, and 88 degree viewing angles
• Built-in GNSS receiver with support for GPS, Galileo, GLONASS, and BeiDou

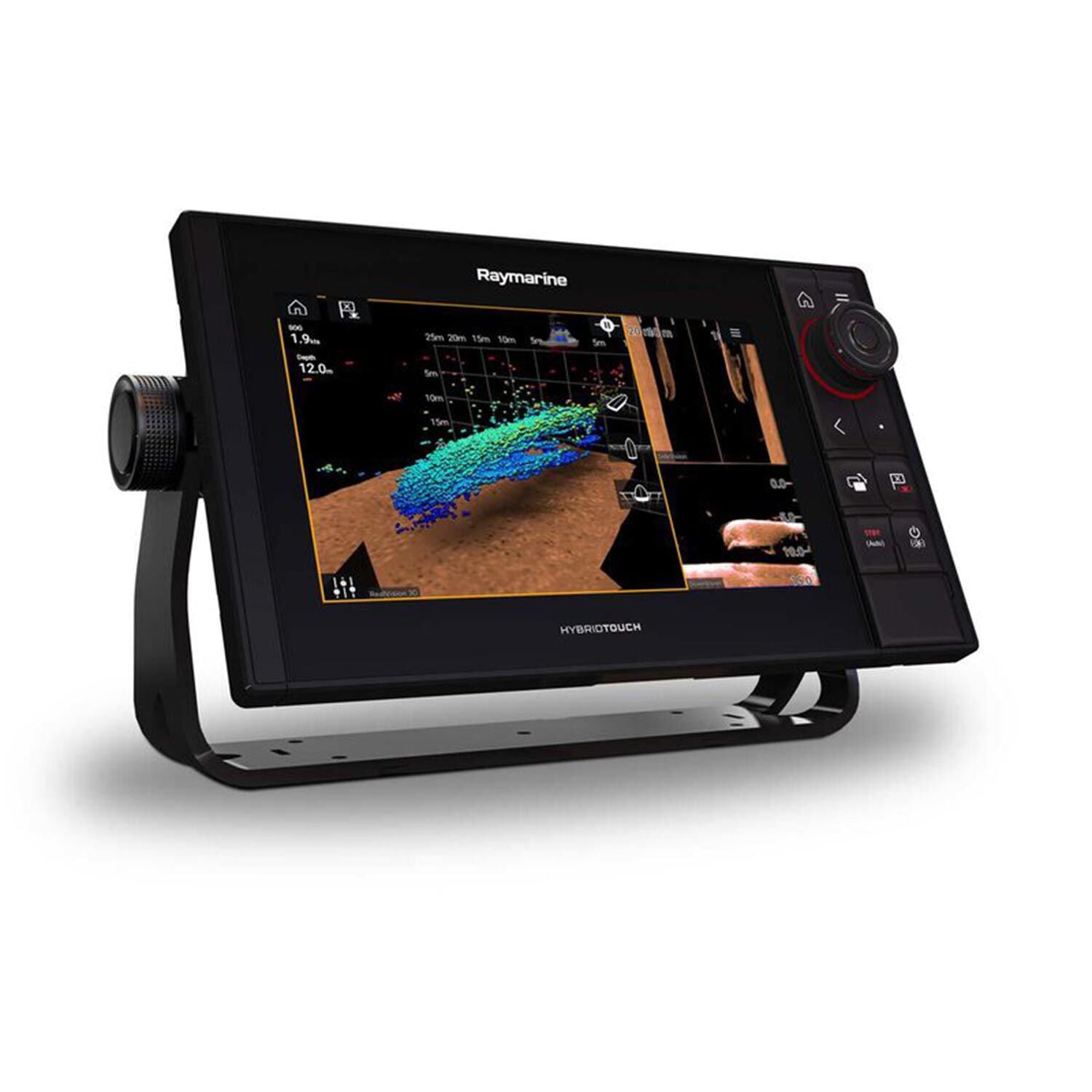

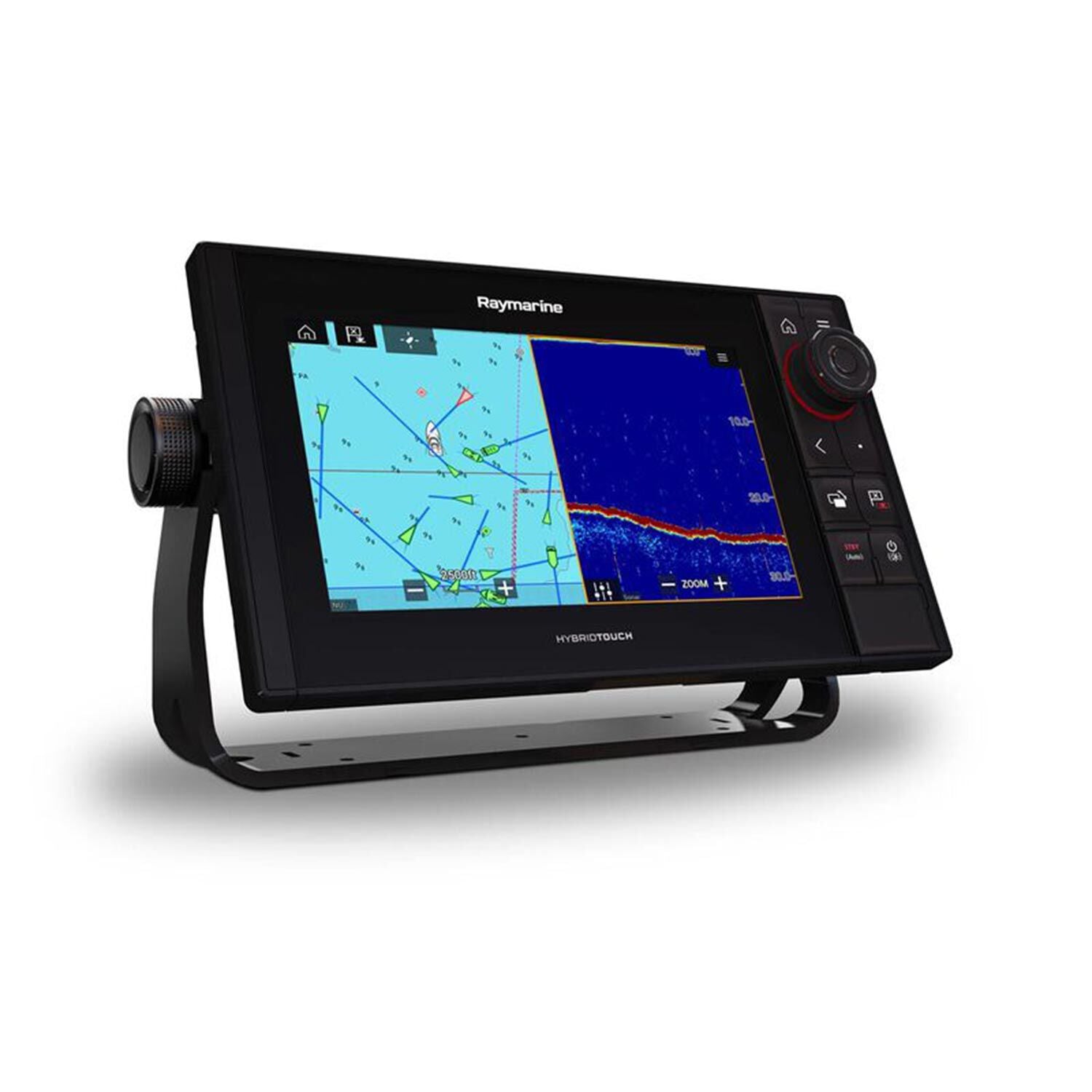

• RealVision 3D plus CHIRP DownVision, SideVision, and 1 kW CHIRP sonar capability when paired with a compatible transducer
• North America LightHouse charts included, with two front microSDXC slots and 16 GB internal storage for charts, updates, and saved data

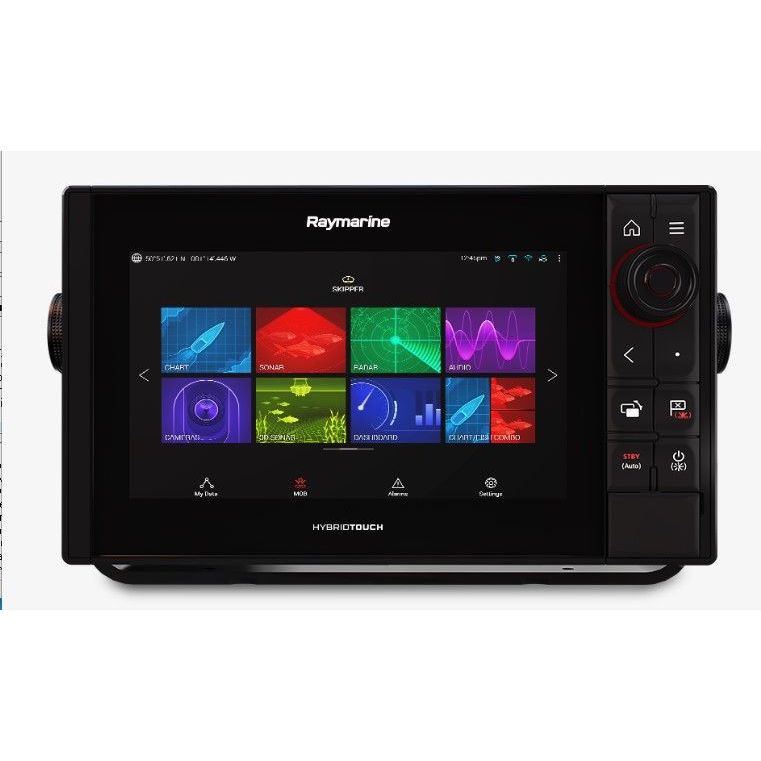

• HybridTouch control combines touchscreen use with keypad control for better handling in rough water
• Two RayNet Ethernet ports, NMEA 2000, NMEA 0183, Wi-Fi, and Bluetooth for linking radar, autopilot, instruments, and mobile devices
• IP and analog video support for adding camera views at the helm
• Works on 12 V and 24 V systems with an 8 to 32 V operating range
• IPX6 and IPX7 water protection for helm positions that see spray and routine washdowns

Compatibility and integration

The Axiom Pro RVX platform fits well in a Raymarine network that includes Quantum radar, Evolution autopilot, FLIR thermal cameras, AIS, engine data, and onboard cameras. For boats with a mixed electronics setup, NMEA 2000 and NMEA 0183 support make it easier to bring older sensors and newer networked devices onto one display without turning the helm into a patchwork of separate screens.

Installation and setup

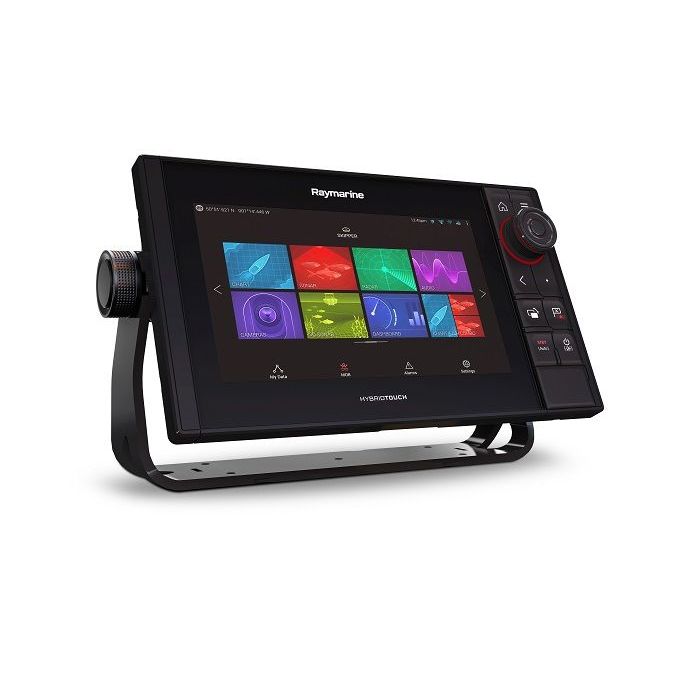

The display face is about 300 x 174 x 65 mm and it can be top mounted, front mounted, or bracket mounted, which helps when dash space is tight or the viewing angle needs to be adjusted. This version ships without a transducer, so sonar performance will depend on the transducer you match to the hull, the depth range you need, and the water you run in.

If you are pairing it with a CPT-S style transducer, the A80490 adapter cable is required. This 9 inch format is a sensible fit for center consoles, pilothouse boats, and compact cruisers that need charting, sonar, and network control in one screen without moving to a larger 12 or 16 inch unit.

What's included

• Multifunction display
• Trunnion bracket and two knobs
• Panel mount gasket
• Suncover
• Power, video, and NMEA 0183 cable, 1.5 m
• RayNet female to RayNet female network cable, 2 m
• DeviceNet to SeaTalkng adapter cable
• Quick start guide and warranty information
