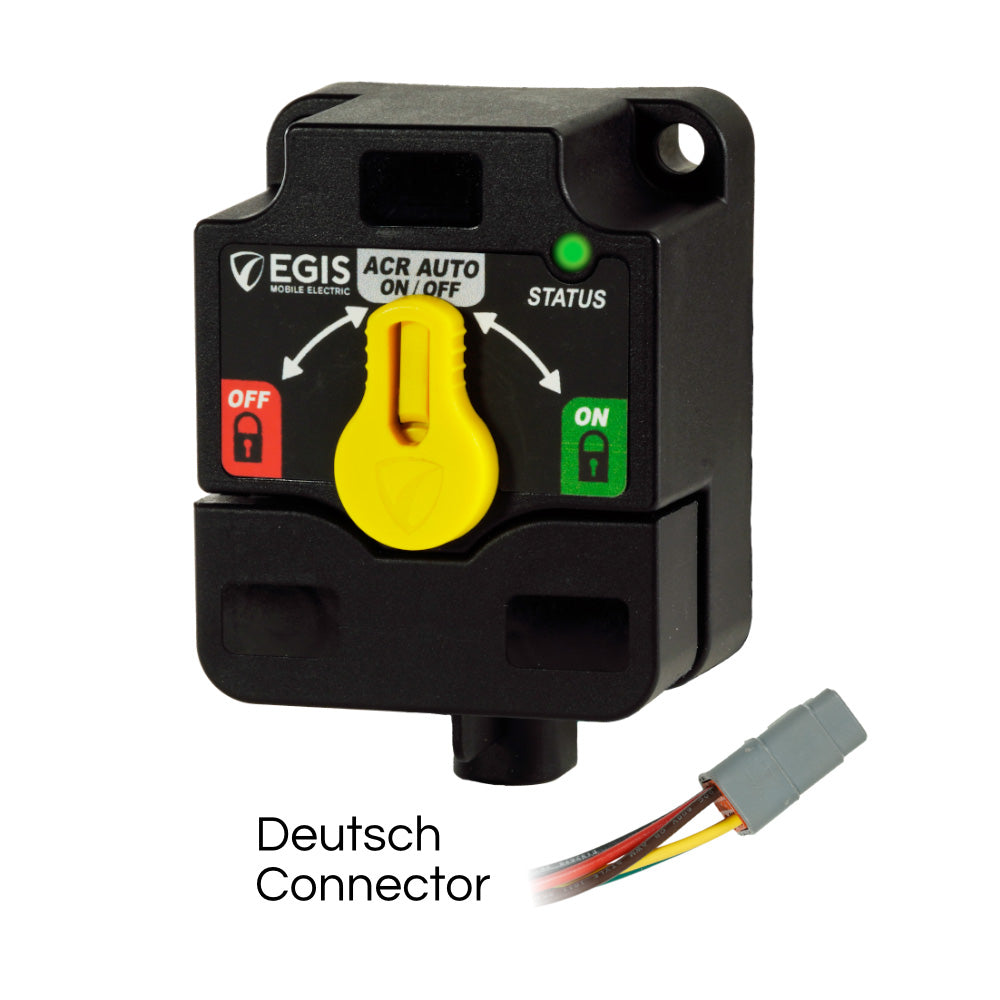

Egis Mobile Electric - XD Series Single Flex 2 ACR-Relay - With Knobs, DTM Conn
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Revolutionize Your Marine Electrical System with the Egis XD Series
The Egis XD Series Single Flex 2 ACR-Relay with Knobs is designed to provide a significant reduction in mounting space and product weight, thanks to its advanced bi-stable solenoid design. This innovative relay not only simplifies your electrical system but also ensures reliable battery management by sharing charging between two batteries and isolating them when no charge sources are present.
General Description
The Egis XD Series Single Flex 2 ACR-Relay seamlessly integrates into marine electrical systems, offering exceptional versatility and robust construction. Ideal for multiple engine setups or independent charge systems, this relay supports efficient charge management and prevents dead-start batteries. Expandable with link and cross-link busbars, it can accommodate additional dual, triple, or single XD relays, making it perfect for complex battery systems.
Key Features and Benefits
- Space and Weight Efficiency: Reduces mounting space and product weight by 35-75% compared to traditional systems.
- Robust Construction: Sealed to IP67/IP6K9K standards, with high-temperature electronics and stainless steel hardware.
- Intuitive Manual Control: Simplifies operation and enhances awareness of relay state with a 3-position manual override.
- Simple Programmability: Dip switches allow flexible relay function customization, making it easy for OEMs and installers.
- Energy Efficient: Significantly reduces off-state current draw by 90-95% compared to competitive products.
- Easy Integration: Compatible with legacy competitor products, with plug-and-play installation.
Bullet Points Summary
- Space-efficient design reduces mounting space and weight
- Robust construction with IP67/IP6K9K sealing
- Intuitive 3-position manual override
- Easy dip switch programming
- Low off-state current draw
- Compatible with legacy competitor products
- Expandable with link and cross-link busbars
Technical Specifications
- Total Continuous Current Amps: 500
- Max Cranking Current (Amps): 1500
- Mechanical Switching Life: 1,000,000 Cycles
- Voltage Range (VDC): 8-36
- Off-State Current Draw (mA): 1.3
- State Change Current: 5A @ 12 VDC; 3A @ 24 VDC
Focal Features
LED Status Display
The front-facing LED indicator provides a clear visual status, with a remote LED replicating the on-device LED for easy monitoring.
3-Position Manual Override
Allows for forcing each relay open or closed, with the option to lock the relay in either condition for added control.
40 Circuit Label Sheet Included
Features weatherproof labels for easy circuit and relay identification, with blank labels available for custom applications.
Protective Cover Included
Protects terminal studs and cable terminal edges from accidental shorts, ensuring safe operation.
Stainless Hardware
Quality stainless steel studs and self-locking flanged nuts resist corrosion, ensuring long-term reliability.
Programmable via Dip Switches
Located under the protective cover, the dip switches offer easy customization for a wide variety of applications.
Smaller Footprint
High amp rating in a compact package reduces installation space requirements.
Integrated Vent
High-quality Gortex vents regulate internal device pressure, preventing moisture entry and ensuring long product life in harsh environments.
Dimensions
- Size (L x W): To be provided if available
The Egis XD Series Single Flex 2 ACR-Relay with Knobs is an essential component for efficient and reliable battery management in marine applications. Its innovative design, robust construction, and user-friendly features make it the ideal solution for modern marine electrical systems.
