SI-TEX - T2010A 10.4" Color Radar - With 12Kw 6' Open Array
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
High-Performance Radar with Superior Detection Capabilities
The Si-Tex T2010A-6 is a powerful 10.4" color radar system designed to provide precise target detection and enhanced situational awareness for marine operations. Equipped with a 12kW open array radar and a 6.5' antenna, this system delivers exceptional performance, making it ideal for high-speed navigation, river operations, and offshore applications. With its dual-speed antenna and advanced display capabilities, the T2010A-6 ensures superior accuracy in identifying long- and short-range targets simultaneously.
Cutting-Edge Features for Reliable Performance
- Dual-Speed Antenna: 48-rpm capability optimizes target tracking for high-speed and river navigation.
- Split-Screen Display: Simultaneously view both long-range and short-range targets for comprehensive situational awareness.
- True-Trail Function: Easily identify moving targets, improving navigational safety.
- Advanced Processing Functions: Includes Interference Rejection, Target Expansion, Parallel Index, and True/Relative Bearing for precise target identification.
- AIS Interface Module: Standard module capable of tracking up to 200 targets, ensuring seamless integration with vessel tracking systems.
- Optional Automatic Tracking Aid (ATA): Enhances target tracking with up to 50 automated targets.
Technical Specifications
- Scanner Type: 6.5' Open Array
- Peak Power Output: 12kW
- Operating Frequency: 9410 ± 30MHz
- Beam Width: 1.2° Horizontal, 22° Vertical
- Antenna Rotation Speeds: 24 or 48 RPM
- Pulse Widths: 0.08, 0.15, 0.3, 0.5, 1 µs
- IF Frequency: 60MHz
- Range Accuracy: Better than 8m or 1% of selected range scale
- Minimum Detecting Distance: 25m
High-Resolution Display for Clear Visualization
- Display Type: 10.4" TFT Color LCD
- Resolution: 480 x 640 pixels
- Display Modes: Heads Up, North Up*, Course Up*, WPT Up**
- Power Input: 10.8 - 31.2V DC
- Power Consumption: 130 watts or less
Product Dimensions
- Display Unit Dimensions: 12 19/32" x 12 19/32" x 5 39/64"
Included Components

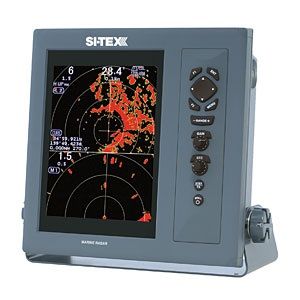

- MRD-104 Display

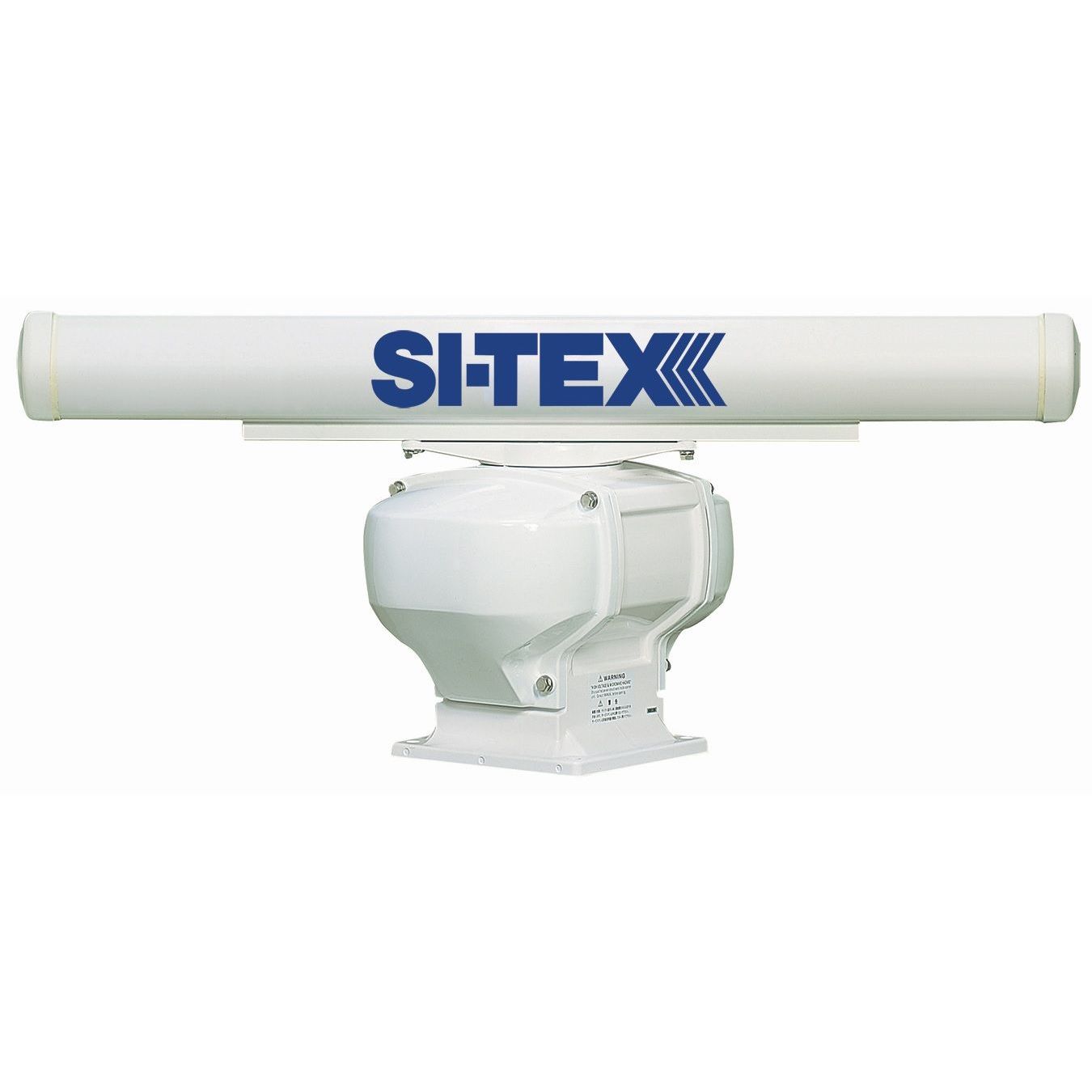

- RB718A - Pedestal 12kW
- RW701A-06 - 6.5' Antenna
- 15M Cable (242J159098A)
- DC Power Cable
- Quick Reference Guide
- Operation Manual
The Si-Tex T2010A-6 delivers precise radar imaging, advanced tracking functions, and seamless integration with marine navigation systems, making it an excellent choice for professional and recreational marine applications.
