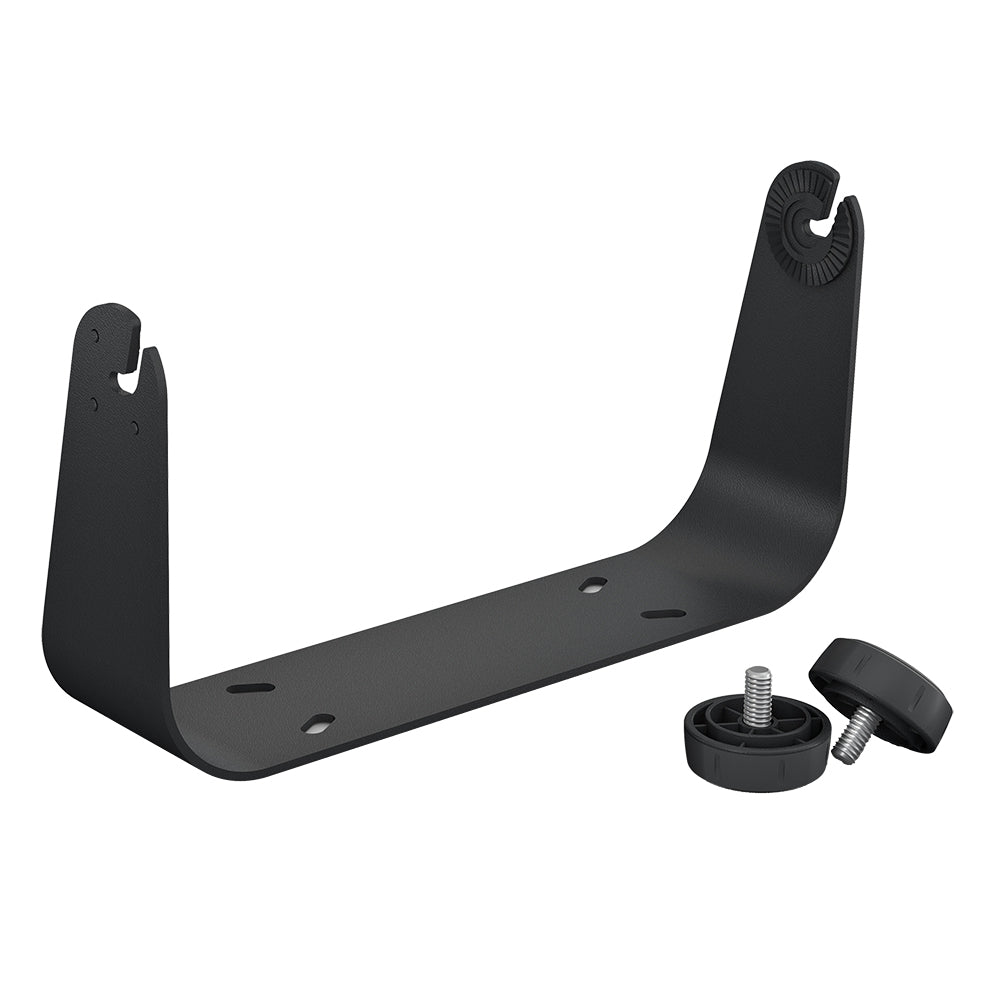

Garmin Bail Mount With Knobs, For GPSMAP 8x12 Series, Tilting
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Garmin 010-12798-01 is a bail mount bracket with knobs for Garmin GPSMAP 8x12-series chartplotters, letting you surface-mount the display and set a comfortable tilt angle at the helm.
It fits GPSMAP 1222 Touch, GPSMAP 1242 Touch, GPSMAP 8412, GPSMAP 8412xsv, GPSMAP 8612, and GPSMAP 8612xsv units. This style of mount is a practical choice when you want the chartplotter on top of the dash, on an electronics box, or anywhere flush mounting is not a good fit.
Key features
- Compatible with GPSMAP 1222 Touch, GPSMAP 1242 Touch, GPSMAP 8412, GPSMAP 8412xsv, GPSMAP 8612, and GPSMAP 8612xsv
- Bail-style surface mount for the GPSMAP 8x12 form factor
- Side knobs let you set tilt without tools and keep the angle where you leave it
- Handy for helms where the viewing angle needs to change between seated and standing positions
- Mounting format works well on flat dash tops, console shelves, and electronics boxes
Installation and setup
Pick a mounting spot that gives you room to tilt the display through its travel and still access the power and network connections. Before drilling, check behind the panel for wiring, steering components, and clearance for cable bends and strain relief.
On fiberglass and thin panels, use stainless fasteners with large washers or a backing plate to spread the load, and bed the holes to help keep water from wicking into the core. After a few trips, re-check fastener tightness since dashboards and backing hardware can settle with vibration.
Compatibility and fit
This mount matches the GPSMAP 8x12 mounting format used by the compatible models listed above. If your unit is a different series or size, confirm the correct mounting bracket part number for your display before ordering.
Use notes on board
For open helms that see spray, place the mount where you can reach the knobs easily and tilt the screen away from glare. During washdowns, a quick freshwater rinse helps keep salt residue from building up around the knobs and pivot points.
