Garmin Navionics Vision+ NVAE022R Marine Chart Card, Sumatra Coverage, microSD/SD, 1-Year Subscription

Overview

The Garmin 010-C1220-00 is a Navionics Vision+ electronic chart card (NVAE022R) that loads Sumatra regional cartography on compatible Garmin chartplotters that accept a microSD/SD card.

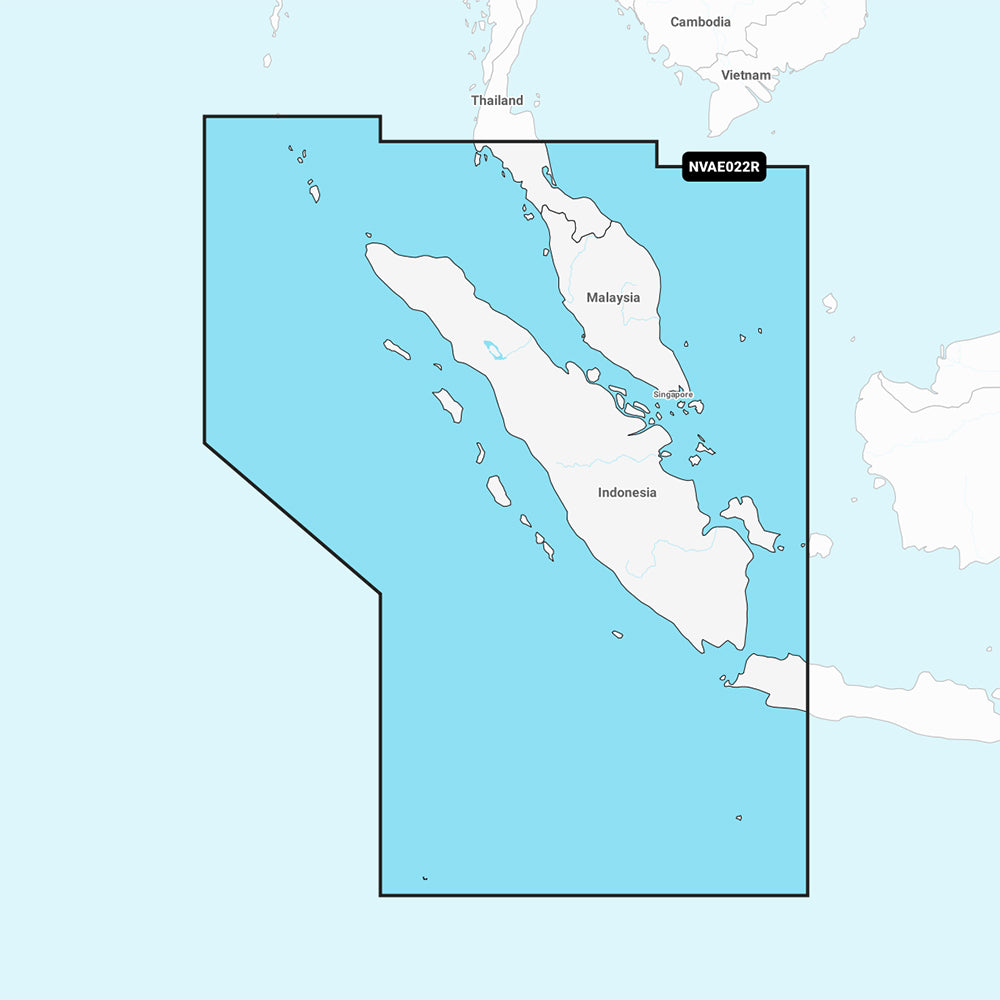

Coverage focuses on coastal navigation around the Malay Peninsula from Phuket, Thailand to Singapore, plus portions of Indonesia including Java and the entire island of Sumatra. The region also includes areas such as Christmas Island and the Cocos Islands, along with ports including Jakarta, Malacca, and Kuantan.

Vision+ adds premium chart layers such as high-resolution relief shading, satellite imagery overlays, and 3D views, with a one-year subscription for daily updates through the ActiveCaptain app. Feature availability can vary by region and by local chart detail.

Key features

• Region code NVAE022R with coverage spanning Phuket to Singapore, plus Java and all of Sumatra, and nearby islands and major ports in the area
• microSD/SD chart media that plugs directly into a compatible Garmin chartplotter
• One-year subscription included for daily chart updates and additional content through the ActiveCaptain app
• Auto Guidance+ suggested routing that accounts for user-entered safe depth and overhead clearance for trip planning
• Premium visual layers such as high-resolution relief shading, satellite imagery overlays, and 3D perspectives where supported in the region

Compatibility and fit

This chart is meant for Garmin chartplotters that support Garmin Navionics Vision+ mapping and have a microSD/SD card slot. The card needs to remain inserted while you want the charts and Vision+ layers available on the display.

If you run multiple displays, the chart data is accessed from the unit with the card installed, so plan card location based on where you want full chart access.

Installation and updates

Setup is straightforward: insert the card into the chartplotter and select the chart layer from the chart menu. For updates, use the ActiveCaptain app to download daily chart updates to the card; after the included year, updates continue through an annual subscription.

Auto Guidance+ and other routing tools are for planning support only. Always cross-check suggested routes against local conditions, markers, depth sounder readings, and any notices that apply to your area.

Use cases on board

This coverage makes sense for coastal cruising, charter operations, or deliveries in the Strait of Malacca corridor and Indonesian waters around Sumatra and Java, where clear port approaches and shoreline detail matter. It also helps when you are working into unfamiliar harbors and want satellite imagery or shaded relief for added context.

Care and handling

Keep the card dry and free of salt residue, and avoid inserting or removing it during washdowns. If the card contacts get damp or salty, let it dry fully and wipe gently before reinstalling.
