Lenco Marine - 102XD Extreme Duty Actuator - 24V - 4-1/4" Stroke - 5/16" Hardware
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Reliable and Powerful Actuation for Marine Environments
The Lenco 102XD Extreme Duty Actuator is designed to provide robust and reliable performance in demanding marine applications. Ideal for trolling tab systems and OEM applications, this actuator ensures precise control and exceptional durability, making it a vital component for any marine vessel.
General Description
Engineered for extreme duty, the Lenco 102XD Actuator features a 4-1/4" stroke and is constructed with high-impact, glass fiber-filled, ultraviolet-resistant nylon material. The 316 stainless steel tubing adds to its durability, making it resistant to harsh marine conditions. This actuator is renowned for its instant response and is equipped with a ballscrew design that offers greater reliability and power compared to typical hydraulic systems.
Key Features
- Enhanced Seal Stabilization: Newly implemented Anti Extrusion Ring (AXR) seal stabilization system ensures long-lasting performance.
- Robust Construction: Stronger top cap and mounting clevis design, along with a thicker motor housing wall, provide superior durability.
- Improved Sealing: Features improved pressure-tight torx screws, an integrated wiper seal at the actuator base, and an over-molded cable for a stronger, tighter seal.
- High Torque Capability: The tough, high-torque actuator motor easily pushes 500 pounds, delivering exceptional power and reliability.
- Waterproof Connections: Utilizes waterproof "Plug & Play" Deutsch connectors to eliminate the possibility of water intrusion.
- Convenient Installation: Comes with 5/16" mounting hardware and a 6-foot cable for easy installation.
Technical Specifications
- Voltage: 24 Volt
- Stroke Length: 4-1/4 inches
- Overall Length (tip to tip): 13.25 inches
- Mounting Hardware: 5/16 inches
- Cable Length: 6 feet

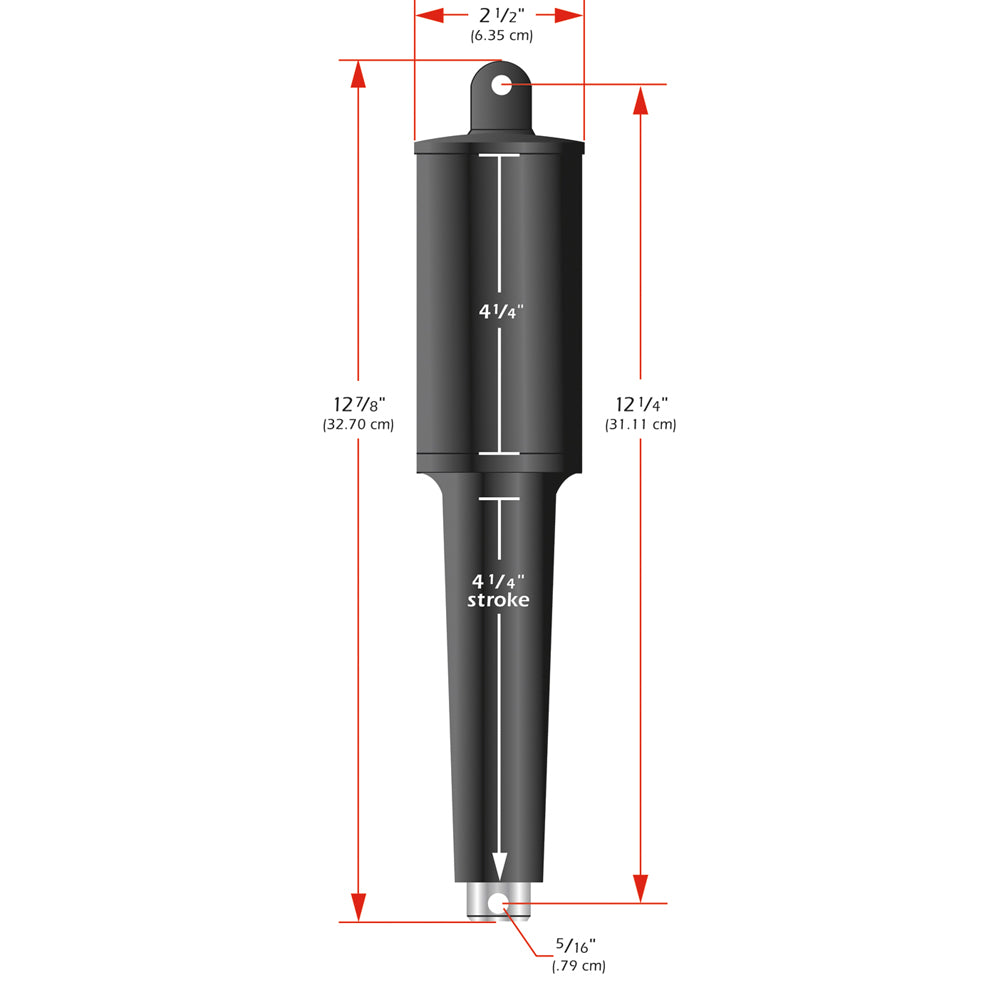

Product Dimensions
- Overall Length: 13.25 inches (tip to tip)
Highlights
- Superior Design: The ballscrew design is more reliable and twice as powerful compared to typical hydraulic systems.
- Heavy-Duty Performance: Capable of handling extreme conditions with its high-torque motor and robust construction.
- Sealed for Protection: Advanced sealing technology prevents water intrusion and ensures consistent performance.
- User-Friendly: The "Plug & Play" Deutsch connectors simplify installation and maintenance.
