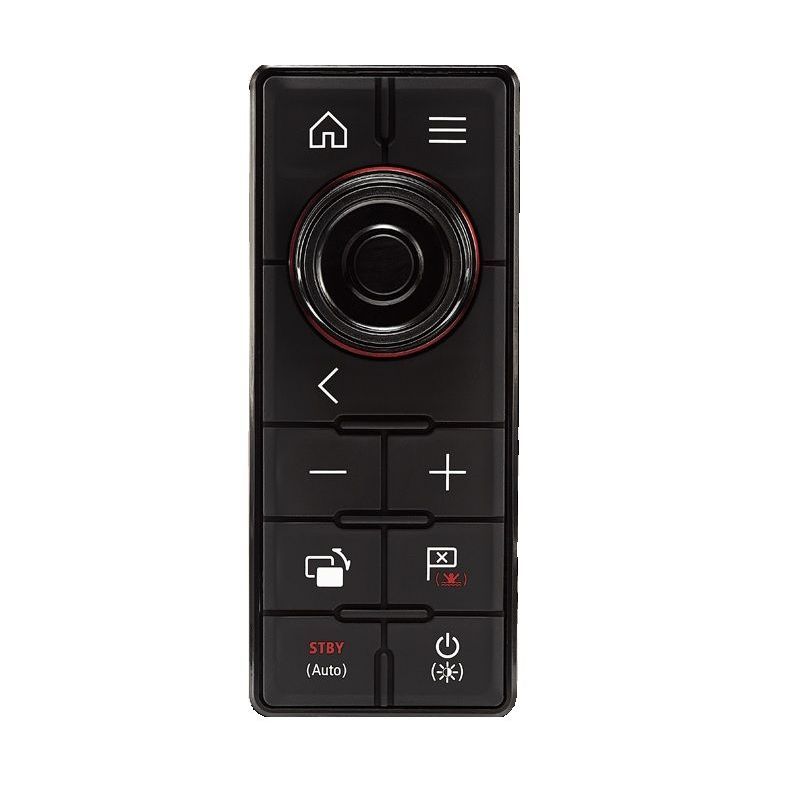

Raymarine RMK-10 Wired Remote Keypad, For MFDs, PoE, RayNet

Overview

The Raymarine A80438 is the RMK-10 wired remote keypad for remote control of Raymarine chartplotters and multifunction displays from a helm, nav station, overhead electronics box, helm chair, salon, or other practical mounting point on board.

This keypad gives the operator physical controls for core display functions, including home, menu, zoom, window control, waypoint management, power and brightness, and Evolution autopilot control. It also has a rotary controller with an integrated cursor pad, which is useful when the display is out of reach, when touch control is awkward in rough weather, or when the MFD is feeding a secondary monitor.

Power can come through Class 1 PoE over RayNet Ethernet or through the alternate power connector on 12V or 24V DC systems. The operating range is 44V to 57V DC over PoE or 9V to 32V DC through alternate power, with power consumption up to 4W at full keypad illumination. The housing is rated IPx6 and IPx7, so it is suitable for exposed helm areas where spray, rain, and washdowns are part of normal use.

Key features

• Wired RMK-10 remote keypad for controlling Raymarine chartplotters and multifunction displays from a secondary or more ergonomic location.
• Dedicated keys for home, menu, zoom, window control, waypoint management, power and brightness, plus Evolution autopilot control.
• Rotary controller with integrated cursor pad gives tactile menu control when touch operation is not convenient.
• RayNet Ethernet connection supports remote control of a single display or multiple displays mounted at the same helm station.
• Class 1 PoE support allows power through a suitable network connection, with alternate 12V or 24V DC power also supported.
• IPx6 and IPx7 waterproof rating supports installation in marine helm areas exposed to spray, rain, and regular washdowns.
• Surface-mount or flush-mount installation lets the keypad fit different helm layouts and control positions.
• Fully backlit keypad helps keep controls readable during night running, low-light docking, and early morning departures.

Installation and setup

The RMK-10 can be surface mounted or flush mounted, so it can be placed where the operator naturally reaches rather than where the main display happens to be installed. Common locations include the primary helm, an overhead electronics box, a flybridge console, a below-deck navigation table, or beside a remote monitor.

The unit connects through RayNet Ethernet for display control and network communication. Power can be supplied by a suitable PoE network connection or by the alternate power connector when PoE is not used. This flexibility is useful during refits, where existing power and network routing may determine the cleanest installation path.

Compatibility and use on board

The keypad is intended for Raymarine chartplotter and MFD control, including Axiom displays and compatible aSeries, cSeries, eSeries, eS Series, and gS Series systems. It is especially useful on boats where the main screen is installed beyond arm's reach, where a secondary monitor is used for navigation viewing, or where a physical control pad is preferred during rough conditions.

It is a good match for cruising boats, sportfishers, sailboats, and motor yachts that already rely on Raymarine displays and need dependable control from more than one position. The wired connection also suits installations where consistent response matters more than handheld convenience.

What's included

• RMK-10 keypad
• Landscape keypad mat
• Portrait keypad mat supplied fitted to the unit
• Mounting gasket
• Documentation
• Right angled power cable, 2 m or 6.6 ft.
• RayNet network cable, 2 m or 6.6 ft.
• Mounting fixings x4

• 1336771_qbp720662.pdf
