Digital Yacht - GPS160 Galileo Sensor NMEA2000 TriNav GPS - Glonass, iKonvert Bundle

Advanced Marine Positioning with TriNav™ Technology

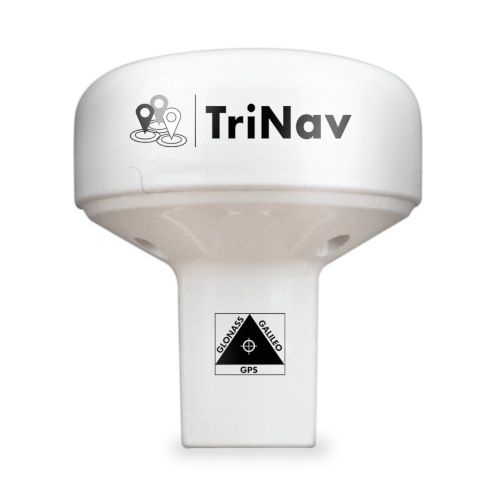

The Digital Yacht GPS160 TriNav GPS is a high-performance marine positioning sensor that integrates GPS, Glonass, and Galileo satellite systems for superior accuracy and redundancy. Designed for professional and recreational marine applications, it provides reliable sub-1m positioning accuracy, making it ideal for navigation, chart plotting, and safety systems.

This bundle includes the GPS160 sensor and the Digital Yacht iKonvert NMEA2000-NMEA0183 converter, ensuring seamless connectivity with both NMEA 2000 and NMEA 0183 networks. The iKonvert simplifies installation by allowing a direct and flexible connection to a vessel’s existing network, eliminating the need for complex cabling.

TriNav™ software enhances performance by optimizing data from multiple satellite constellations, mitigating vulnerabilities from local interference or spoofing. Additionally, the GPS160 can be configured as a dedicated GPS, Glonass, or Galileo-only device, offering adaptable positioning solutions tailored to specific needs.

Technical Specifications

• 72-channel GNSS positioning receiver supporting GPS, Glonass, and Galileo
• Advanced anti-spoofing algorithm for secure and interference-free positioning
• Ultra-low power consumption (<20mA at 12V DC), making it efficient for prolonged marine use
• User-selectable baud rates (4800, 38400, and 115200) for flexible data transmission
• Supports multiple NMEA sentence structures, including datum information
• Update rate configurable up to 18Hz for smooth and real-time tracking
• Compatible with ECDIS systems and supports professional datum sentence structures (DTM/GBS/GNS/GRS/GSA/GST)
• External MOB (Man-Overboard) switch support for enhanced safety

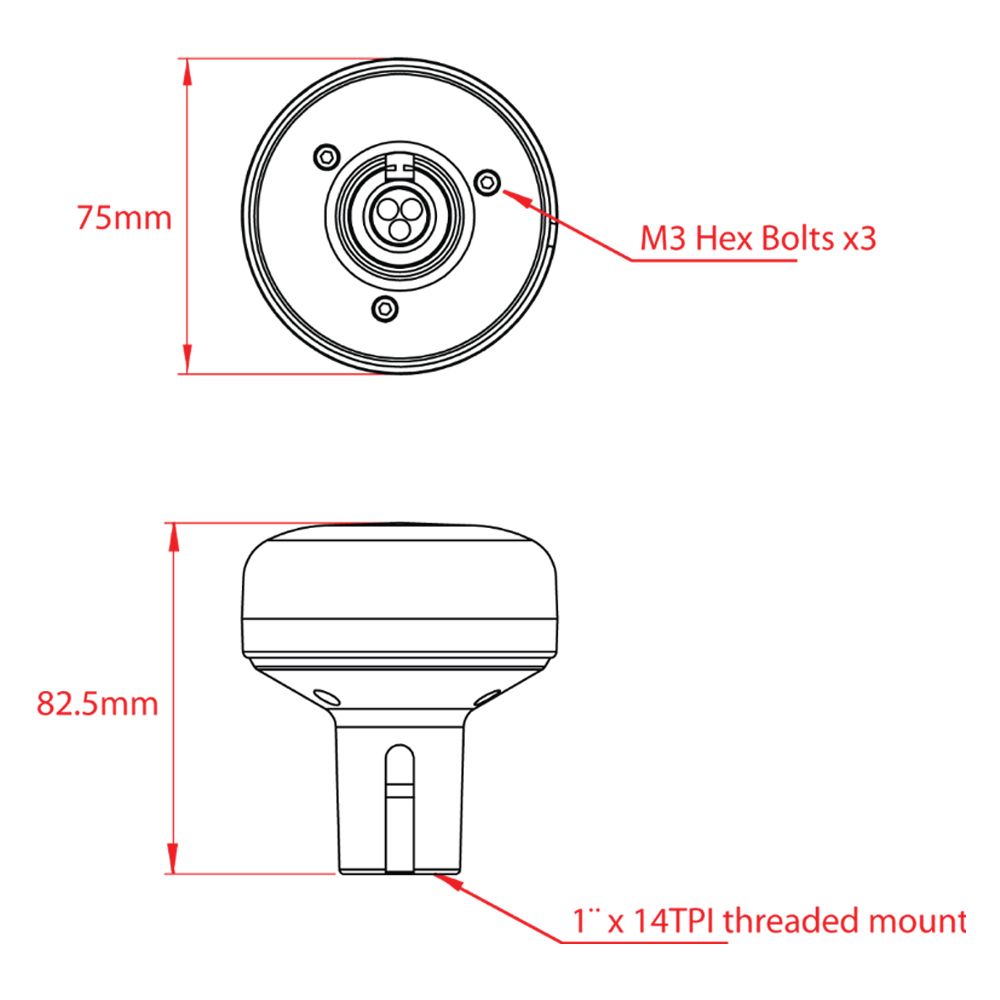

Product Dimensions

• Includes a 10m cable for flexible mounting and installation
• Designed for puck installation or compatible with third-party 1” x 14TPI threaded mounts

Highlights

• High-accuracy marine positioning with GPS, Glonass, and Galileo support
• Integrated TriNav™ technology for enhanced redundancy and reliability
• NMEA 2000-ready with iKonvert gateway for seamless network integration
• Field-configurable GNSS modes and output settings
• MOB function for emergency alerting and tracking
• Low power consumption for energy-efficient operation
