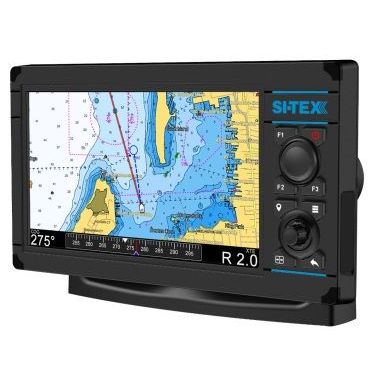

High-Resolution Hybrid Touchscreen Display
The Si-Tex NavPro 900F features a 9-inch high-resolution hybrid touchscreen display, offering intuitive operation with capacitive multi-touch functionality. Designed for clarity even in direct sunlight, the 1,100 NITS brightness ensures excellent visibility in all conditions.
Seamless Connectivity and Smart Integration
Equipped with NMEA-0183 and NMEA 2000 interfacing, the NavPro 900F provides seamless integration with other marine electronics. The built-in Wi-Fi interface allows for automatic software updates when within network coverage, ensuring the latest enhancements and features. Additionally, the Captain Cloud service securely backs up waypoints, marks, and track memories to a free cloud-based storage system.
Versatile CHIRP Sounder for Enhanced Sonar Capabilities
This model includes a powerful CHIRP sounder with selectable 300W, 600W, and 1kW outputs. The advanced scroll-back screen memory allows users to revisit locations and mark them directly on the navigation chart. Compatible with Airmar CHIRP transducers featuring TX ID, the system automatically configures transducer settings for optimal performance. For users with older non-CHIRP transducers, adapter options enable easy retrofitting.
Mirror Screen Capability for Mobile Control
Through Bluetooth connectivity, users can download a dedicated mirror app on their Android smartphone, allowing them to view and control the NavPro 900F remotely. This feature enhances convenience and accessibility for navigation and system monitoring.
Advanced GPS and AIS Integration
Featuring an internal high-resolution 18Hz 72-channel GPS receiver and antenna, the NavPro 900F delivers precise positioning. Full AIS integration is available when connected to an AIS unit, offering enhanced situational awareness on the water.
Optional Wireless Radar for Extended Range
The NavPro 900F is compatible with SI-TEX’s optional high-resolution Wi-Fi radar, making installation straightforward. When paired with the SI-TEX MDS-12 Network Radome, this system transforms into a powerful 36-nautical-mile radar with professional-grade target resolution, enhancing safety and navigation.
Polaris and Navionics Platinum+ Cartography Compatibility
In addition to the included Polaris Charts, the NavPro 900F supports optional Navionics Platinum+ cartography, providing comprehensive navigation data for diverse marine environments.
Technical Specifications
- Display Size: 9.0"
- Display Brightness: 1,100 NITS
- Resolution: 800x480
- Touch Screen: Capacitive Multi-Touch
- Keyboard Backlight: Yes
- Operating Voltage: 10 to 35 VDC
- GPS Receiver: Built-in High-Resolution 18Hz 72-Channel GPS/GLONASS
- External GPS Support: Yes, via 6-pin connector
- Network Connections: NMEA-2000 (optional cable required), Dual NMEA-0183 Input/Output Ports
- Wi-Fi Connection: Yes
- Bluetooth Connection: Yes
- Waterproof Rating: IPX6
- Operating Temperature: -10°C to +60°C

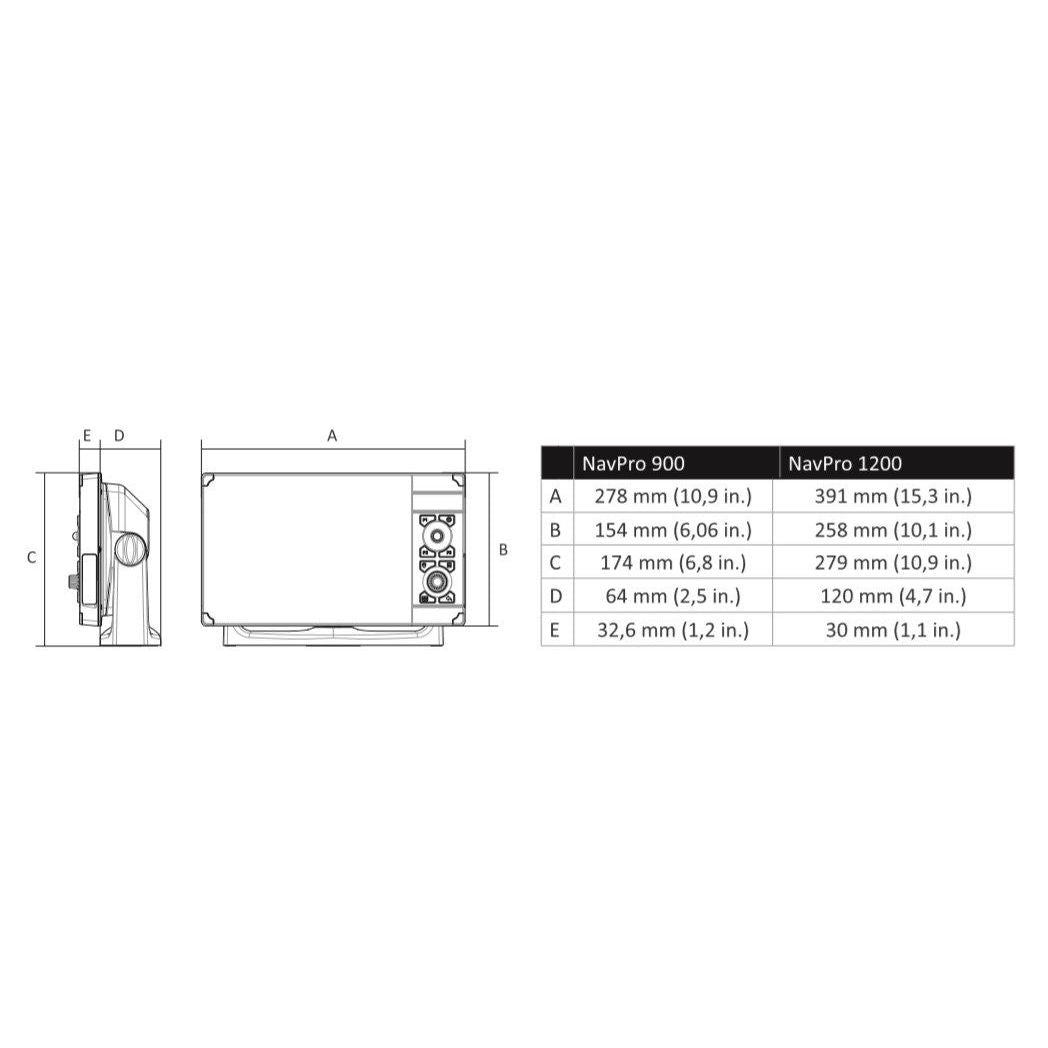

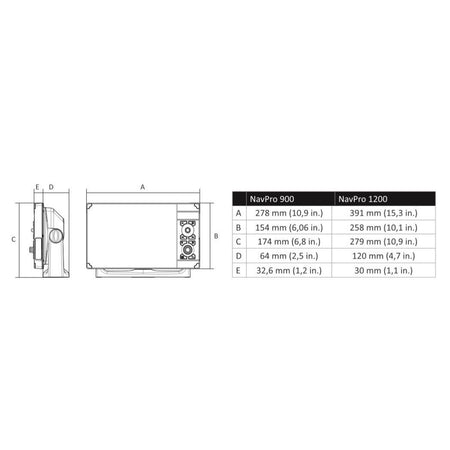

Product Dimensions
- Width: 10.9"
- Height: 6.8"
- Depth: 3.7"
Highlights
- Hybrid touchscreen with easy flush-mount installation
- CHIRP sounder with selectable power outputs and transducer adaptability
- Wi-Fi and Bluetooth connectivity for seamless updates and remote control
- Built-in high-resolution GPS with AIS compatibility
- Optional wireless radar integration for extended range and clarity
- Polaris Charts included, with support for Navionics Platinum+
What’s in the Box
- NavPro 900 Display Unit
- Polaris USA Chart Card
- Mounting Bracket and Screws
- Combination Power Data Cord
- Sun Cover
- Installation & Operation Manual
Designed for reliability and ease of use, the Si-Tex NavPro 900F is an ideal solution for marine navigation, offering powerful features to enhance safety and efficiency on the water.
