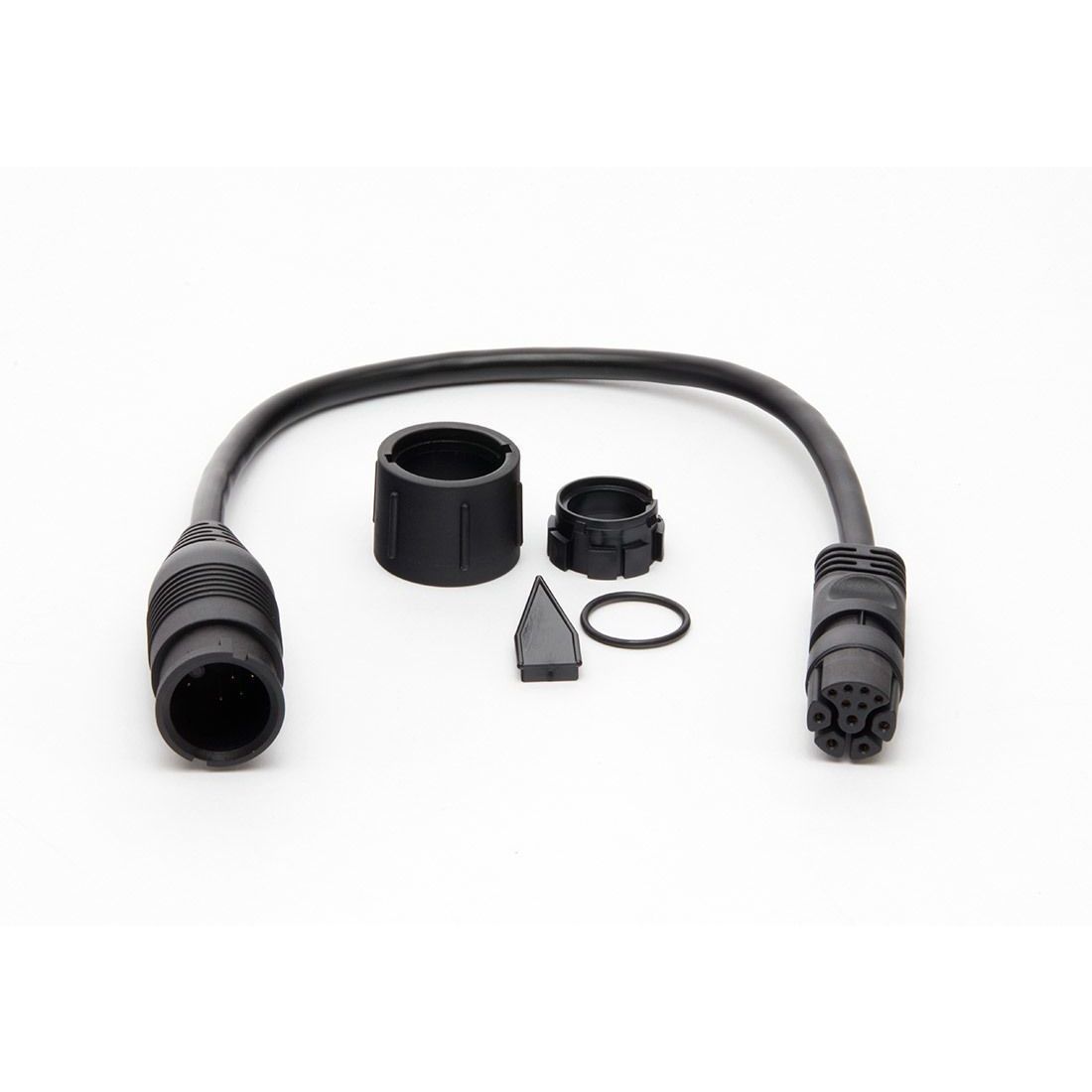

Raymarine Single B75/B175 CHIRP Transducer Operation Cable, 0.1 m

Overview

The Raymarine A80328 is a single B75/B175 operation cable used when installing one compatible CHIRP through-hull transducer with a Raymarine sonar system. It is a short operation cable for B75 and B175 series transducers, including single-transducer installations where the transducer needs the correct Raymarine connection path before any required extension cable is added.

This cable is used with Raymarine systems such as CP470, CP570, RVX1000, Axiom Pro RVX and compatible 11-pin 1 kW CHIRP transducer connections. Its 0.1 m length keeps the connection close to the sounder or display, which is useful behind a helm, inside an electronics box or in a protected rigging area where excess cable would only add clutter.

Key features

• Required operation cable for a single B75 or B175 CHIRP transducer installation on compatible Raymarine sonar hardware.
• Works with Raymarine CP470, CP570, RVX1000, Axiom Pro RVX and compatible 11-pin 1 kW CHIRP transducer connections.
• Short 0.1 m cable length helps keep the transducer connection tidy in tight console and equipment spaces.
• Waterproof twist-lock connection helps keep the transducer link secure in marine electronics installations.
• Correct choice for single-transducer setups; paired B75 or B175 installations use a separate Y-cable instead.

Installation and setup

Use this cable as the operation link for one B75 or B175 transducer before routing the system to the compatible Raymarine sonar module or display. Check the transducer model, the sounder or display connection, and the required cable run before installation, since CHIRP systems often use separate extension cables to reach from the transducer area to the helm or electronics locker.

The short length makes this part better suited as a required adapter or operation link, not as the main routing cable through the boat. For clean service access, leave the twist-lock connector reachable where possible and avoid placing strain on the connector when securing the cable bundle.

Compatibility and fit

This cable is a practical match for owners and installers working with a single B75 or B175 CHIRP transducer on a Raymarine system. It is especially relevant for fishing boats, cruising boats and refits where the sonar system depends on a specific transducer connection rather than a universal cable.

Before ordering, compare the sounder or display model, transducer series and installation layout. This is not the cable for dual B75 or B175 transducer installations, and it should not be treated as a general-purpose extension cable.
