Jabsco Deluxe Flush Raw Water Electric Marine Toilet, 17 in, Soft Close Lid, Remote Rinse Pump

Overview

The Jabsco Deluxe Flush is an electric marine toilet range for boats that need a 17-inch bowl, raw water rinse, and a choice of straight or angled back installation. These variants run on either 12 VDC or 24 VDC and use sea, river, or lake water for rinsing through a remote mounted self-priming rinse pump.

The toilet uses a household-size soft close seat and a vitreous china bowl with smooth contours that are easier to keep clean in a marine head. A four-button touch panel gives fill, quick flush, flush, and empty functions, with a dry or wet bowl setting after use.

For owners refitting a head compartment, the Deluxe Flush layout helps keep plumbing and wiring out of sight while still giving the comfort of a domestic-style seat. It suits sailboats and powerboats where quiet operation, controlled water use, and a clean installation matter.

Key features

• 17-inch toilet configurations with straight or angled back options for different bulkhead layouts.
• 12 VDC and 24 VDC versions available to match the vessel electrical system.

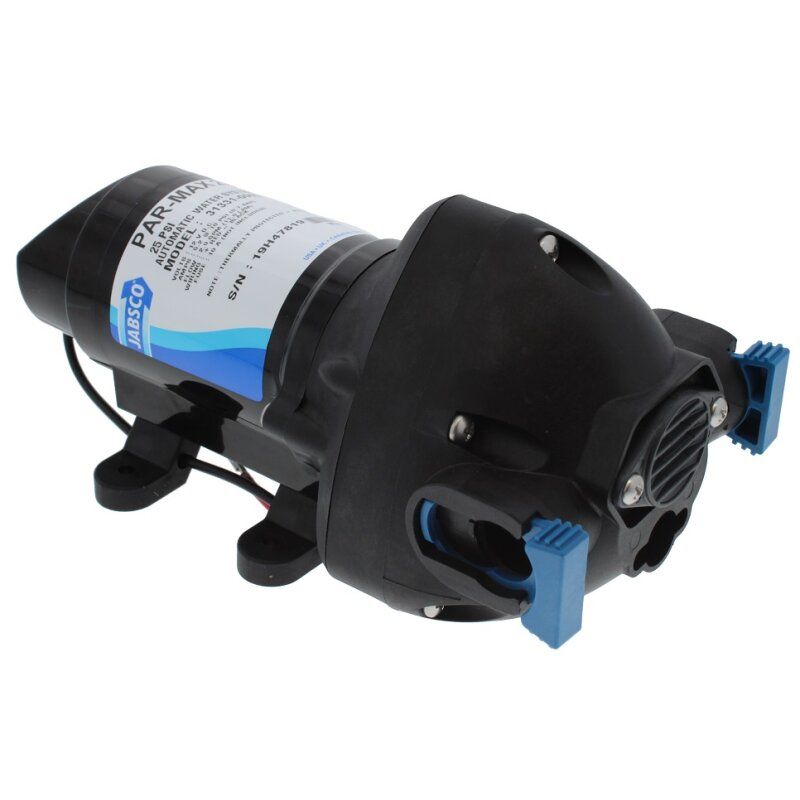

• Raw water rinse setup uses a remote mounted self-priming rinse pump for sea, river, or lake water.

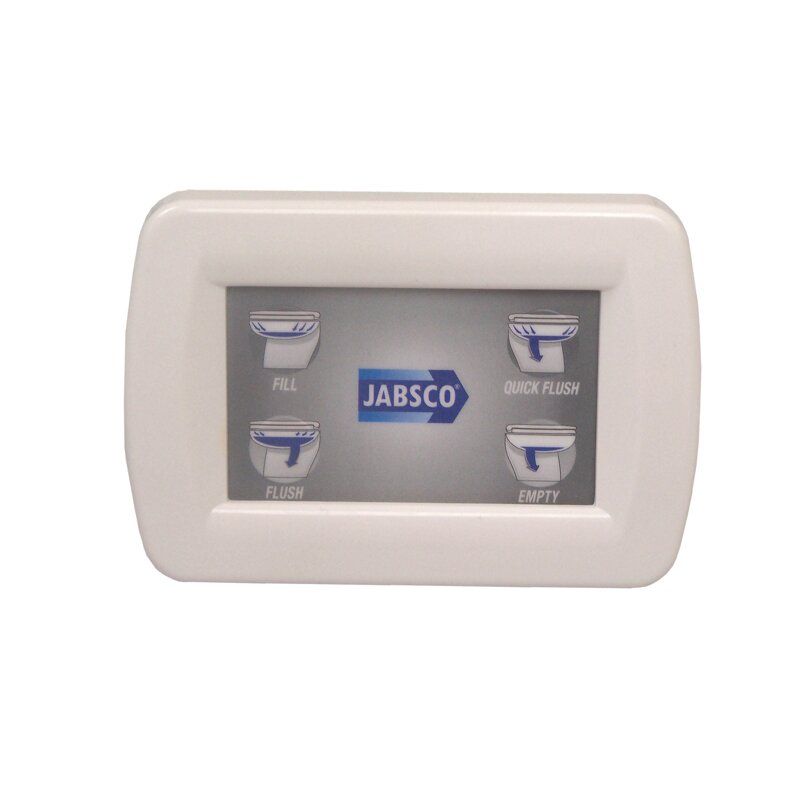

• Four-button touch panel controls fill, quick flush, flush, and empty functions from one surface-mounted pad.
• Quick Flush cycle uses less than 1 quart or 1 litre of water, which helps manage tank capacity during time aboard.
• Owner-selectable wet or dry bowl setting after use, useful when balancing comfort against water consumption.
• Large-bore flush pump macerates waste before discharge to support dependable electric toilet operation.
• Household-size soft close seat gives a familiar feel without the noise of a hard-closing lid in the cabin.
• ISO 8846 Marine ignition protection supports installation in appropriate onboard electrical environments.

Variants

This product is offered in four configurations. The options change by back style and DC voltage, while the 17-inch Deluxe Flush electric toilet format and raw water rinse arrangement remain consistent across these listed models.

The straight-back versions suit installations against a vertical bulkhead. The angled-back versions are shaped for head compartments where the toilet sits against a sloped or angled surface.

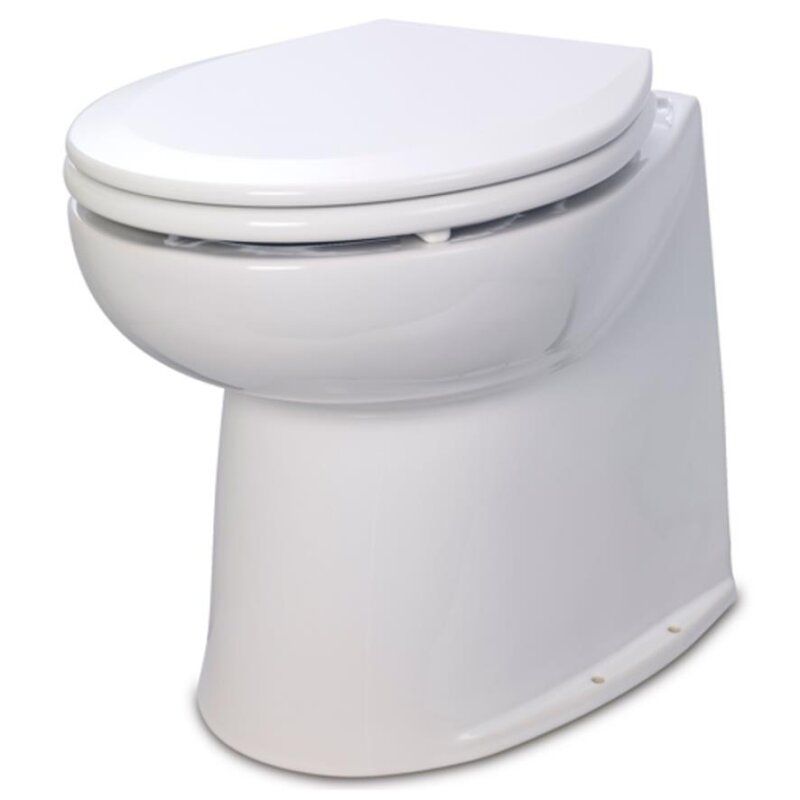

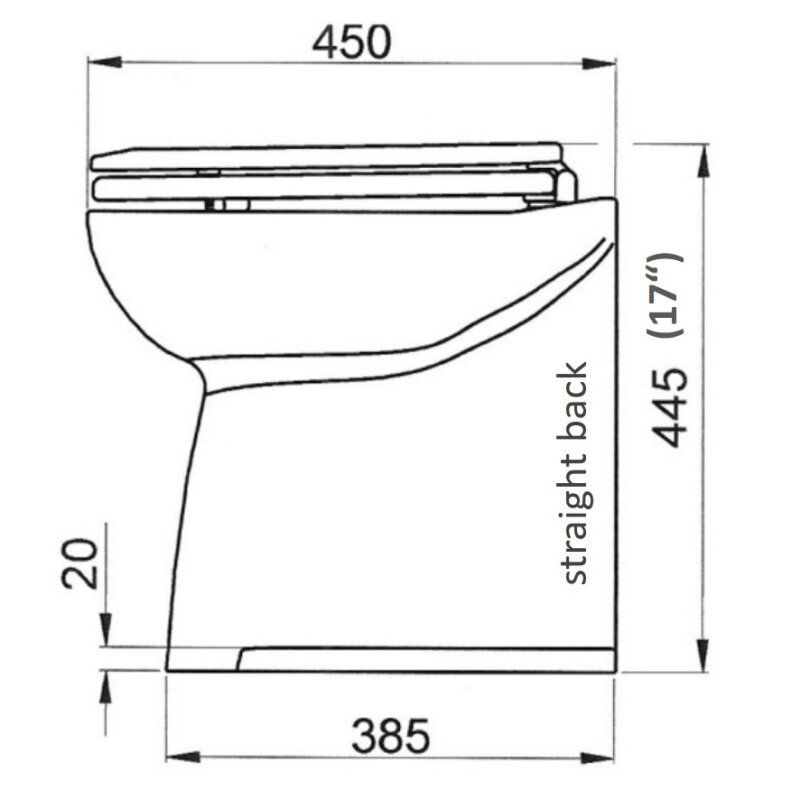

• 58240-3012: 17-inch straight style, 12 VDC. This version fits 12 V boat systems and works well where the toilet backs up to a vertical bulkhead.
• 58240-3024: 17-inch straight style, 24 VDC. This version keeps the same straight-back installation layout for vessels wired with a 24 V DC system.

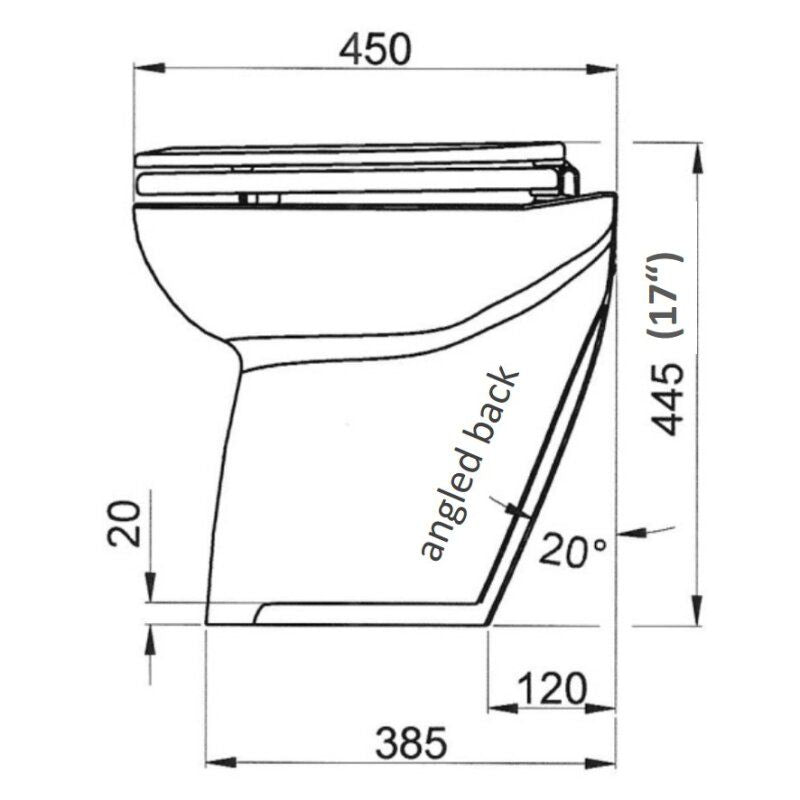

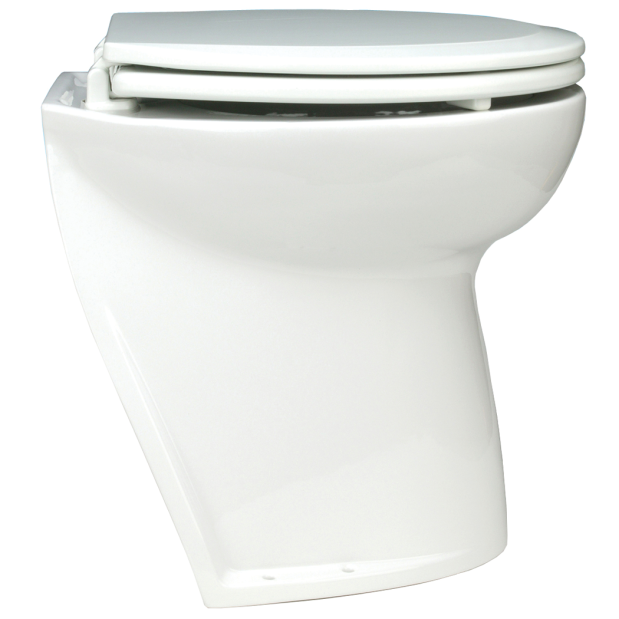

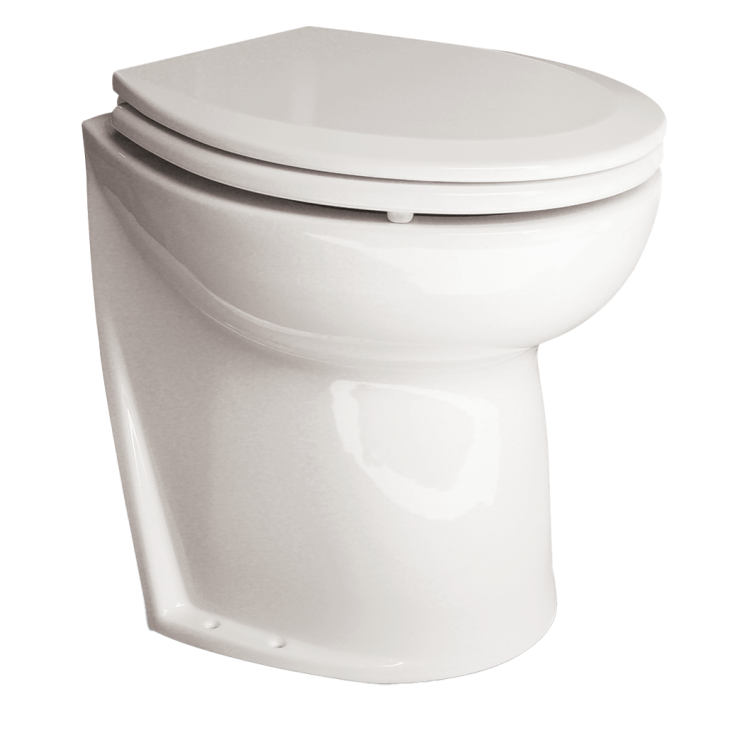

• 58220-3012: 17-inch angled style, 12 VDC. The angled back helps the toilet sit more naturally against a sloped bulkhead in a 12 V installation.
• 58220-3024: 17-inch angled style, 24 VDC. This configuration pairs the angled-back bowl shape with 24 V DC power for compatible vessel systems.

Installation and fit

Before ordering, confirm the available head compartment depth, the bulkhead angle behind the toilet, and whether the boat is wired for 12 VDC or 24 VDC at the installation point. The straight and angled bowl styles are not just visual choices; they affect how neatly the toilet sits against the surrounding structure.

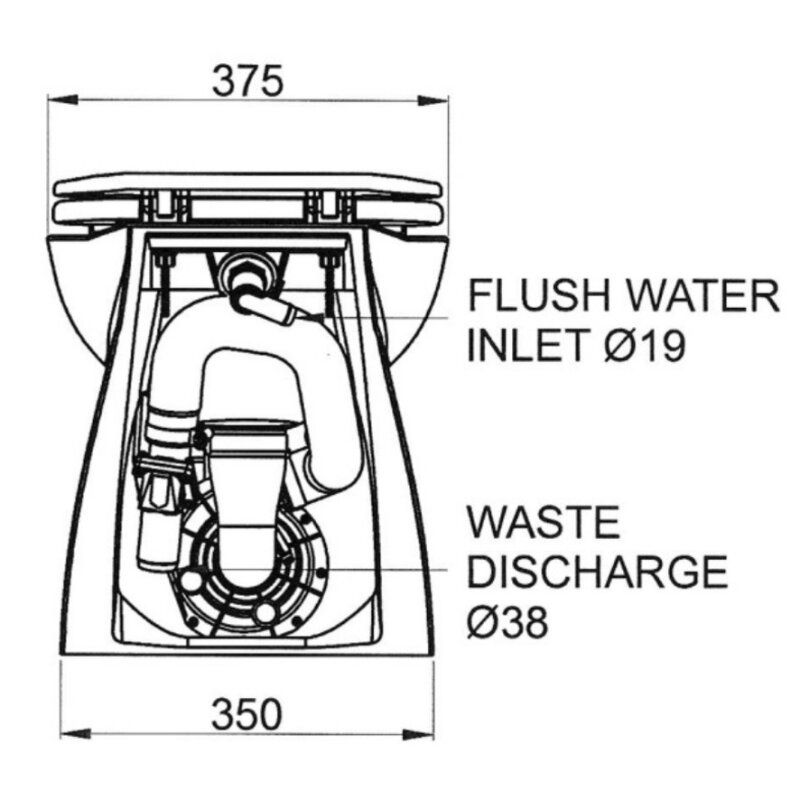

The raw water rinse versions are meant for boats that use outside water for flushing rather than a pressurized freshwater supply. Installation should allow service access to the rinse pump, plumbing connections, electrical connections, and discharge hose routing.

Use on board

The touch panel makes the toilet easier for guests and crew to use because the main rinse and discharge functions are clearly separated. The dry bowl setting is useful when water use and holding tank space are priorities, while the wet setting leaves the bowl ready for the next use.

This range is a good match for cruising boats, larger day boats, and refit projects where a manual toilet is being replaced with an electric head and the installation can support the required voltage, intake plumbing, and discharge system.
