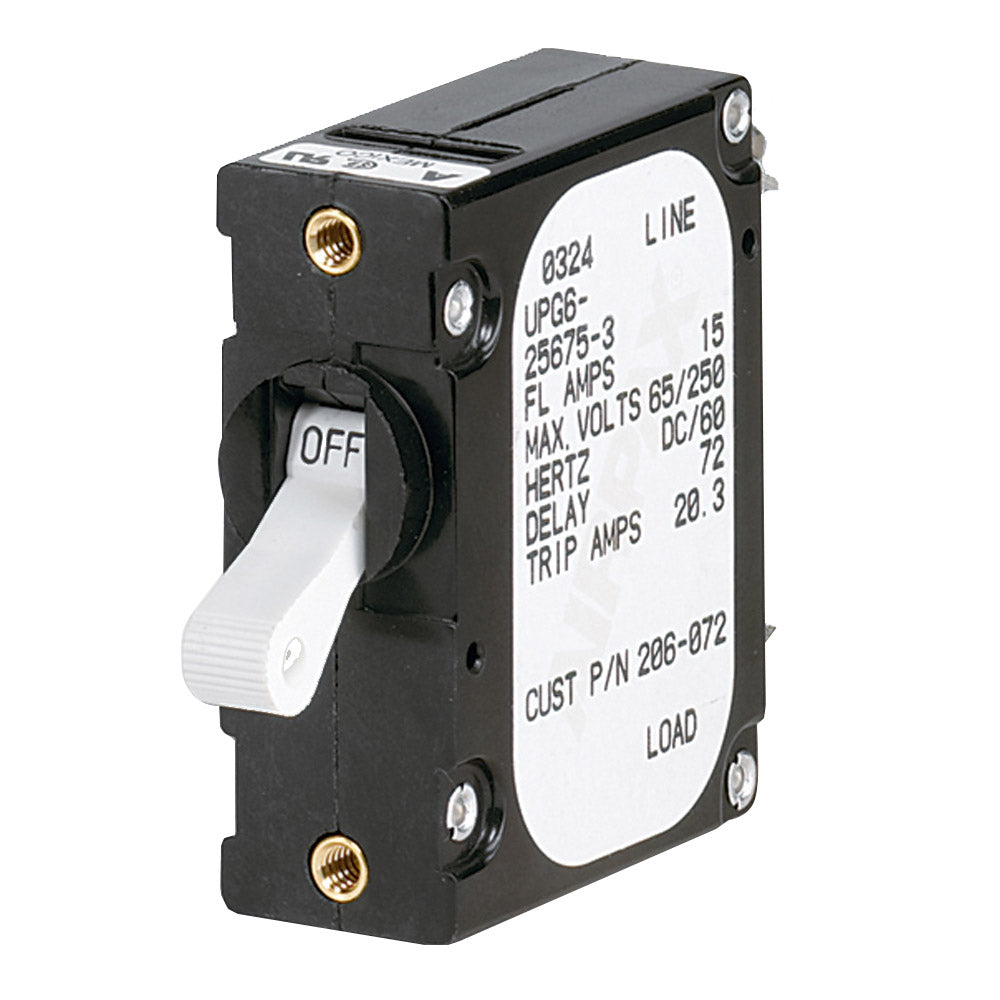

Paneltronics - 'A' Frame Magnetic Circuit Breaker - Single Pole
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Optimize Your Marine Electrical Safety with Paneltronics 'A' Frame Magnetic Circuit Breaker
Ensure the safety and efficiency of your marine electrical systems with the Paneltronics 'A' Frame Magnetic Circuit Breaker. This 5 Amp, Single Pole circuit breaker is engineered to provide reliable protection for your vessel's electrical circuits, meeting the rigorous standards set by the American Boat and Yacht Council (ABYC). Its robust design and magnetic trip mechanism offer unparalleled security against overloads, ensuring your marine adventures are both safe and enjoyable.
- 5 Amp, Single Pole breaker for precise circuit management.
- Complies with ABYC Standards for non-ignition protected circuit breakers.
- UL Recognized for use in the U.S.A. and CSA Certified for use in Canada, ensuring wide acceptance and reliability.
- Trip-free design prevents the breaker from being forcibly held closed in the event of an overload.
- Manual reset offers an easy recovery option after tripping, enhancing convenience and safety.
Technical Specifications for Dependable Marine Protection
Designed with meticulous attention to detail, this circuit breaker embodies the Paneltronics commitment to quality. It integrates seamlessly into Paneltronics electrical distribution panels, providing a standard solution for both AC and DC circuits. The manual reset function adds an extra layer of safety, allowing for quick resolution of overload conditions without the need for replacement.
Compliance and Safety First
Adherence to ABYC, UL, and CSA standards ensures this circuit breaker meets the highest safety and quality benchmarks. Its trip-free and manual reset mechanisms are specifically designed to comply with marine safety regulations, offering peace of mind in all conditions.
Versatile Protection Options
Paneltronics 'A' Frame Magnetic Circuit Breakers are available in a variety of amperages, catering to diverse electrical needs on your vessel. Each variant is built with the same high standards of safety and durability:
- 206-070S 5A: Ideal for light circuits and electronics.
- 206-071S 10A: Suitable for medium-duty applications.
- 206-072S 15A, 206-073S 20A, 206-074S 25A: Perfect for more demanding circuits.
- 206-075S 30A, 206-076S 40A, 206-077S 50A: Designed for high-capacity electrical systems.
Select the Paneltronics 'A' Frame Magnetic Circuit Breaker for a dependable, regulation-compliant solution to your marine circuit protection needs.
