Garmin ECHOMAP UHD2 93sv LiveScope Ice Fishing Bundle, LVS32-IF Transducer, GLS 10 Sonar Module, 9 in

Overview

The Garmin 010-02688-30 is a portable ECHOMAP UHD2 93sv and LiveScope Ice Fishing Bundle that pairs a 9 in keyed-assist touchscreen combo with the LiveScope System and an LVS32-IF transducer.

LiveScope shows real-time sonar up to 200 ft in any direction, with Forward and Down views that make it easy to see fish movement and follow your jig under the hole. The unit is rated IPX7 for wet conditions, and it runs on 9 to 18 V DC, which fits a typical 12V setup.

It also comes preloaded with Garmin Navionics+ maps covering more than 23,000 U.S. lakes, so you can keep your bearings, mark spots, and build a repeatable pattern instead of hopping blind. The overall kit measures 13.8 x 12.2 x 13.0 in and weighs 26.9 lb, so it is sized for carry-and-set deployment rather than permanent mounting.

Key features

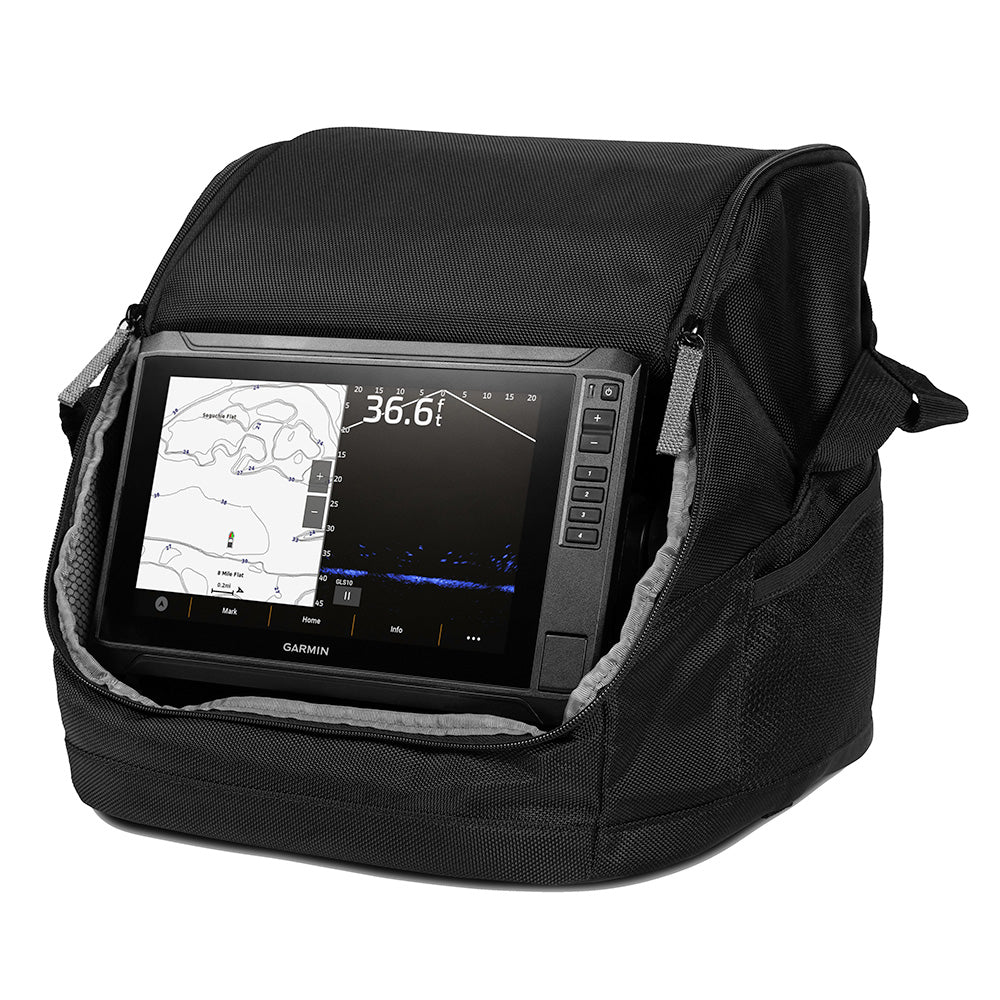

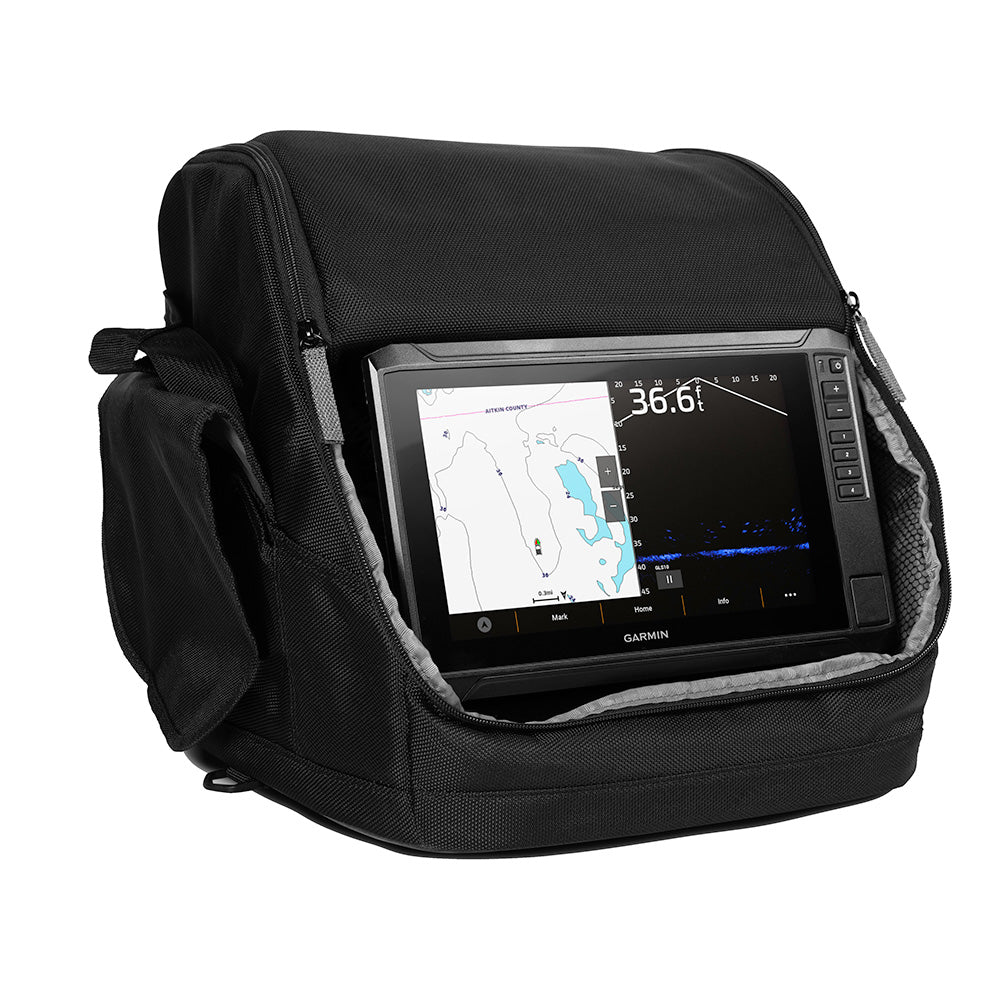

• 9 in touchscreen display with keyed assist (1024 x 600 resolution) for gloved operation and quick view changes
• LiveScope real-time sonar range up to 200 ft in any direction for tracking fish and bait movement as it happens
• LiveScope Forward and LiveScope Down modes to aim around the hole or watch directly beneath the transducer
• Preloaded Garmin Navionics+ mapping with coverage for more than 23,000 U.S. lakes
• IPX7 water rating for snow, spray, and wet hands during setup and hole-to-hole moves
• 9 to 18 V DC power input for 12V systems without special power conditioning
• Supports one microSD card (up to 32 GB) for extra mapping and data management
• Includes a GLS 10 sonar module to run the LiveScope System as part of the portable kit

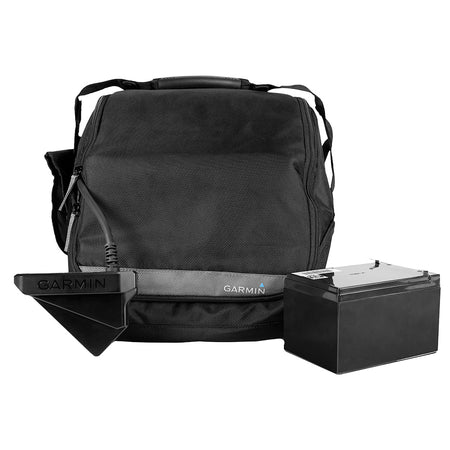

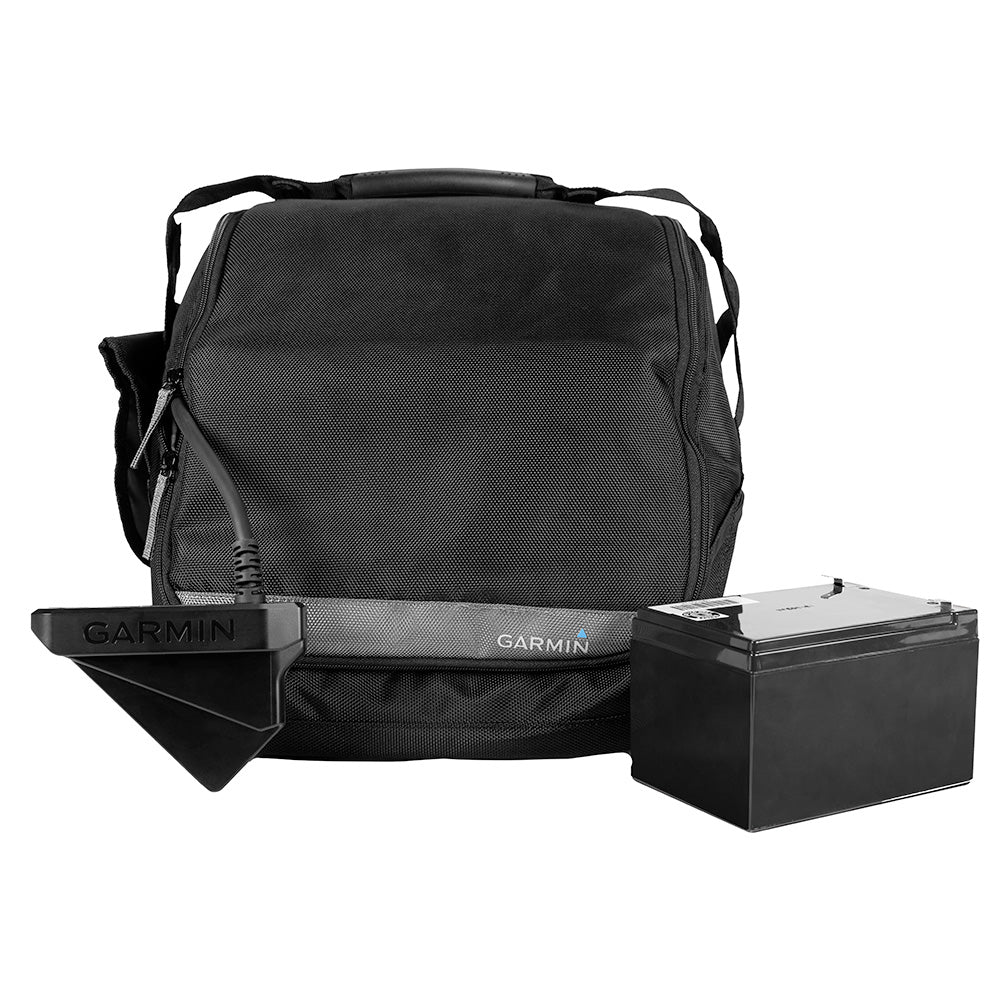

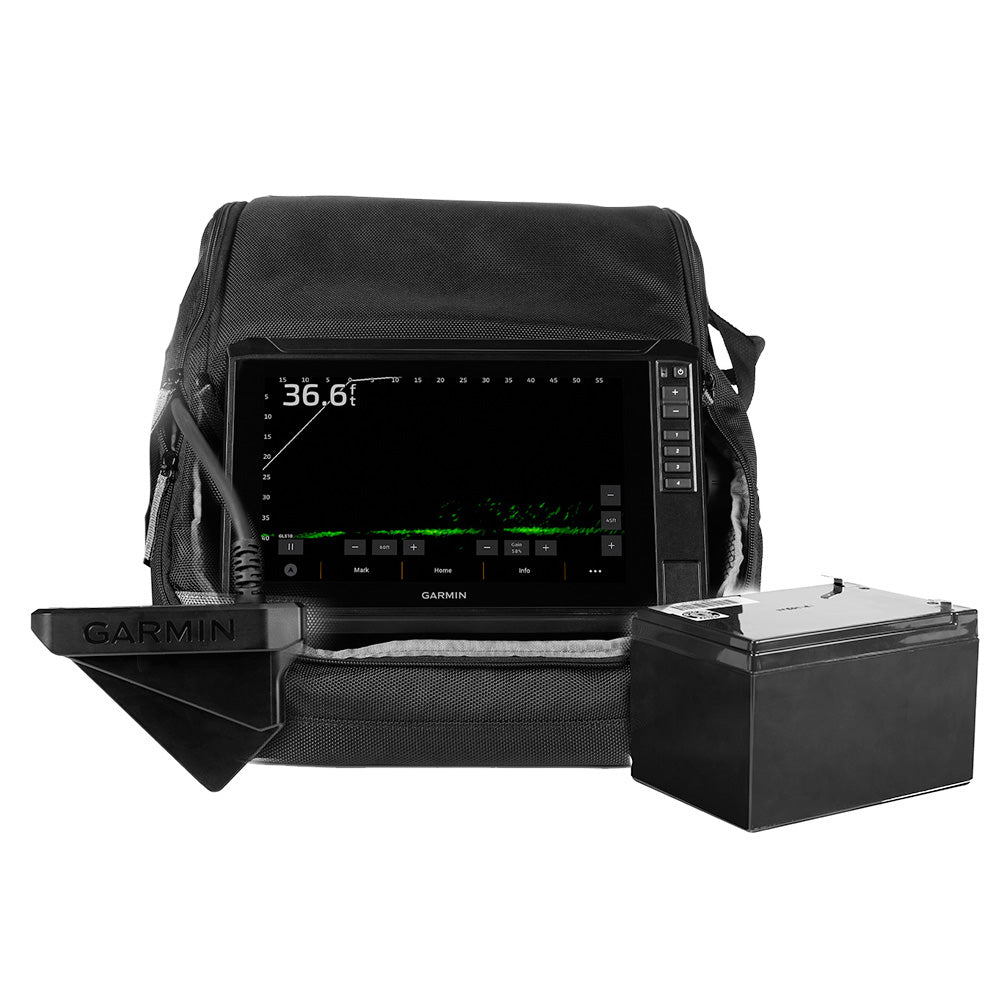

What’s included

• ECHOMAP UHD2 chartplotter
• LVS32-IF transducer
• GLS 10 sonar module
• Ice fishing pole mount
• Tilt mount
• Power cable

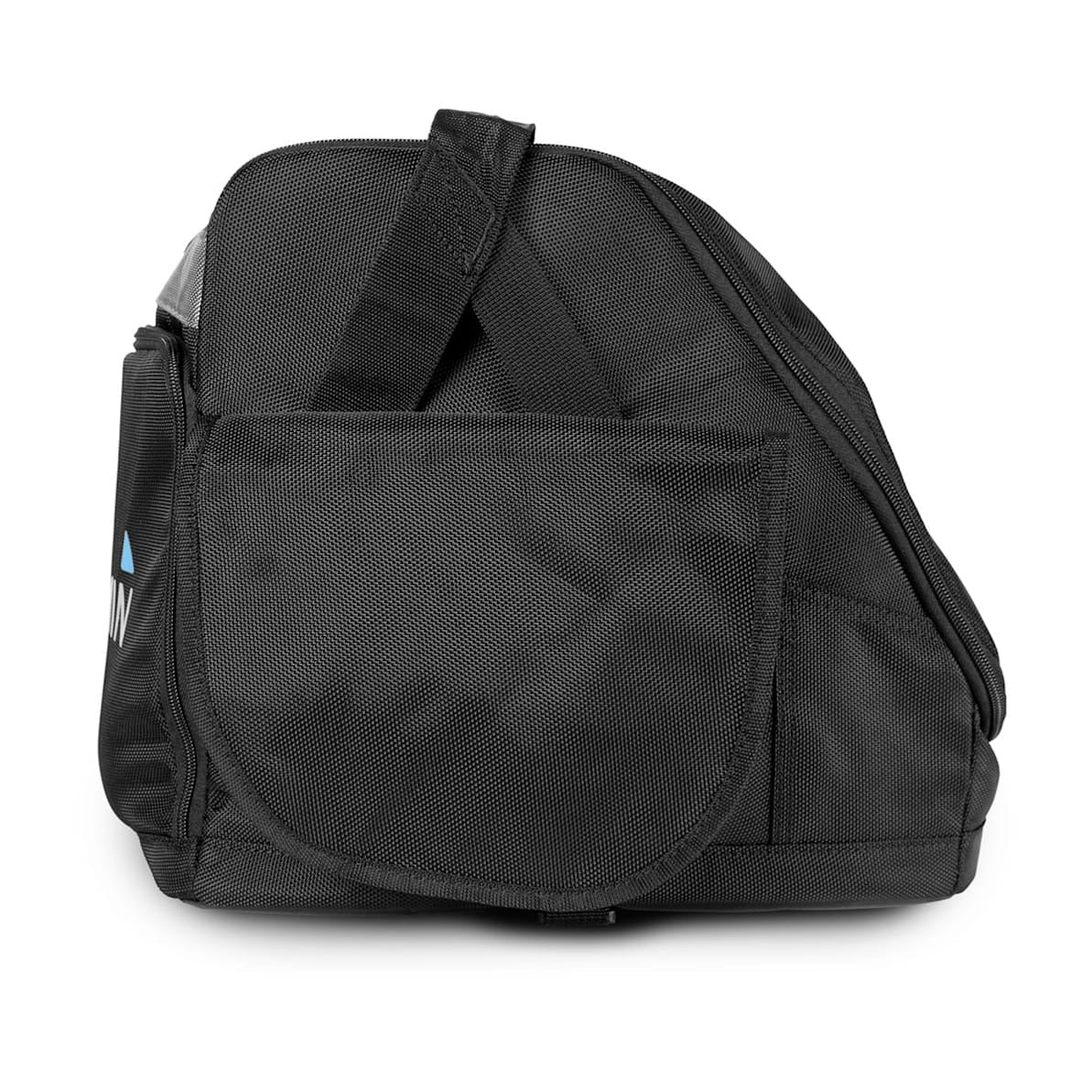

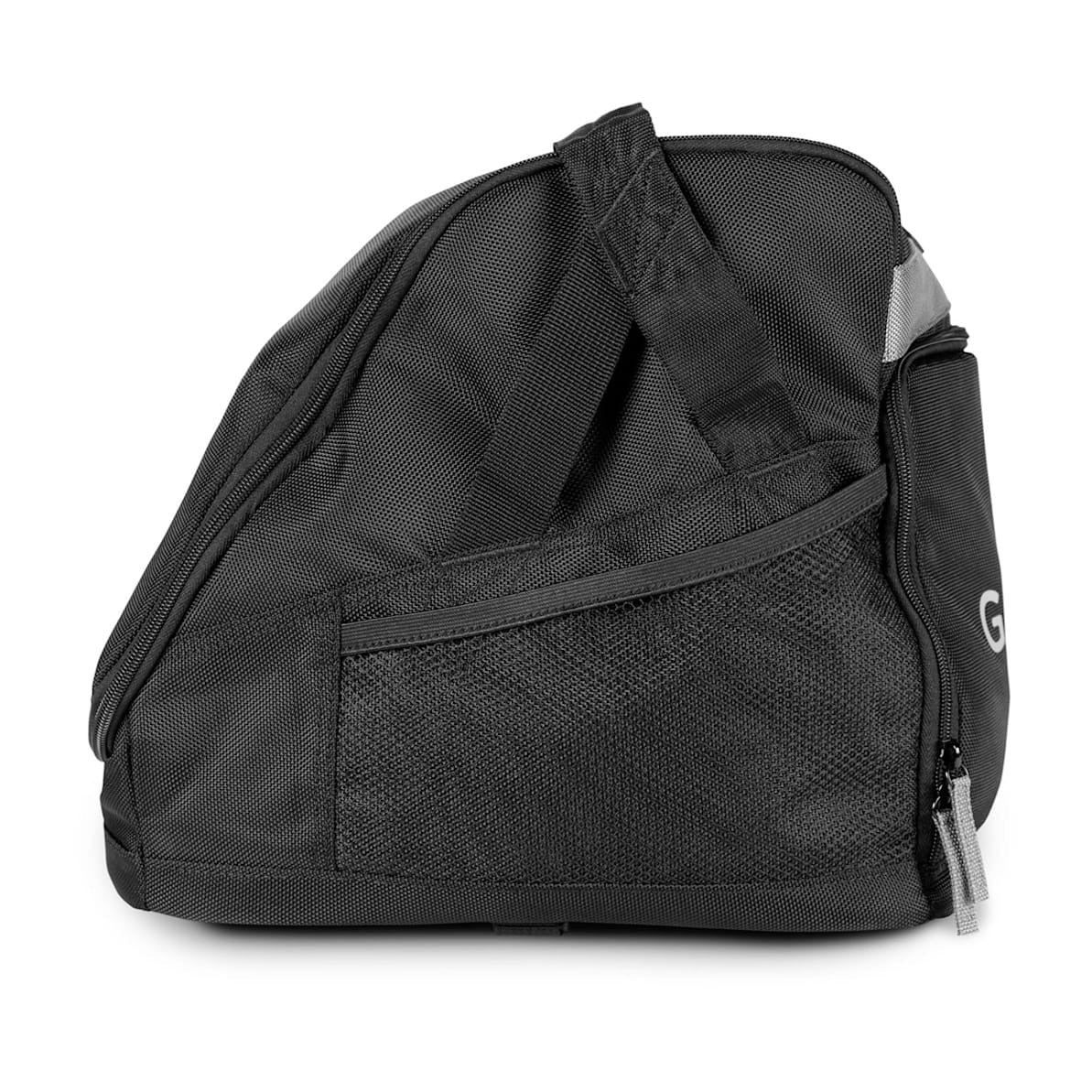

• Portable fishing bag with handle
• Rechargeable battery
• Battery charger
• Documentation

Installation and setup

Setup is straightforward: the swivel pole mount lets you position the LVS32-IF transducer in the hole and aim it where you want to look. Forward mode is useful when you want to scan around before moving, while Down mode keeps the picture centered under you so you can watch fish react in real time.

On a boat, the same LiveScope views are handy for slow trolling, hovering on structure, or staying on fish while vertical jigging. Just plan your mount and cable routing so the pole and transducer stay clear of the prop and any lifting hardware.

Electrical and system integration

This bundle is built around 9 to 18 V DC input, so it matches a 12V battery bank. If your boat is strictly 24V, you will need a step-down converter to stay within the input range.

The ECHOMAP UHD2 93sv is NMEA 2000 compatible, which matters if you want to tie in engine data or other onboard sensors later. For portable use, it runs cleanly as a standalone system with sonar, mapping, and waypoints all in one place.

Use cases on board

This kit is a strong match for anglers who want live sonar without piecing together separate components, especially for ice fishing where quick setups and fast moves matter. It also fits small boats that benefit from a carryable electronics package that can be stored off the helm when the weather turns.

Maintenance and care

Keep connectors clean and dry between trips, and avoid sharp bends in the transducer cable when packing the case. If it sees salt spray on a boat, rinse with fresh water and let everything dry before storing to reduce corrosion and keep the touchscreen clear.
