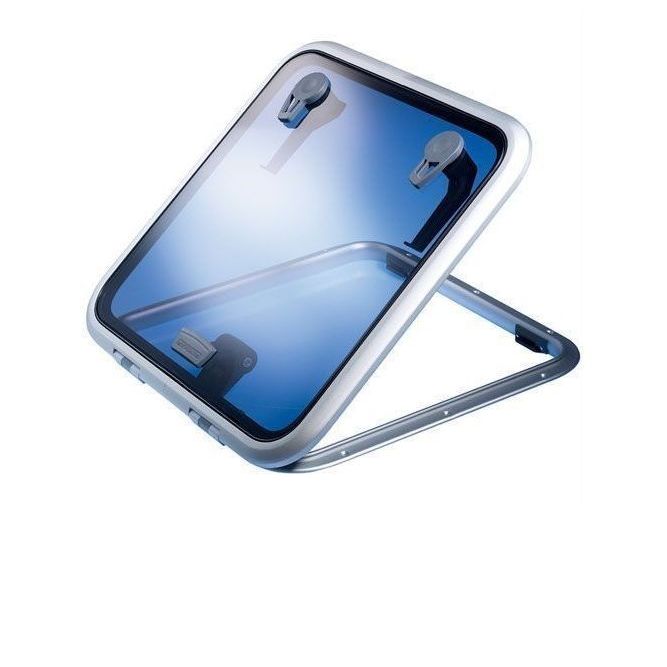

Lewmar - Size 20 Low Profile Hatch Flange Base
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Sleek and Reliable Low-Profile Hatch for Marine Applications
The Lewmar Size 20 Low Profile Hatch Flange Base is designed for durability and seamless integration into your vessel. Its low-profile design enhances both functionality and aesthetics, making it an ideal choice for a wide range of marine applications. Built with a self-supporting system, this hatch ensures easy operation and optimal performance in various marine conditions.
The smoked grey acrylic window not only adds a modern touch but also provides excellent visibility and protection from harsh sunlight. With a sturdy construction and precise engineering, this hatch is designed to withstand the elements while offering smooth and reliable operation.
Technical Specifications
- Support System: Self-supporting
- Lower Frame Thickness: 9/16 inch
- Acrylic Window Color: Smoke Grey
- Hatch Weight: 4.9 lbs
- Acrylic Window Thickness: 5/16 inch
Product Dimensions
- Overall Length (X): 10 11/16 inches
- Overall Width (Y): 16 7/16 inches
- Overall Height (Z): 1 inch
- Radii (R): 2 7/8 inches
- Cut-Out Length (X1): 7 15/16 inches
- Cut-Out Width (Y1): 13 11/16 inches
- Cut-Out Radii (R1): 1 11/16 inches
Mounting Instructions
To ensure a secure and proper fit, install the hatch on a flat surface with a maximum tolerance of +/- 1mm. Use the following fastening sizes:
- Hinge Section: M6 (1/4”)
- Lower Frame: 5mm CSK screw No.10 UNC 2 BA
Highlights
- Low-profile design for a sleek marine aesthetic
- Smoked grey acrylic window for improved visibility and UV protection
- Self-supporting system for easy operation
- Lightweight yet durable construction for marine environments
- Precision-cut dimensions for a perfect fit
This Lewmar Size 20 Low Profile Hatch is a superior choice for any boat or yacht, ensuring a secure, weather-resistant, and stylish solution for enhanced onboard comfort.
