Newmar Power - 12-24-7 Step Up DC-DC Converter - 7AMP Continuous
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Reliable Power Conversion for Marine Applications

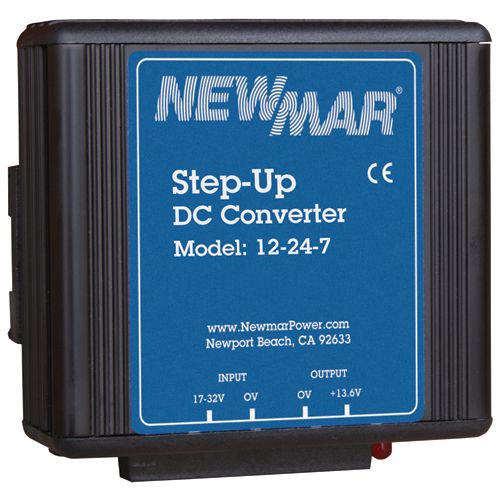

The Newmar Power 12-24-7 Step-Up DC-DC Converter is an essential solution for marine vessels requiring 24V power while operating on a robust 12V system. This unit efficiently converts 12V to 24V, eliminating the need for an additional battery and dedicated charging system. Ideal for boats with dual voltage requirements, it ensures seamless operation for electronics that perform optimally on 24 volts.
Advanced Technical Features
Designed for marine environments, this DC-DC converter boasts a range of protective features, ensuring durability and reliability. With a 10-15V DC input range and a regulated 27.2V output, it provides stable power while safeguarding against electrical fluctuations.
- Current-limited with built-in voltage spike suppression
- Automatic thermal shutdown and recovery to prevent overheating
- Efficiency rating of 93% for energy conservation
- Rugged anodized aluminum construction for durability
- IP533-rated for dust, water, and impact resistance
Product Dimensions
Available in three sizes, the case dimensions are tailored to different power output needs:
- C-1 Case (7A Model): 3.5" H x 3.5" W x 1.75" D (8.9 cm x 8.9 cm x 4.5 cm)
- C-2 Case (16A Model): 4.25" H x 5.9" W x 14.0" D (10.8 cm x 15.0 cm x 35.6 cm)
- C-3 Case (25A Model): 6.0" H x 6.8" W x 16.5" D (15.2 cm x 17.3 cm x 41.9 cm)
Key Specifications
- Input Voltage: 10 - 15V DC
- Output Voltage: 27.2V DC +/-5%
- Ripple: <100mV P-P
- Regulation: +/-5% Line/Load
- Duty Cycle:Intermittent: 2 minutes, 20% duty
- Continuous: 24 hours, 100% duty
- Operating Temperature: -25°C to 30°C, with derating up to 80°C
- Front panel terminal block with green LED output indicator
Highlights
- Converts 12V DC to 24V DC for marine applications
- No need for an additional 24V battery system
- Designed for negative ground systems
- Overload and thermal protection for enhanced safety
- High efficiency and durable anodized aluminum construction
- IP533-rated for marine-grade resilience
This step-up DC-DC converter is a reliable power solution for marine environments, ensuring stable voltage conversion with robust protection features. Choose the right variation to meet your vessel's specific power needs.
