Lopolight Combined Sidelight, 2NM, Vertical Mount, 10-32VDC, IP68
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Lopolight 201-004 Series is a 2 nautical mile combined sidelight for vertical mounting that shows green to starboard and red to port from a single housing. It is built for 10 to 32 VDC systems and comes pre-cabled with a 2.5 m shielded marine-grade lead for straightforward wiring runs.

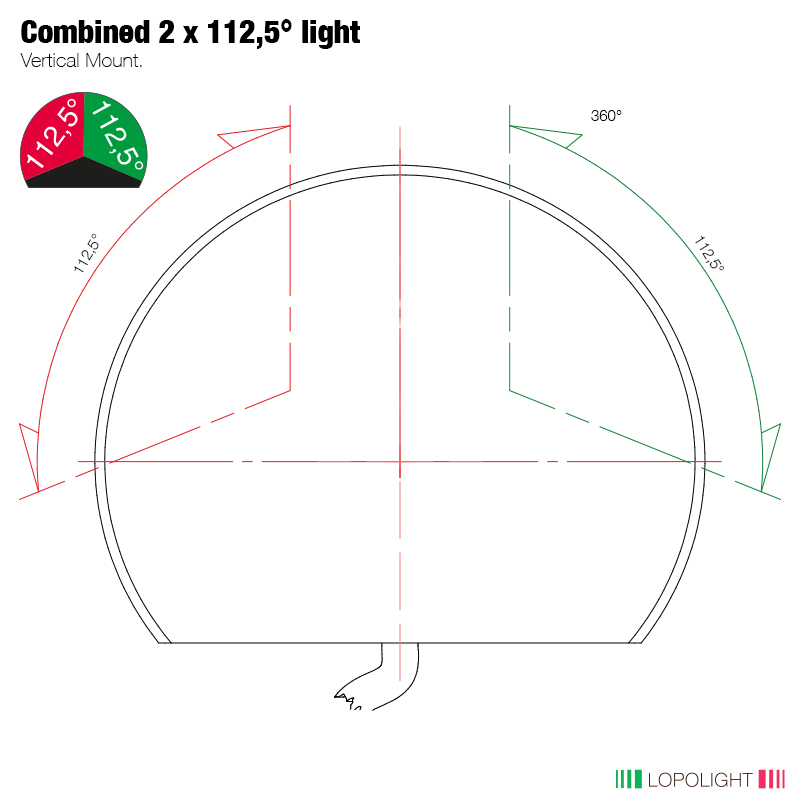

This light covers the required 112.5° sector for each color and is rated IP68 for wet, exposed mounting locations. The body measures 74.55 x 28 x 73.16 mm, which helps when you are trying to keep the bow area clean and avoid bulky fixtures.
The housing is aluminum with a PMMA lens, and the electronics are potted to handle vibration and water intrusion. It is approved to COLREG72, EN14744, IEC 60945, and USCG (UL1104).
Key features
- Combined red and green sidelight in one unit with 112.5° coverage per side and 2 nm visibility rating
- Vertical mount form factor for centerline bow installations where you want one fixture instead of separate port and starboard lights
- Wide input range for 12V and 24V systems (10 to 32 VDC)
- IP68 rating with fully potted electronics for washdowns, spray, and vibration
- Pre-cabled 2.5 m shielded marine cable to reduce splices in the bow and simplify routing
- Compact size (74.55 x 28 x 73.16 mm) for tight mounting spots
Variants
This product is offered in multiple exterior finishes to match common hull, rail, and hardware styles.
The light output (red/green), visibility rating, mounting style, IP rating, operating voltage, cable length, and overall dimensions remain consistent across the range.

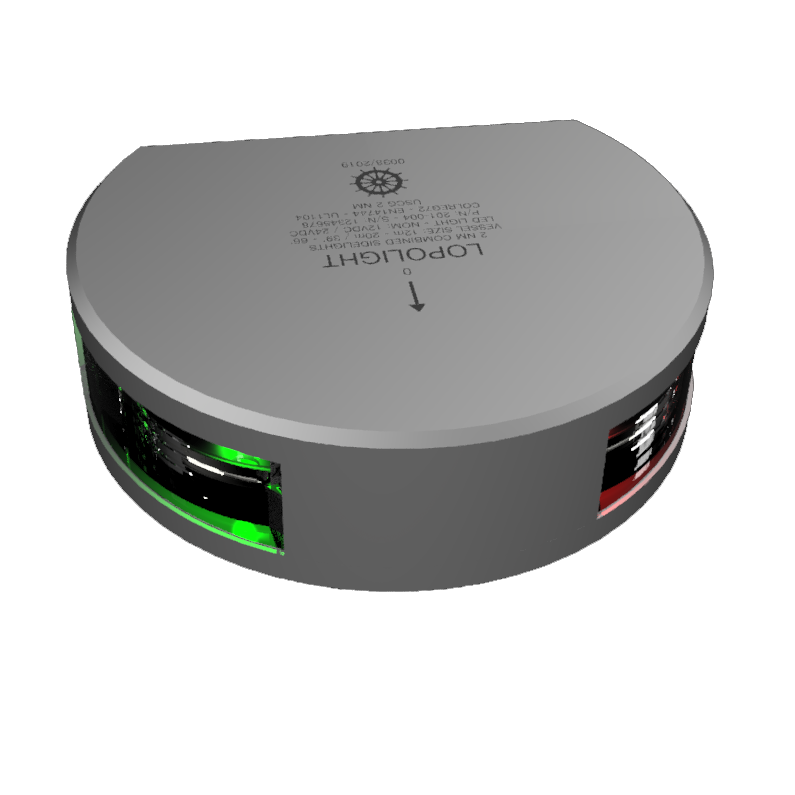

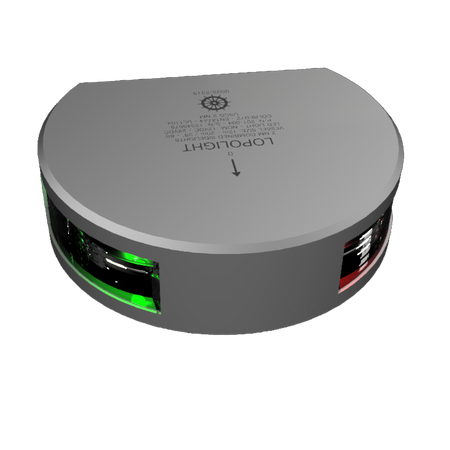

- 201-004: Finish Silver. A silver anodized look that pairs naturally with bare aluminum and stainless hardware.

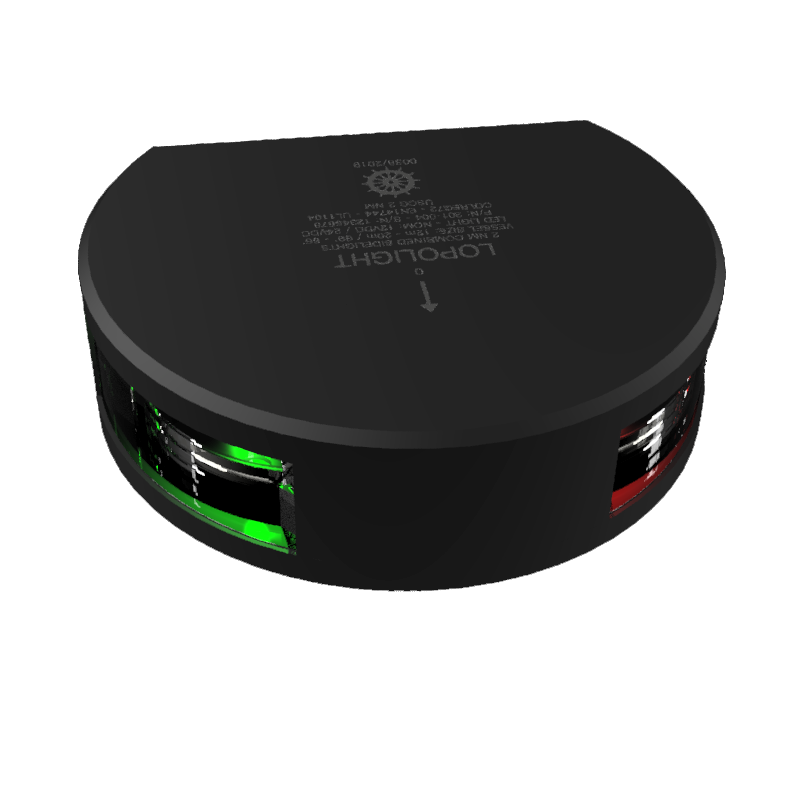

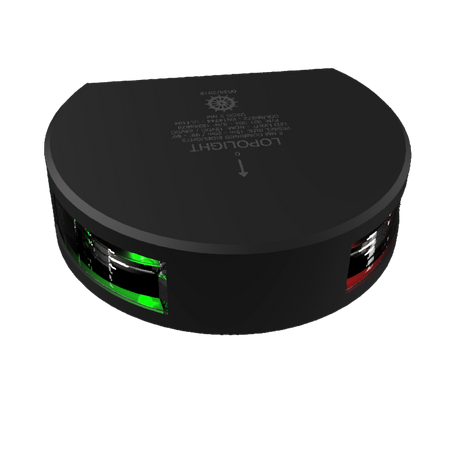

- 201-004-B: Finish Black. A black anodized look that blends into dark rails, housings, and tinted window lines.

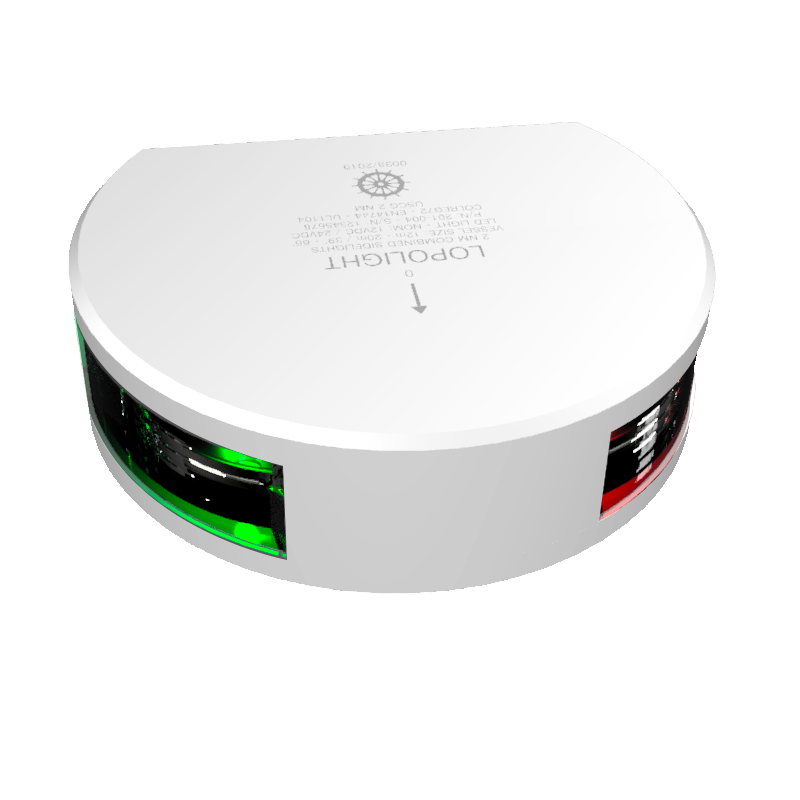

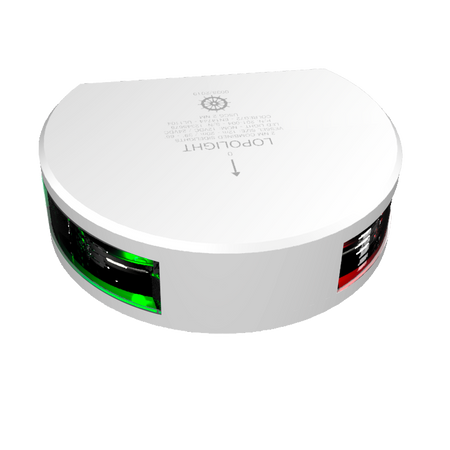

- 201-004-WH: Finish White. A white ceramic-coated finish that matches white gelcoat, decks, and light-colored superstructures.
Installation and setup
As a combined sidelight, this unit is typically mounted on the vessel centerline, facing forward, where it has a clear view out to both sides. Keep the light unobstructed by anchors, pulpits, and bow hardware so the red and green sectors are not shadowed.
The supplied mounting screws fit the vertical base, and the pre-attached cable lets you route wiring through the deck or structure without adding connectors at the light. Seal any deck penetrations appropriately for your construction and exposure.
Electrical and system integration
Designed for 10 to 32 VDC, it can be used on standard 12V and 24V DC systems. The cable includes red (positive) and black (ground) conductors with a shield, which is helpful when running alongside other wiring in the bow.
What’s included
- Navigation light, pre-cabled with 2.5 m shielded marine-grade cable
- 2 mounting screws (M6 x 8 mm)
- Installation instructions
Use on board
This style of combined sidelight is a good match when you want a single fixture up forward instead of separate port and starboard lights, such as on tighter foredecks, bow pulpits, or clean-lined yacht bows. It also suits boats that see frequent spray and regular washdowns where an IP68-rated, potted light is a practical choice.
Maintenance and care
Rinse salt and grime from the lens and housing with fresh water as part of normal washdown routines, and avoid abrasive pads that can haze the lens. Periodically check mounting fasteners and cable routing for chafe, especially in high-vibration areas near the bow.
