Automate Your Boating Precision with Lectrotab's Aluminum Alloy Trim Tab Kit

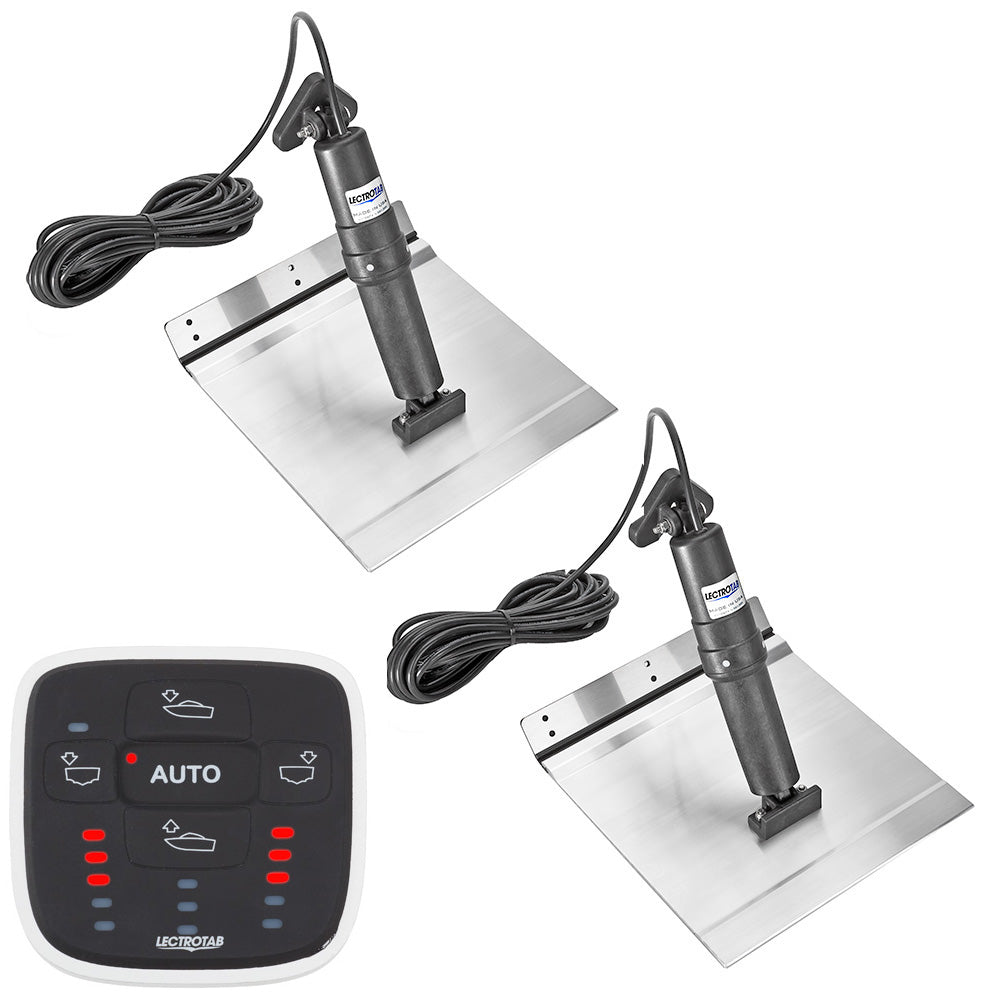

Introducing the revolutionary Lectrotab XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 9 x 9, engineered specifically for aluminum-hulled boats and an economical upgrade for any marine vessel. This kit features ultra-durable aluminum alloy tabs, equipped with a robust "no-break" polypropylene hinge, ensuring longevity and resilience. Each tab is coated with a corrosion-resistant epoxy, providing superior protection against the elements. The heart of this system, a precision-engineered actuator, offers quiet, maintenance-free operation, precise tab positioning, and significant lift force for an enhanced boating experience. The inclusion of the Automatic Leveling Control (ALC) seamlessly maintains boat level, automatically adjusting the trim tabs to counteract roll and pitch, thereby optimizing comfort and fuel efficiency. With no need for internal boat modifications, installation is straightforward, thanks to the self-contained, non-metallic, permanently sealed actuator housing.
Key Benefits for a Superior Navigation Experience
- Corrosion-resistant epoxy coating and marine-grade aluminum alloy construction
- Durable "no-break" polypropylene hinge, tested to withstand over 300,000 cycles
- Internal pressure equalization and braking system for smooth and controlled adjustments
- Silent operation with actuators capable of pushing 1000 lbs of force
- Automatic Leveling Control (ALC) for effortless trim tab adjustments and optimal leveling
- Non-metallic external structure ensures longevity without corrosion or UV damage
Comprehensive Technical Specifications
- Trim Tab Dimensions: 9" x 9" (23 x 23 cm), suitable for boats 14' to 19' (4 to 6 M)
- Material: High-strength marine-grade 6005-T5 Aluminum Alloy
- Actuator Voltage: 12 V, with a 2.25" (57 mm) stroke length for precise control
- Cable Length: 23' (7 M), offering flexible installation options
- ALC Unit Size: 3.15" x 3.07" (80 x 77 mm), with an easy installation cutout of 2" (50 mm)
Explore the Range: Available Variants
- XKASAL9X9A: The standard 9" x 9" kit for balanced lift and efficiency
- XKASAL9X12A: 9" x 12" variant for additional surface area and lift
- XKASAL9X18A: 9" x 18" option for enhanced stability in larger vessels
- XKASAL9X24A: 9" x 24" for maximum performance and control
- XKASAL12X9A: 12" x 9" for boats requiring more lift in a compact profile
- XKASAL12X12A: A versatile 12" x 12" choice for comprehensive trim control
- XKASAL12X18A: 12" x 18" for significant stability improvements
- XKASAL12X24A: The ultimate 12" x 24" kit for unparalleled trim tab efficiency
Effortless Installation, Enhanced Control
Every Lectrotab Aluminum Alloy Trim Tab Kit is designed for straightforward, hassle-free installation, ensuring you can quickly enhance your vessel's handling, performance, and fuel efficiency. The package includes an ALC unit for automatic trim adjustments, two aluminum alloy tabs, two actuators with 23' cables, and a comprehensive instruction manual. Elevate your boating experience with Lectrotab's advanced trim tab solution, designed for boaters who value precision, durability, and ease of use.
