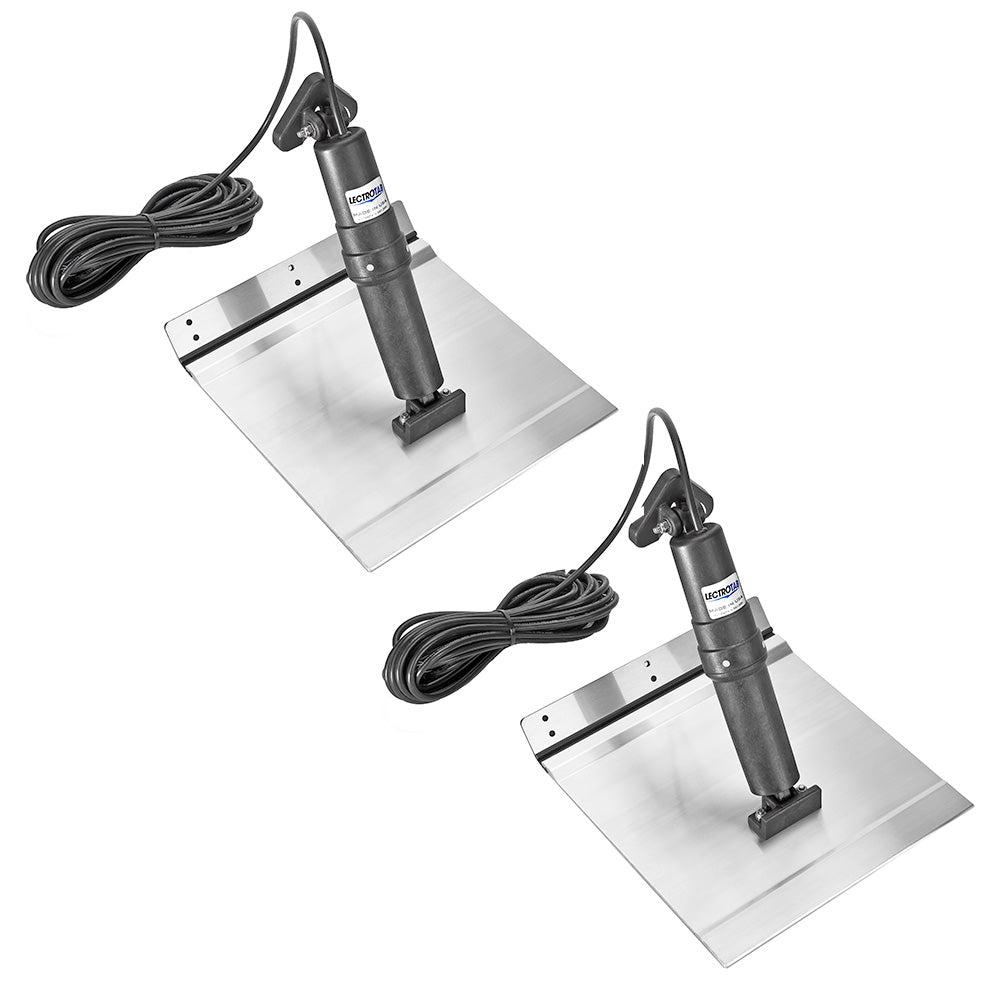

Enhance Your Vessel with Lectrotab XKA Aluminum Alloy Trim Tabs
Discover the innovative Lectrotab XKA Aluminum Alloy Trim Tab - 9 x 9, a state-of-the-art solution tailored for aluminum hulled boats and a cost-effective choice for all types of vessels. These trim tabs are manufactured from marine-grade 6005-T5 aluminum alloy, ensuring durability and strength equivalent to 10 gauge stainless steel. Each tab features a robust "no-break" polypropylene hinge, rigorously tested to withstand over 300,000 cycles of a 90° bend without failure. Coated with a corrosion-resistant epoxy, Lectrotab's aluminum alloy trim tabs are designed to provide precise tab positioning, maximum lift force, and a maintenance-free, non-hydraulic operation.
Key Features for Optimal Performance
- Corrosion-resistant epoxy coating for long-lasting protection
- Strong polypropylene hinge for unparalleled durability
- Internal pressure equalization and brake system for stable, controlled operation
- Quiet, maintenance-free design for a seamless boating experience
- Non-metallic external structure to prevent corrosion and deterioration
- Fully load tested actuators capable of delivering 1000 lbs of force
Technical Specifications
- Trim Tab Size: 9" x 9" (23 x 23 cm), perfect for boats ranging from 14' to 19' (4 to 6 M)
- Material: High-quality marine grade 6005-T5 Aluminum Alloy
- Actuator Voltage: 12 V for efficient operation
- Actuator Stroke Length: 2.25" (57 mm) for precise adjustment
- Actuator Cable Length: 23' (7 M) for flexible installation options
- Vertical Height: 11.875" (302 mm), designed for a streamlined profile
Select Your Ideal Variant
- XKA9X9A: 9" x 9" - Standard size for versatile applications
- XKA9X12A: 9" x 12" - Extended width for enhanced stability
- XKA9X18A: 9" x 18" - Longer tabs for improved control in rough waters
- XKA9X24A: 9" x 24" - Maximum lift for larger vessels
- XKA12X9A: 12" x 9" - Increased lift in a compact design
- XKA12X12A: 12" x 12" - Balanced size for optimal performance
- XKA12X18A: 12" x 18" - Wide and long for significant stability improvements
- XKA12X24A: 12" x 24" - The ultimate choice for comprehensive control
Everything You Need in One Package
Each Lectrotab XKA Aluminum Alloy Trim Tab kit includes two aluminum alloy tabs, two actuators with 23' cables, and a comprehensive instruction manual for straightforward installation. Designed to be completely self-contained and easy to install, these trim tabs do not require any internal boat modifications. Upgrade your vessel with Lectrotab's advanced trim tab system and experience enhanced stability, control, and efficiency on the water.
