Lopolight Series 301-001 Starboard Sidelight, 2NM, 10-32V, IP68, Vertical Mount, LED
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Lopolight 301-001 Series is a starboard sidelight that mounts vertically and shows a 112.5° green sector with 2 NM visibility, intended for vessels up to 50 m (164 ft). It runs on 10-32 VDC so it fits typical 12V and 24V systems, and the housing is sealed to IP68 for wet mounting locations.

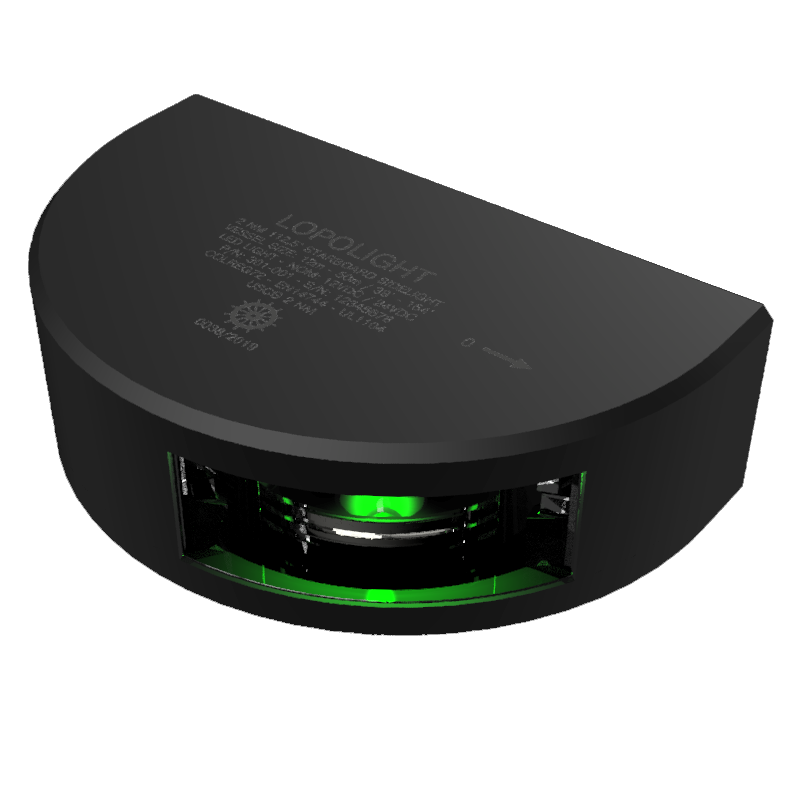

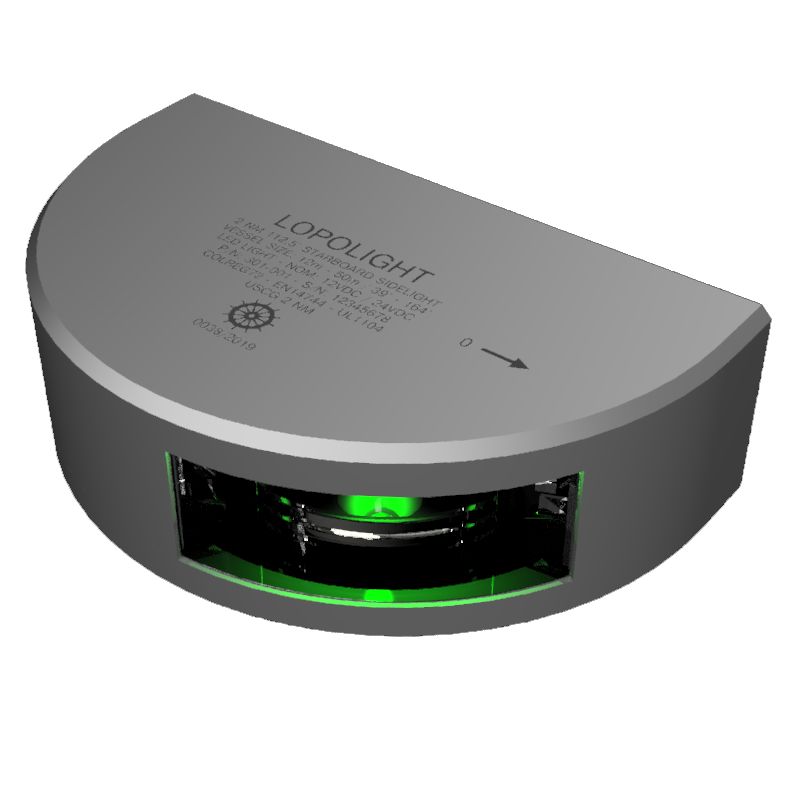

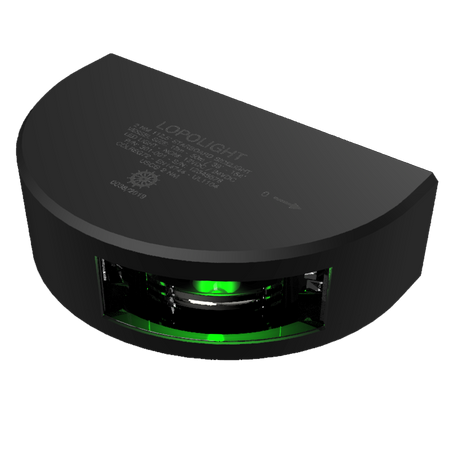

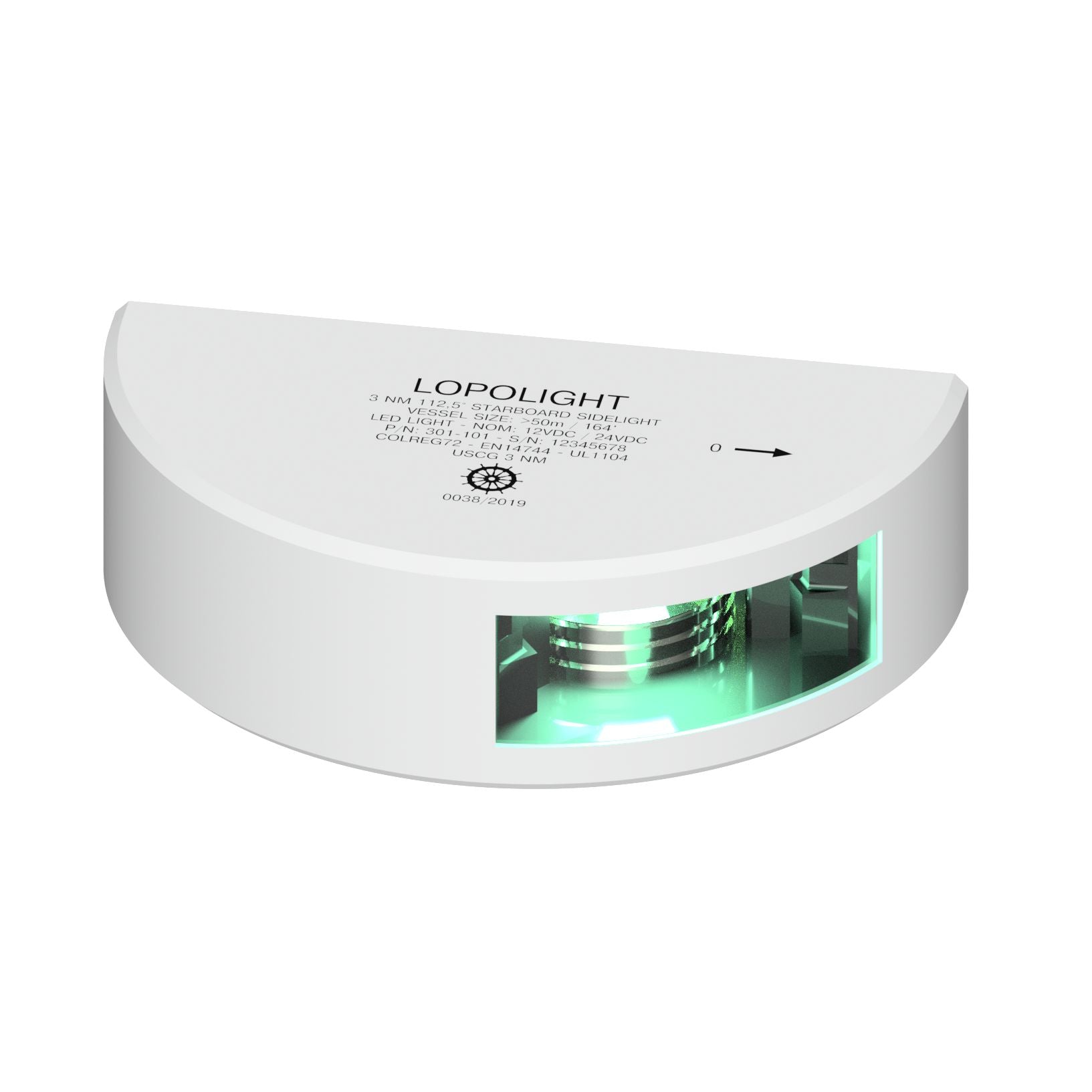

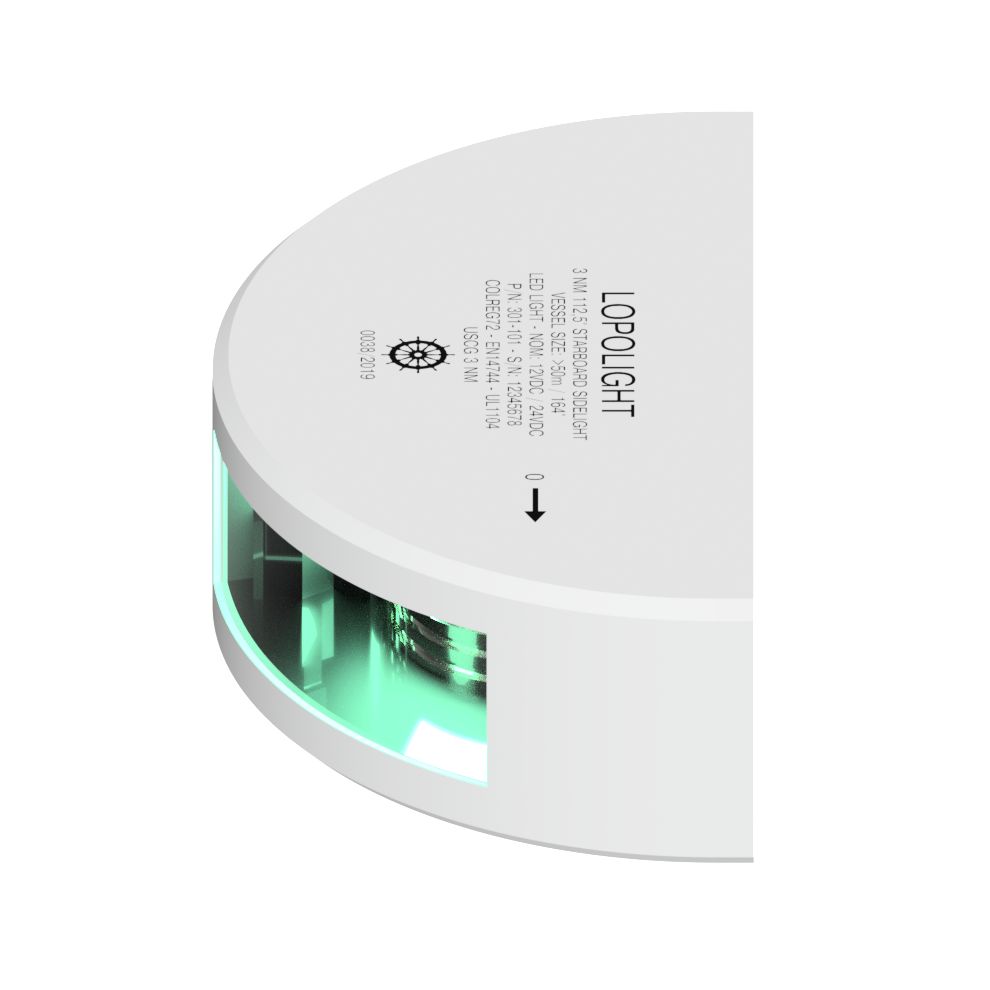

These lights are offered with silver anodized, black anodized, or white ceramic-coated housings, with a PMMA lens and A4 stainless mounting hardware. A 2.5 m shielded cable is pre-attached, so you can route it back to your navigation-light switch and DC protection.
Key features
- 2 NM visibility with a 112.5° green starboard sector for standard sidelight requirements.
- Vertical mount format for mounting on the starboard side of the hull or superstructure.
- 10-32 VDC input for 12V and 24V electrical systems.
- IP68 sealing for rain, spray, and washdowns.
- Pre-attached 2.5 m shielded cable for clean routing to the navigation-light circuit.
- Approved to COLREG72 and EN14744, with USCG approval listed.
- Housing finish options include silver anodized, black anodized, and white ceramic-coated, with A4 stainless hardware.

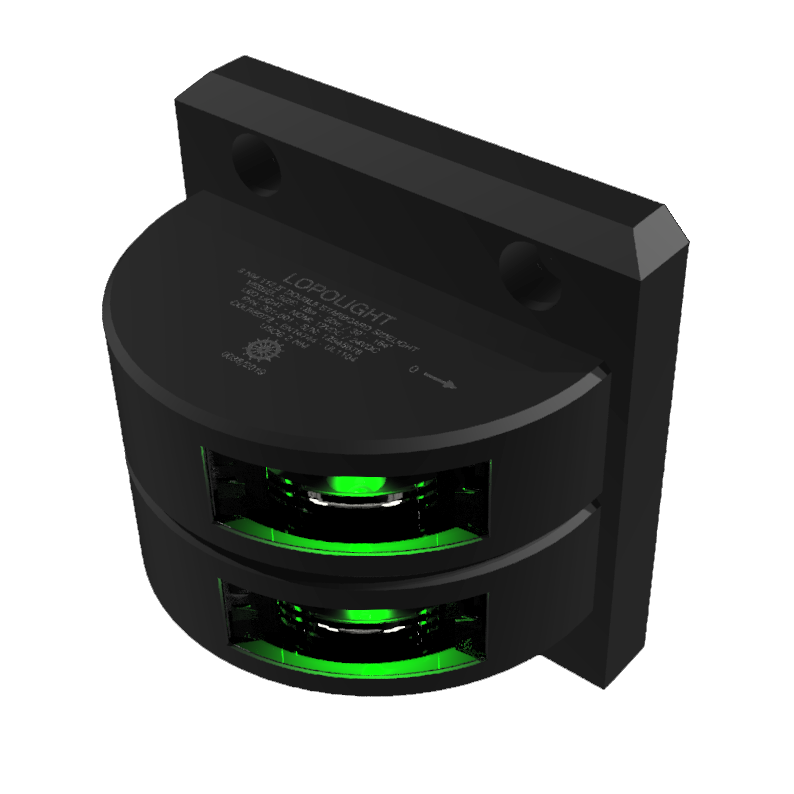

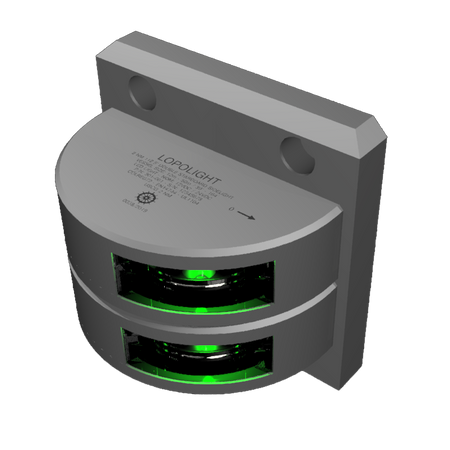

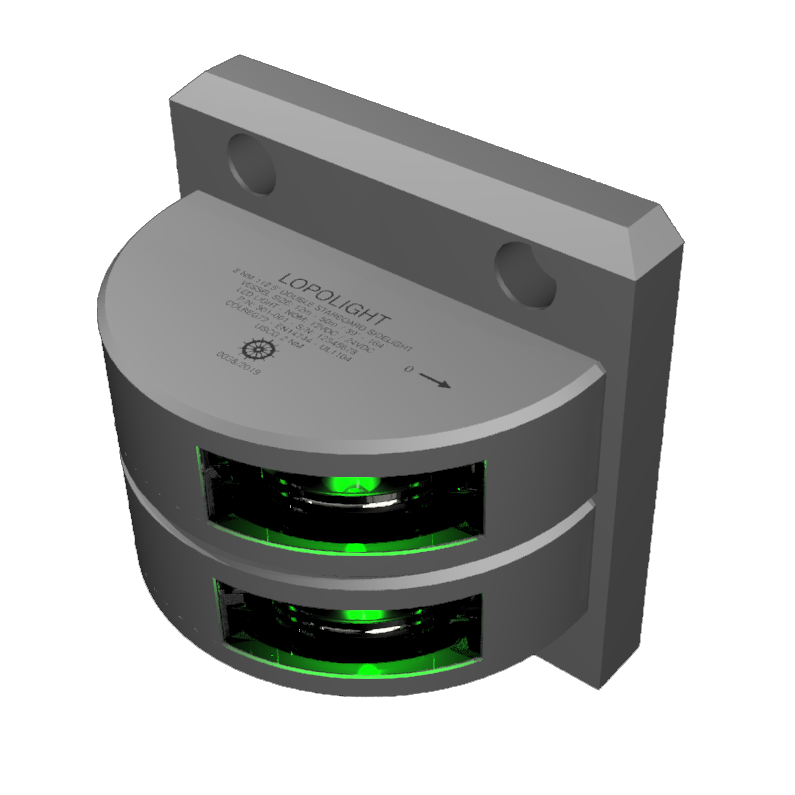

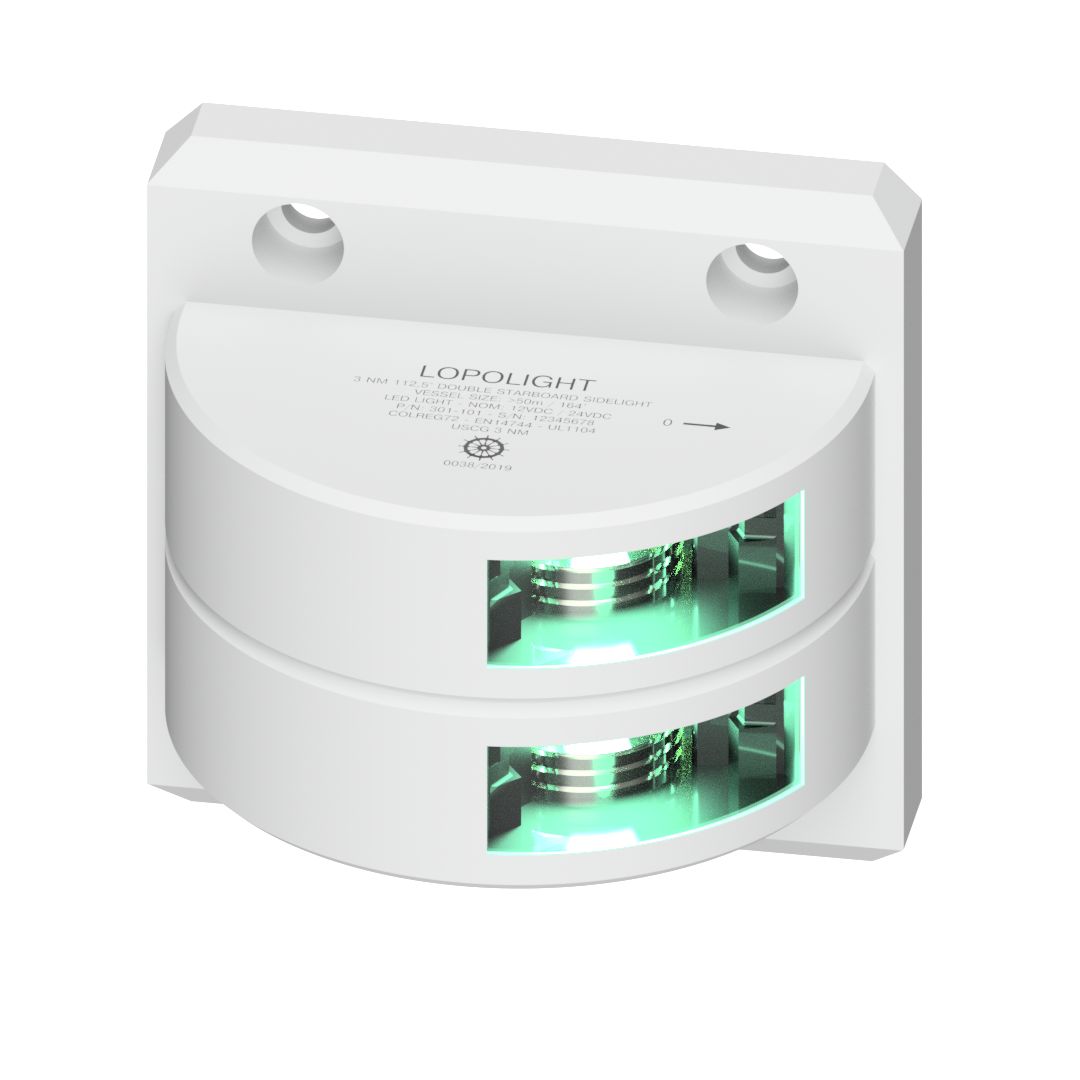

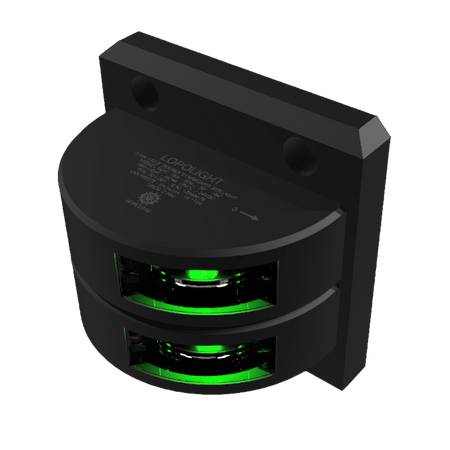

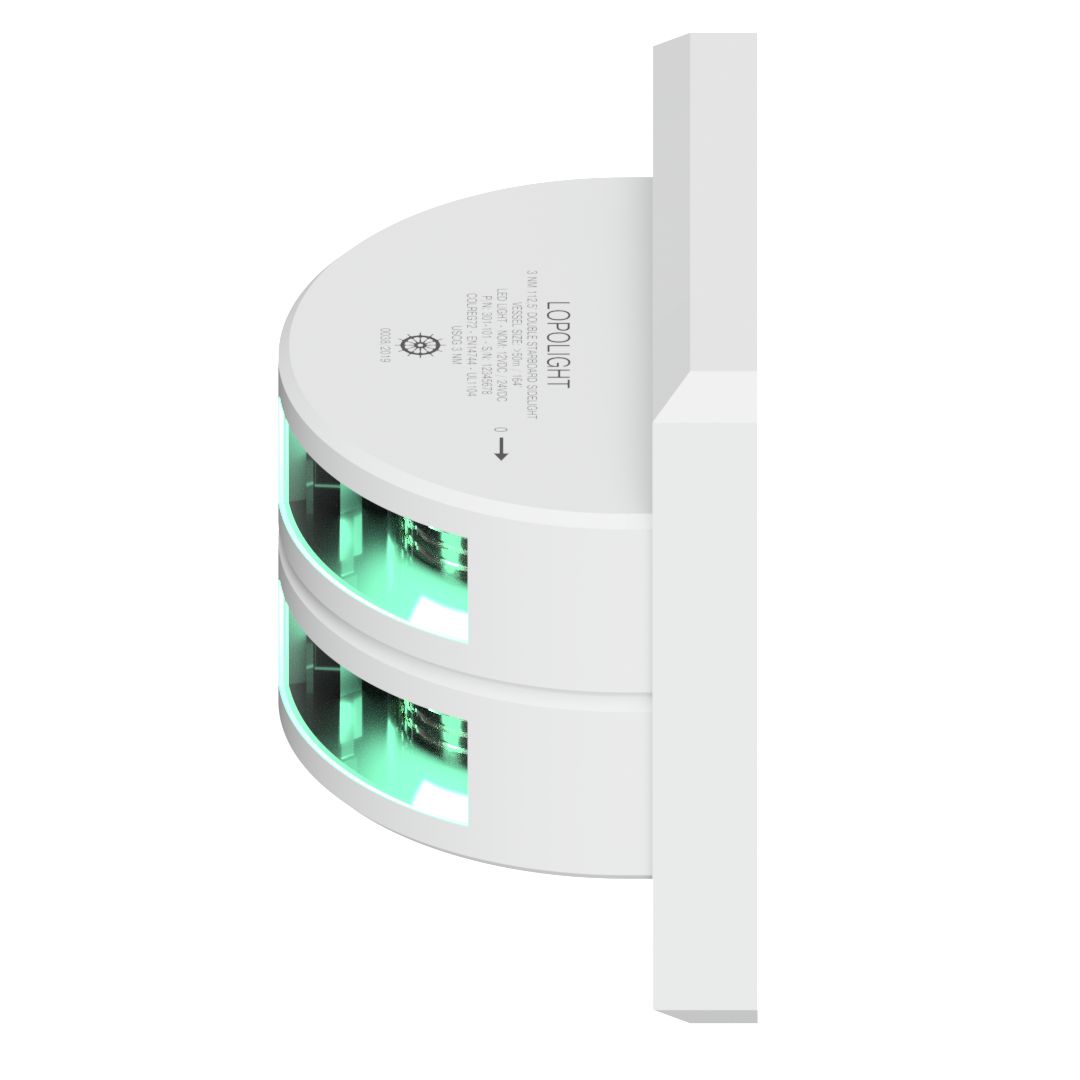

- Available in single stack or double stack, where the double stack combines two light modules that can be powered separately.
Variants
The series is available in several configurations that vary by housing finish and by stack style.
Finish options include silver anodized, black anodized, and white ceramic-coated. Single stack versions are a single light, while double stack versions combine two light modules in one assembly and allow each module to be powered separately.
Compatibility and fit
As a dedicated starboard sidelight, this unit installs on the starboard side and is used together with a matching port sidelight and the appropriate stern or all-round light for your vessel. The 112.5° sector needs a clear line of sight, so mount it where rails, davits, and canvas will not block the beam.
It connects as a standard navigation light on DC power and does not require NMEA networking or special controllers.
Installation and wiring
Mount the light on a flat surface using the supplied M6 screws, and bed the fasteners so water cannot track into the structure. Keep the body aligned so the lens faces forward correctly and sits plumb to maintain the proper sector.
Route the cable with a drip loop and secure it away from chafe points, then terminate it in a dry junction box or with a sealed connector. Connect it to your existing navigation-light circuit and follow your vessel’s wiring and fuse sizing practices.
Use on board
This series suits yachts and other vessels that need a 2 NM starboard sidelight in a vertical mounting format, especially in the 20-50 m range. The finish choices help match different paint and metalwork schemes, and the double stack option can fit electrical plans that call for separate control of two light modules.
Maintenance and care
Rinse salt spray off the lens and housing during normal washdowns and clean with mild soap and water. Periodically check fasteners and cable routing, and re-seal any penetrations if they are disturbed during service.
What's included
- Navigation light with pre-attached 2.5 m shielded cable
- 2 mounting screws (M6 x 8 mm)
- Installation guide
