Lopolight 201-021 Masthead/Stern/Anchor Light, For 12-20m Vessels, 3 NM, 10-32VDC, IP68, Horizontal Mount, White Light
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Lopolight 201-021 Series is a combined masthead, anchor, and stern navigation light that shows white light with 3 nautical mile visibility for vessels from 12 to 20 m (39.4 to 65.6 ft).
It runs on 10 to 32 VDC, which covers typical 12V and 24V DC systems. The housing is anodized aluminum and the light is rated IP68 for use in wet, exposed mounting locations.
This series is a good match for owners who want one compact fixture to cover multiple required white-light functions, especially where a horizontal mounting surface is available on the mast, hardtop, or a dedicated bracket plate.
Key features
- Three functions in one unit: separate masthead, anchor, and stern lights
- 3 nautical mile visibility, white light output
- For vessels from 12 to 20 m (39.4 to 65.6 ft)
- 10 to 32 VDC operating range for common 12V and 24V DC systems
- IP68-rated sealing for rain, spray, and washdowns
- Anodized aluminum body for corrosion resistance in marine air
- 0.7 m (2.3 ft) cable attached for connection inside a mast or wiring cavity
- Meets U.S.C.G., EN14744, and COLREG72 requirements
Variants
This light is offered in multiple configurations that differ by exterior finish.
The functional role and core specifications remain associated with the 201-021 Series masthead/anchor/stern format, while the finish changes the look so it can match surrounding hardware and mast color schemes.

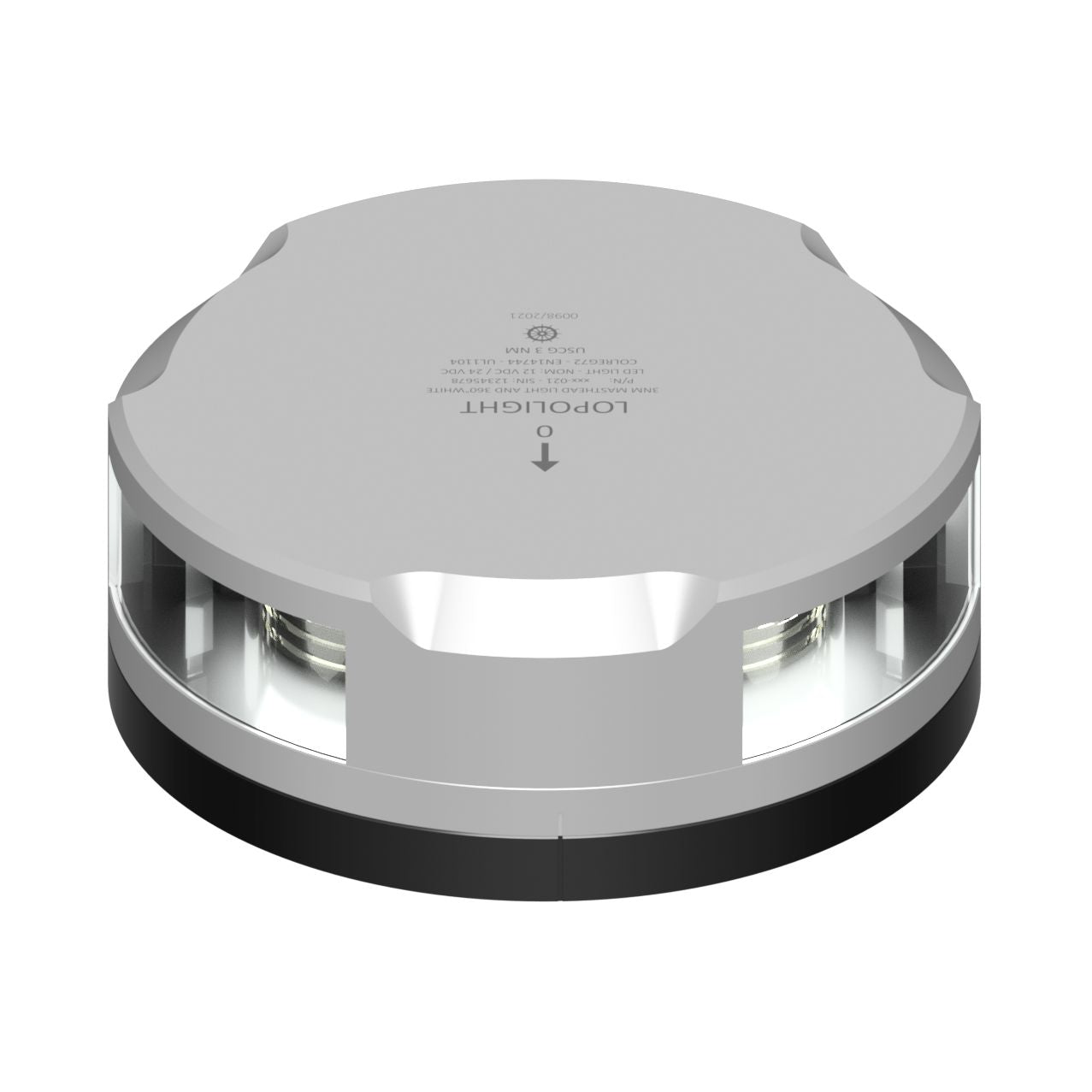

- 201-021-FB: Silver finish. A straightforward match for bare aluminum spars and stainless hardware.

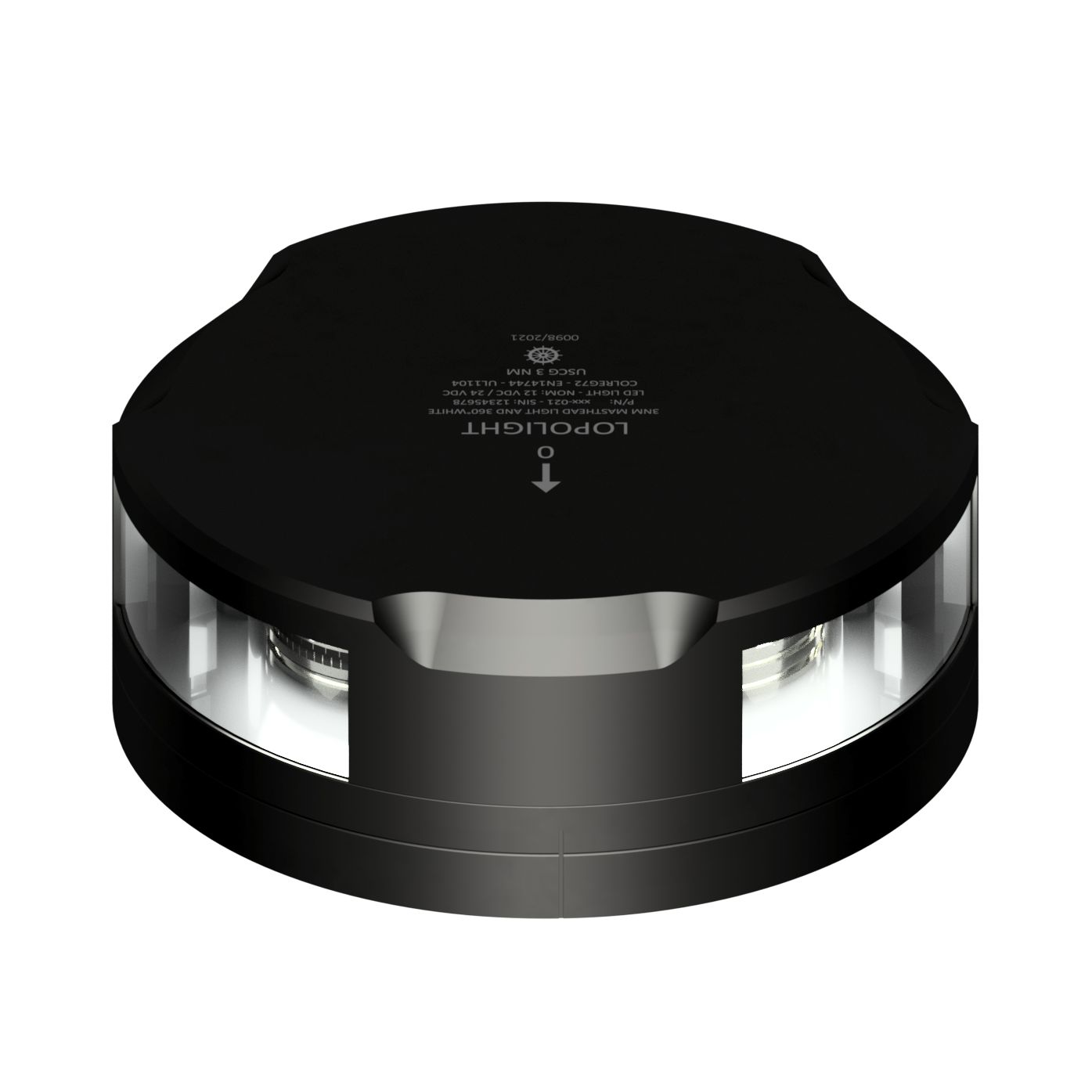

- 201-021-FB-B: Black finish. Blends in with dark mast paint, black anodized fittings, and modern topside hardware.
What’s included
- Navigation light with 0.7 m (2.3 ft) cable
- HDPE circular baseplate
- Mounting hardware
- Installation guide
Installation and setup

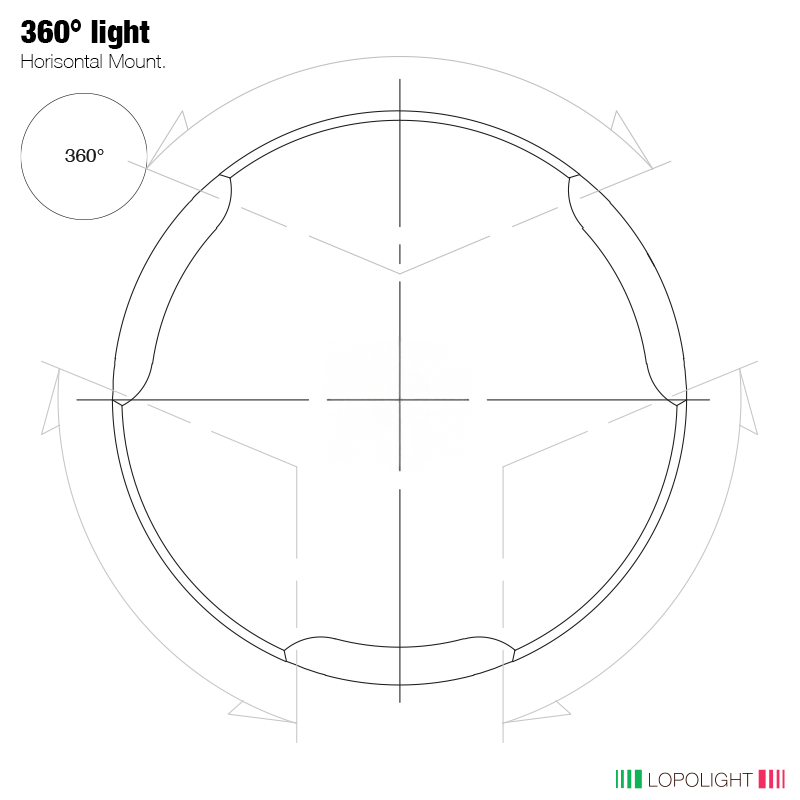

This model is intended for horizontal mounting, so plan for a flat surface with enough footprint for the baseplate and fasteners. On many boats, that means a mast platform, hardtop, radar arch, or a purpose-made bracket plate.
The attached 0.7 m (2.3 ft) cable is convenient for bringing the connection into a protected space, but it is short for many mast runs. Leave room to extend the wiring in a dry area, seal any penetrations, and provide a drip loop where the cable enters the structure.
Electrical and onboard integration
With a 10 to 32 VDC range, it fits typical DC distribution on both 12V and 24V boats. Since the unit incorporates masthead, anchor, and stern functions, the switching and wiring should be arranged so each function can be controlled in the same way your navigation setup expects.
Maintenance and care
Rinse salt and grime off the housing during routine washdowns, especially around the mounting base and cable exit. Periodically check the fasteners for tightness and inspect the cable jacket and any splices for water entry or chafe.
