Lopolight 301-008 Starboard Sidelight, Green Light, 2NM Visibility, 10-32VDC, IP68, Horizontal Mount, FB Flat Base, 2.5m Cablev
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Lopolight 301-008 Series is a 2 NM green starboard sidelight for horizontal mounting, supplied with the FB (flat base) POM mounting system and a 2.5 m shielded cable.
It runs on 10-32 VDC for typical 12V and 24V DC systems and carries an IP68 rating for exposed mounting locations. The body is Ø92.5 mm, and overall height depends on the stack style: 36 mm for single stack and 58 mm for double stack.
This is a good match when you need a compact sidelight on a pilothouse, hardtop, or coaming and want a centered cable exit through a flat mounting surface for a cleaner install.
Key features
- 2 NM visibility with a 112.5 degree green starboard sector, suitable for vessels up to 50 m (164 ft)
- 10-32 VDC input for 12V and 24V DC installations
- Horizontal mount with FB (flat base) POM mounting system and centered cable exit
- Precabled with a 2.5 m (8.2 ft) shielded marine grade cable
- IP68-rated sealing for wet installs and washdowns
- Ø92.5 mm body; height varies by style (36 mm single stack, 58 mm double stack)
- Minimum feed wire gauge: 0.5 mm2 (22 AWG)
- Rated operating temperature: -25°C to 55°C
- Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Anodized aluminum housing with a PMMA lens and A4 stainless steel fasteners
Variants
This product is offered in multiple configurations to match the finish and the stacking style.
Across the range, the light output remains a 2 NM green starboard sidelight with 10-32 VDC input, IP68 rating, horizontal mounting, and a 2.5 m shielded cable. Differences between variants are the housing finish and whether the unit is single stack or double stack.

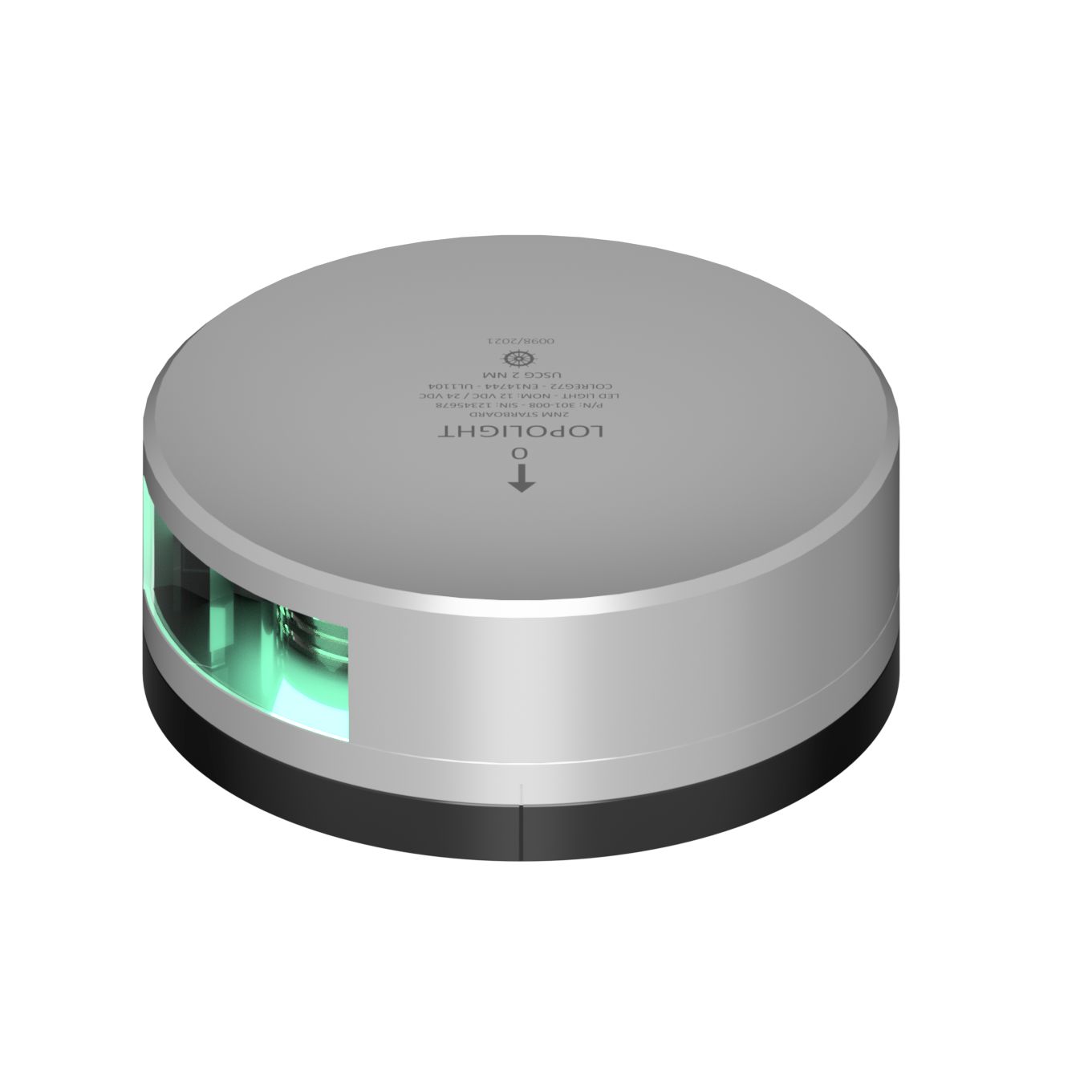

- 301-008-FB: Finish Silver, Style Single Stack. Ø92.5 mm x 36 mm footprint for standard starboard sidelight placement with a low overall height.

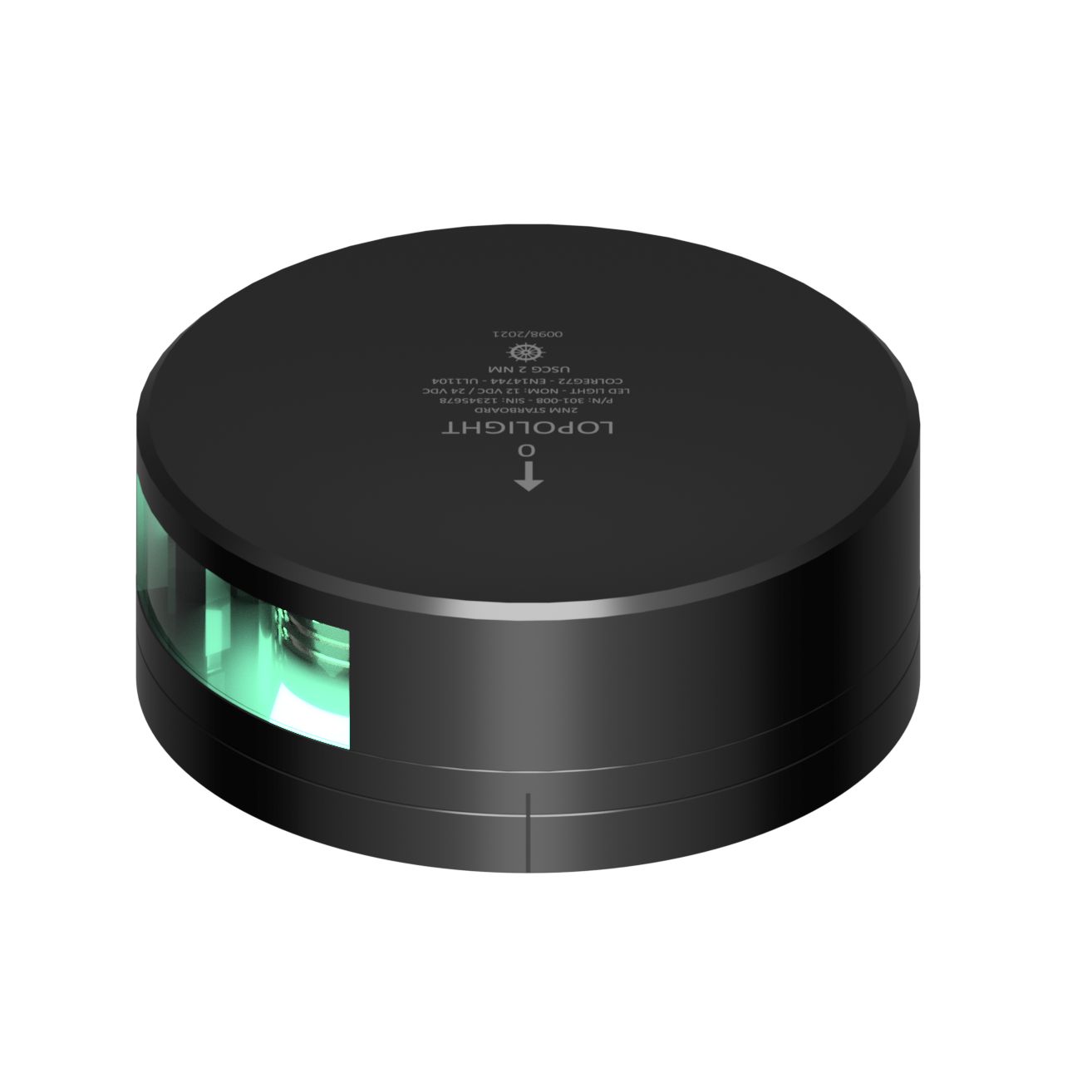

- 301-008-FB-B: Finish Black, Style Single Stack. Same size as the silver single stack, with a black anodized housing for darker topsides and hardtops.

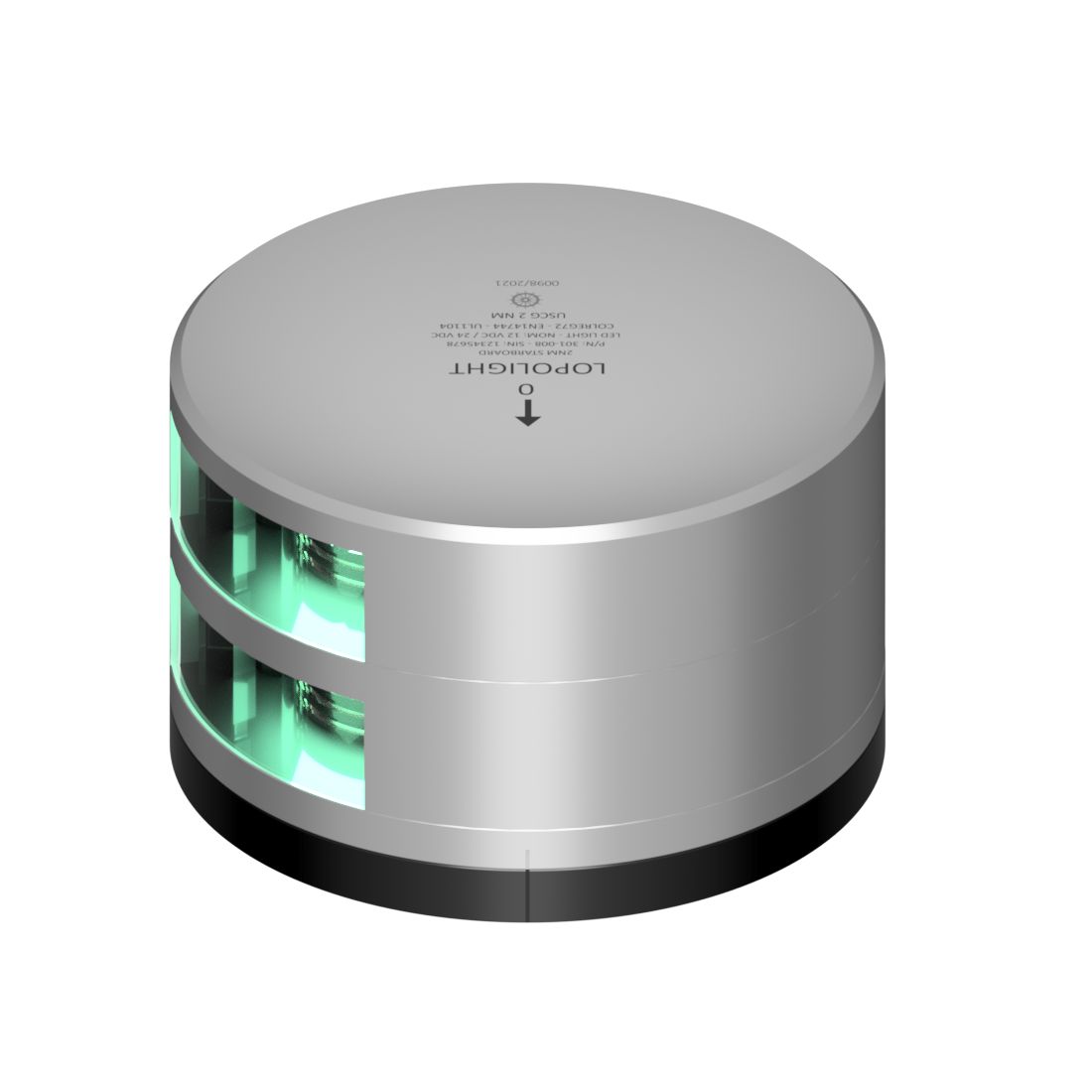

- 301-008ST-FB: Finish Silver, Style Double Stack. Ø92.5 mm x 58 mm overall height, with two individual lights housed in one assembly that can be powered separately.
- 301-008ST-FB-B: Finish Black, Style Double Stack. Same double-stack format and height, with a black anodized housing.
Installation and setup
Mount the light on the starboard side where it has a clear view of the horizon across its 112.5 degree sector. The FB base is meant for a flat mounting surface and a centered cable pass-through, which helps keep the installation tidy on cabin sides, hardtops, and similar surfaces.
Power is 10-32 VDC. Plan routing so the cable is supported and protected where it enters the structure, and keep terminations dry and strain-relieved in lockers or behind panels.
Materials and corrosion resistance
The housing uses anodized aluminum with a PMMA lens and stainless steel fasteners, and the IP68 rating supports long-term exposure to spray, rain, and routine washdowns. Operating temperature is rated from -25°C to 55°C, which covers typical seasonal storage and offshore running conditions.
What's included
- Navigation light with 2.5 m (8.2 ft) cable
- HDPE circular baseplate
- Mounting hardware
- Installation guide
