Lopolight 201-011 Masthead Light with 6W Decklight, 3NM 225 Deg, Vertical Mount, 10-32VDC, IP68
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

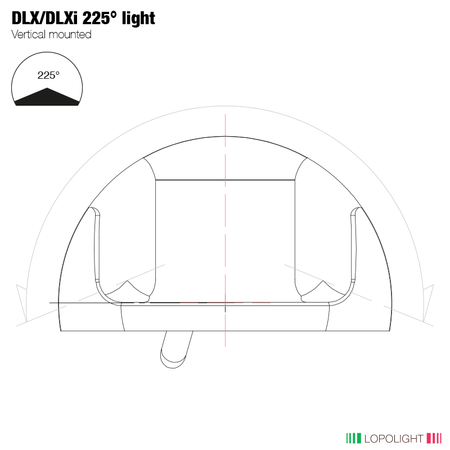

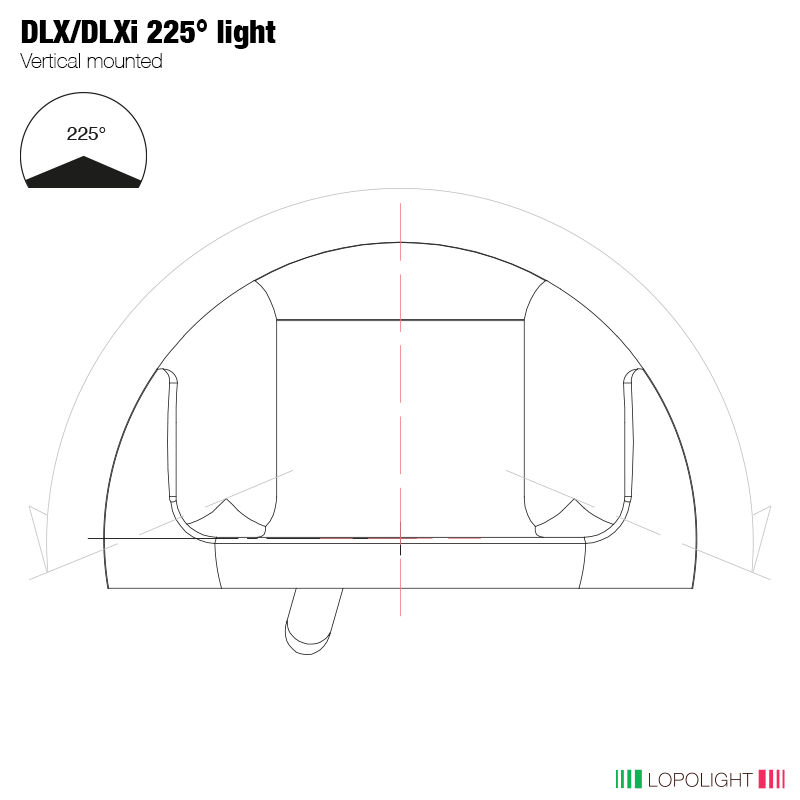

The Lopolight 201-011 Series is a 3 NM, 225° white masthead navigation light with an integrated 6W decklight for vertical mounting.
It runs on 10-32VDC for 12V and 24V systems, comes pre-cabled with a 15 m lead, and carries an IP68 ingress rating for exposed installations. The compact body measures 54 x 38.7 x 72.2 mm, with an anodized aluminum housing, a PMMA lens, and A4 stainless mounting hardware.
This setup is commonly used as a masthead (steaming) light on power-driven vessels under way, while the built-in decklight adds forward illumination on the foredeck without adding a separate fixture. It is sized for vessels in the 12-20 m range.
Key features
- 3 NM white masthead sector (225°) with integral 6W decklight
- Decklight is angled 8° forward with a 26° beam
- 10-32VDC input for 12V and 24V systems
- Pre-cabled with a 15 m lead; minimum feed wire gauge 0.5 mm2 (AWG22)
- IP68-rated enclosure for wet mounting locations
- Anodized aluminum housing with PMMA lens and A4 stainless screws
- Rated operating temperature -25°C to 55°C
- Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
Variants
This light is offered in multiple finish options.
The electrical range, mounting style, optical spec, and cable length remain the same across the listed configurations.

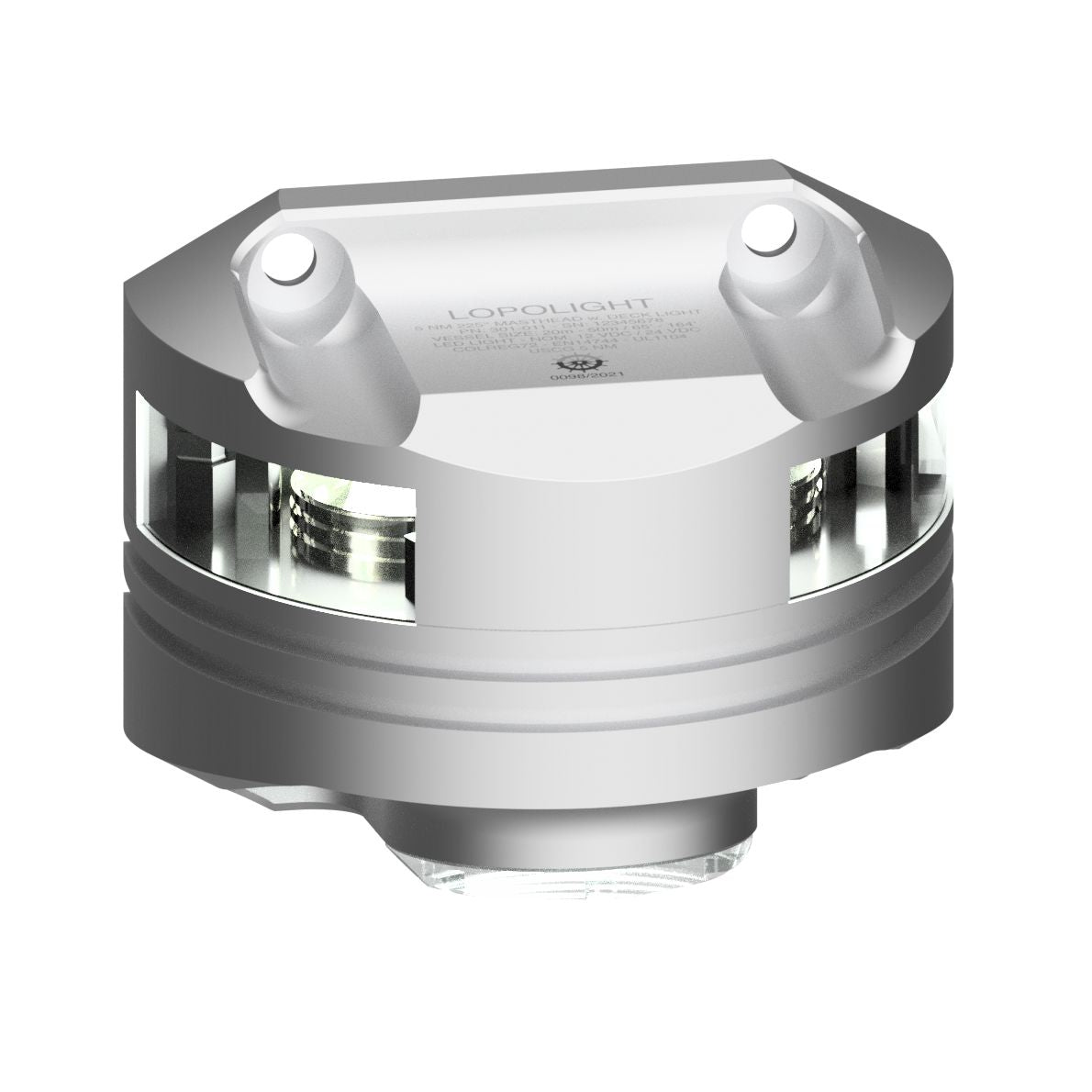

- 201-011DLX-15M: Finish Silver. A clean match for stainless and aluminum hardware in exposed locations.

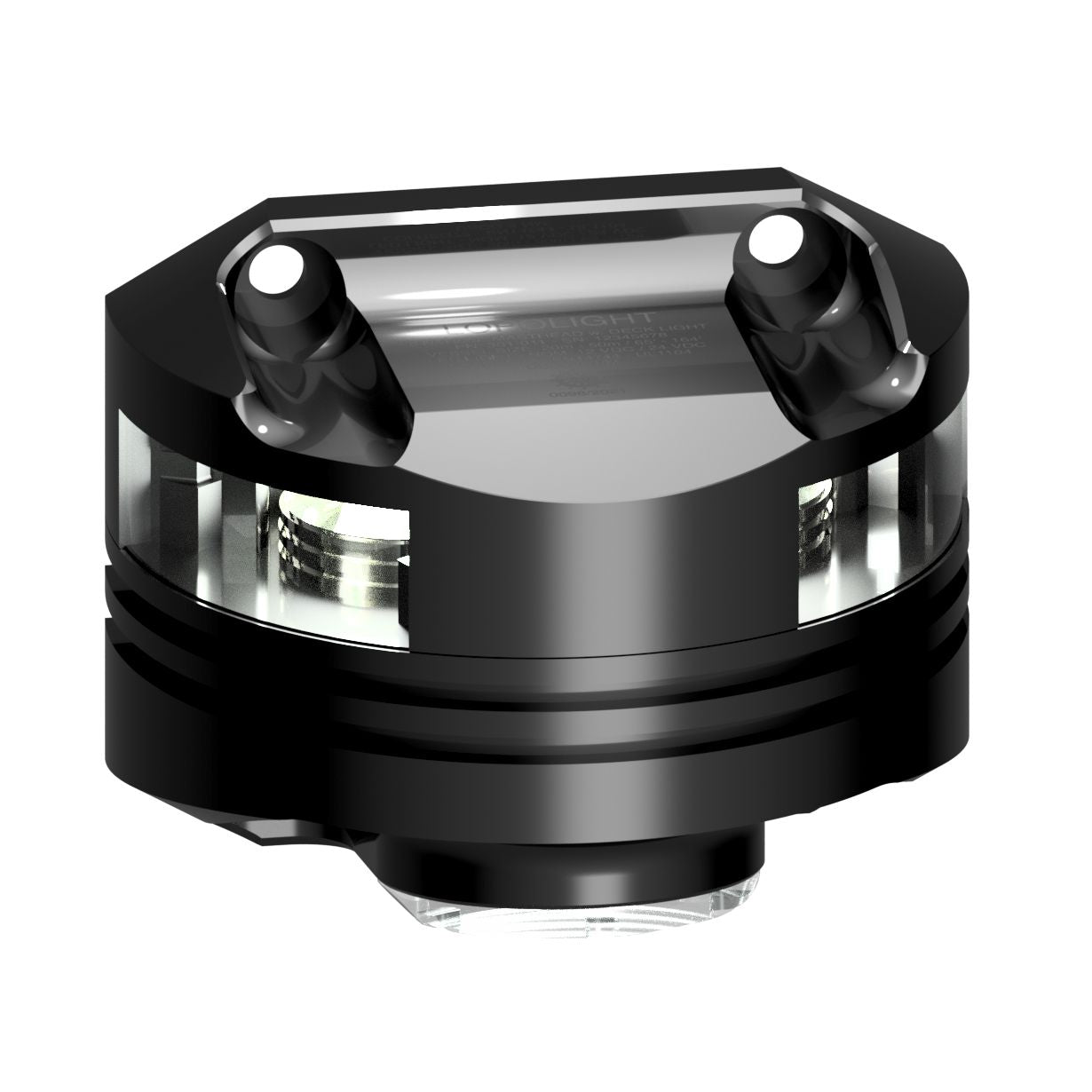

- 201-011DLX-B-15M: Finish Black. A low-contrast look on black anodized rails, dark paint, and carbon rigs.
What’s included
- Navigation light with attached 15 m cable
- 2 mounting screws (M6 x 8 mm)
- Installation guide
Installation and setup
Mount the light on a vertical surface where the 225° sector has a clear view forward, then secure it using the supplied M6 fasteners. Before drilling, plan the cable route so the 15 m lead can be brought to the switch panel with a drip loop and protected from chafe where it passes through mast bases, deck glands, or hardtops.
Use marine-grade sealed connections and keep splices out of standing water. The minimum feed wire gauge is 0.5 mm2 (AWG22), which helps when tying into existing navigation-light wiring runs.
Compatibility and fit
The masthead beam is 225° and rated for 3 nautical miles, making it a fit for boats in the 12-20 m length bracket that require a masthead (steaming) light. Verify mounting height, placement, and local navigation-light rules for your vessel and operating area before final installation.
Use cases on board
This configuration suits cruisers and sportfishing boats that want a single masthead fixture that also throws useful light onto the foredeck for anchoring work, line handling, and night docking. It also works well on sailboats that carry a separate steaming light for motoring, while keeping deck illumination tidy.
