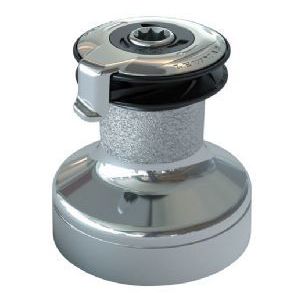

Lewmar - 40ST Evo Two Speed Self Tailing Chrome Winch
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Premium Performance with the Lewmar 40ST Evo Two-Speed Self-Tailing Chrome Winch
The Lewmar 40ST Evo Two-Speed Self-Tailing Winch is a top-tier solution for sailors seeking efficiency, durability, and ease of use. Designed as an evolution of Lewmar’s renowned Ocean Winch series, this model offers superior performance and advanced features tailored for marine applications.
Engineered for smooth and effortless operation, the 40ST Evo boasts a two-speed gearing system that provides optimal control when handling sails. Its self-tailing mechanism ensures a secure grip on the line, reducing the need for manual tensioning and making it ideal for solo or small-crew sailing. Whether used for cruising or competitive sailing, this winch is built to withstand the harsh marine environment while delivering reliable performance.
Key Features
- Tool-Free Servicing – Easily disassemble the winch for maintenance without the need for specialized tools.
- User-Friendly Design – Directional arrows guide operation for smooth and intuitive use.
- Versatile Finish Options – Available in three finishes to match different deck aesthetics.
- Electric Conversion Ready – Easily upgrade to an electric-powered system for enhanced convenience.
Technical Specifications
- Gear Ratio:First Speed: 1.9:1
- Second Speed: 5.8:1
- Power Ratio:First Speed: 13.2:1
- Second Speed: 40.2:1
- Safe Working Load (SWL): 1,753 lbs
- Weight: 10.7 lbs
Product Dimensions
- Drum Diameter: 2 15/16 inches
- Base Diameter: 5 13/16 inches
- Height: 6 1/4 inches
- Line Entry: 3 1/8 inches
- Compatible Line Size: 5/16 - 1/2 inches
