Lopolight 200-024 180 Deg White Navigation Light, 2NM, Vertical Mount, 10-32VDC, IP68
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

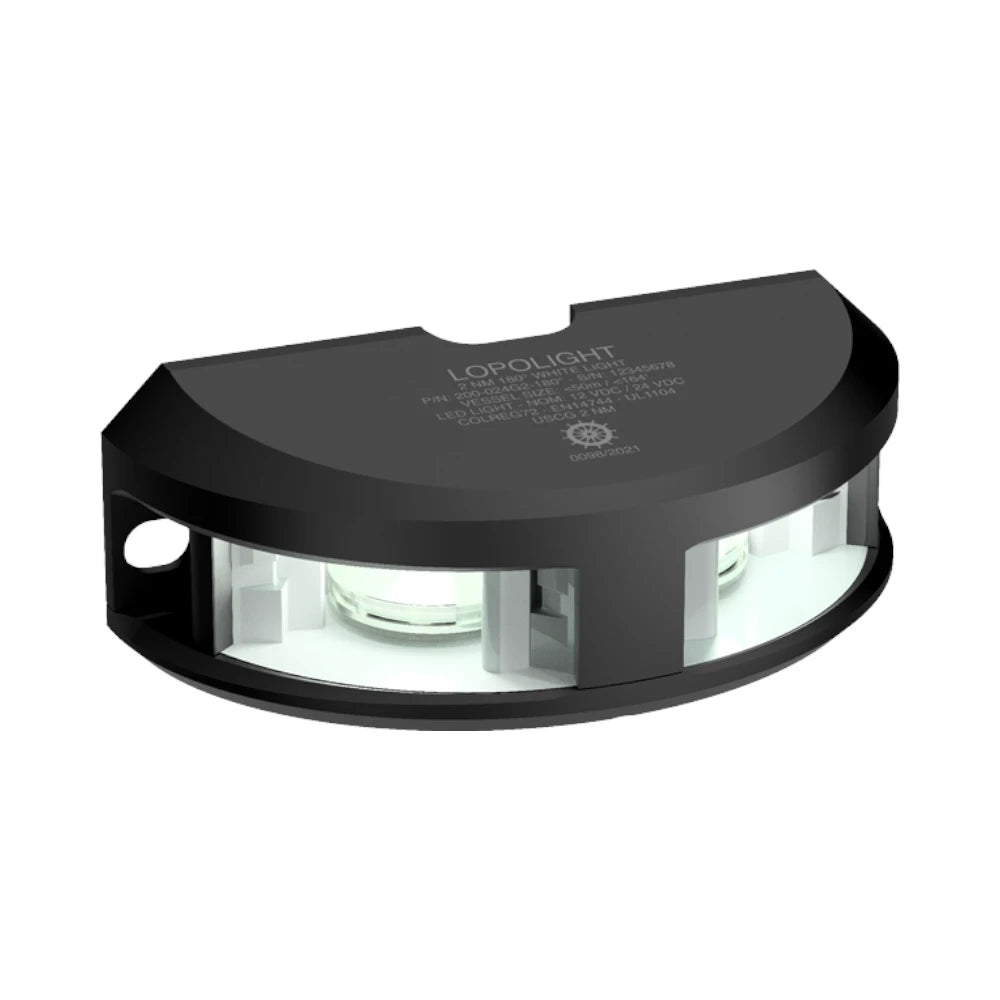

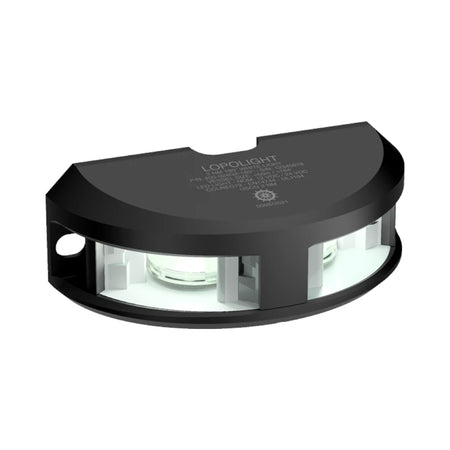

The Lopolight 200-024 Series is a 2 NM, 180° white navigation light for vertical mounting, with extended pre-attached cable options for longer wire runs on board.
It operates on 10-32 VDC for 12 V and 24 V systems and carries an IP68 rating for exposed mounting locations. In the single-stack format, the housing measures 104 mm x 37 mm x 45 mm (4.0 in x 1.4 in x 1.8 in).
Approvals include COLREG72 along with EN14744, IEC 60945, and USCG, which helps when you need a certified 180° white sector light on a yacht or larger powerboat.
Key features
- 2 NM visibility with a 180° white sector for installations that call for this arc.
- 10-32 VDC input for both 12 V and 24 V DC systems.
- IP68-rated sealing for rain, spray, and washdowns in exposed mounting spots.

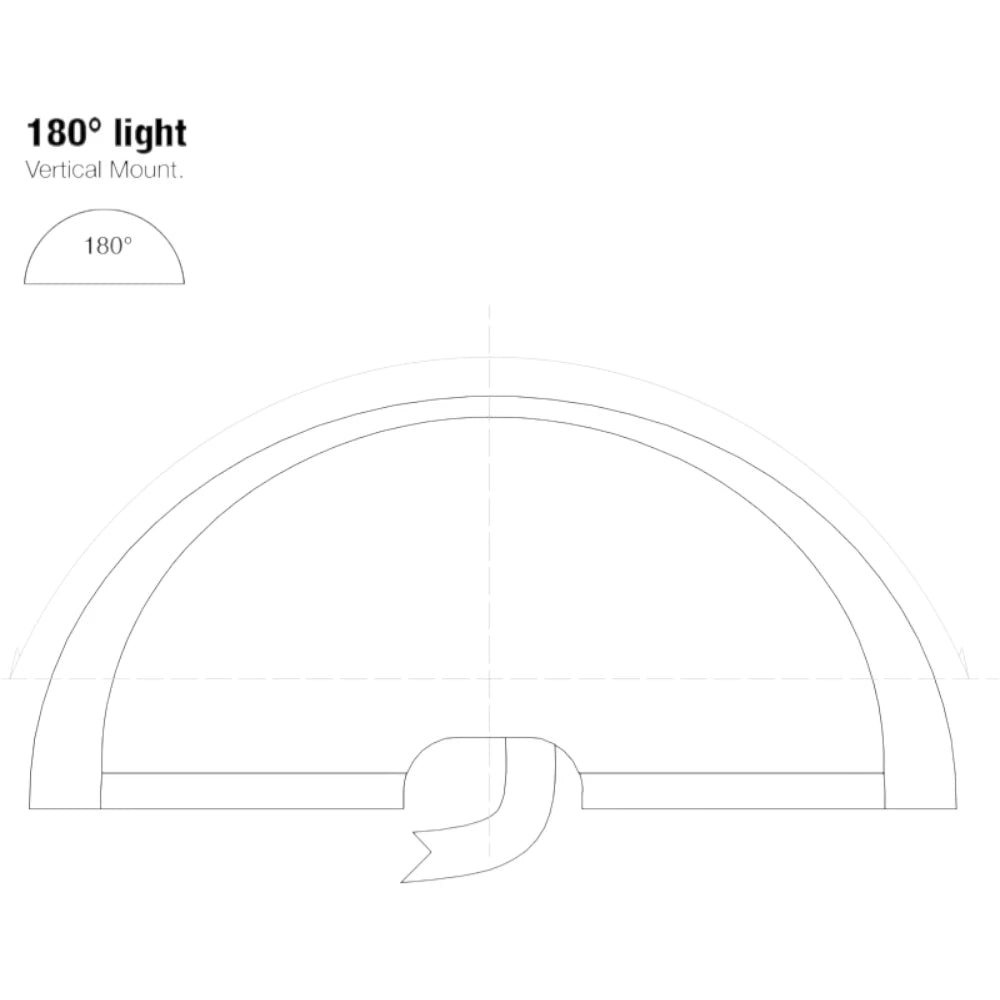

- Vertical-mount format; the single-stack housing footprint is 104 mm x 37 mm x 45 mm.
- Anodized aluminum housing with a PMMA lens and A4 stainless mounting screws.
- Extended pre-attached cable options (6 m or 20 m) to reduce the need for in-line splices.
- Operating temperature range of -25°C to 55°C for use across seasons.
Variants

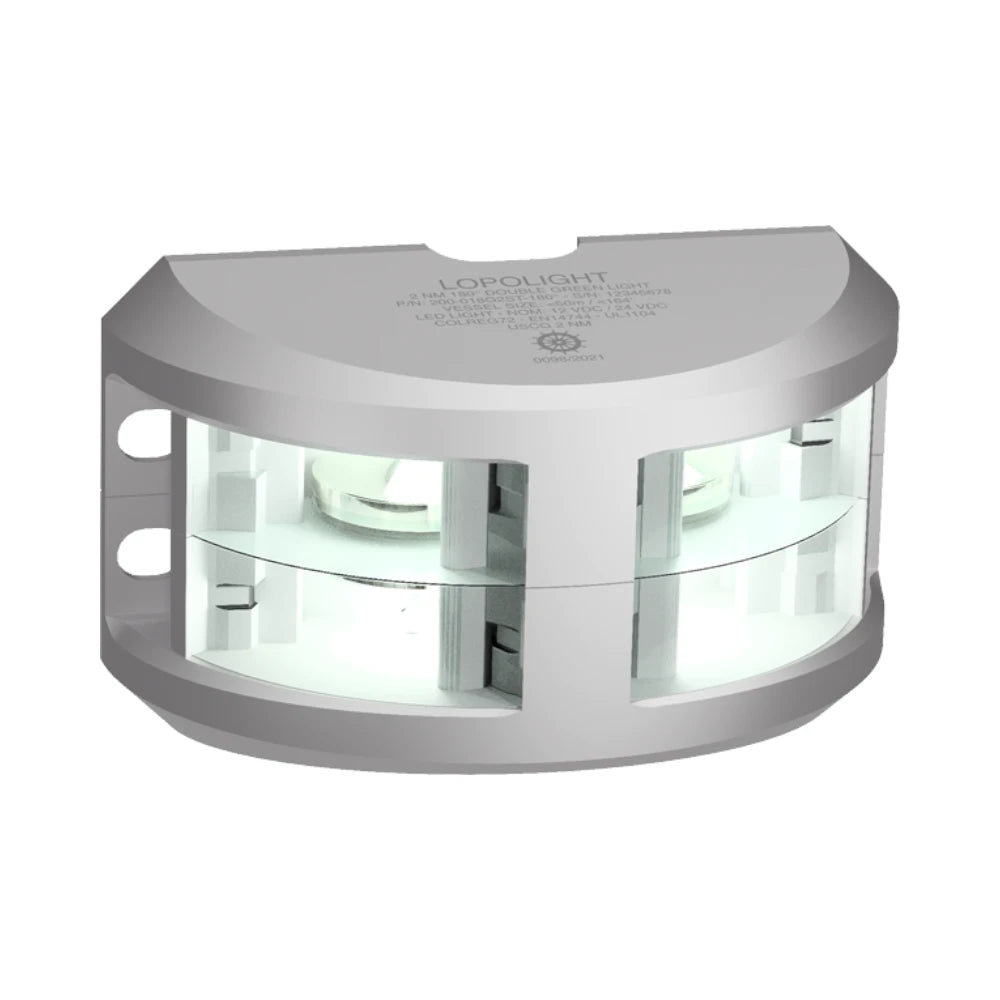

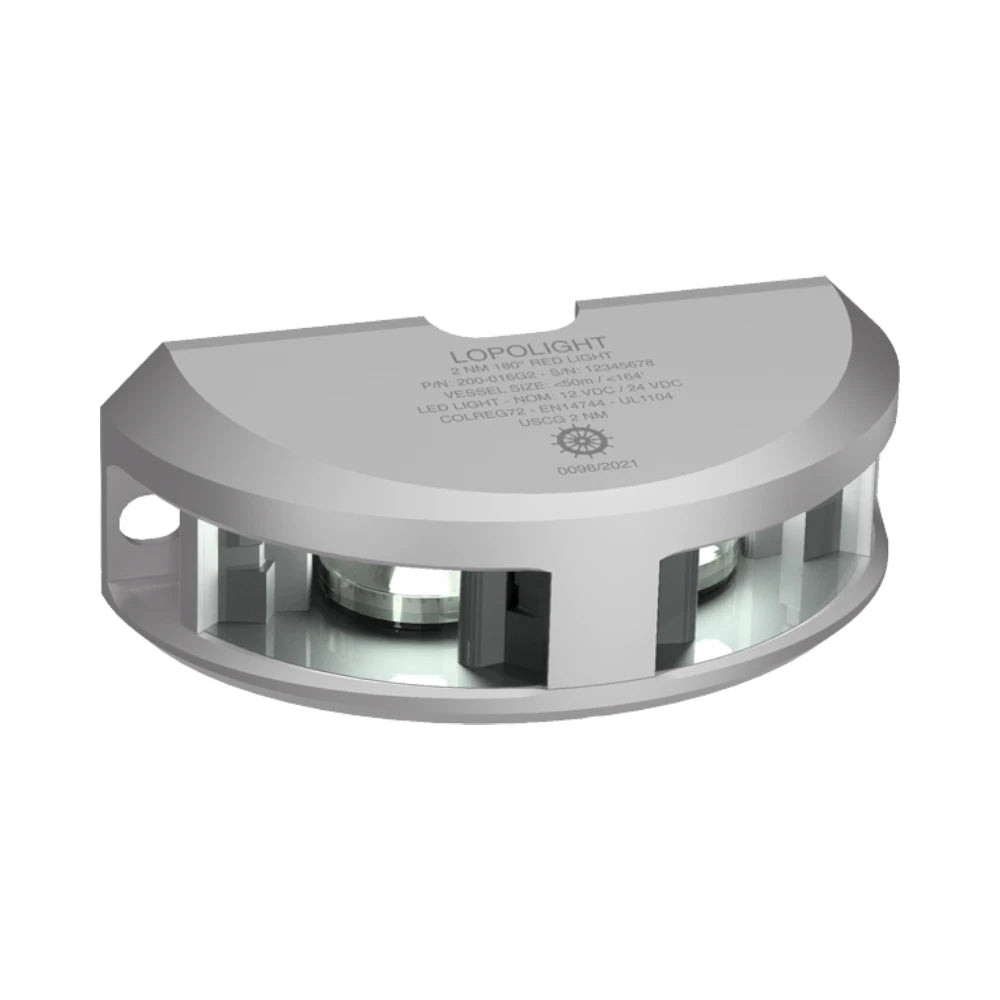

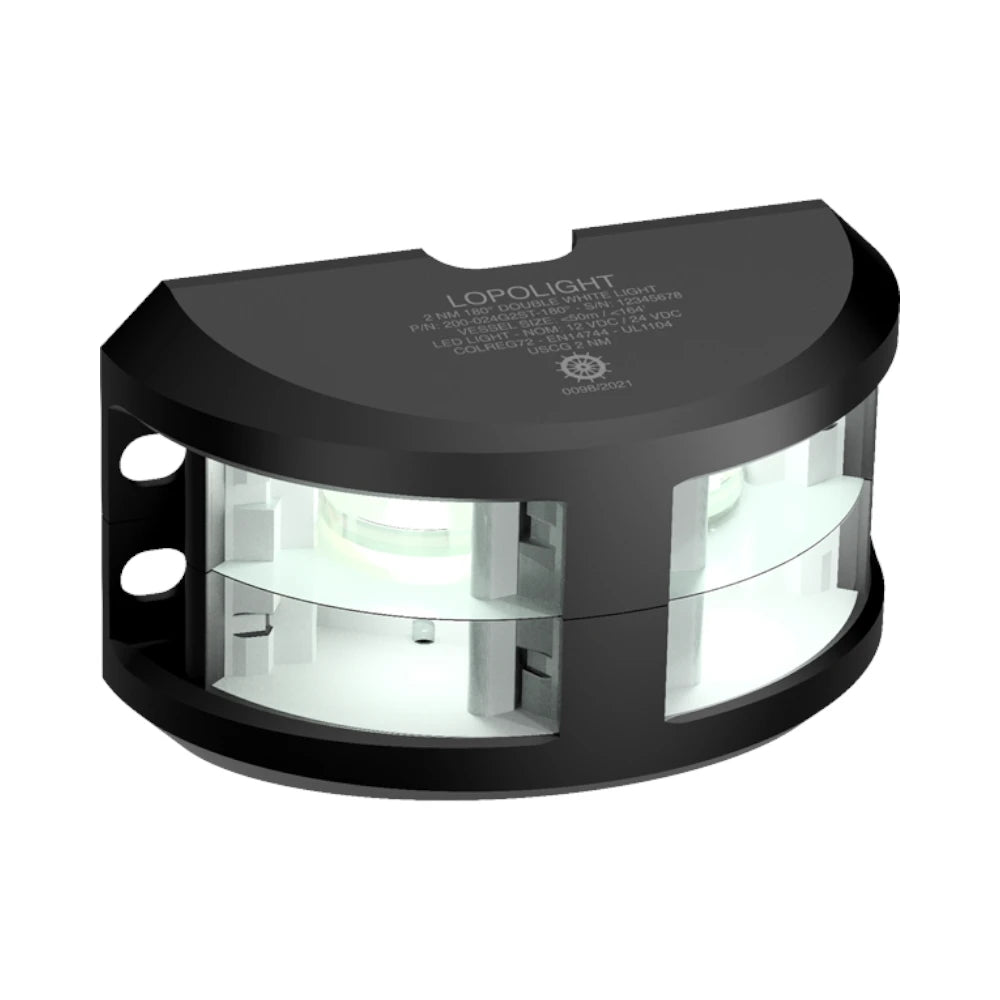

The range is offered with two finishes, two cable lengths, and two styles labeled Single Stack and Double Stack.
Finish options are silver anodized or black anodized, and cable length is either 6 m or 20 m. Style indicates the housing format used for the installation, so it is worth confirming clearance at the mounting point before selecting between Single Stack and Double Stack.
Installation and setup
Mount the light to a flat vertical surface so the 180° sector faces the required direction for your navigation light plan. Dry-fit the unit and confirm the arc is not blocked by rails, antennas, davits, or canvas that could create shadows.
Route the attached cable to a protected connection point inside the boat, leaving a drip loop before any cable entry. Use marine-grade terminations and strain relief so vibration and movement do not work the conductors loose over time.
Electrical and system integration
This is a straightforward DC light that ties into a navigation-light circuit. With the 10-32 VDC input range, it fits common switch panels and monitoring setups found on 12 V and 24 V boats.
Plan the cable path with service access in mind, especially on mast or hardtop installs, so the light can be removed later without cutting wiring.
Materials and corrosion resistance
The housing is anodized aluminum (silver or black finish depending on variant) with a PMMA lens and A4 stainless fasteners. For best long-term results in saltwater, bed and seal fasteners appropriately for the mounting surface and keep dissimilar metals isolated where needed.
What’s included
- Navigation light (pre-cabled)
- Installation guide
