Lopolight Series 301-002 LED Port Sidelight, 2 NM, Vertical Mount, 10-32V DC, IP68
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

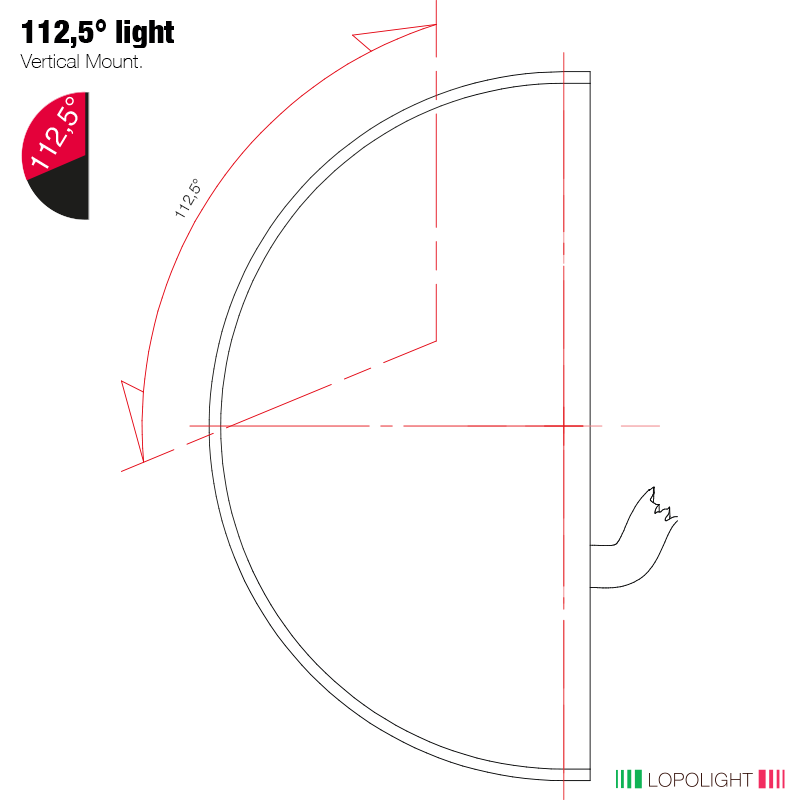

The Lopolight 301-002 Series is a vertical-mount port sidelight that shows a red 112.5° sector with 2 NM visibility for vessels from 12 m to 50 m (39.4 ft to 164 ft). It runs on 10 to 32 VDC, so it fits common 12V and 24V DC systems.
The housing is sealed to IP68 and comes pre-cabled with a 2.5 m shielded marine cable for hardwiring. These lights are built for exterior mounting where spray, washdowns, and vibration are normal, such as on the cabin side, bulwark, or superstructure.
This series is a practical match for cruising boats, yachts, and commercial vessels that need a fixed port sidelight with a clean vertical mount and a finish that blends with the boat.
Key features
- Port sidelight output: red, 112.5° sector, 2 NM visibility rating
- For vessels 12 m to 50 m (39.4 ft to 164 ft), when installed as the port sidelight in the navigation light set
- 10 to 32 VDC operating range for 12V and 24V DC systems
- IP68 sealing for exposed mounting locations and frequent washdowns
- Vertical mount format with a pre-attached 2.5 m shielded cable for simple hardwiring runs

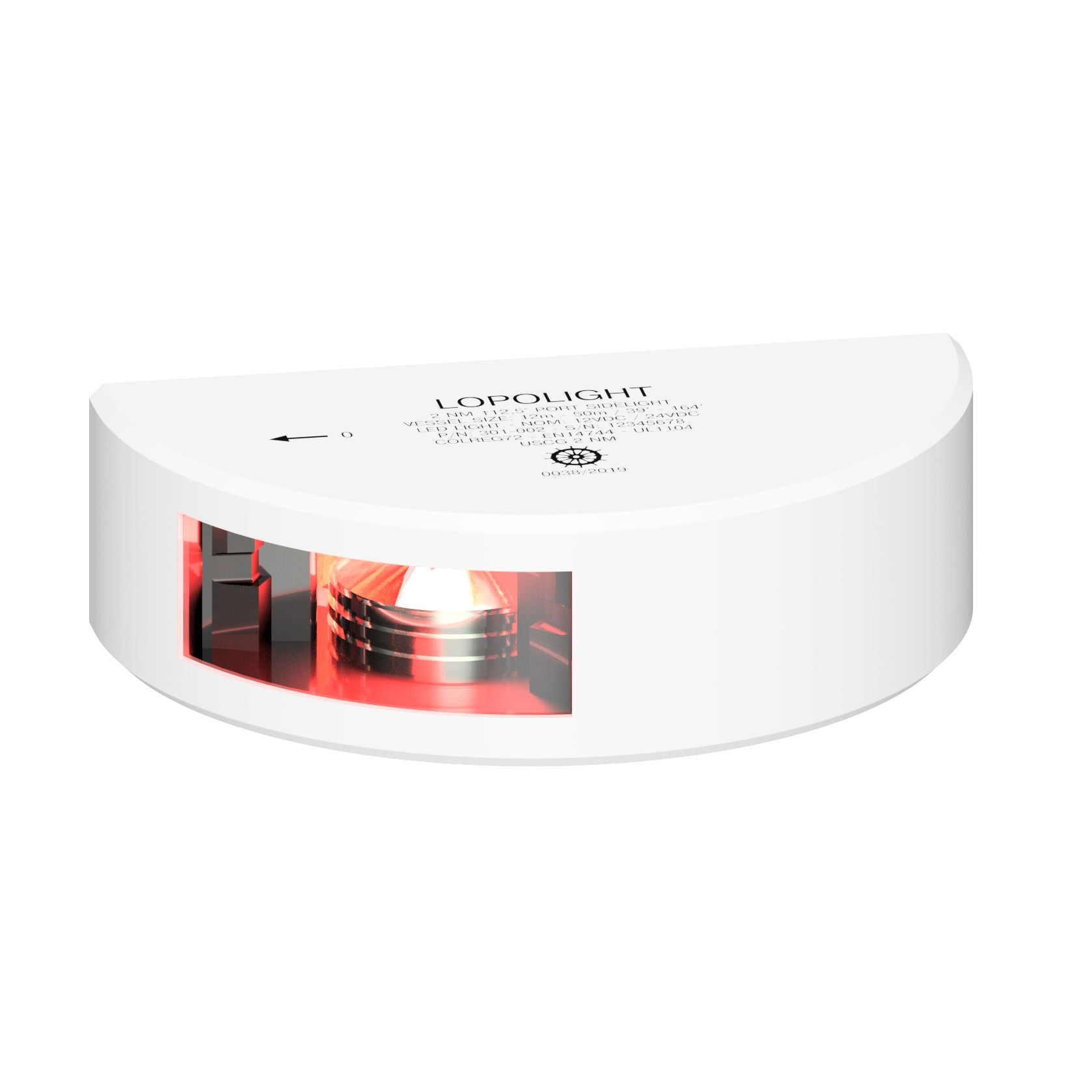

- Finish choices include silver anodized, black anodized, and white ceramic-coated housings
- Approved to COLREG72 and EN14744, and listed for U.S.C.G. requirements
Variants

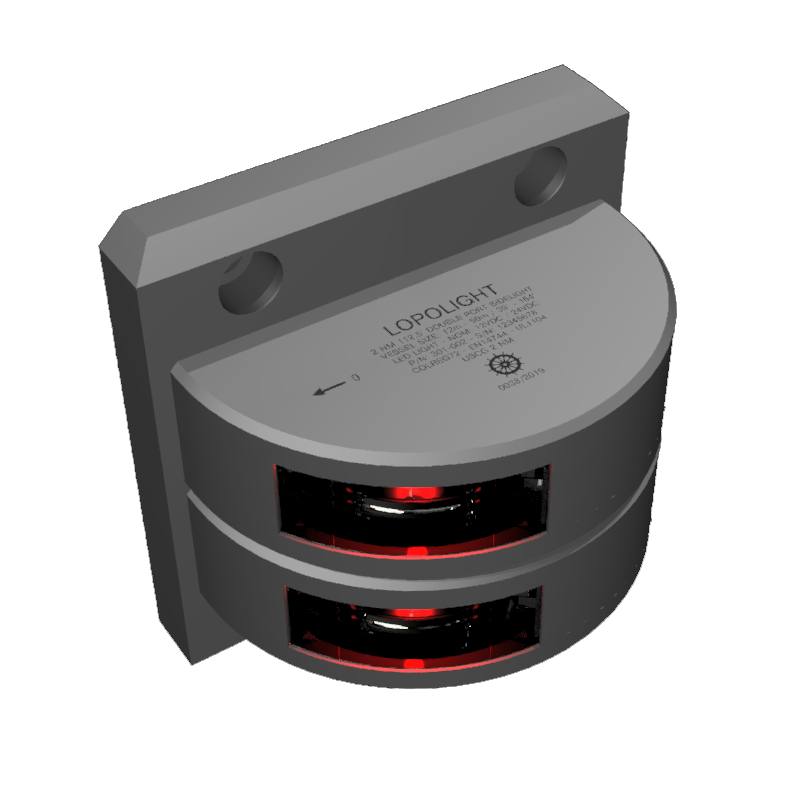

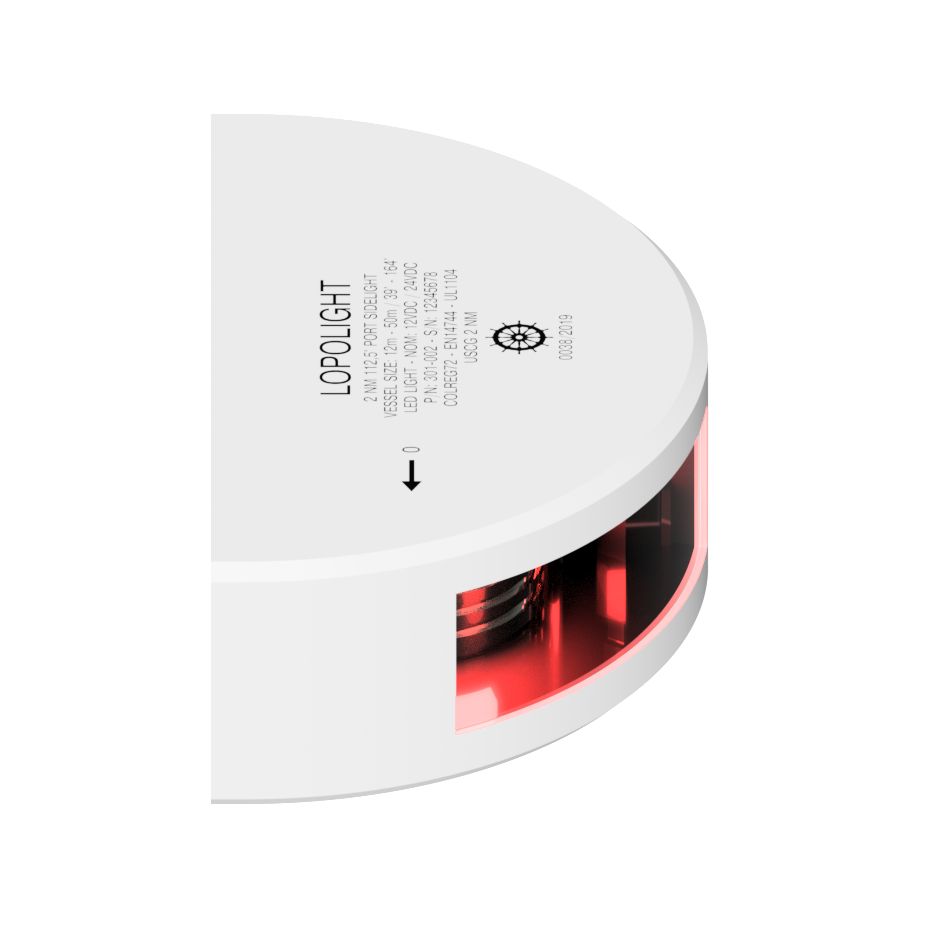

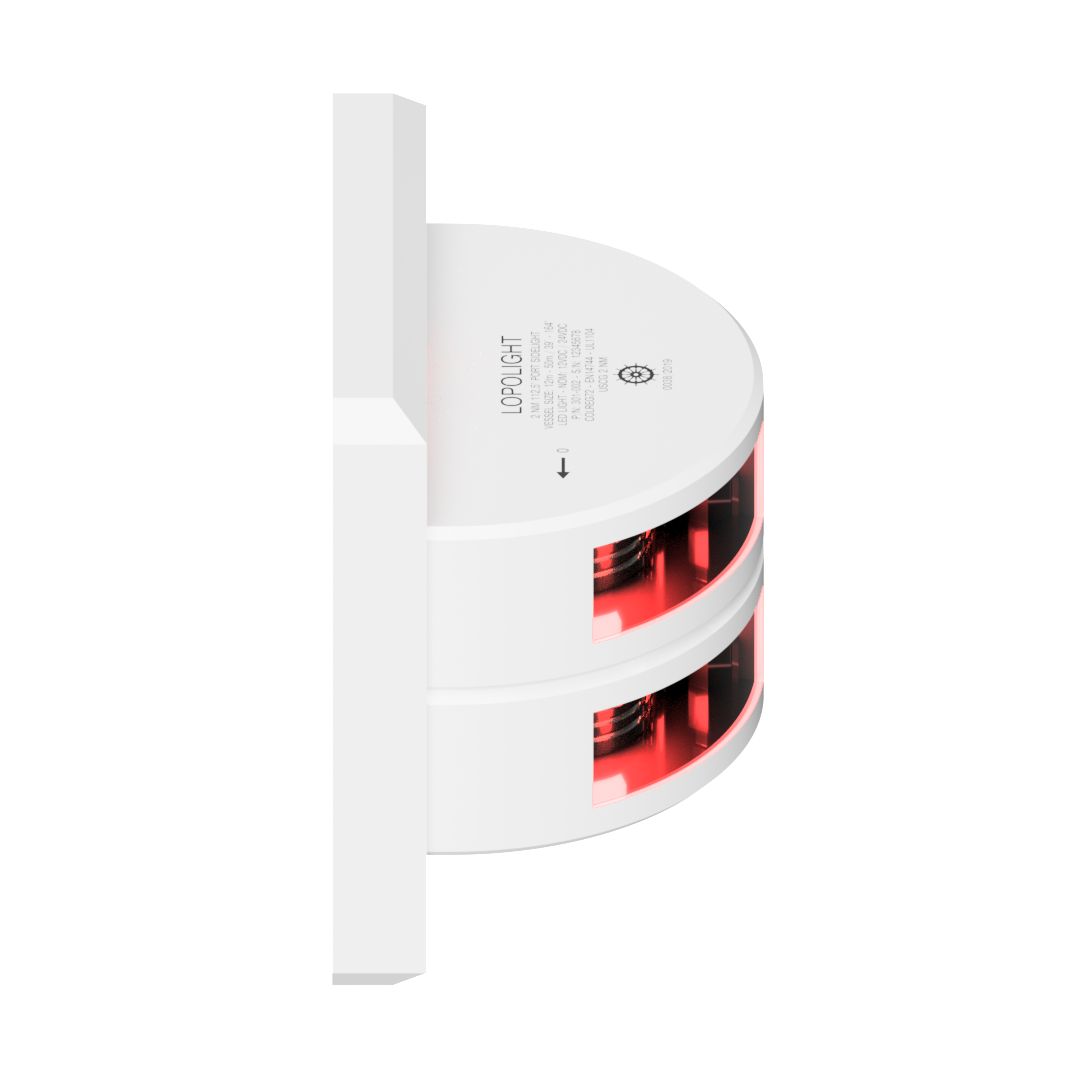

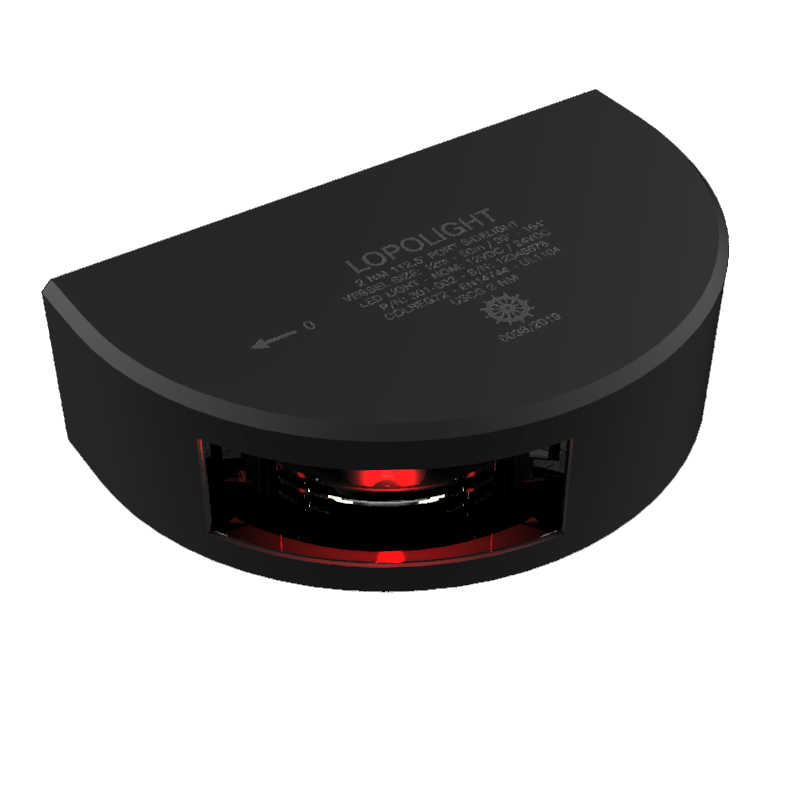

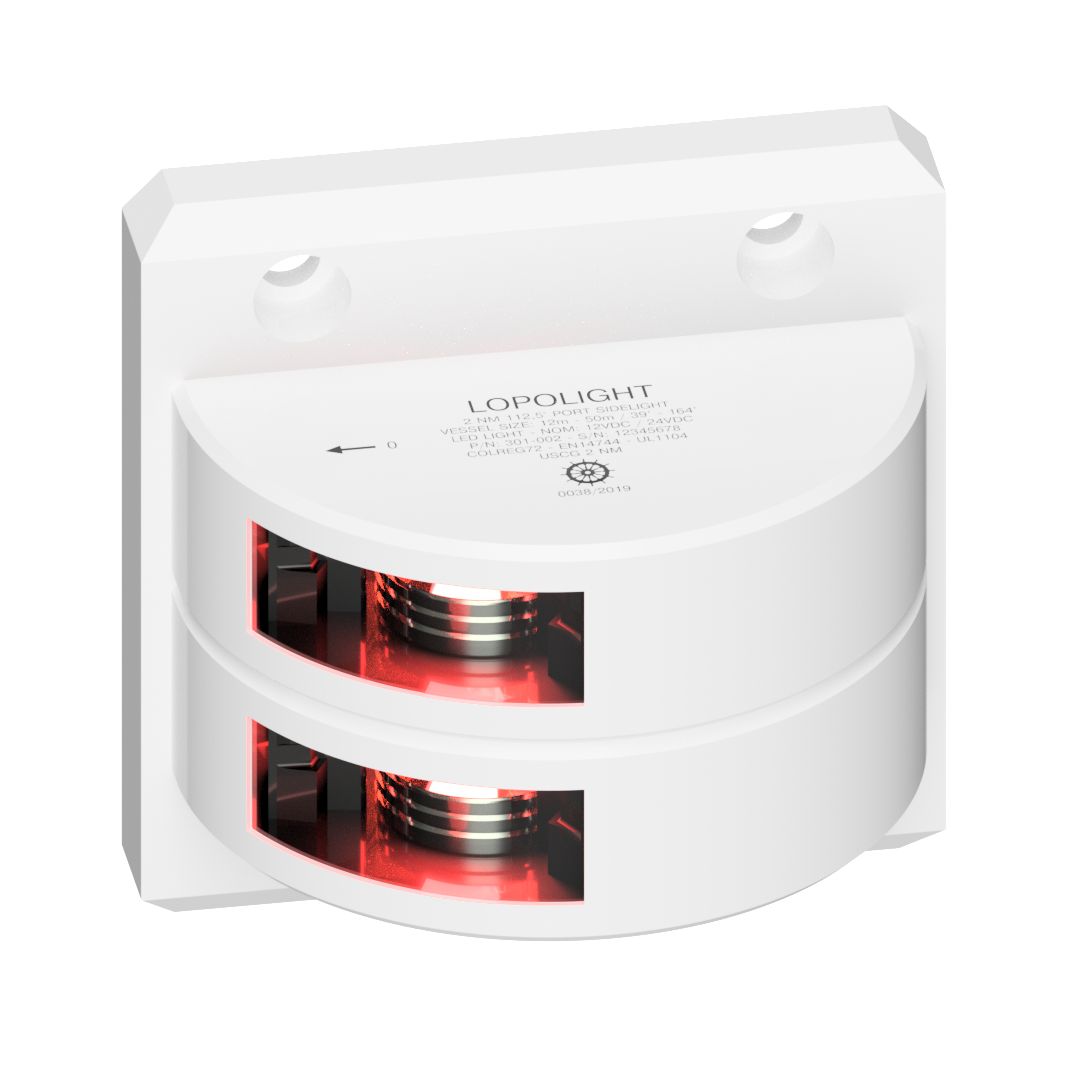

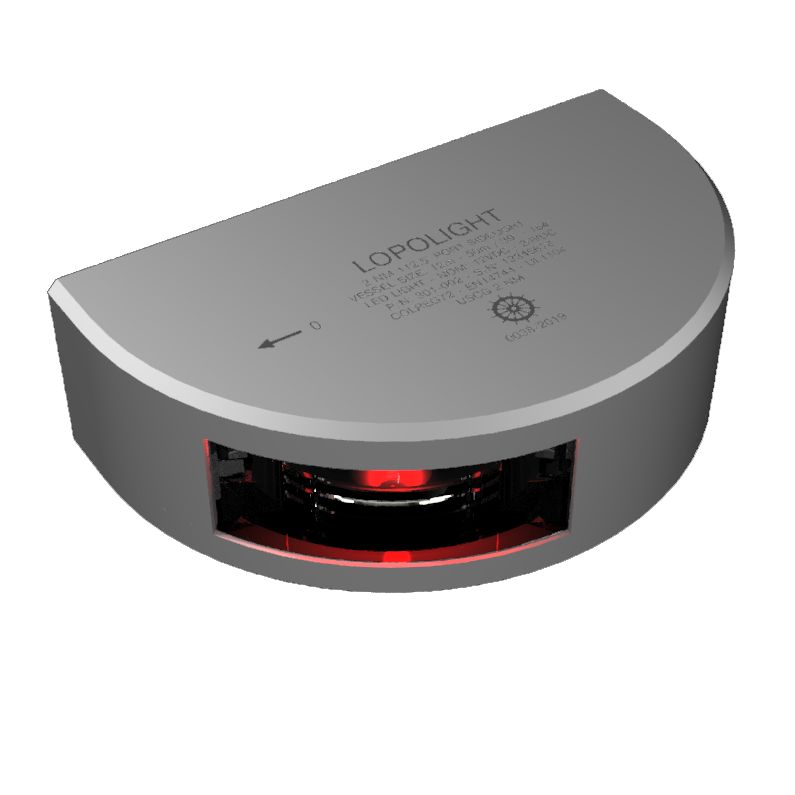

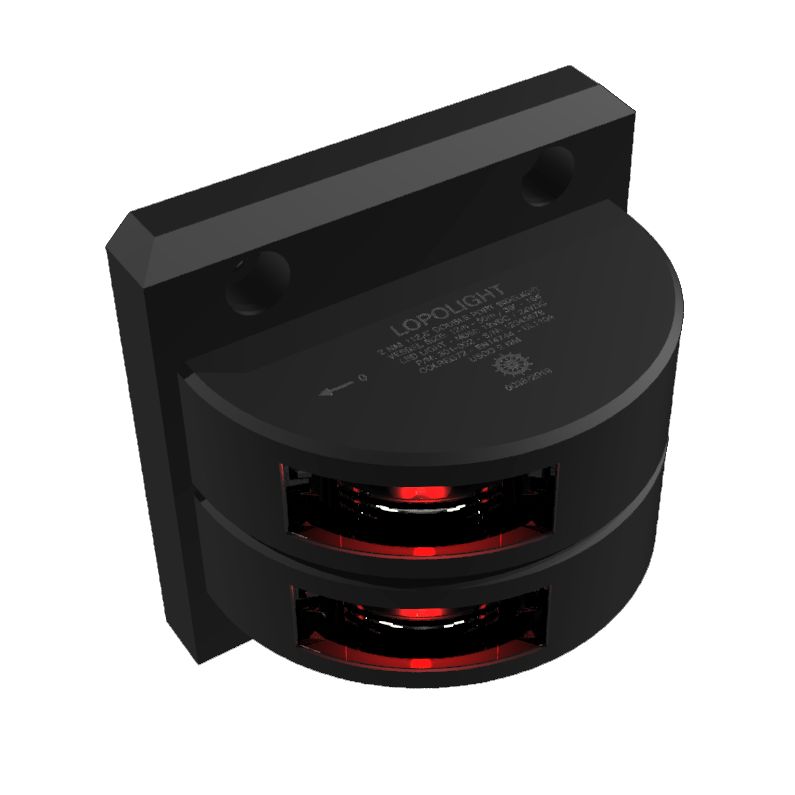

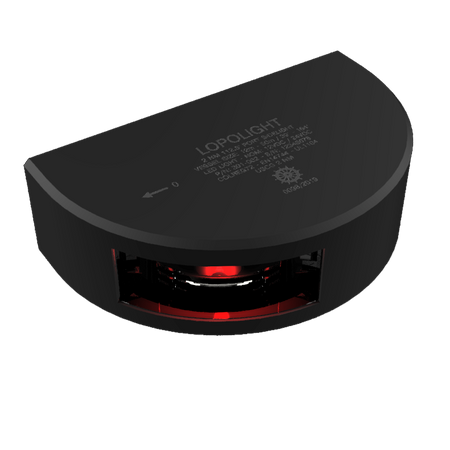

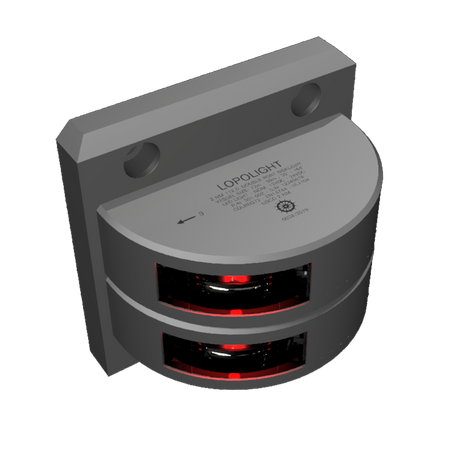

This series is offered with two option types: Finish (Silver, Black, White) and Style (Single Stack or Double Stack).
Across the range, the light function stays the same as a red port sidelight with 2 NM visibility, vertical mounting, 10 to 32 VDC operation, and IP68 sealing. The Finish changes the exterior appearance, and the Style changes the housing format labeled Single Stack or Double Stack.
Installation and setup
Mount the light on the port side with the lens orientation maintained so the 112.5° sector is aimed correctly. Use a flat mounting surface and seal the fasteners as you would for any exterior penetration to keep water out of the core and structure.
Plan the cable route before final mounting so the hardwired lead can be protected from chafe and kept away from hot engine-room surfaces or sharp edges.
Electrical and system integration
Connect to the vessel navigation light circuit within the 10 to 32 VDC range. The supplied shielded cable includes two conductors plus a screen, which suits clean DC installations where you want a tidy run back to the switch panel or distribution point.
Protect the circuit with an appropriately sized fuse or breaker for the wiring run and follow standard marine wiring practices for connections and strain relief.
Materials and corrosion resistance
The housing is aluminum with either anodized or ceramic-coated finish depending on the variant, paired with a PMMA lens and stainless fasteners. IP68 sealing helps keep water out when the light lives on deck structures that see constant spray.
What’s included
- Navigation light with pre-attached 2.5 m shielded cable
- 2 mounting screws (M6 x 8 mm)
- Installation guide
