Lopolight Series 301 Masthead Navigation Light, 5 NM, 225 Deg, 10-32VDC, IP68, Vertical Mount
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Lopolight 301-011 Series is a 5 NM white masthead navigation light range with a 225° arc, built for vessels in the 20-50 m (65.6-164 ft) class and intended for vertical mounting on a mast or hardtop structure. It runs on 10-32 VDC, draws 4.1 W (about 320 mA at 12 V and 170 mA at 24 V), and is sealed to IP68 for spray and washdowns.
The housing measures 74.55 x 28 x 73.16 mm (2.9 x 1.1 x 2.88 in) and uses an aluminum body with a PMMA lens. Approvals include COLREG72, EN14744, IEC 60945, IACS E10, and USCG, with additional type approvals listed by ABS, M.E.D., DNV, and LR.
Key features
- 5 NM masthead light with 225° white arc for vessels 20-50 m (65.6-164 ft)
- 10-32 VDC input for 12 V and 24 V DC systems
- Power draw 4.1 W (320 mA at 12 V, 170 mA at 24 V)
- IP68 sealing and operating temperature range of -25°C to 55°C
- Compact body size: 74.55 x 28 x 73.16 mm (2.9 x 1.1 x 2.88 in)
- Approved to COLREG72, EN14744, IEC 60945, IACS E10, and USCG

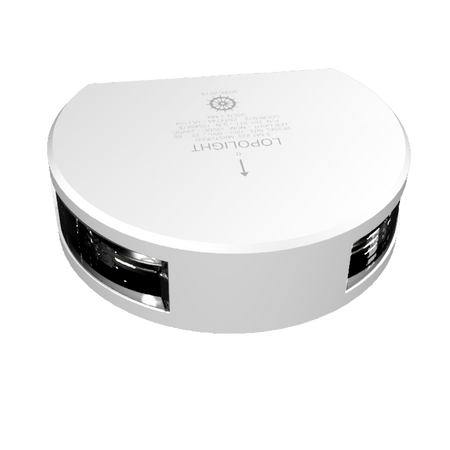

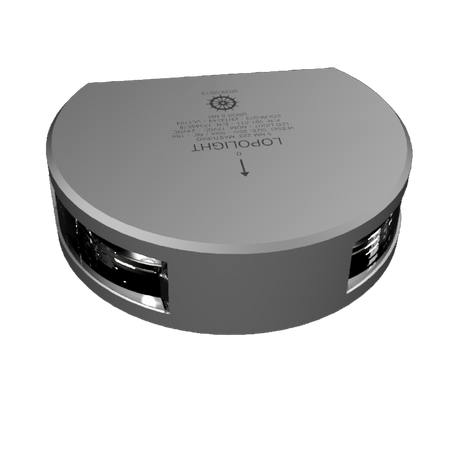

- Finish choices include silver anodized, black anodized, or white ceramic coated, with single stack and double stack styles
Variants
This series is offered in multiple finishes and two stack styles to match both the look of your mast hardware and the way you want the light package arranged.

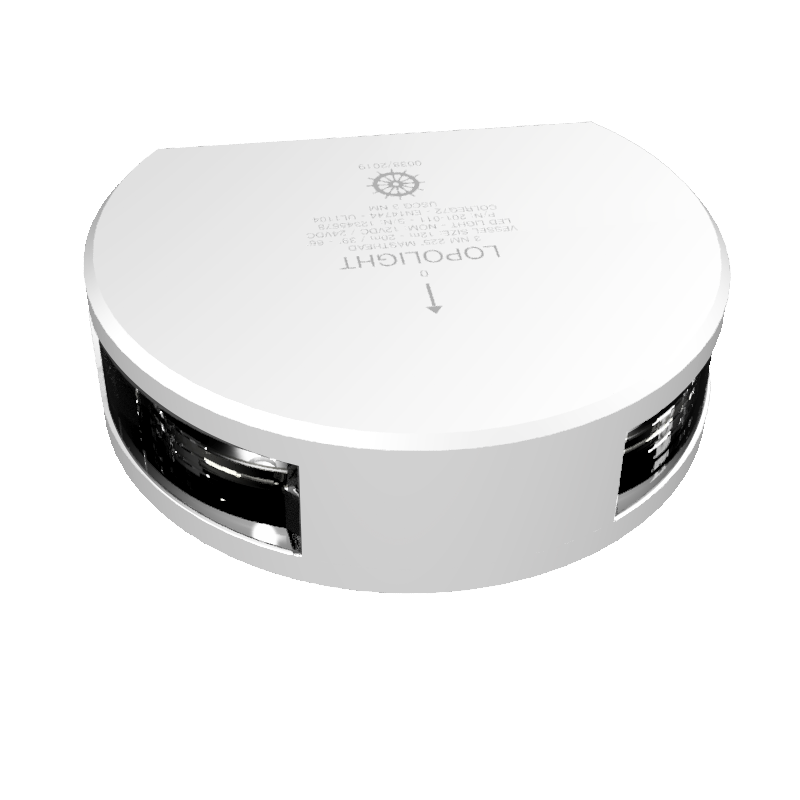

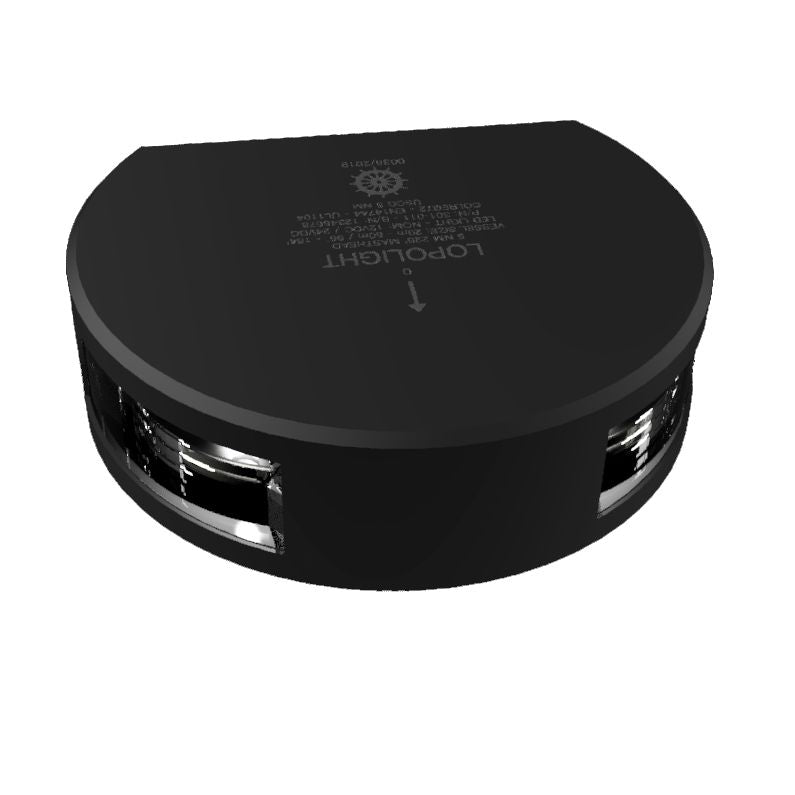

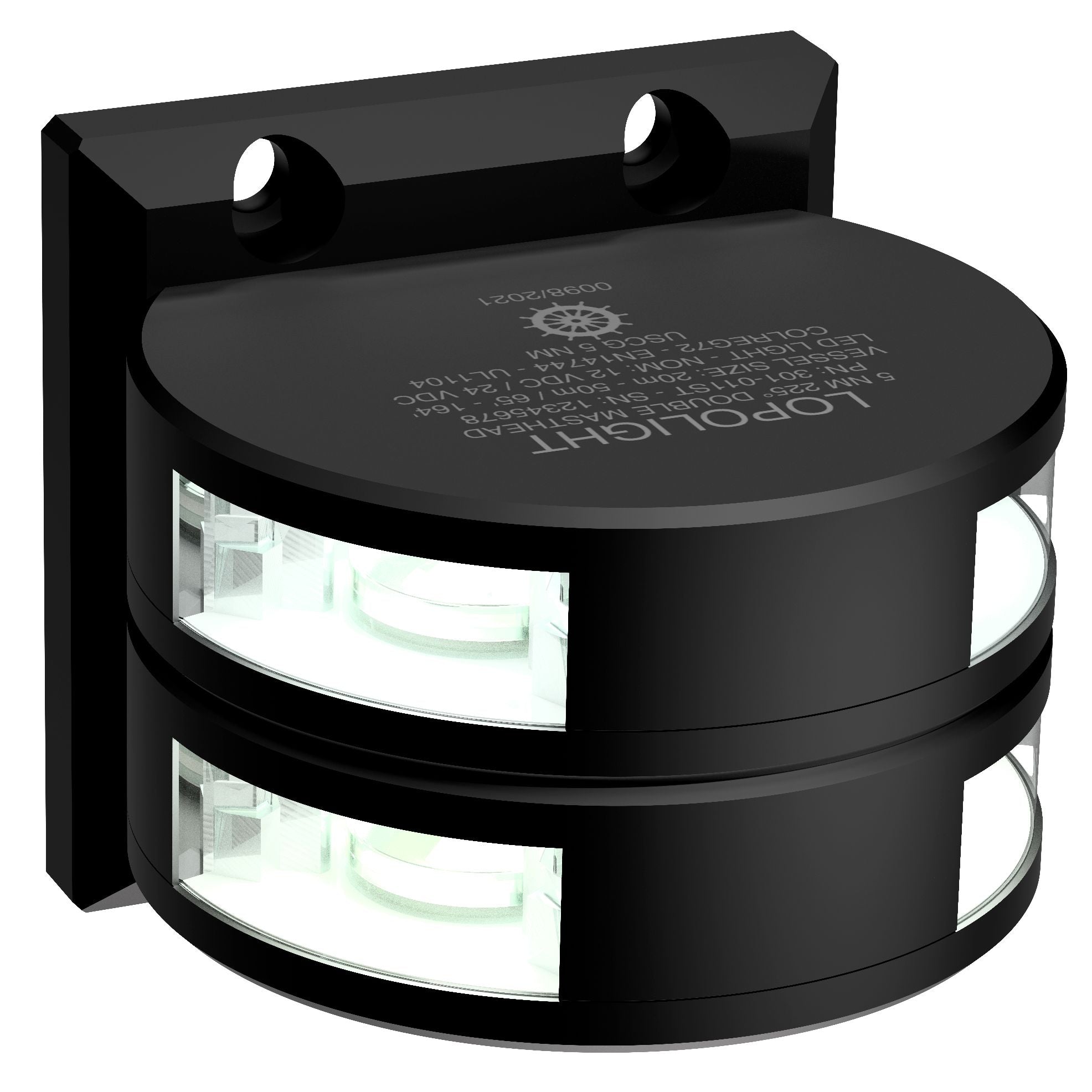

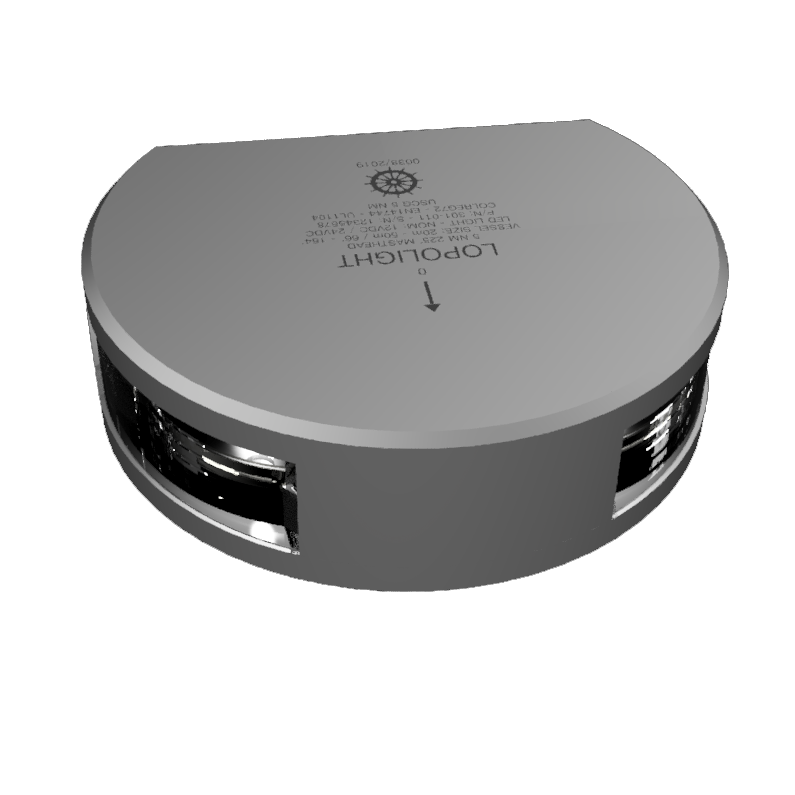

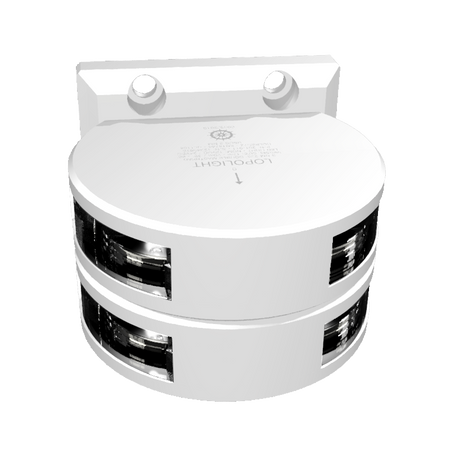

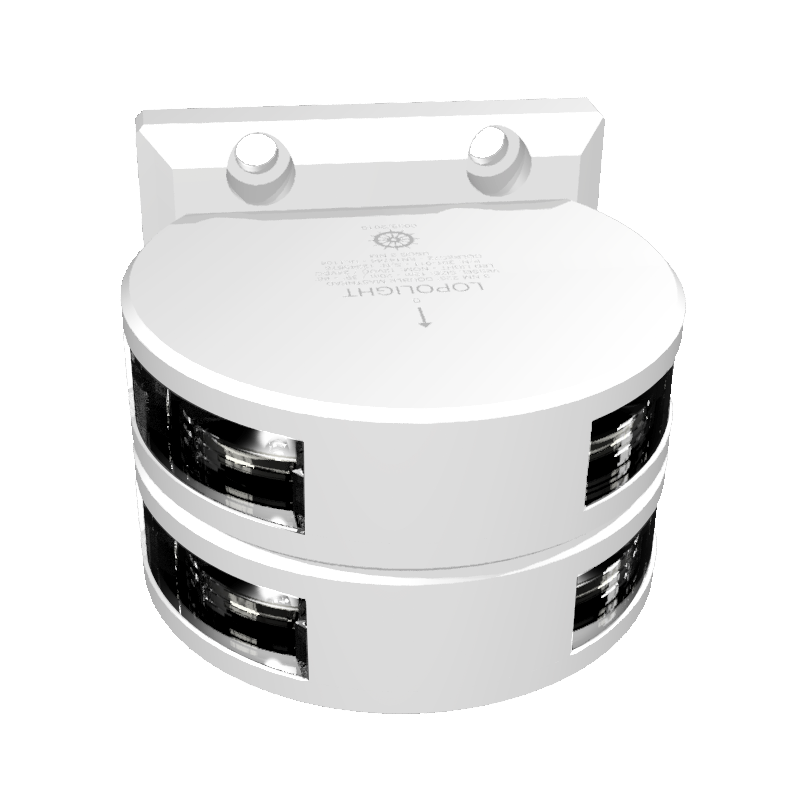

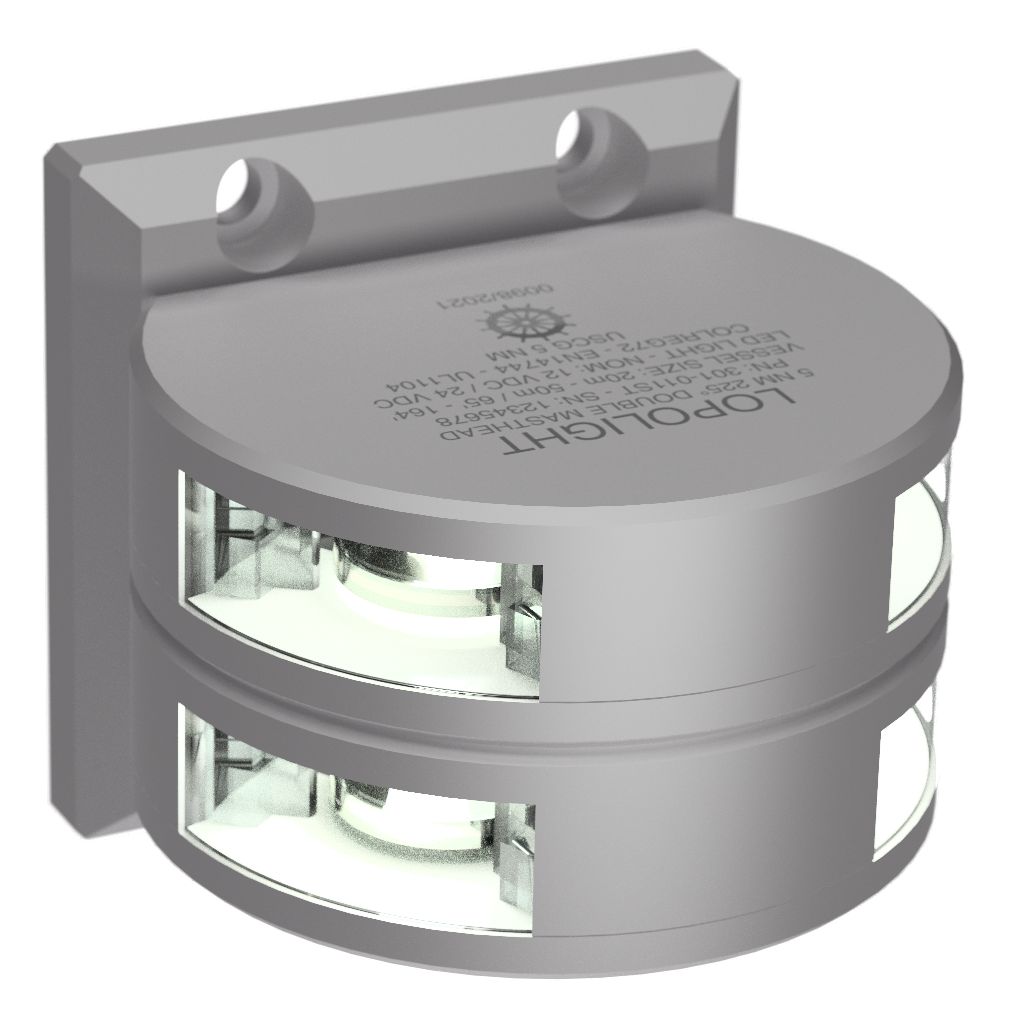

Finish options include silver anodized, black anodized, and a white ceramic coated housing. Style is either single stack (one masthead light module, pre-cabled with a 0.75 m lead) or double stack (two stacked masthead light modules, supplied with two 0.7 m leads). Across the range, the light color remains white with a 225° arc, a 5 NM rating, a 10-32 VDC input range, and IP68 sealing.
Installation and setup

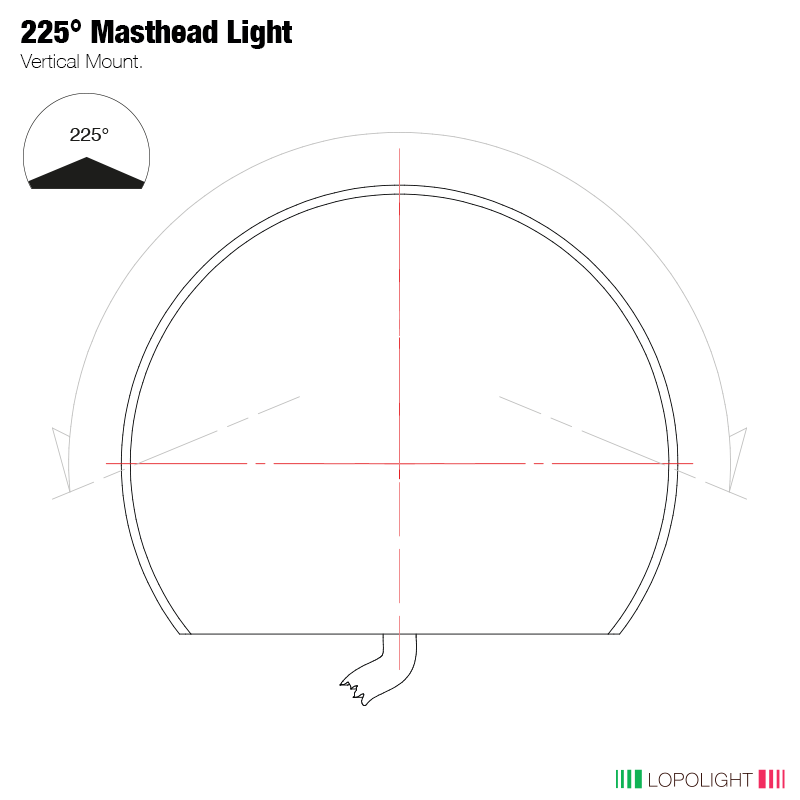

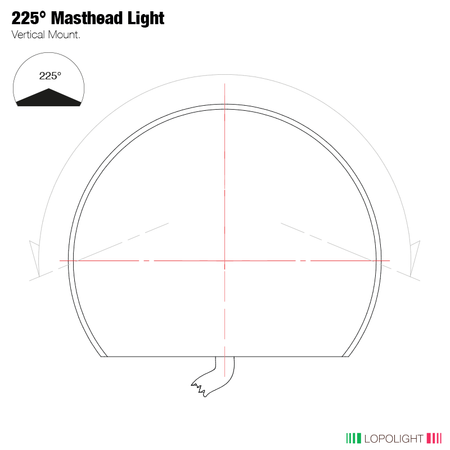

Mount the unit on a solid vertical surface where the lens has a clear, unobstructed view forward. Check that antennas, spreaders, and radar hardware do not cut into the 225° sector once the boat is loaded and trimmed.
The factory connection lead is short, so many installs land it into a protected junction point inside the mast or under a hardtop, then continue down the boat with ship wiring. Use a fused DC circuit sized for the load and follow your vessel’s navigation-light switching arrangement.
Compatibility and fit
The 5 NM rating and 20-50 m vessel range suit larger yachts and workboats that require higher-visibility navigation lighting. The 10-32 VDC input works on both 12 V and 24 V DC systems without a separate converter, and the published minimum feed wire gauge is 0.5 mm2 (AWG 22).
Materials and sealing
The housing uses aluminum with an anodized finish (or a ceramic coated finish on the white option), stainless fasteners, and a PMMA lens. When mounting to stainless or carbon structures, isolate the mounting surface with an appropriate gasket or bedding to help limit galvanic corrosion, and keep the lens clean so the cut-off stays crisp.
Use cases on board
This light suits refits where a vertical masthead fixture replaces an older incandescent unit, and new builds where you want a compact light footprint on an arch or mast. It is a good match for boats that run offshore or in busy traffic lanes where a clean 5 NM masthead light helps other vessels read your heading earlier.
What’s included
- Navigation light with attached connection lead(s)
- Mounting screws (M6 x 8 mm)
- Installation guide
