Garmin Verado Adapter Kit, For Mercury Verado, 1/4 in NPT to ORFS

Overview

The Garmin 010-11202-02 is a Verado adapter kit that provides the hydraulic fittings needed to plumb a Garmin hydraulic autopilot into most Verado steering systems. The kit bridges common hydraulic connection styles used in these installations, including 1/4 in. NPT and ORFS fittings, and includes ORFS tees plus shutoff valves so the autopilot pump circuit can be tied in cleanly.

This is a plumbing kit, not an autopilot by itself. It is a good match when you are adding a Garmin hydraulic autopilot pump to a Verado-equipped boat and want the right adapters on hand for the steering lines, tees, and service isolation points, without piecing fittings together one-by-one.

Key features

• Fittings kit for plumbing a Garmin hydraulic autopilot into most Verado steering systems.
• Mix of 1/4 in. NPT and ORFS adapters to connect between these hydraulic fitting types.
• Includes ORFS tees to integrate the autopilot pump circuit into the steering plumbing.
• Includes high pressure rated ORFS shutoff ball valves to isolate lines during service and troubleshooting.
• Includes barb fittings and hose clamps for hose-based connections where required in the circuit.

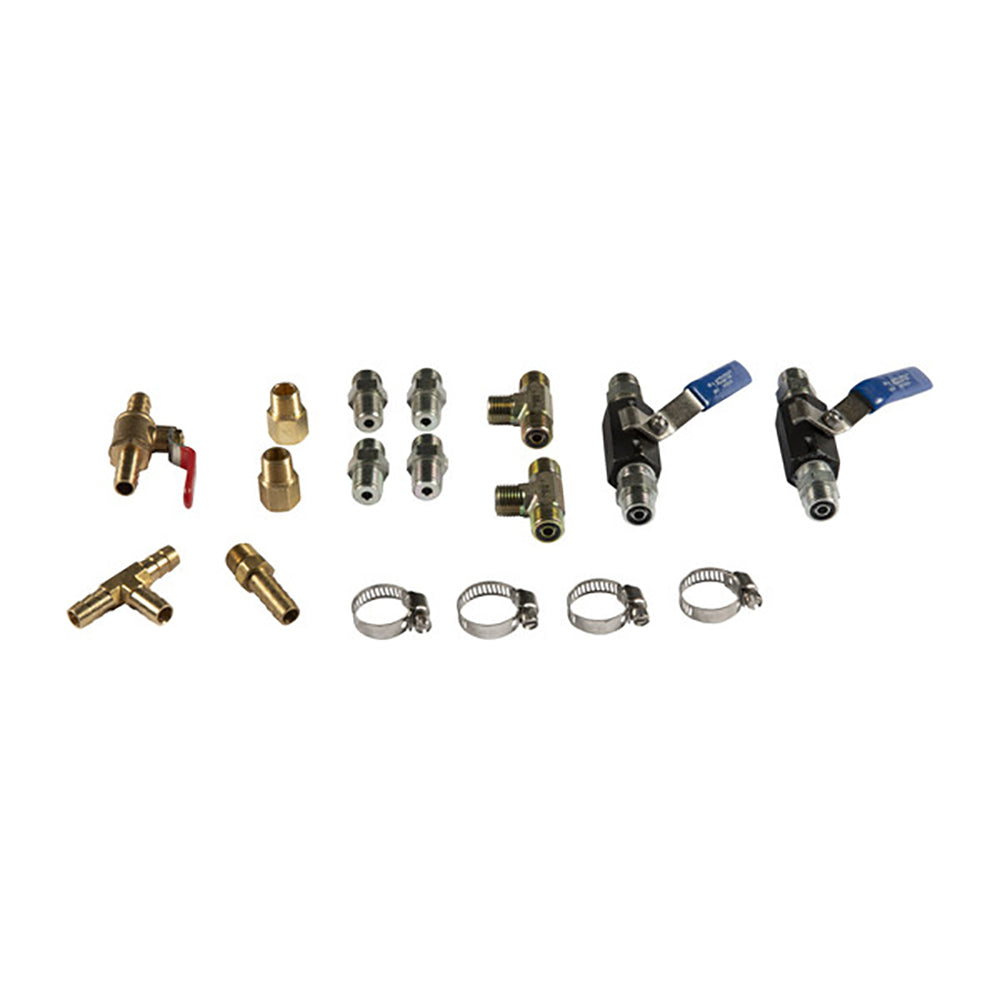

What’s included

• 4 x 1/4 in. NPT to ORFS adapters
• 2 x 1/4 in. NPT male-to-female adapters
• 4 x NPT male to ORFS female adapters
• 2 x ORFS tees
• 2 x high pressure rated ORFS shutoff ball valves
• 1 x barb shutoff valve
• 1 x barb-to-NPT adapter
• 1 x barb tee
• 4 x hose clamps
• Installation instructions

Installation and setup

Plan the installation so the added tees and shutoff valves remain accessible after everything is secured. On a typical below-deck autopilot pump install, you will be working in tight spaces near steering hoses and bulkheads, so confirm you have room to orient fittings without forcing hose bends or twisting lines.

Keep hydraulic connections clean during assembly and avoid putting side-load on fittings once tightened. After plumbing is complete, cycle the steering through its full range and inspect every connection for seepage before getting underway.

Compatibility and fit

This kit is intended for hydraulic steering plumbing on most Verado steering systems when integrating a Garmin hydraulic autopilot. Before ordering, confirm your steering system uses the same connection style as the kit parts, including ORFS fittings and 1/4 in. NPT interfaces where applicable, and verify your autopilot pump plumbing requirements match your boat’s hose and fitting layout.

Safety notice

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
