Lopolight 200-018 Series 180° Green Navigation Light, 2NM, Vertical Mount, 10-32VDC, IP68
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Lopolight 200-018 Series is a 2 NM, 180° green navigation light that mounts vertically on a flat surface. It is sized 104 mm x 37 mm x 45 mm, which makes it a practical fit for cabin sides, pilothouse fronts, and other vertical faces where you need a clean, low-profile install.
It runs on 10-32 VDC (12V or 24V systems) and draws about 145 mA at 12 VDC or 60 mA at 24 VDC (1.5 W). The light is IP68 rated and fully potted, so it holds up well in wet locations and in areas that see vibration.
The housing is anodized aluminum with a PMMA lens and A4 stainless steel screws. This series is rated for vessels up to 50 m (164 ft) and is approved for use as a navigation light under common marine standards.
Key features
- 2 NM visible range with a 180° green sector for navigation-light applications
- Vertical mounting format with compact overall size (104 mm x 37 mm x 45 mm)
- 10-32 VDC input for 12V and 24V systems; typical draw 145 mA at 12 VDC or 60 mA at 24 VDC (1.5 W)
- IP68 rating with fully potted electronics for wet installs and vibration-prone mounting points
- Anodized aluminum housing with PMMA lens and A4 stainless steel fasteners
- Minimum feed wire gauge listed as 0.5 mm2 (AWG 22)
- Offered with extended factory cable lengths (6 m or 20 m) to reduce splices and junctions
- Style options include a single-light version (Single Stack) and a double-light version (Double Stack)
Variants

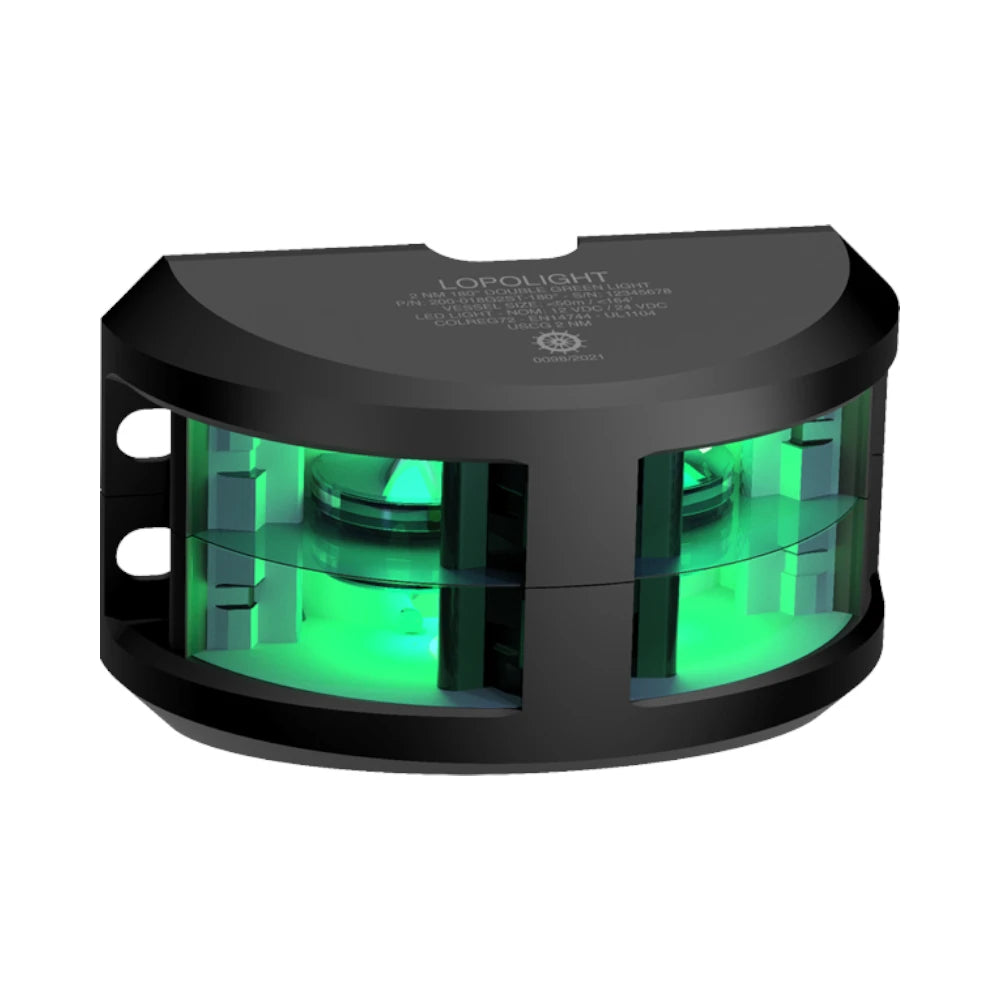

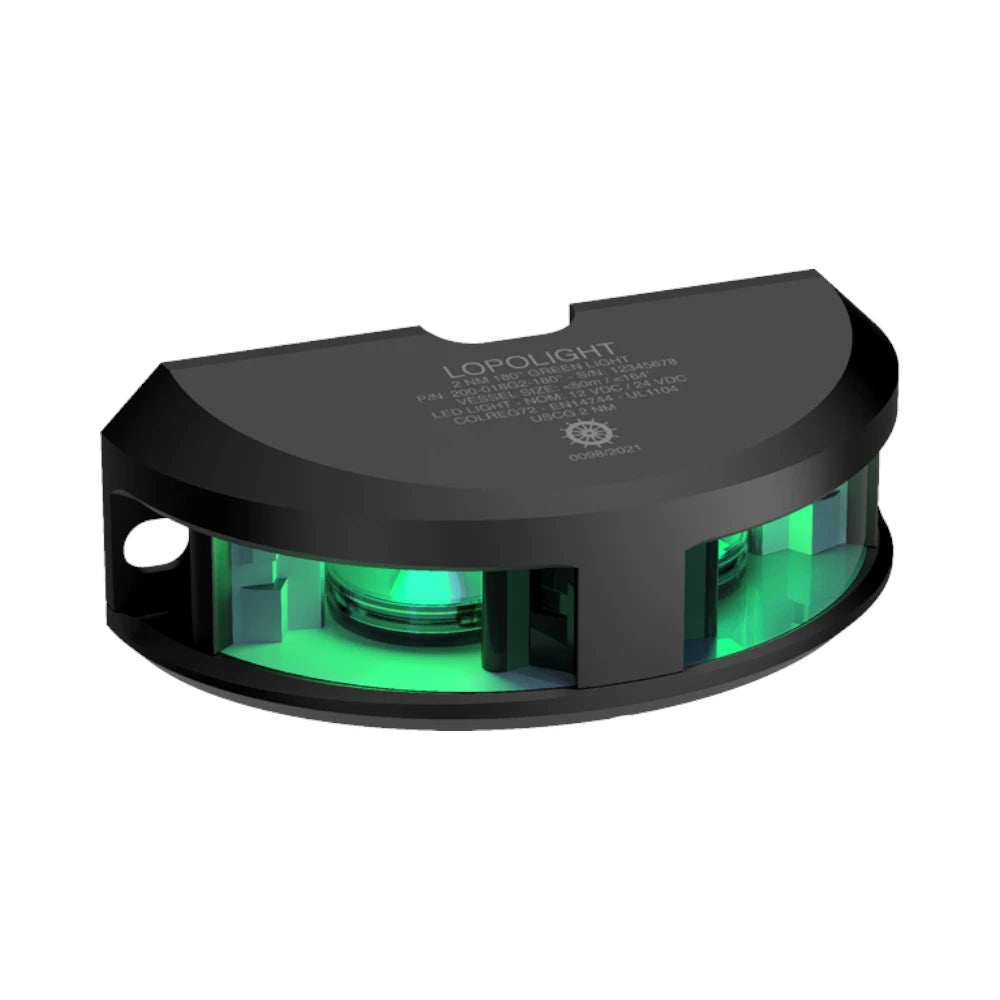

This series is offered with either a silver anodized finish or a black anodized finish, and with factory-attached cable lengths of 6 m or 20 m.

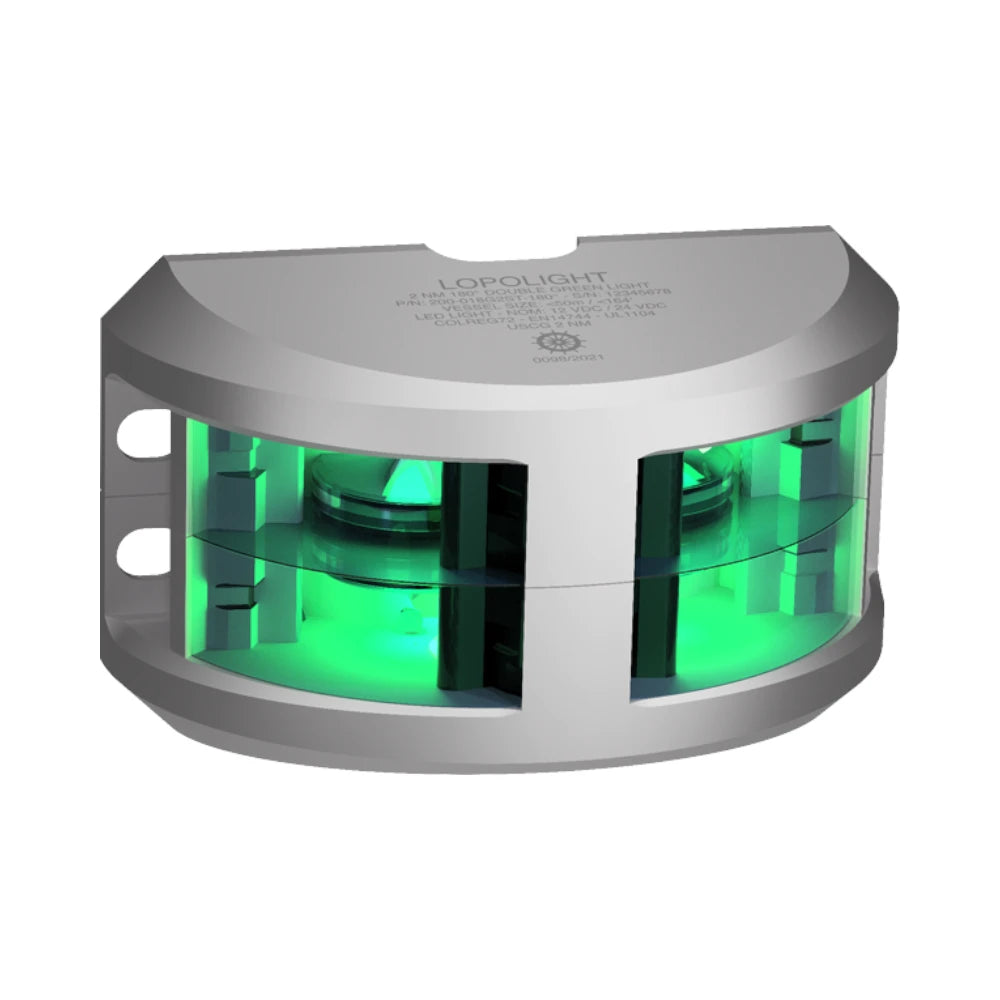

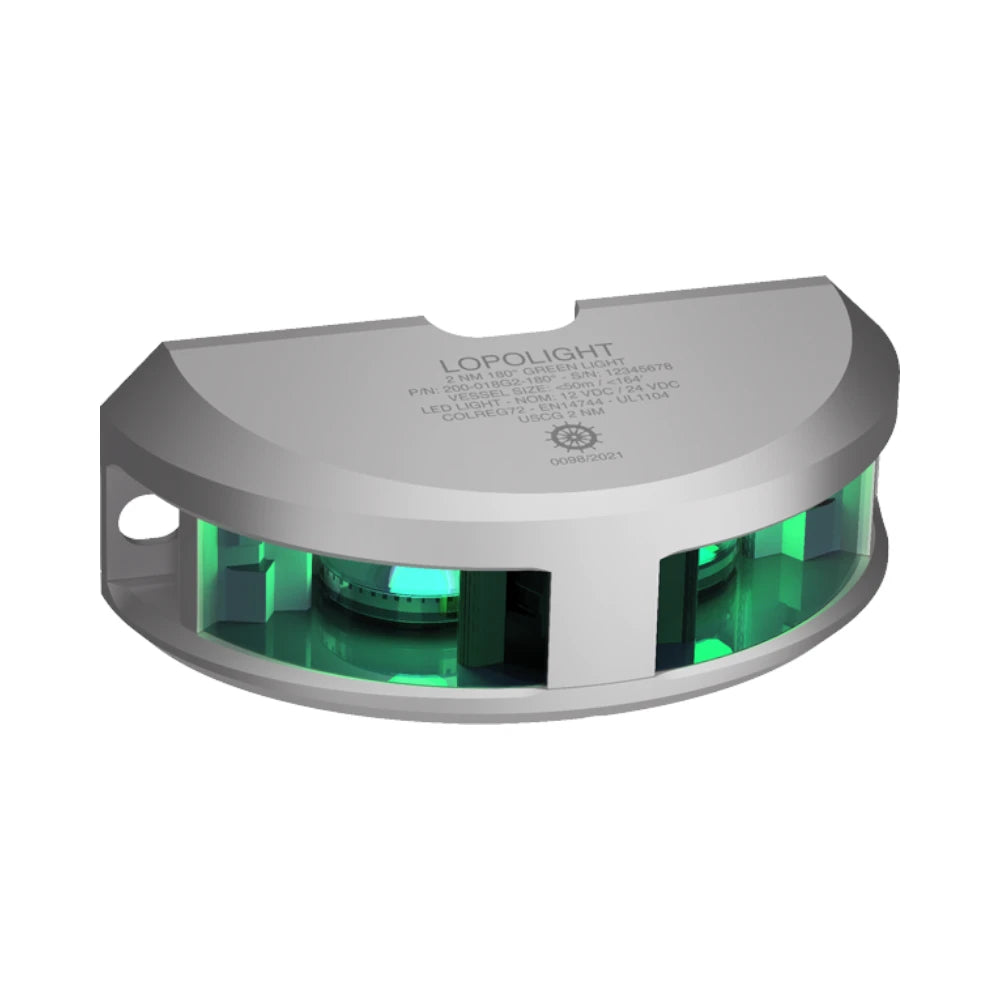

Style options are shown as Single Stack and Double Stack. Single Stack refers to the single-light configuration, while Double Stack refers to the double-light configuration in the same vertical-mount format.
What’s included
- Navigation light
- Installation guide
Installation and setup
Plan the mounting location so the 180° sector is aimed the way your navigation-light layout requires. On most boats this means taking a moment to mark the centerline and confirming the light sits truly vertical before final tightening.
For the cleanest install, route the cable through the mounting surface where possible and seal any penetrations appropriately for the material you are mounting to. If the cable will be spliced or extended, keep the connection accessible and protected from standing water.
Electrical and system integration
This light is suited to both 12V and 24V DC systems across a 10-32 VDC input range. With long cable runs, size the supply wiring for voltage drop as well as current draw, and terminate the shielded cable carefully so the installation stays quiet and tidy around sensitive electronics.
Materials and corrosion resistance
The anodized aluminum body and stainless hardware are a good match for exposed installations, including coastal and offshore use. Regular rinse-down after saltwater runs helps keep the finish looking clean and prevents salt buildup around fasteners and cable exits.
Use cases on board
This light is commonly installed on yachts, sportfishers, and workboats where a vertically mounted 180° green sector is required on the superstructure. It is also a good match for refits where you want an IP68-rated unit and the option of a 20 m cable to reach a central electrical panel without adding extra junction boxes.
