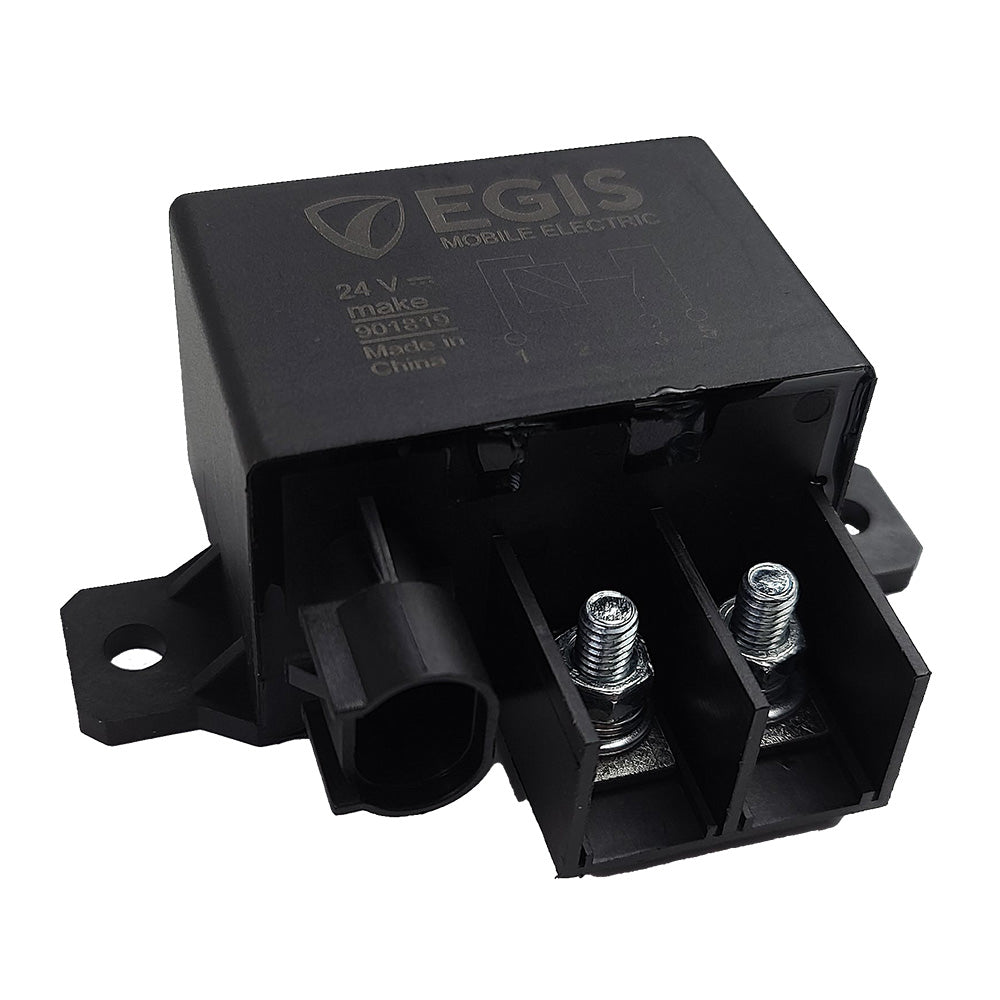

Egis Mobile Electric - Relay - With Resistor, 24V, 150A

Superior Performance in Challenging Environments

The Egis Relay 24V, 150A with Resistor is designed to provide exceptional performance in high-temperature and wet environments, making it an ideal choice for marine and automotive applications. This relay is a robust, reliable solution for managing high-amp electrical currents and protecting sensitive control circuitry.

General Description

This 24V, 150-amp relay is built to handle demanding electrical loads with superior efficiency. The integrated resistor circuit protection ensures that flyback voltage does not affect control signal circuitry, making it perfect for sensitive electrical systems. With a high intermittent amperage rating of 300 amps for up to 3 seconds, this relay is well-suited for temporary high-equipment start-up amp draw applications. The automotive-grade connectors prevent moisture and dust intrusion, ensuring reliable performance even in harsh conditions. The relay's high-temperature rating of 125°C (257°F) makes it ideal for use in engine bays and other low-ventilation spaces.

Key Features and Advantages

• Resistor Circuit Protection: Prevents flyback voltage from affecting control signal circuitry, ensuring safe operation in sensitive systems.
• High Intermittent Amperage Rating: Supports 300 amps for up to 3 seconds, suitable for high-equipment start-up applications.
• Automotive-Grade Connectors: Protect against moisture and dust intrusion.
• High-Temperature Rating: Operates effectively in environments up to 125°C (257°F).

Bullet Points Summary

• Flyback Voltage Protection: Integrated resistor ensures safe operation of control circuits.
• High Intermittent Current Handling: Manages up to 300 amps for short durations.
• Moisture and Dust Protection: Sealed connectors keep control circuitry safe.
• Heat Resistant: Performs reliably in high-temperature environments.

Specifications

• Intermittent Current @ 3 SEC (Amps): 300
• Ambient Temp. Rating (Low/High) (Celsius): -40/125°C
• Max Continuous Current (Amps): 180 @23°C
• Electrical Endurance Rating (Cycles): 1,000,000
• On State Current Draw @ 24 VDC: 163 mA
• Operating Voltage Range: 17.6-32VDC

Focal Features

• Sealed Housing: IP67-rated housing ensures long-term reliability by keeping out moisture.
• Reinforced Mounting: Robust mounting tabs with strengthening gussets ensure secure installation.
• Terminal Protection: Shielded dual M6x1.0 terminals prevent accidental contact shorts.
• Delphi Metripak Connector: Sealed automotive-grade connectors keep moisture out of the control circuit.

Additional Details

• Bullet-Proof Construction: This robust relay is built to withstand harsh conditions, ensuring reliable performance in both marine and automotive environments.
• High Electrical Switching Capacity: Capable of handling 100,000 electrical switching cycles, providing long-lasting durability.
• Enhanced Vibration and Shock Protection: Ensures operational readiness and a long service life, even in challenging conditions.

The Egis Relay 24V, 150A with Resistor is engineered to deliver reliable and efficient electrical switching for marine and automotive applications, providing the ultimate in performance and protection for your electrical systems.
