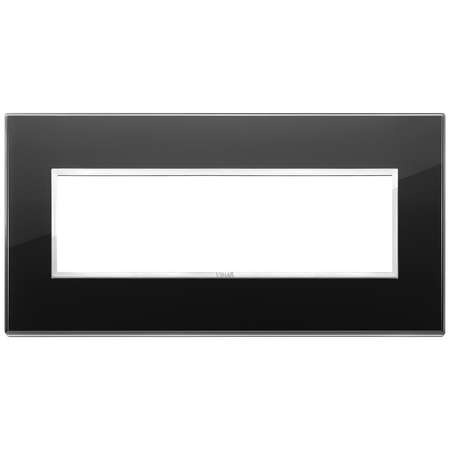

Vimar Eikon EVO 7-Module Cover Plate, Horizontal/Vertical Mount

Overview

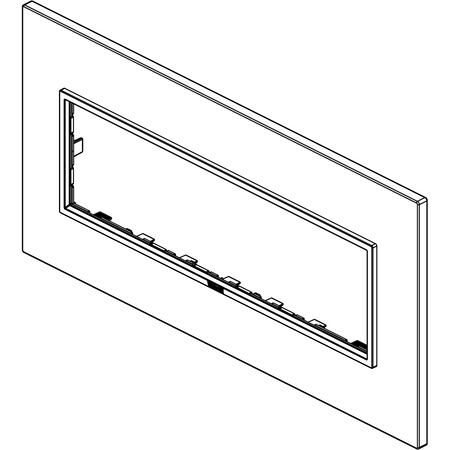

The Vimar Eikon EVO 21657 is a 7-module cover plate used to finish an Eikon EVO device group so the switches, outlets, or control modules sit behind a clean frame on your boat.

It mounts horizontally or vertically (7 modules across in a horizontal layout, or a single vertical column) and uses clamp mounting with a mounting grid. The range is rated IP00, so it belongs in protected interior locations rather than exposed cockpit or deck areas.

Overall size depends on the finish family, with plate footprints around 200 to 207 mm wide and about 105 to 106 mm high, and a depth around 10 mm.

Key features

• 7-module plate for the Vimar Eikon EVO module system, with horizontal or vertical mounting orientation
• Clamp-mounted plate with mounting grid; suitable for built-in installation, wall ducts, and floor boxes
• Label space/information surface for identifying circuits and functions on a multi-gang panel
• IP00 rating for dry, protected locations inside the vessel
• Halogen-free construction; material and surface finish vary by version across aluminium, leather, wood, Corian, stone, and crystal/glass families
• Commonly paired with the Vimar 21617 7-module mounting frame with screws for 6/7-module mounting boxes

Variants

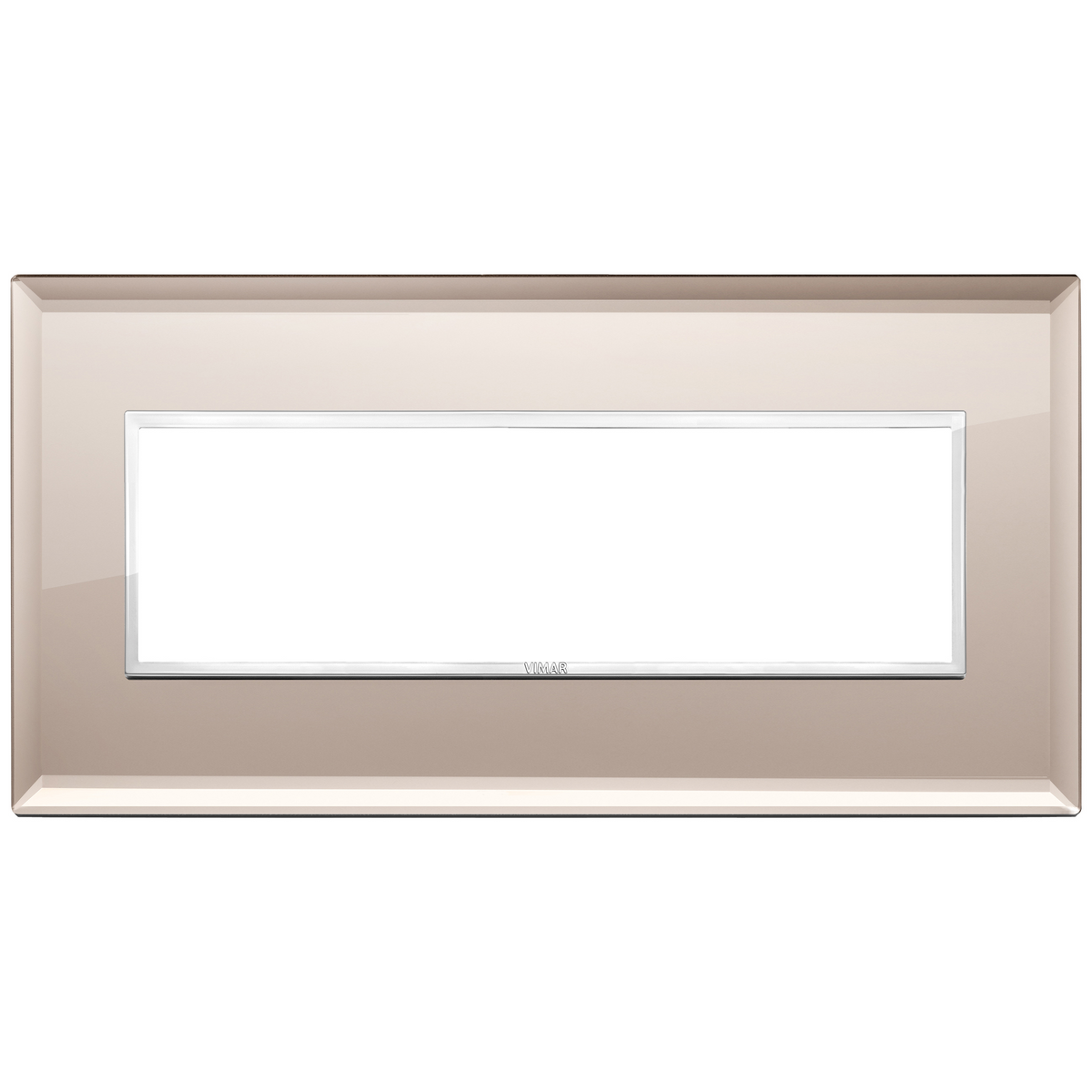

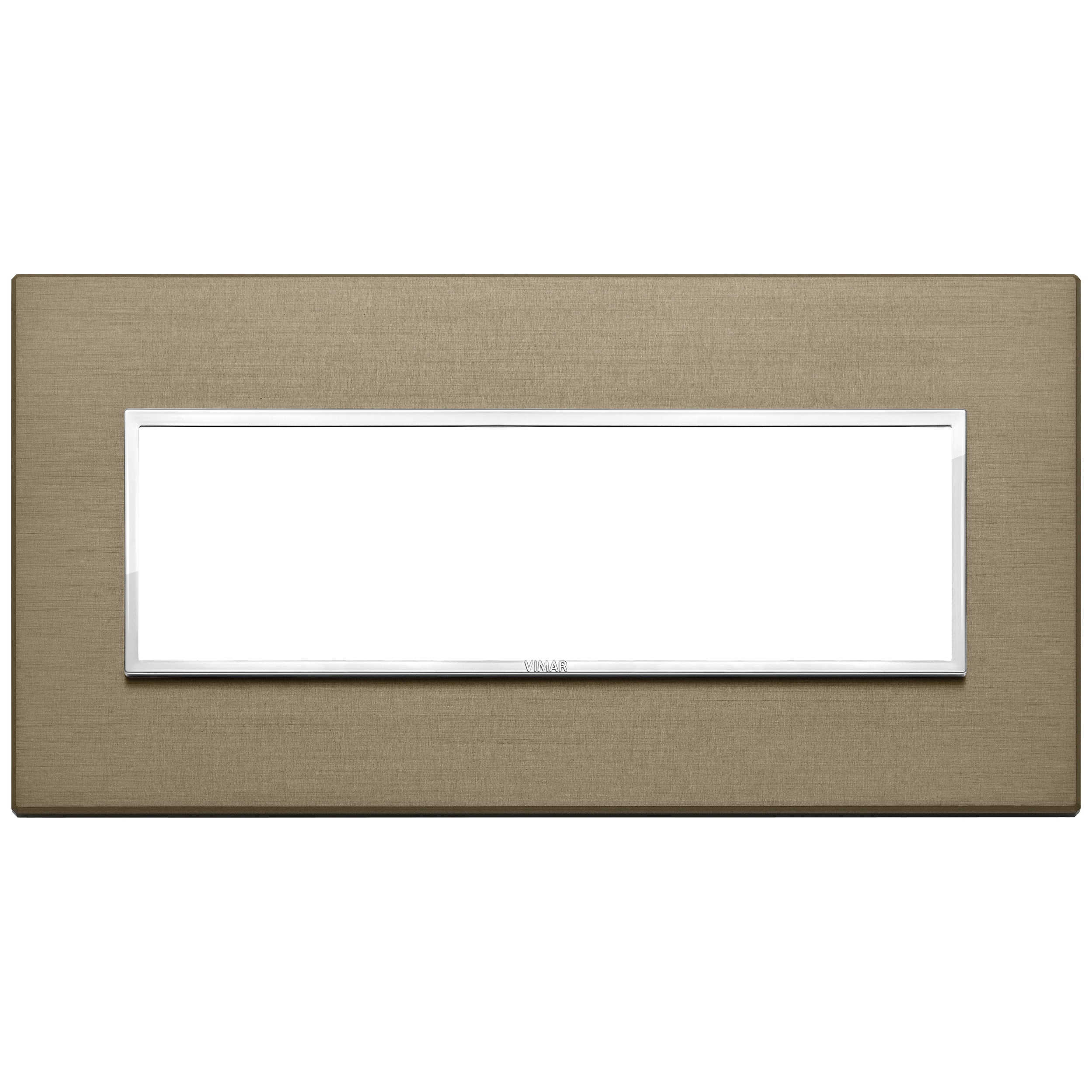

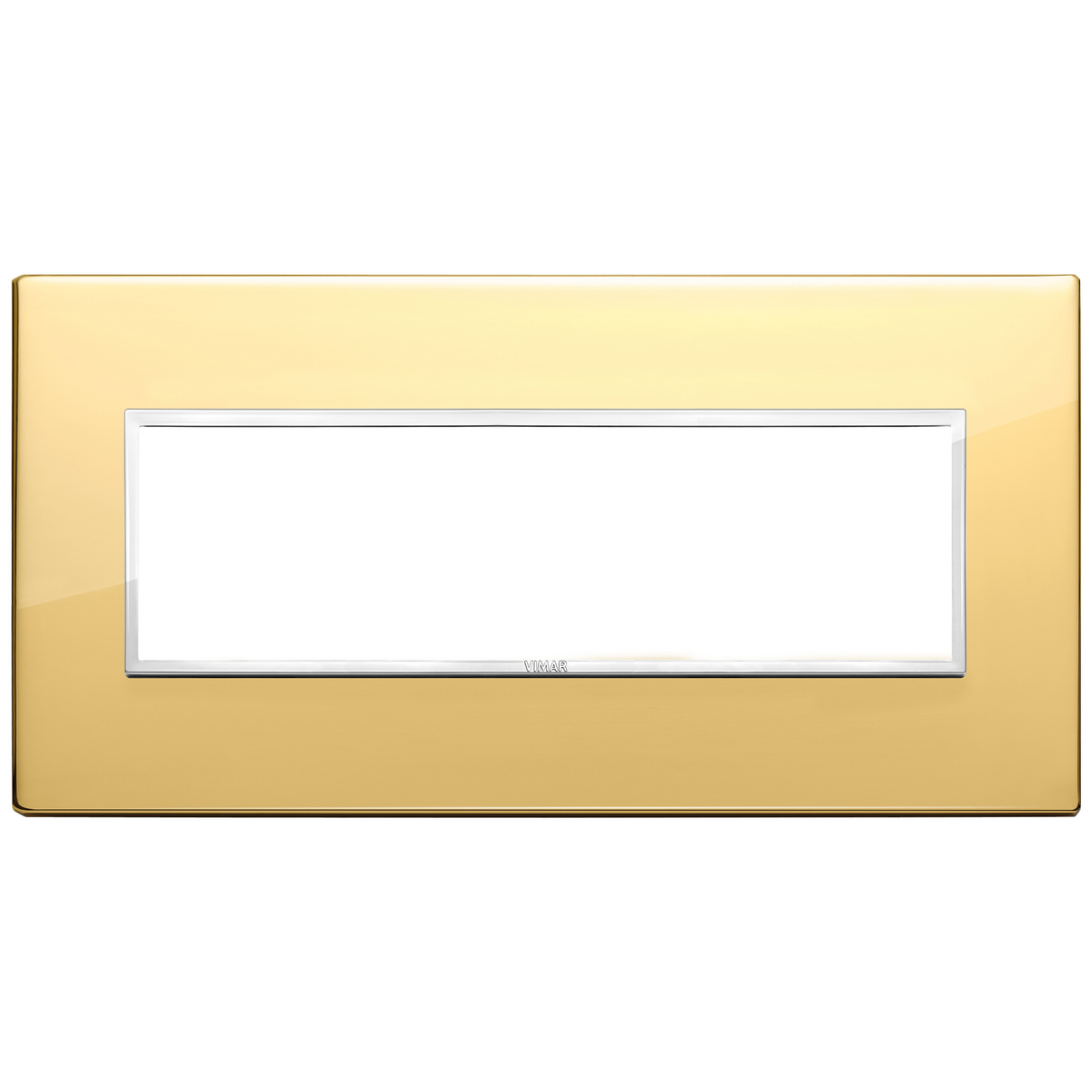

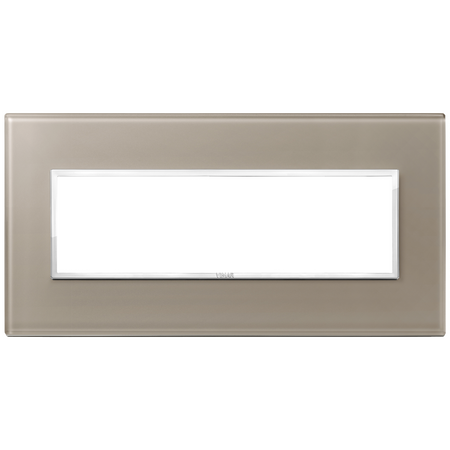

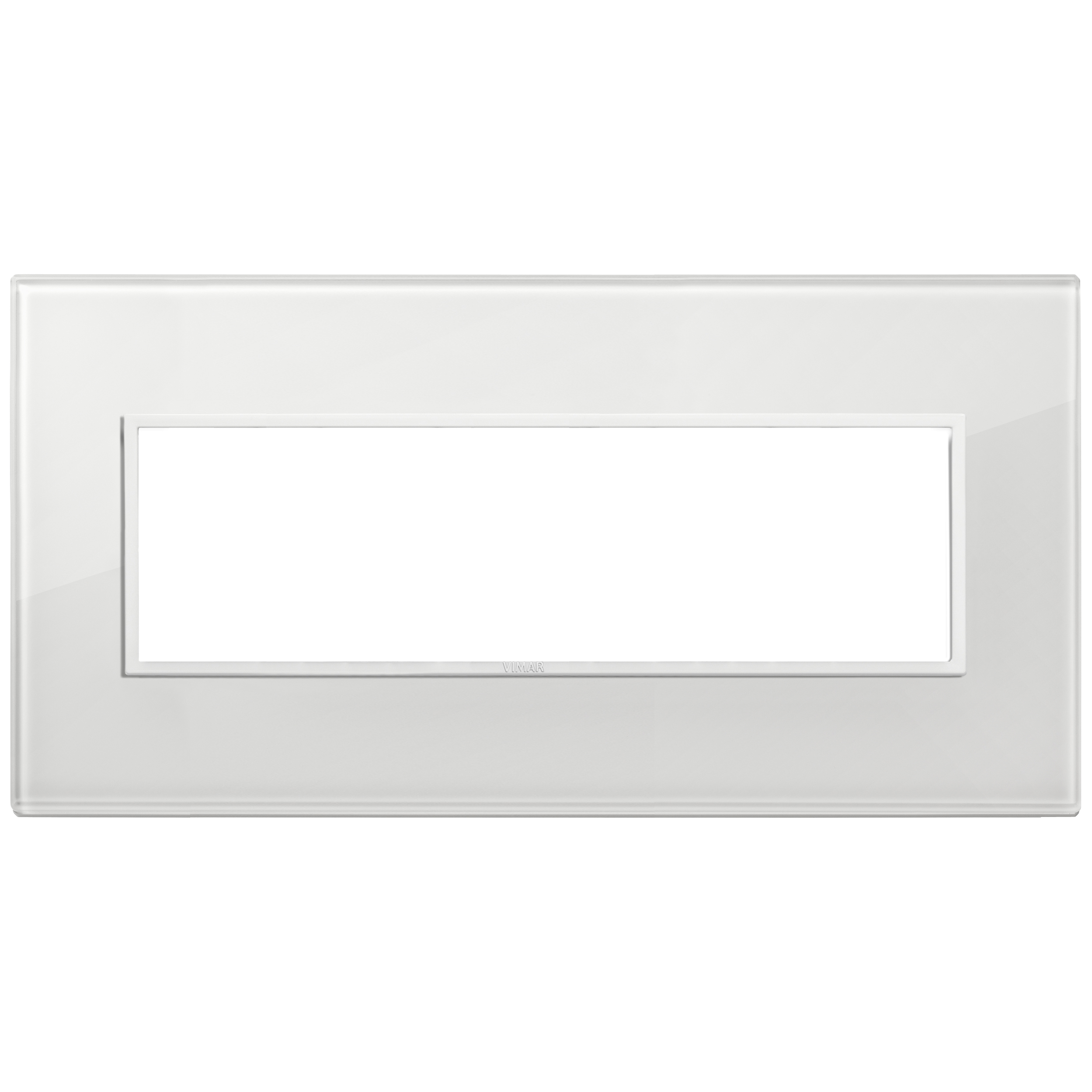

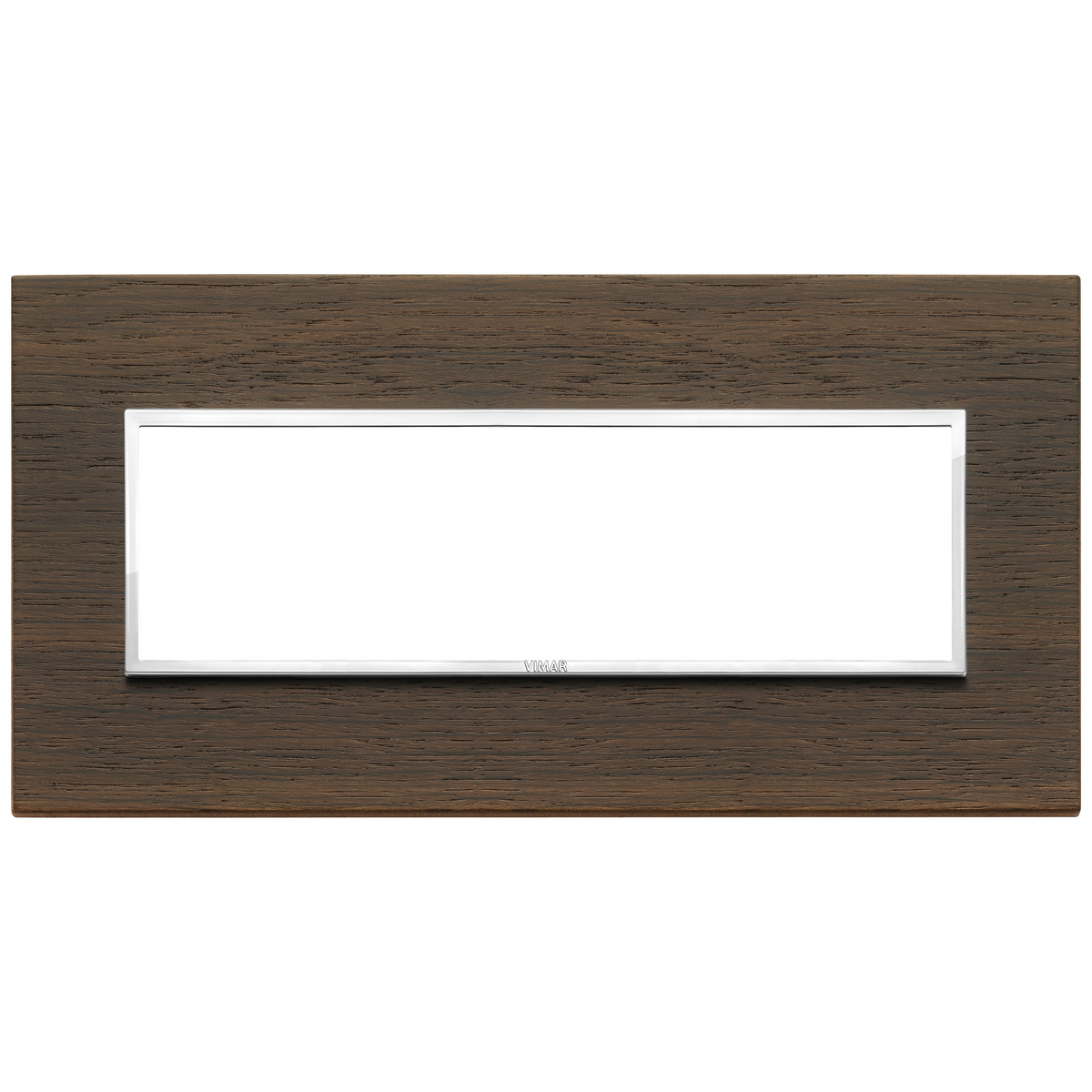

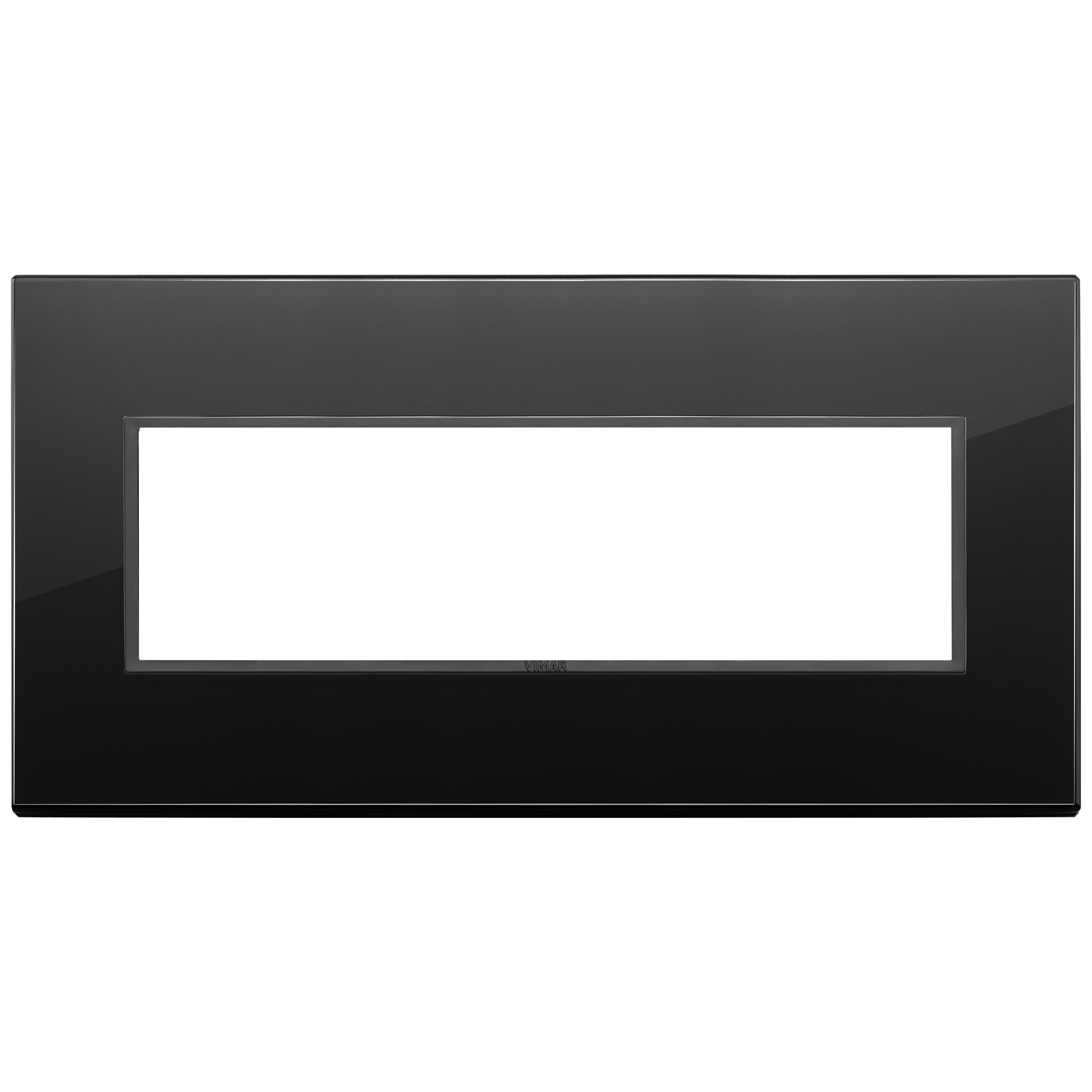

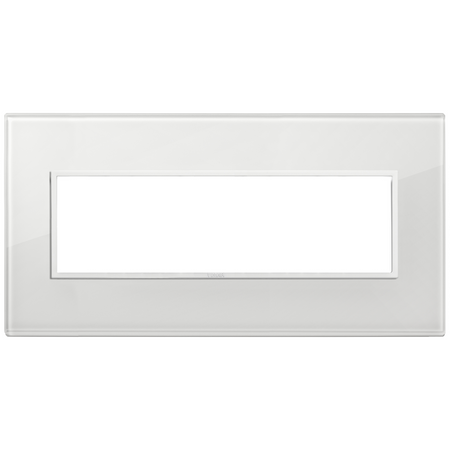

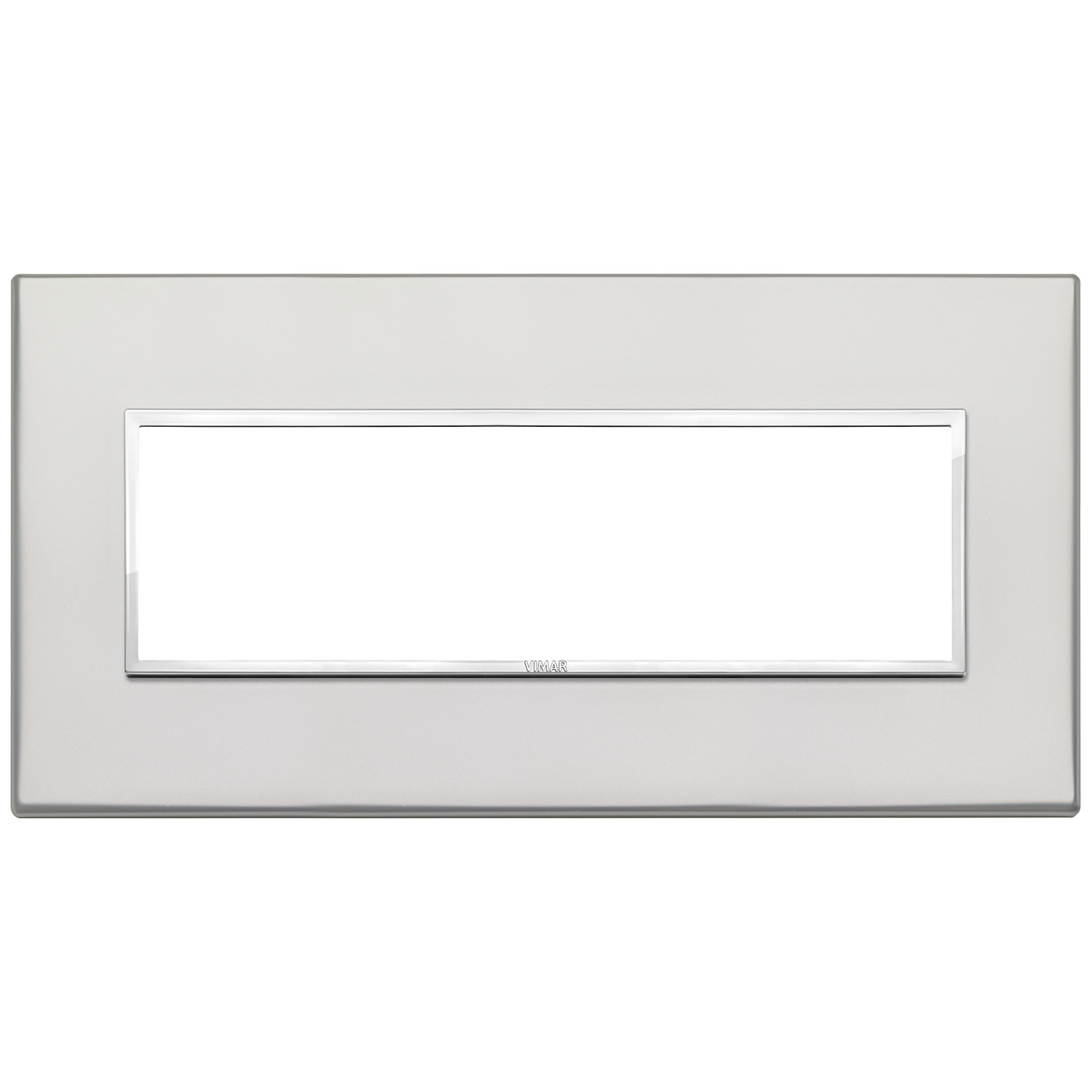

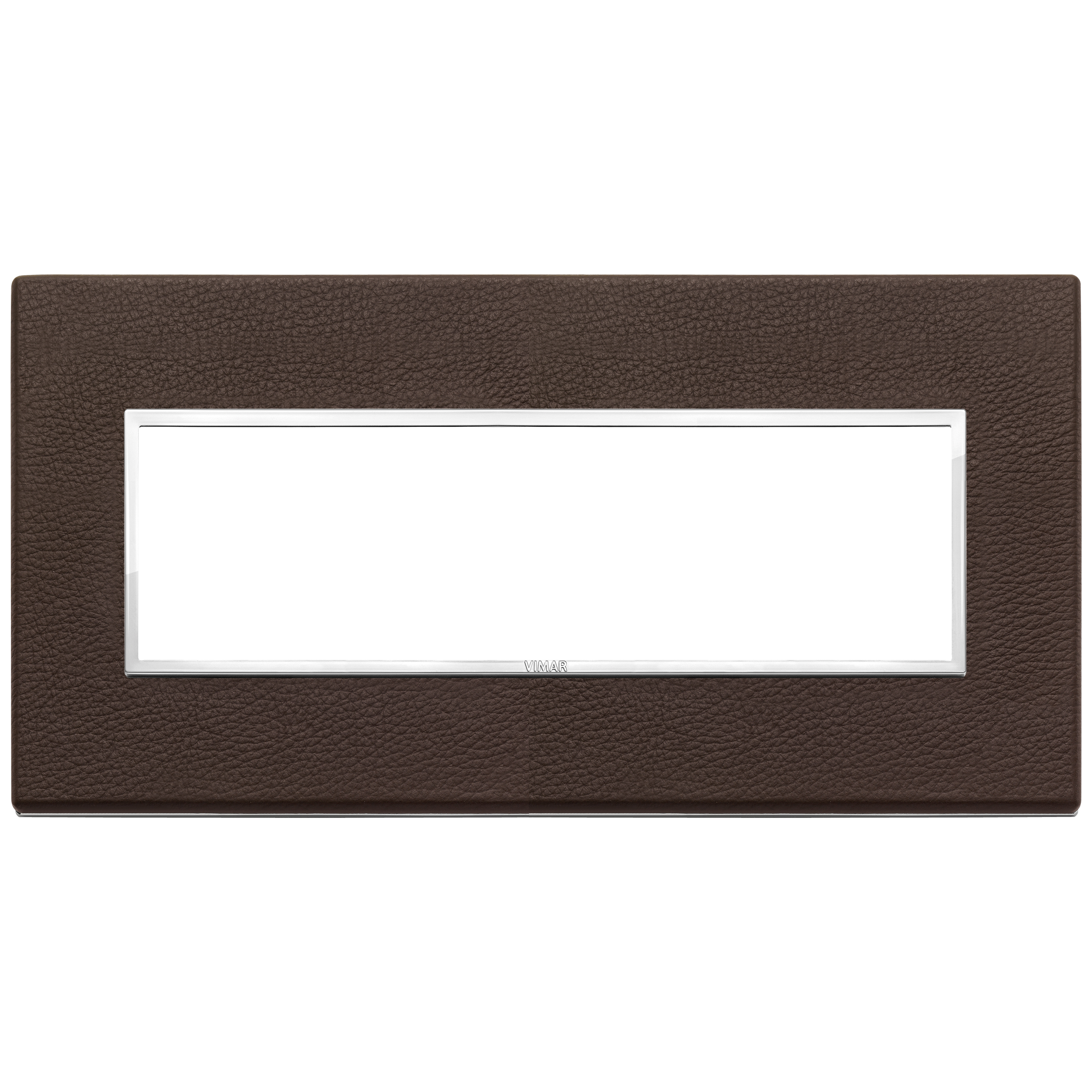

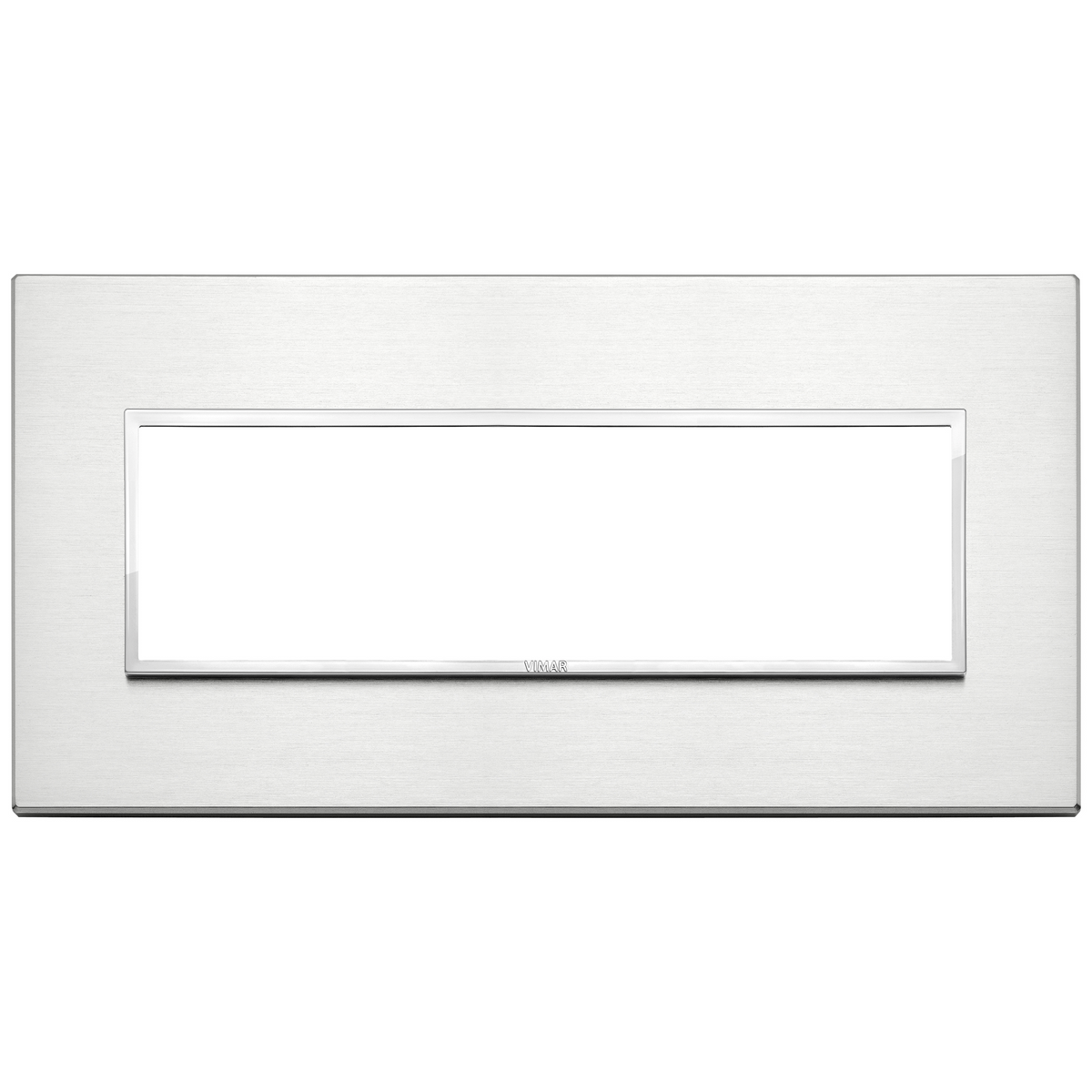

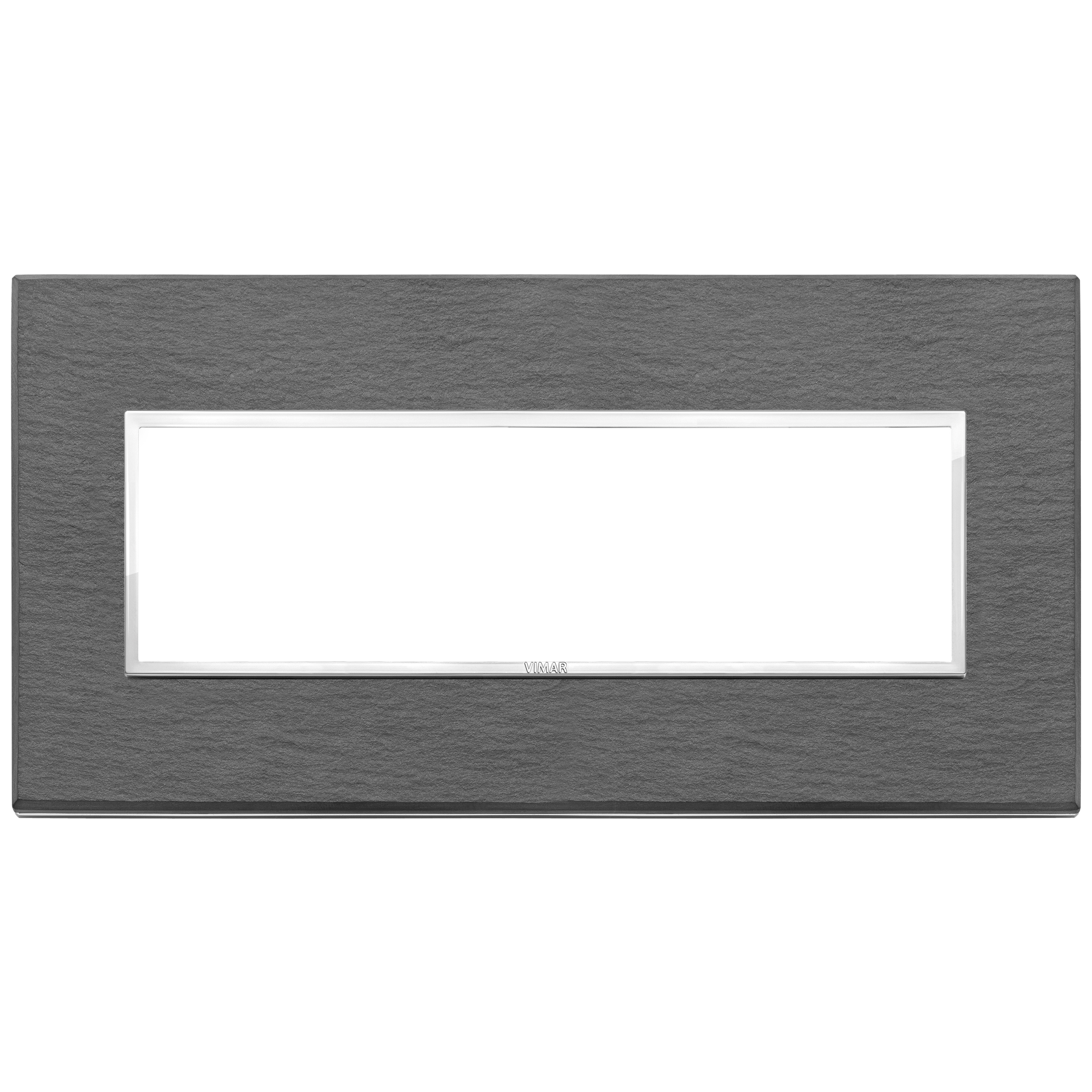

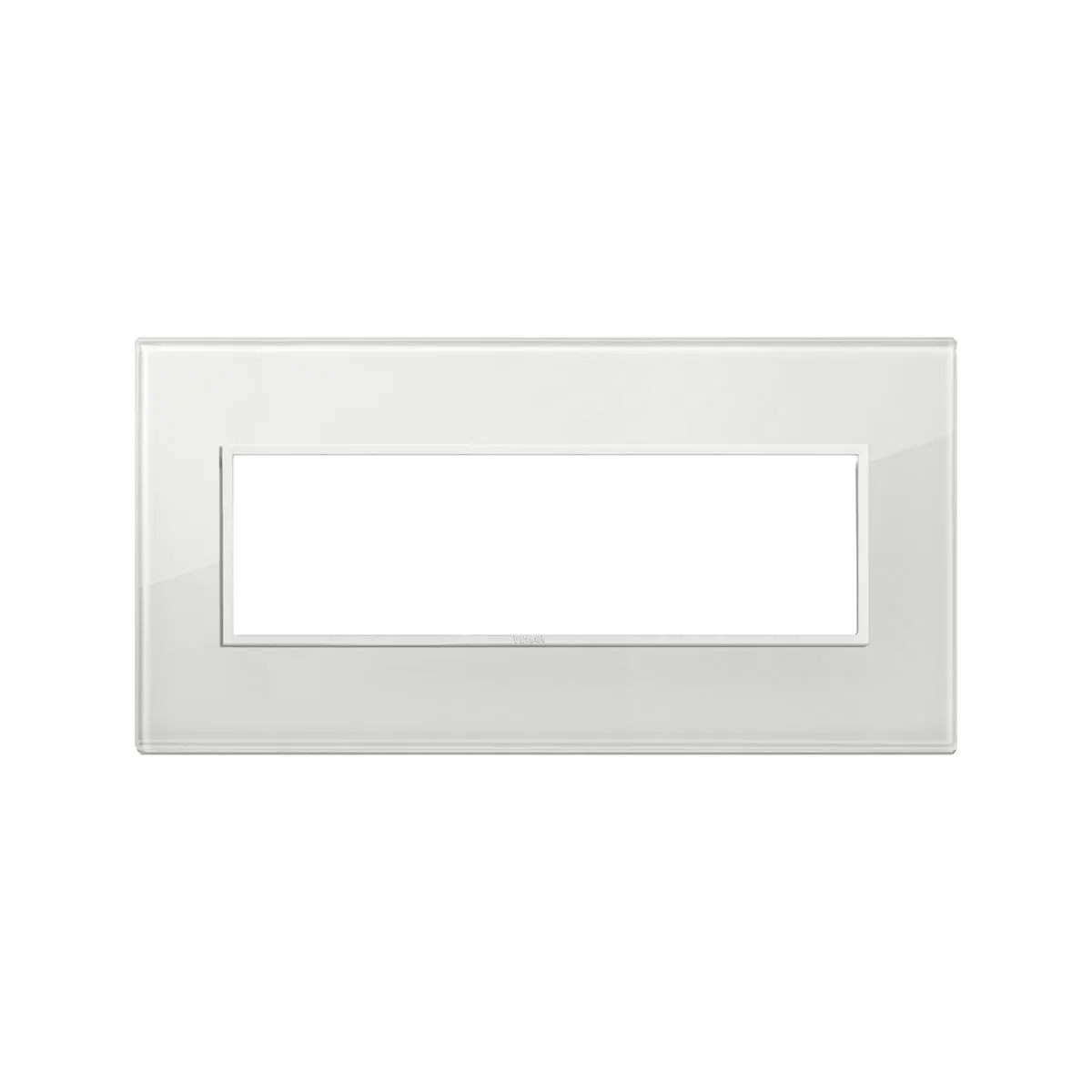

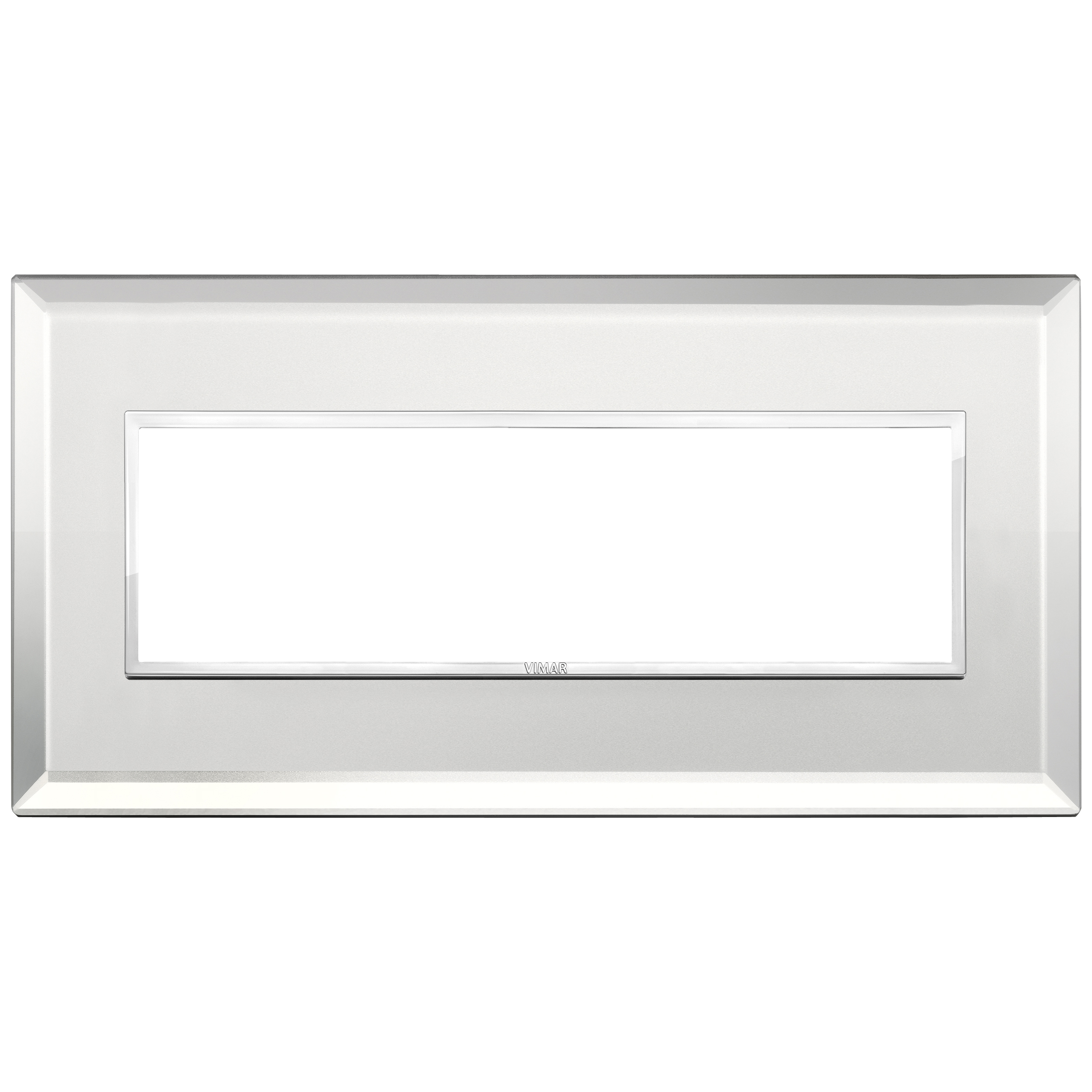

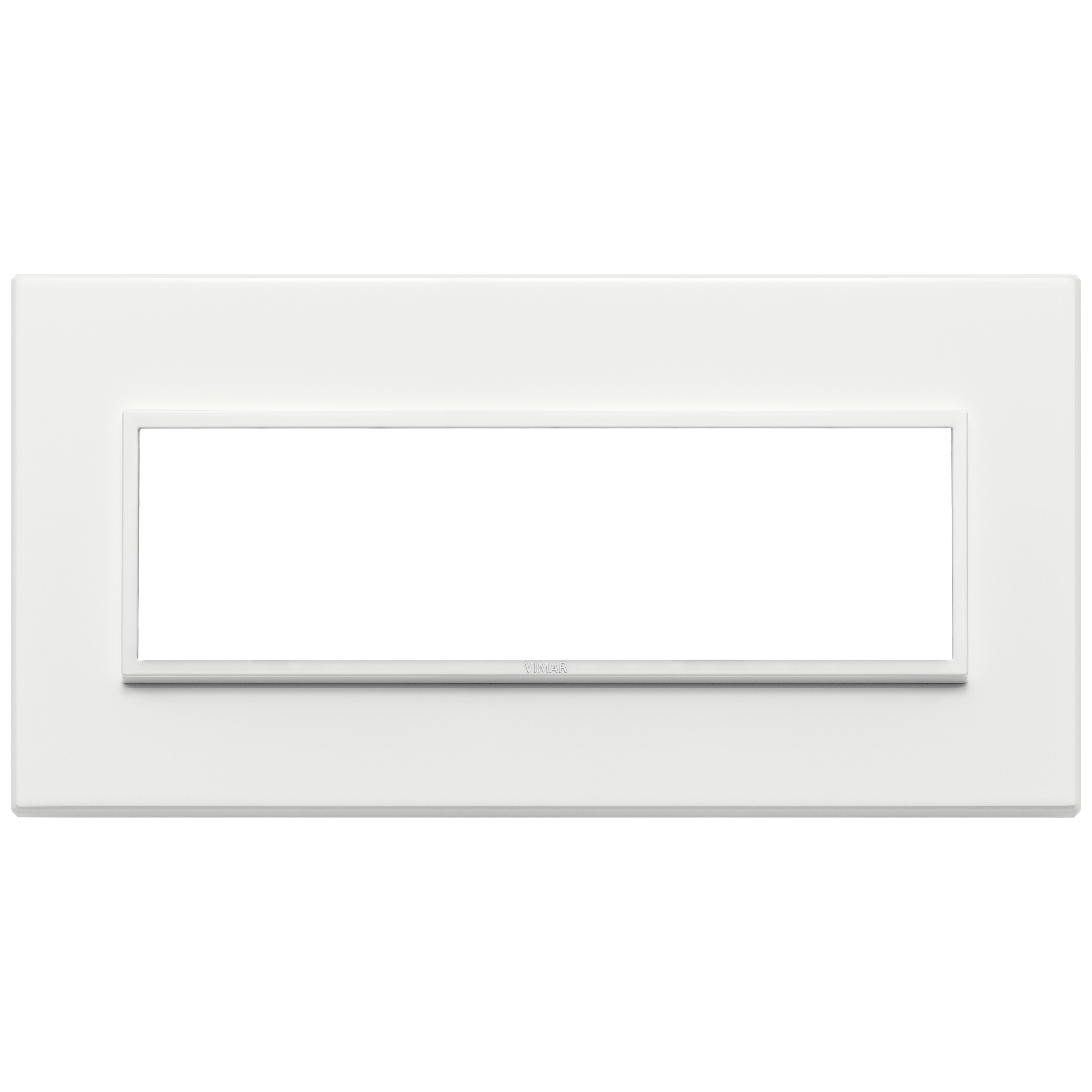

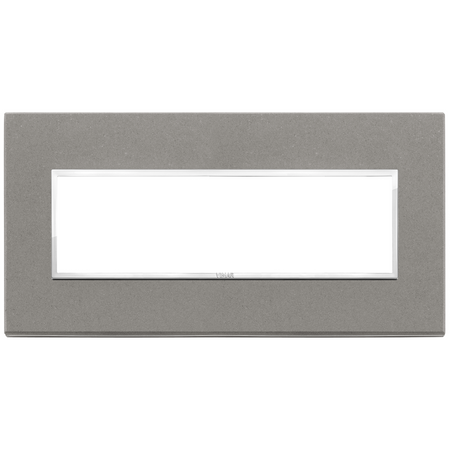

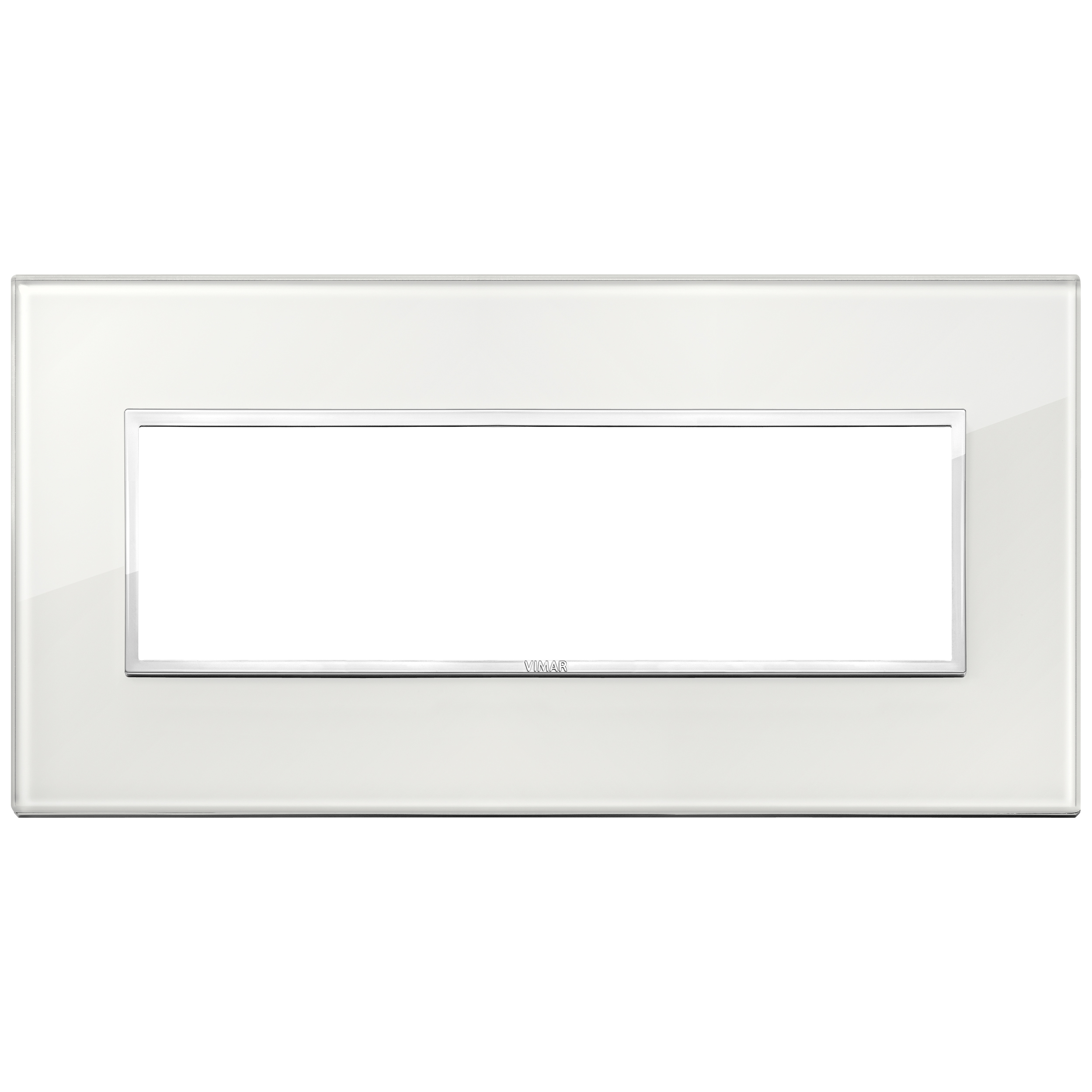

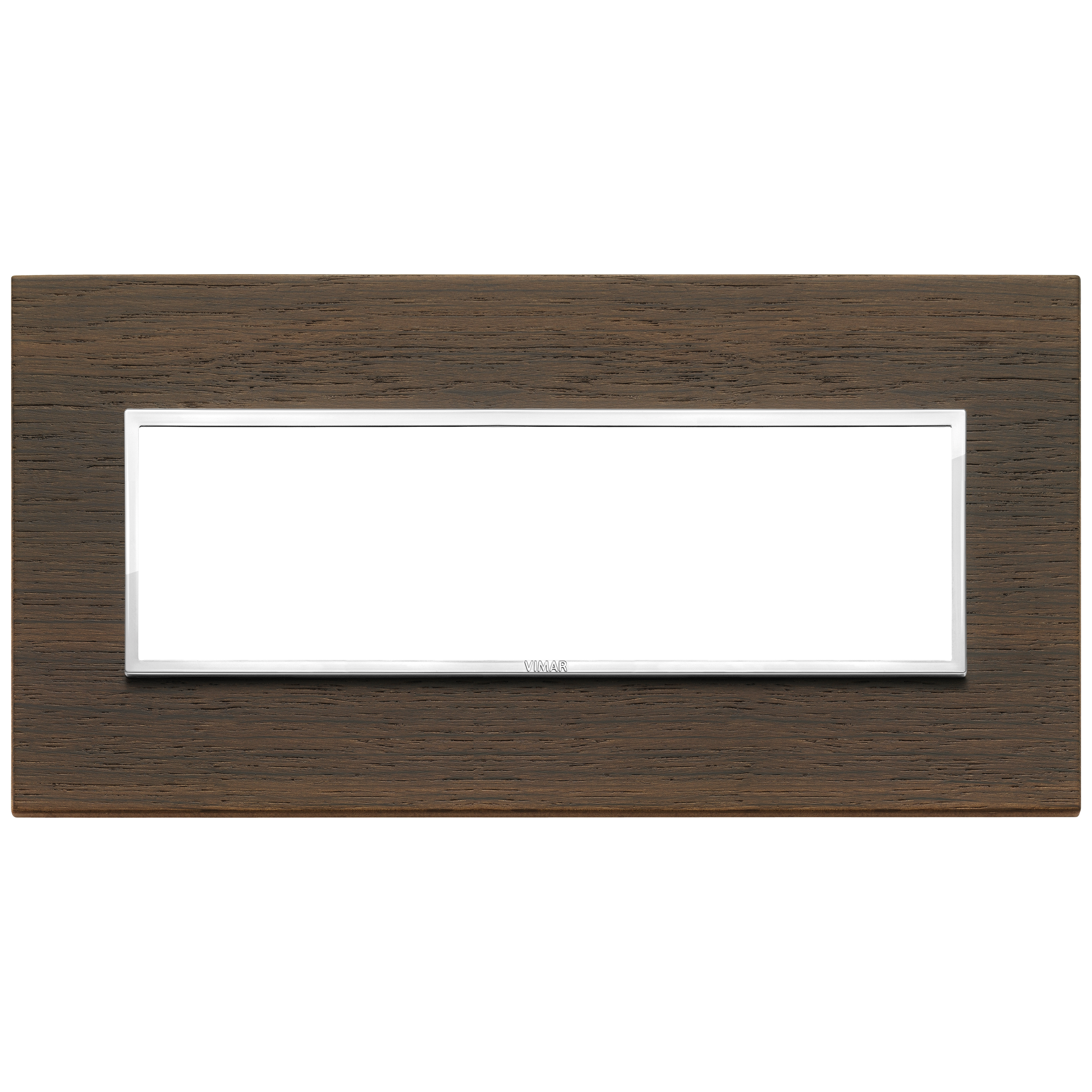

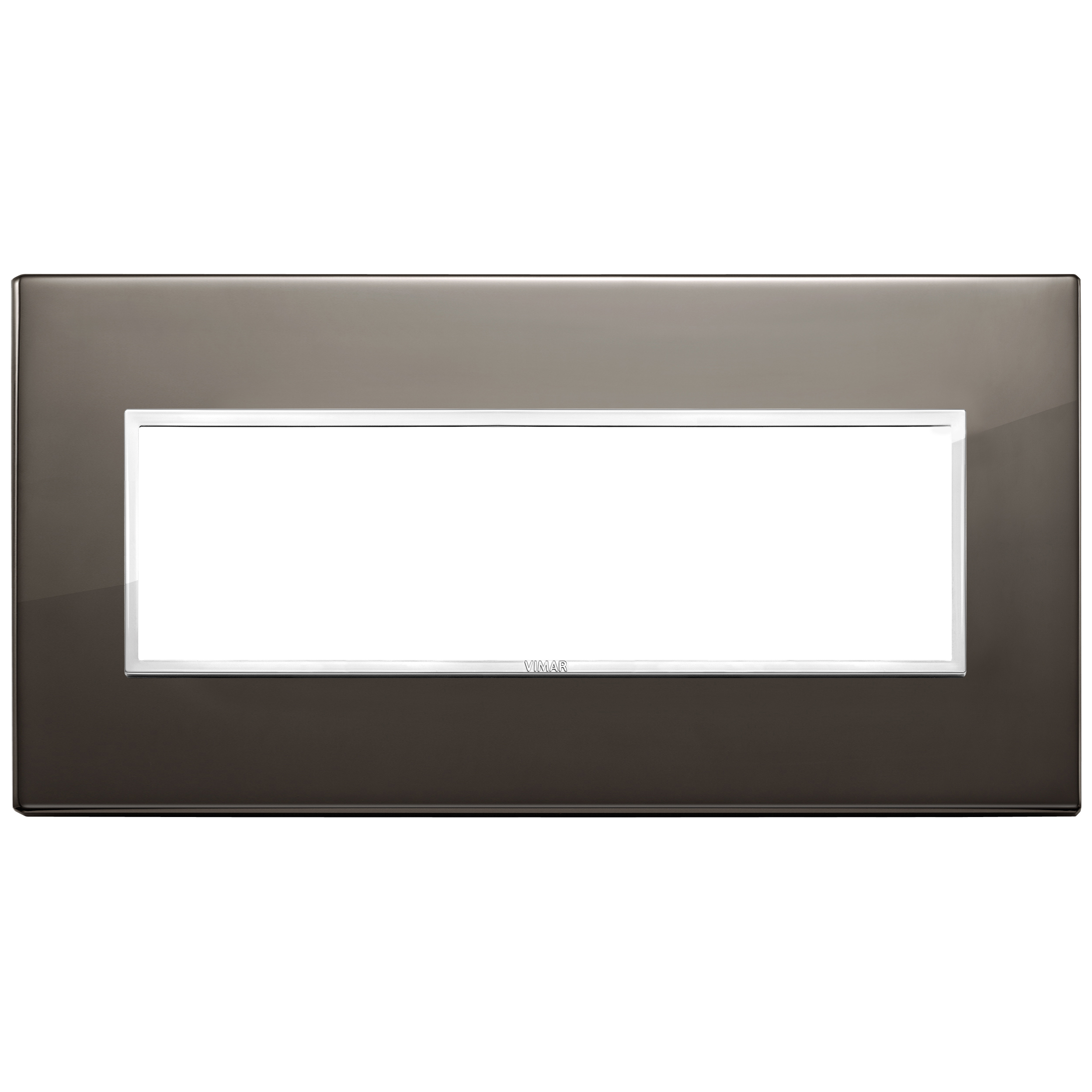

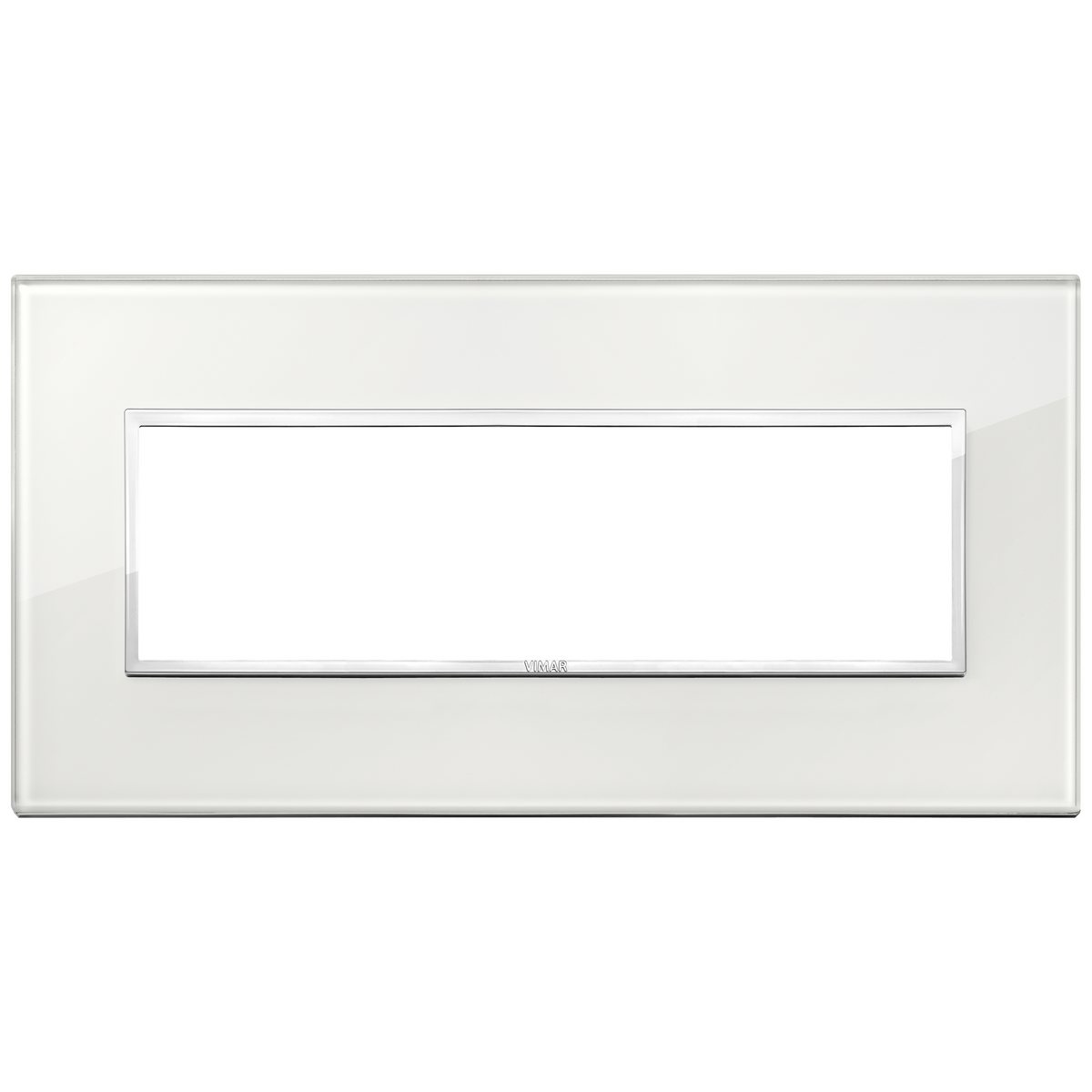

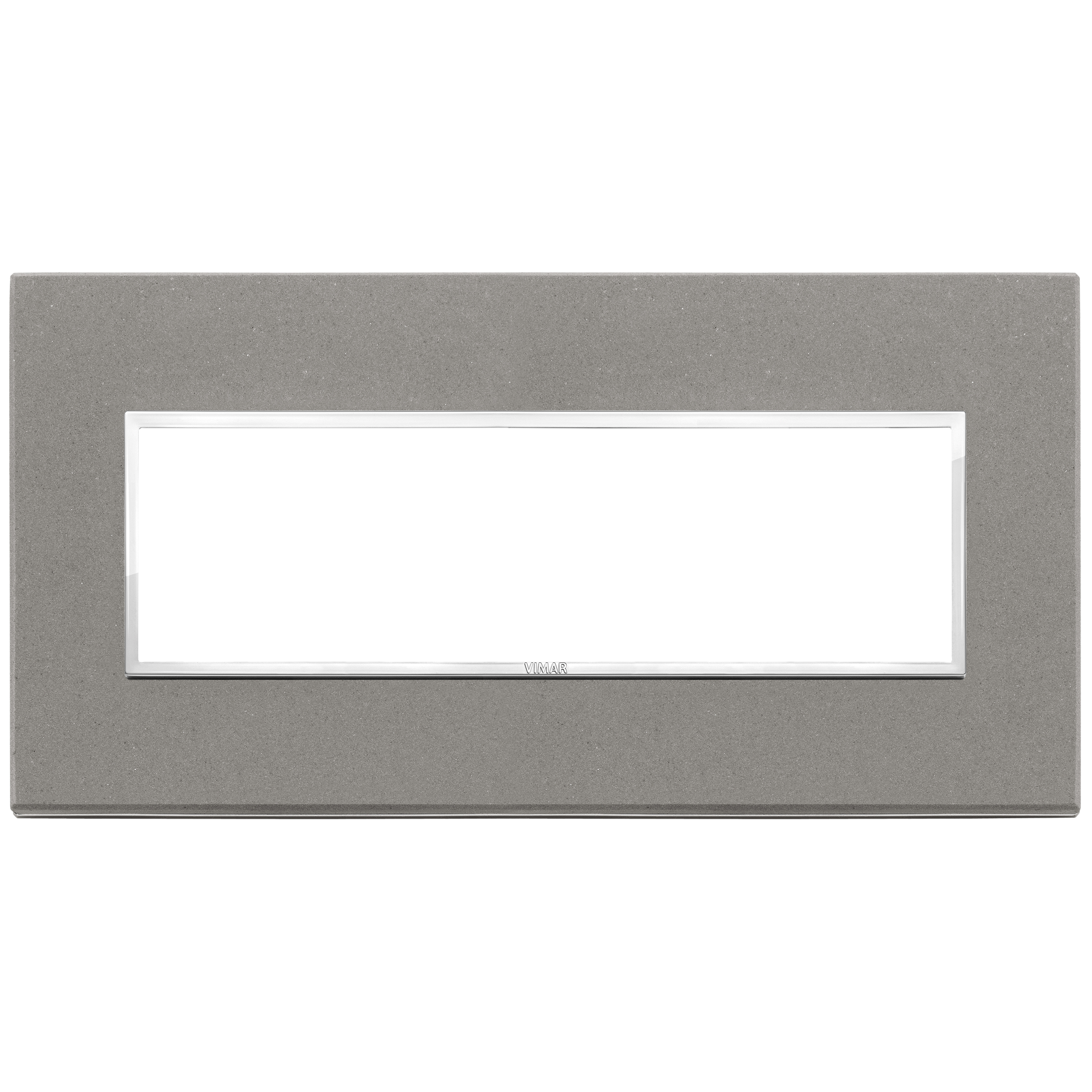

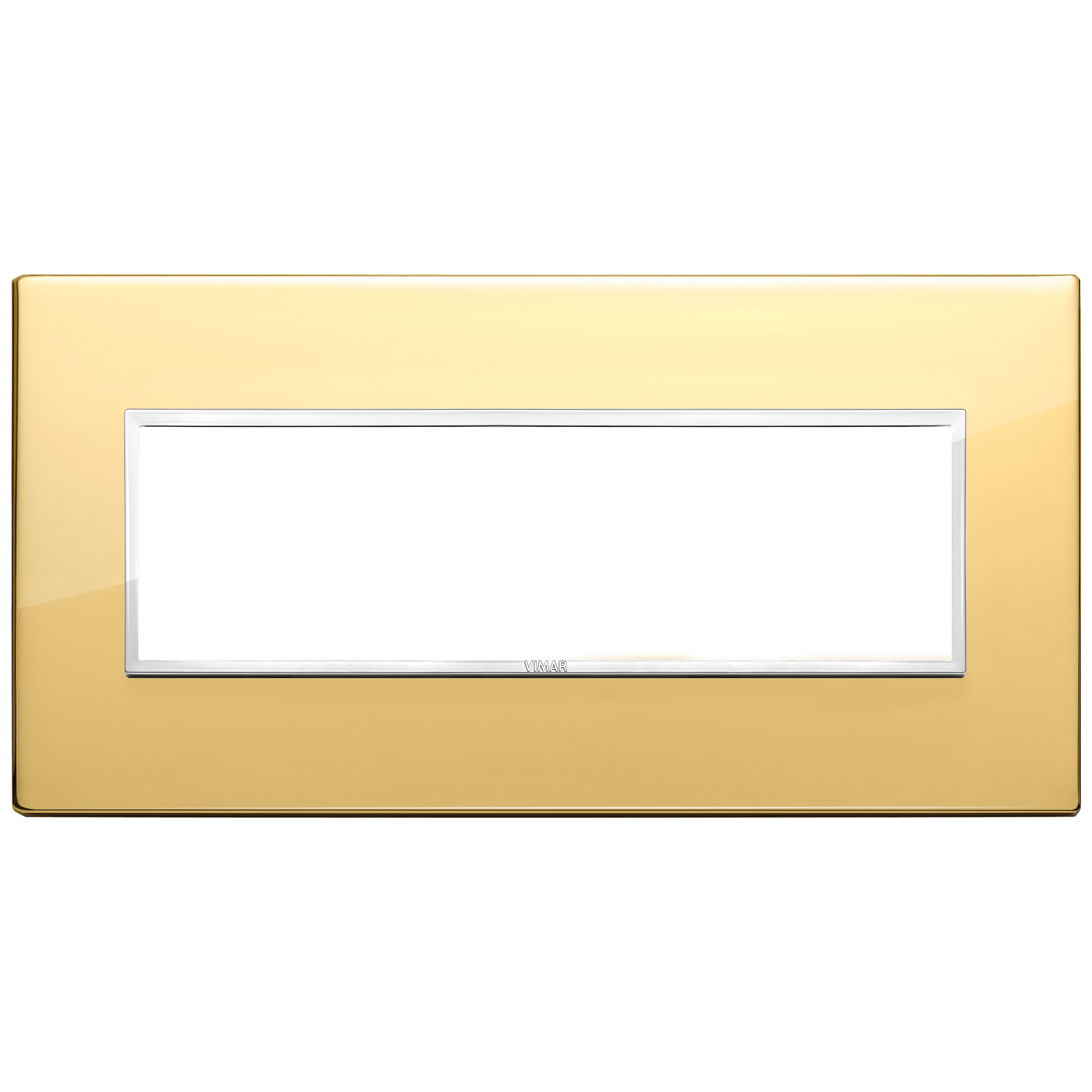

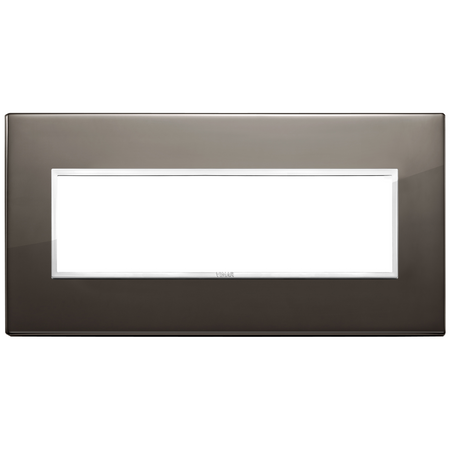

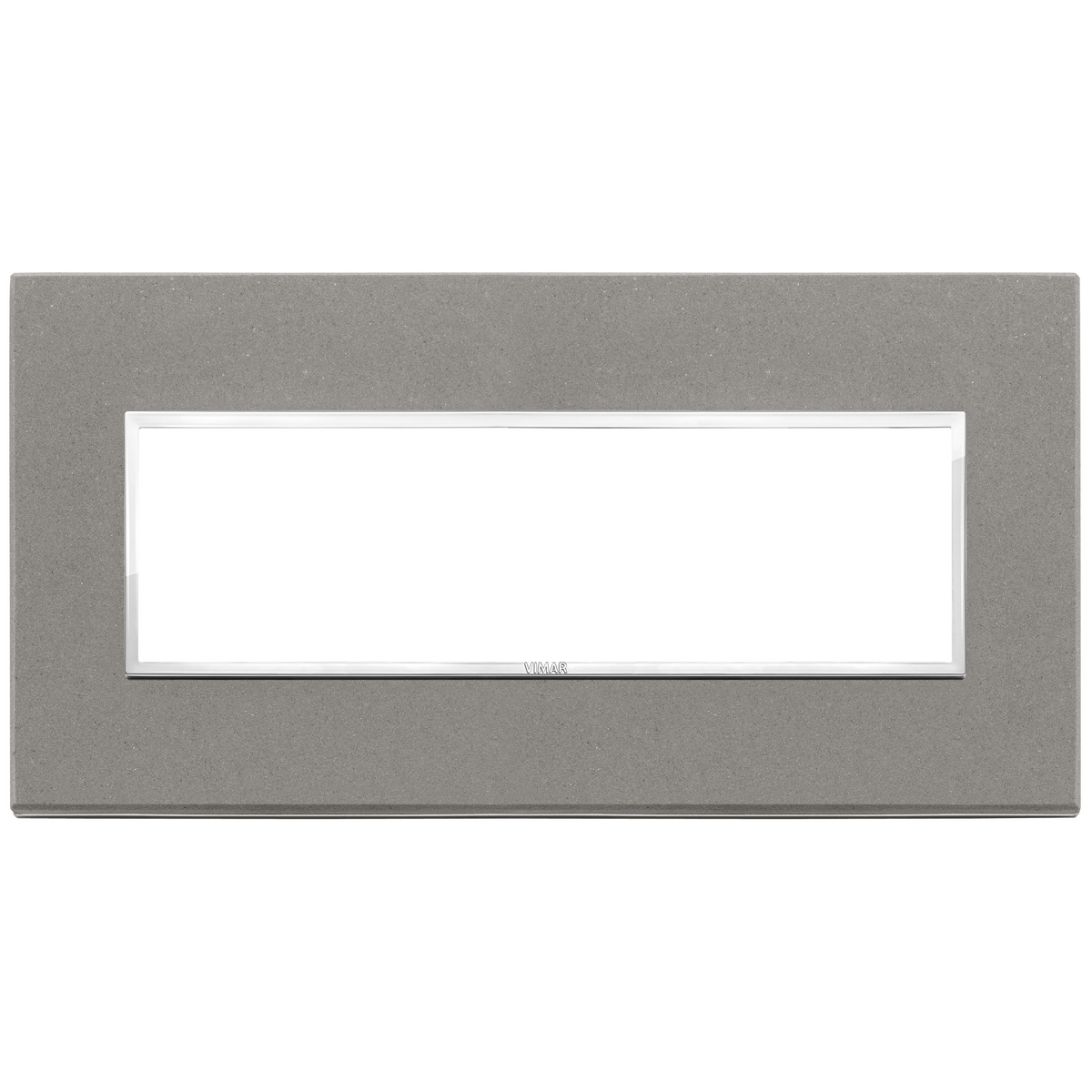

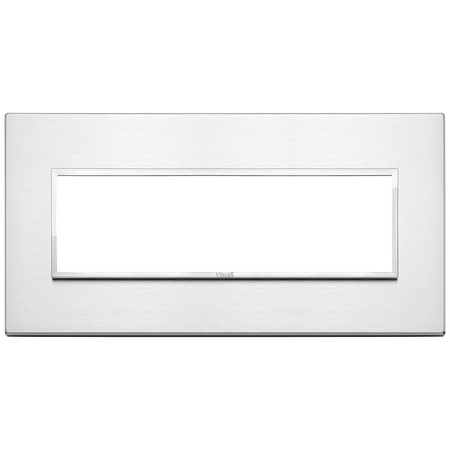

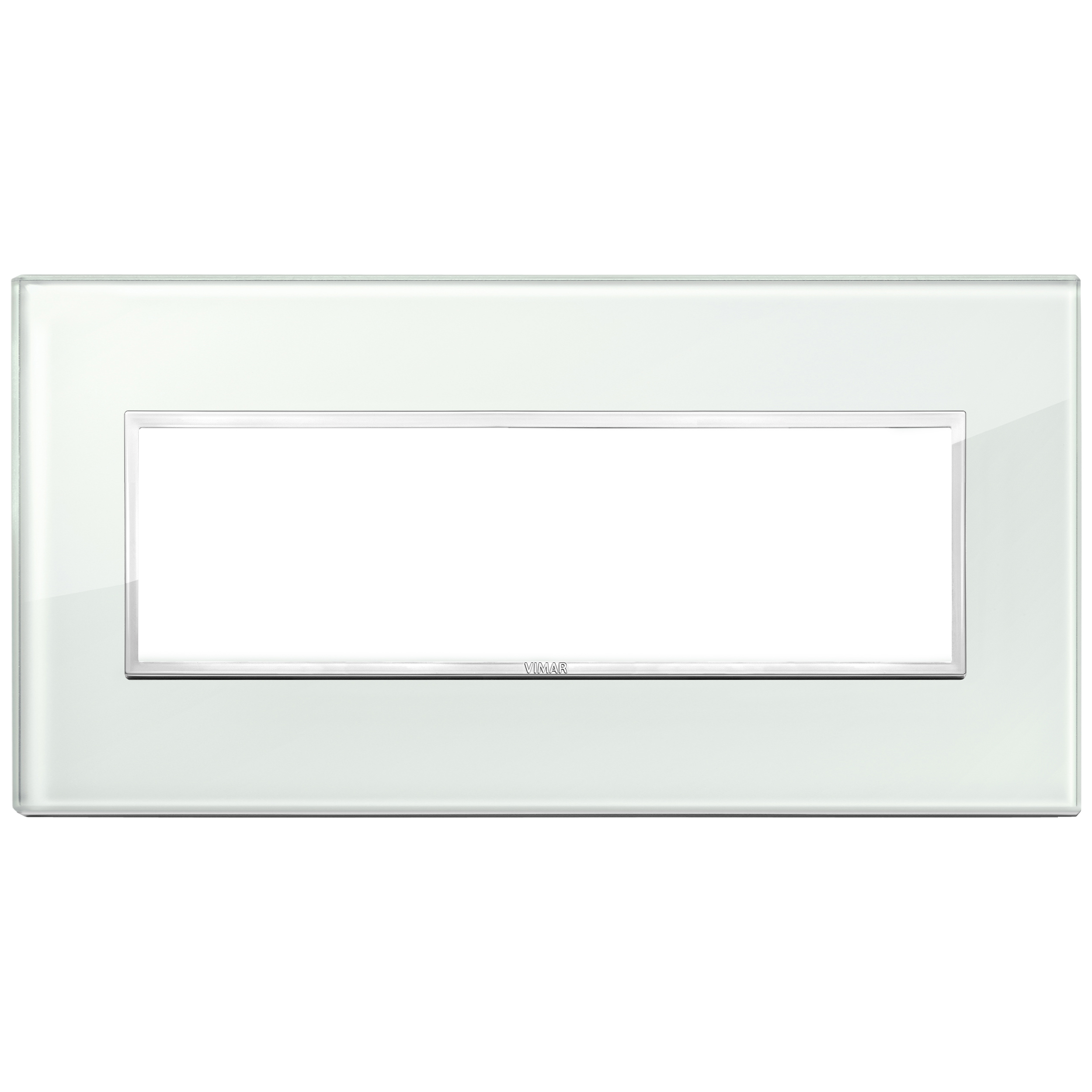

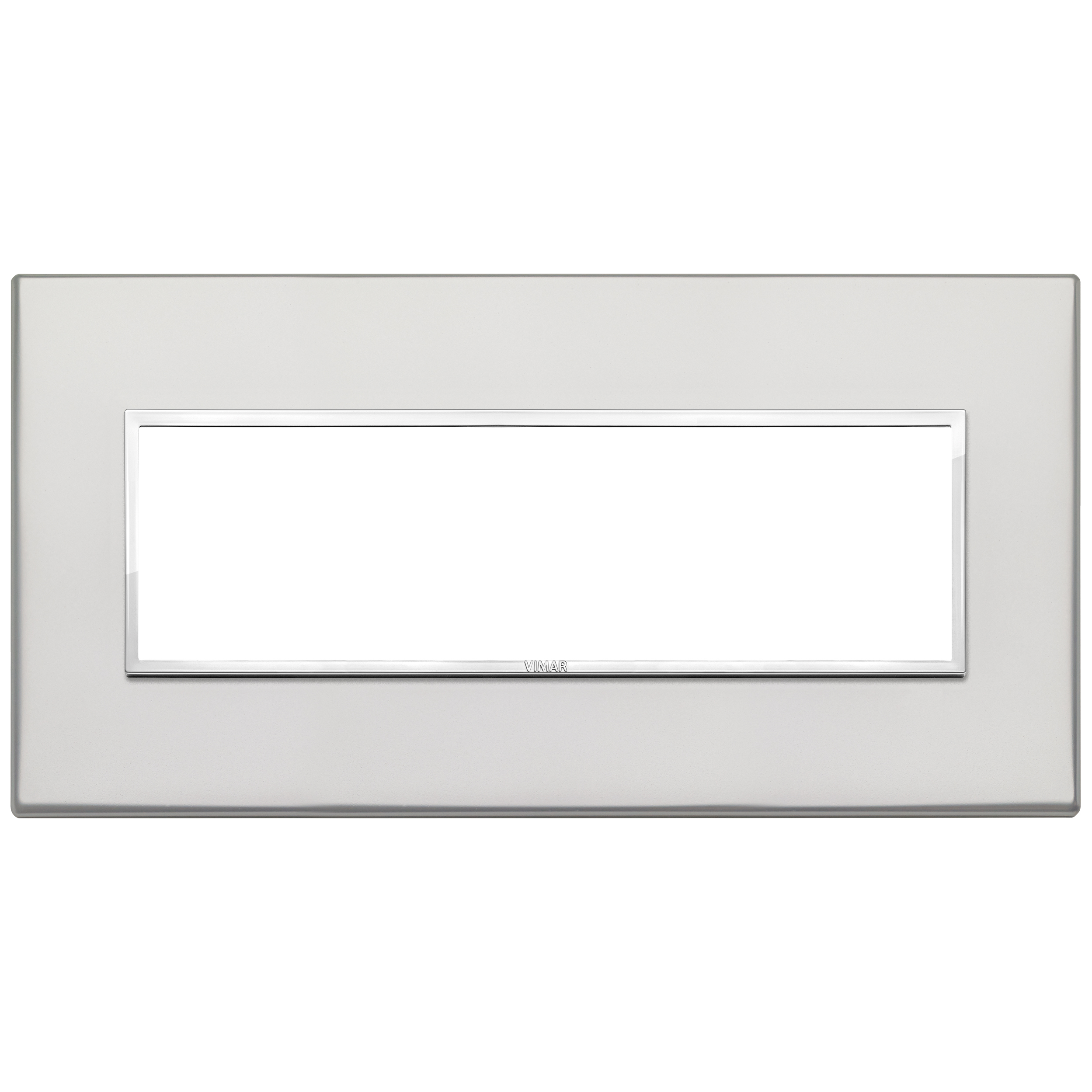

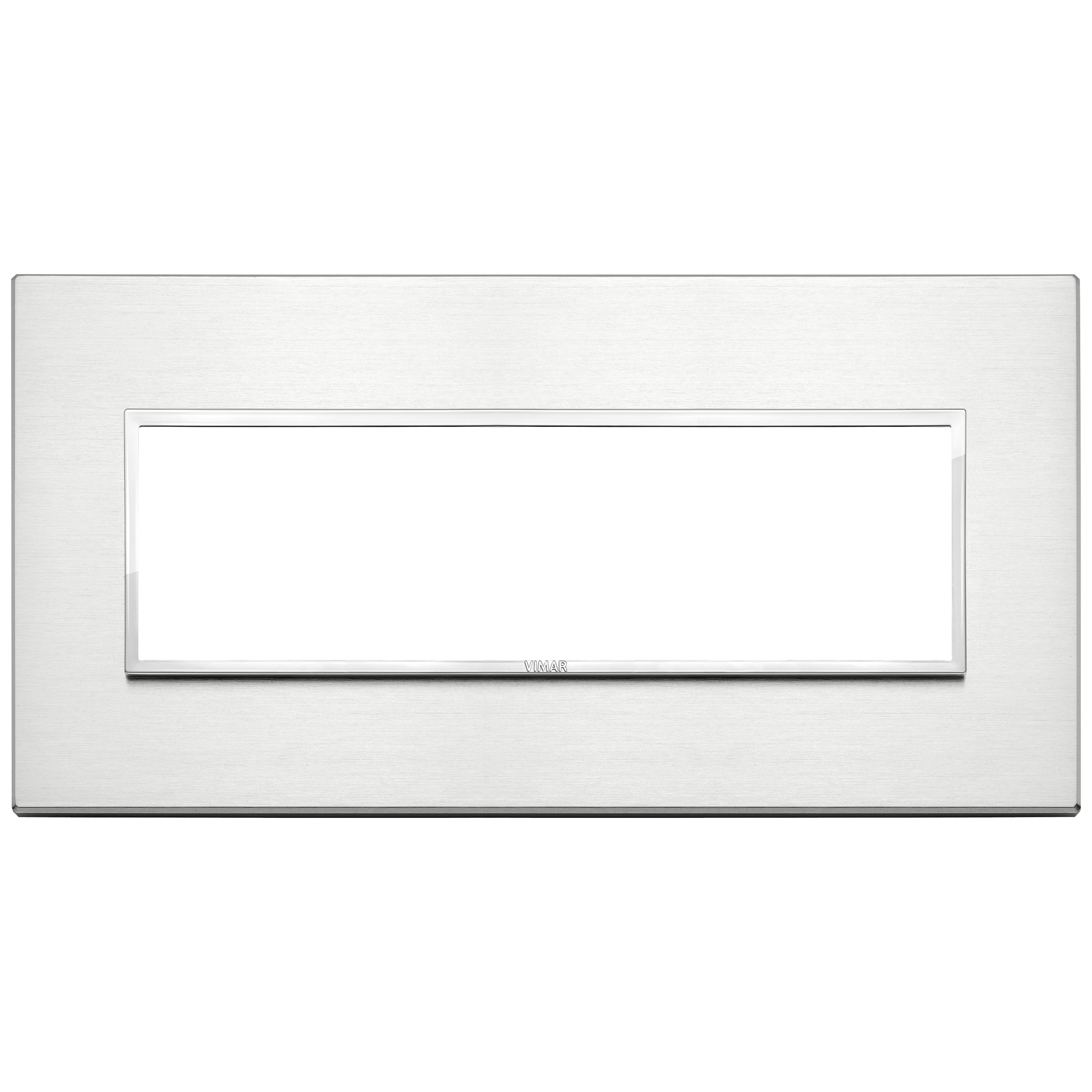

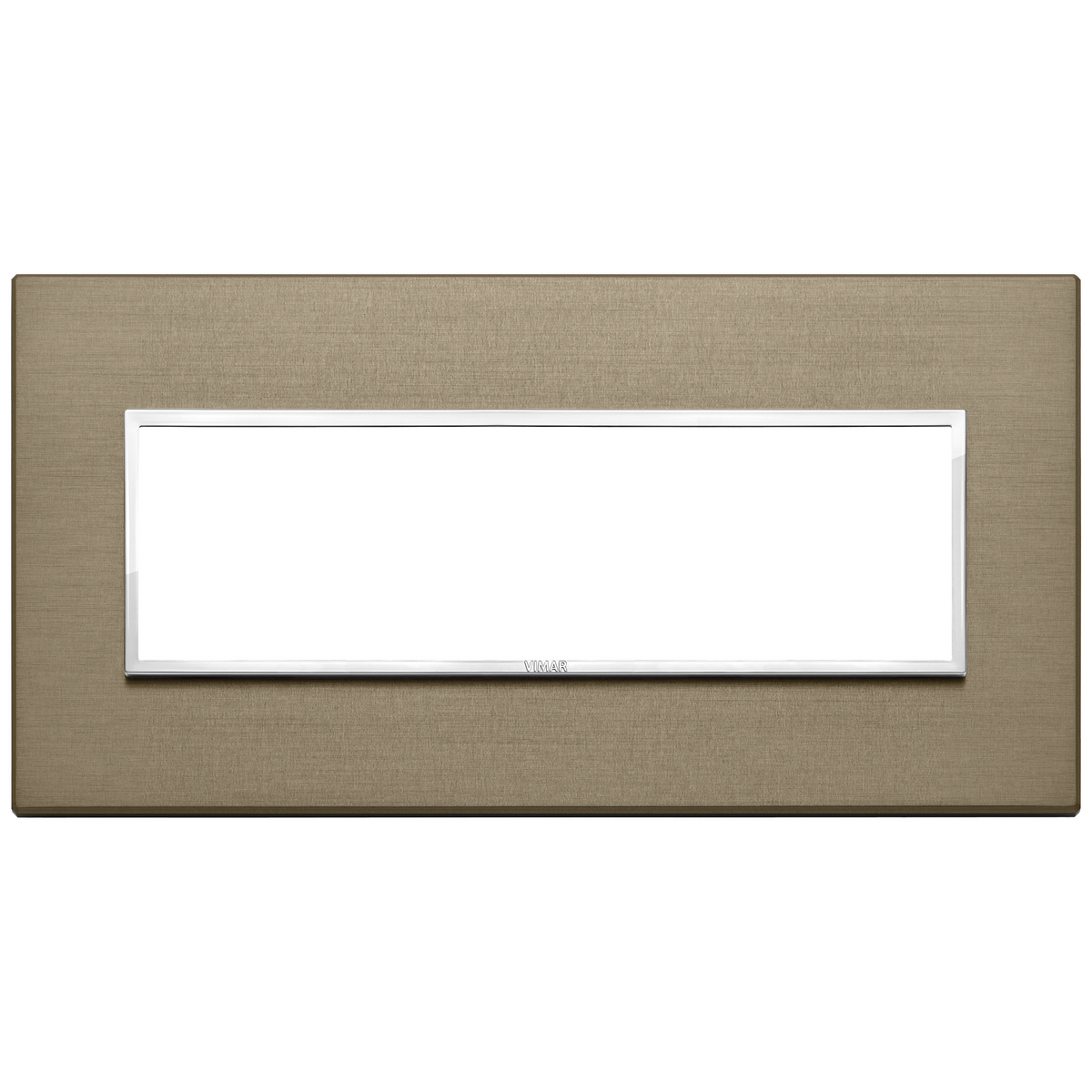

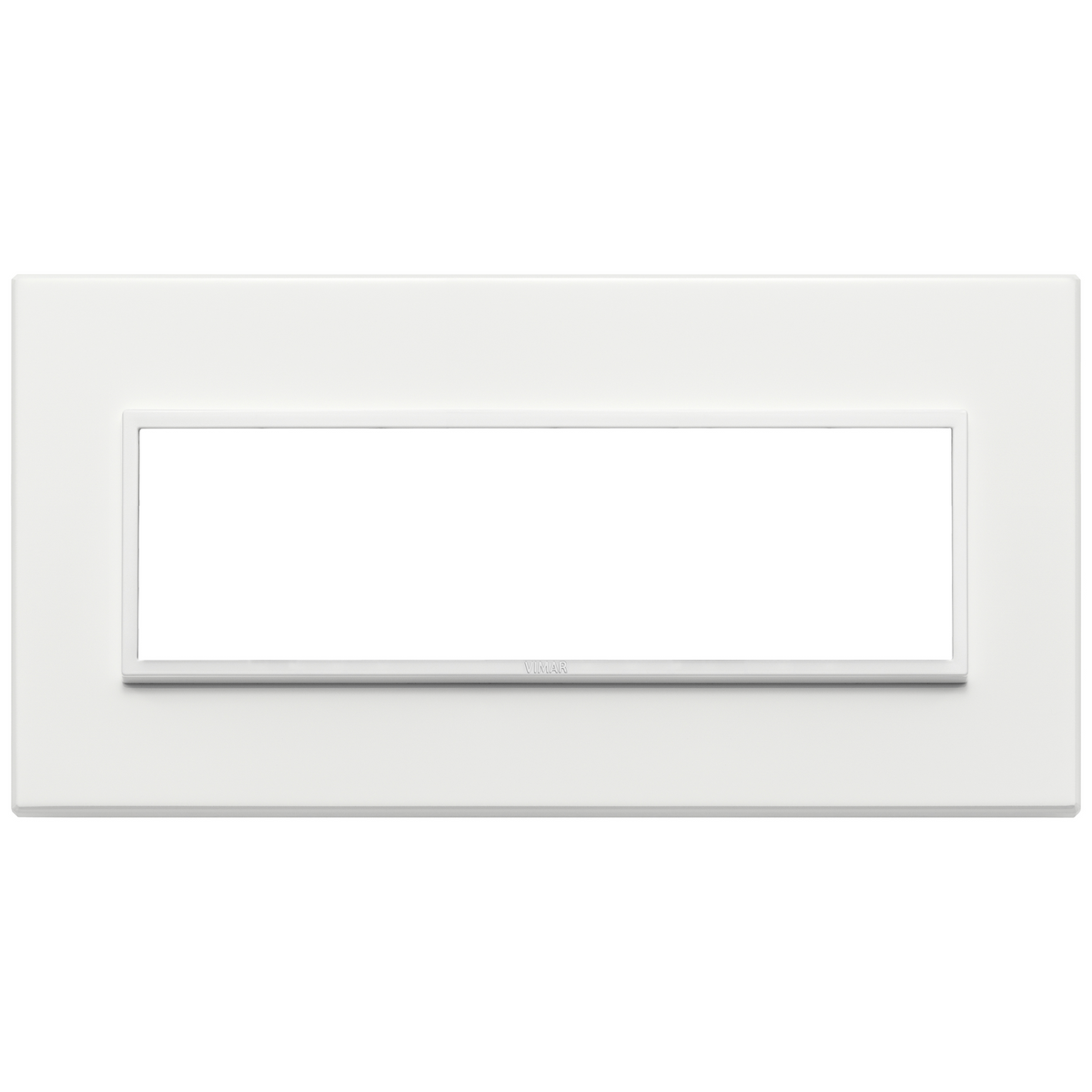

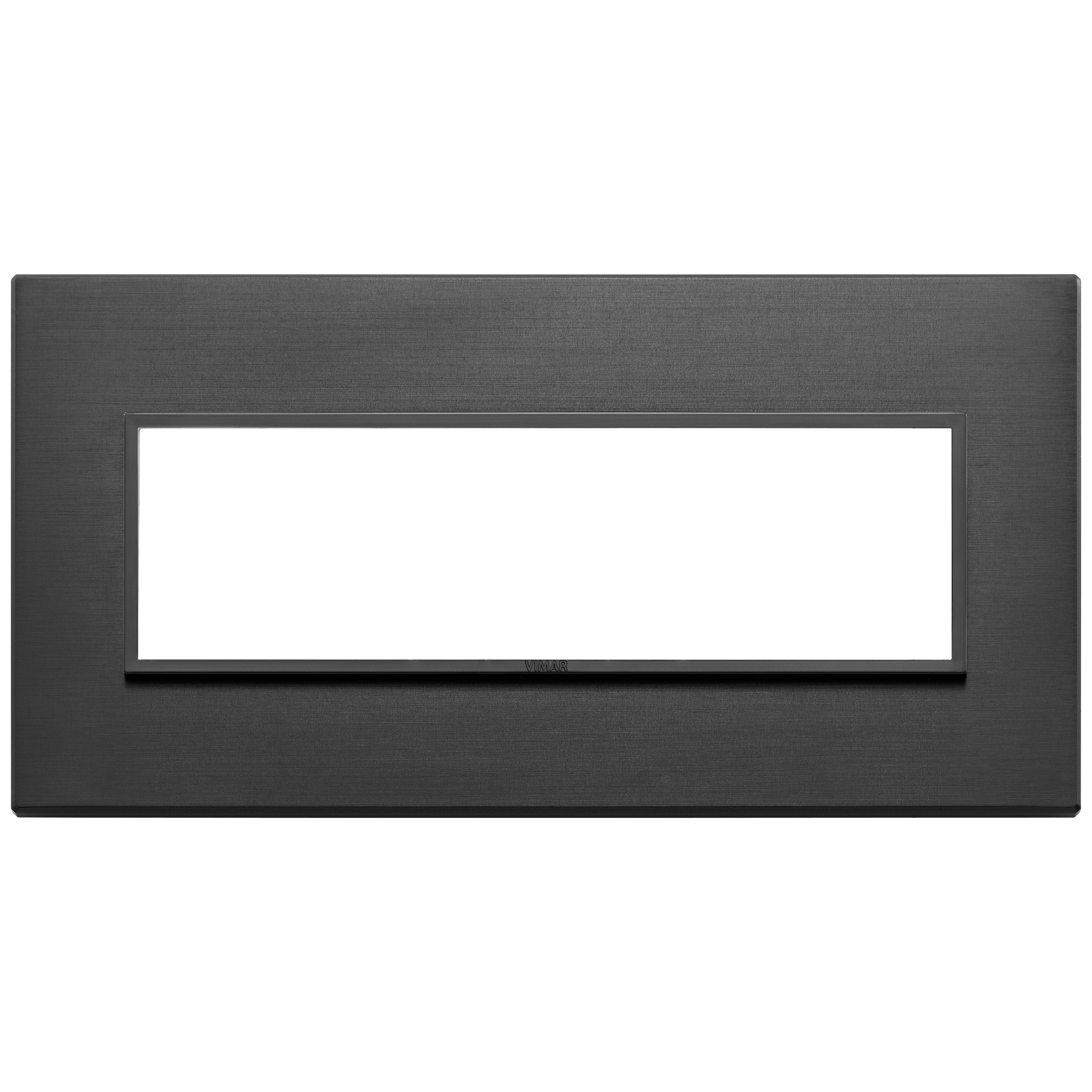

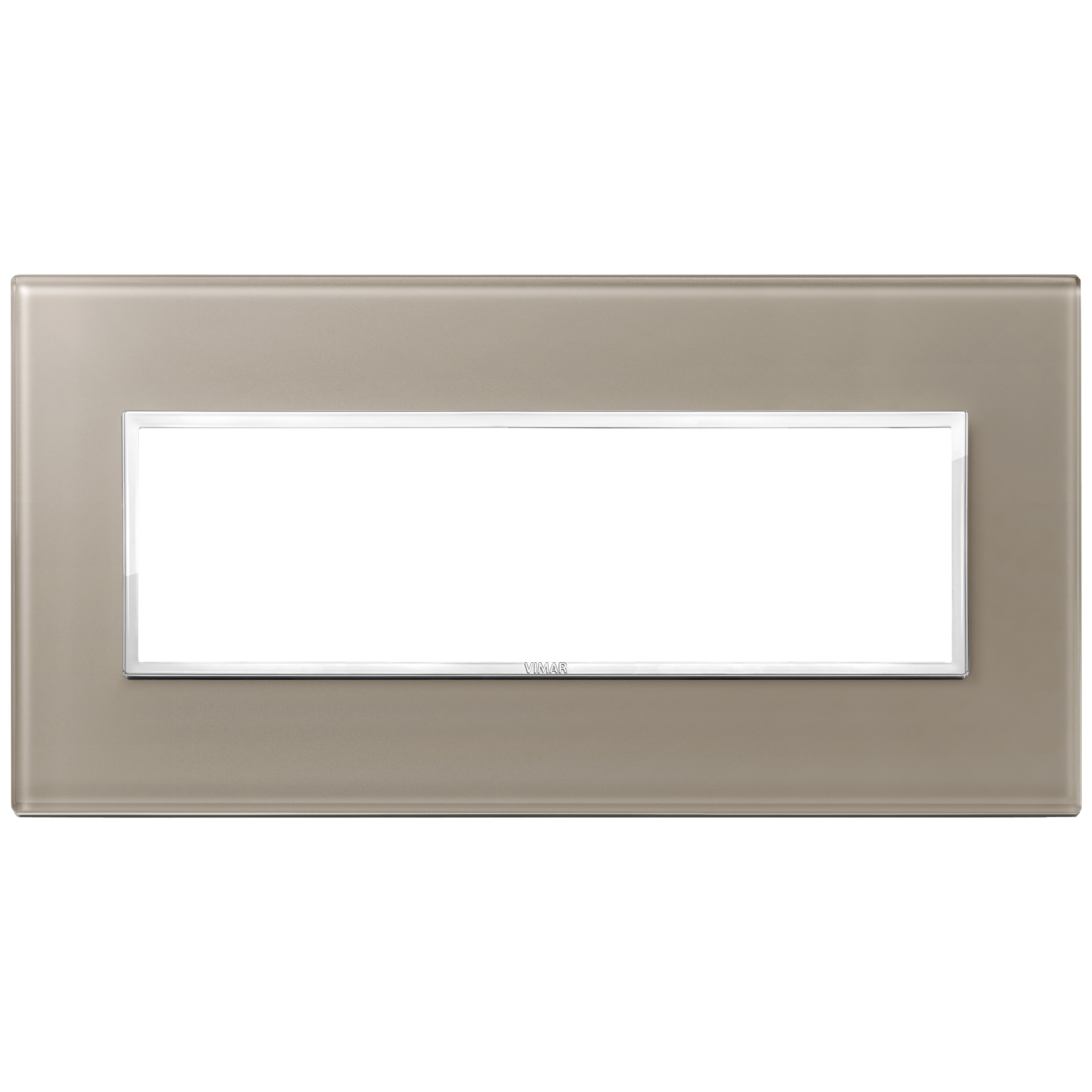

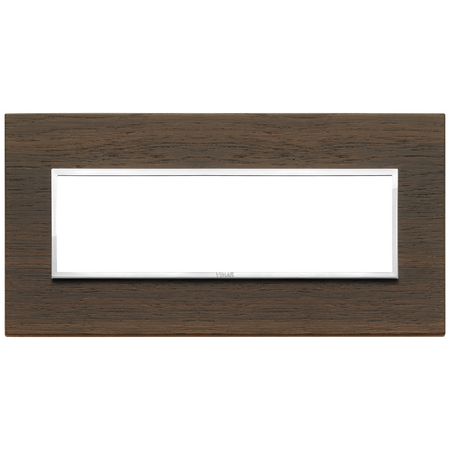

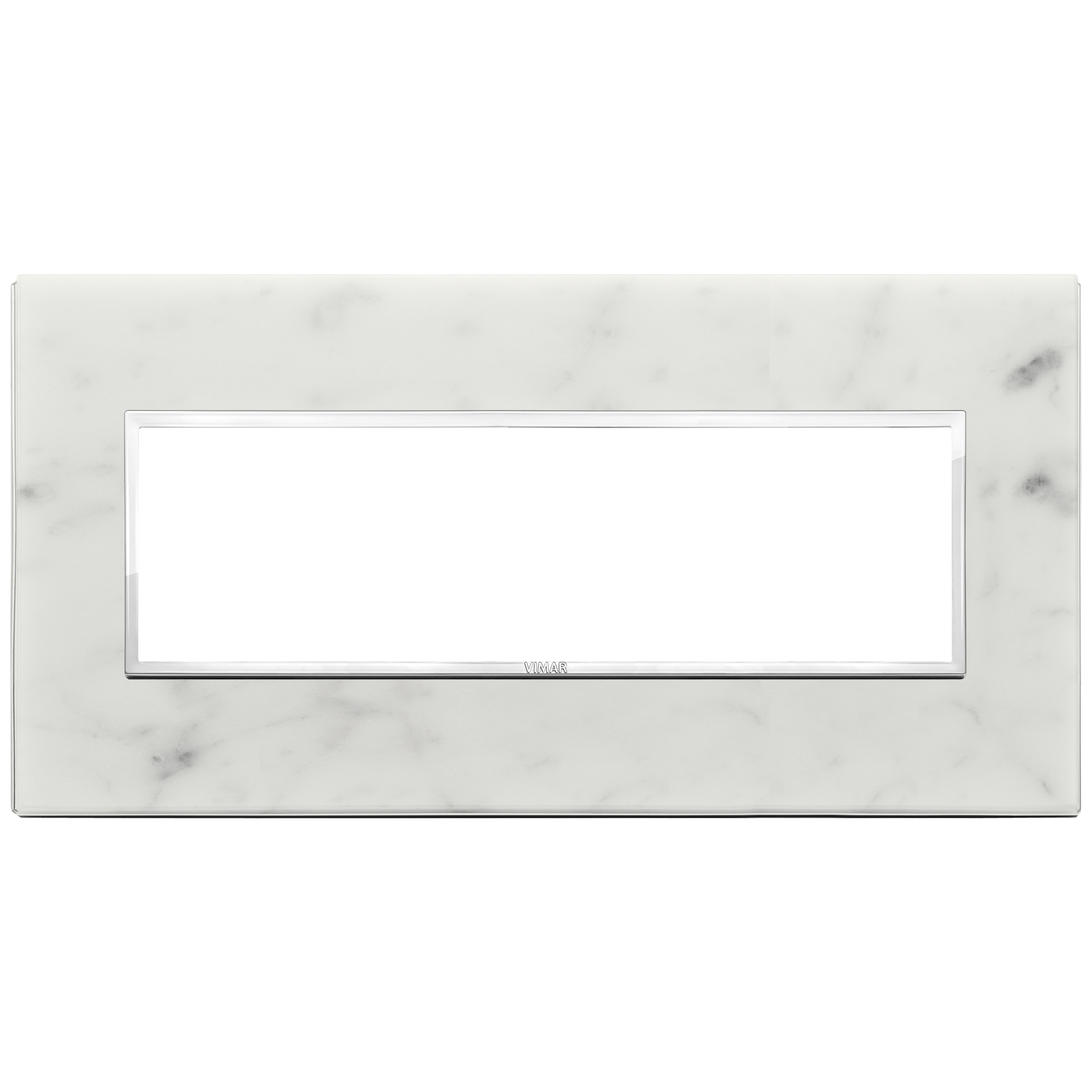

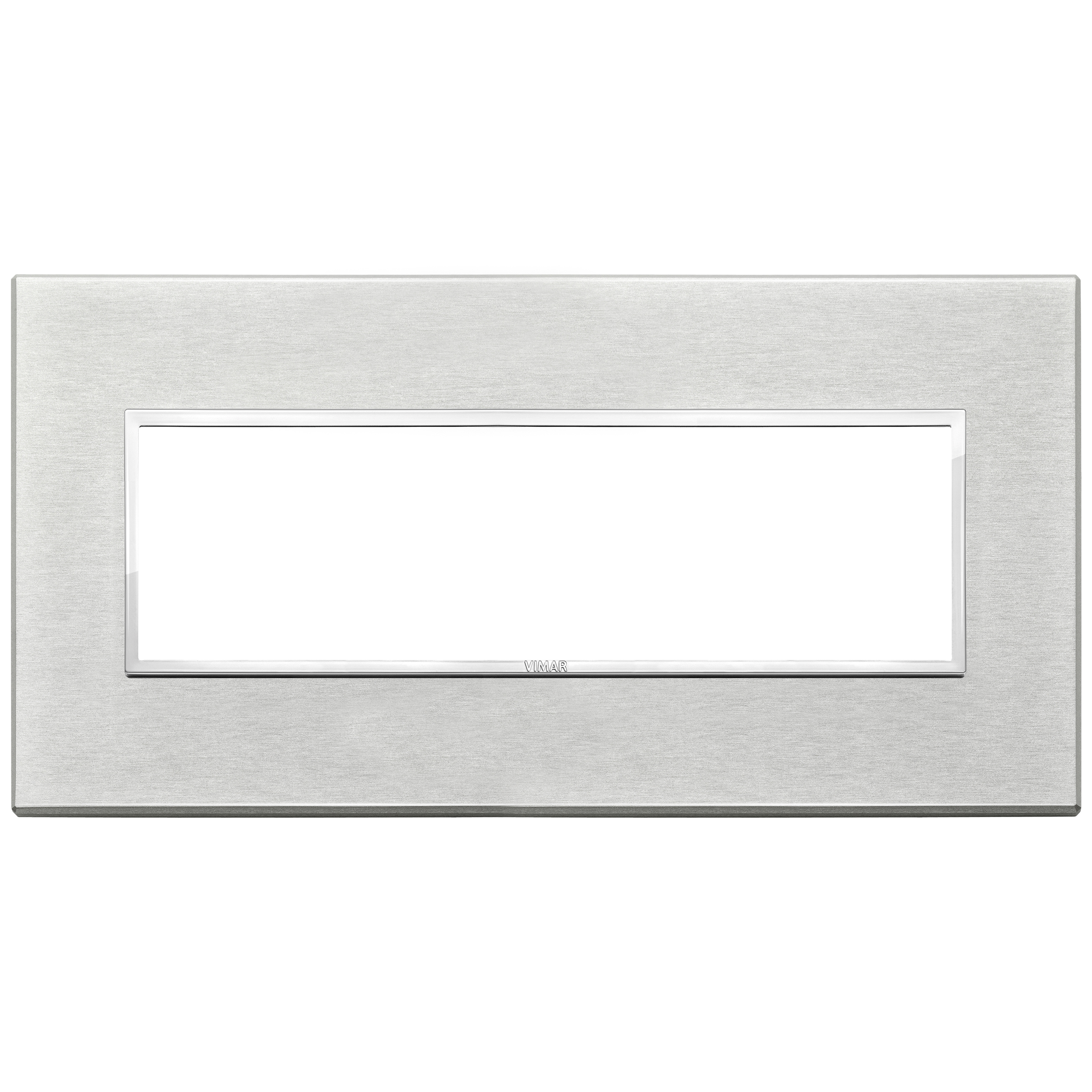

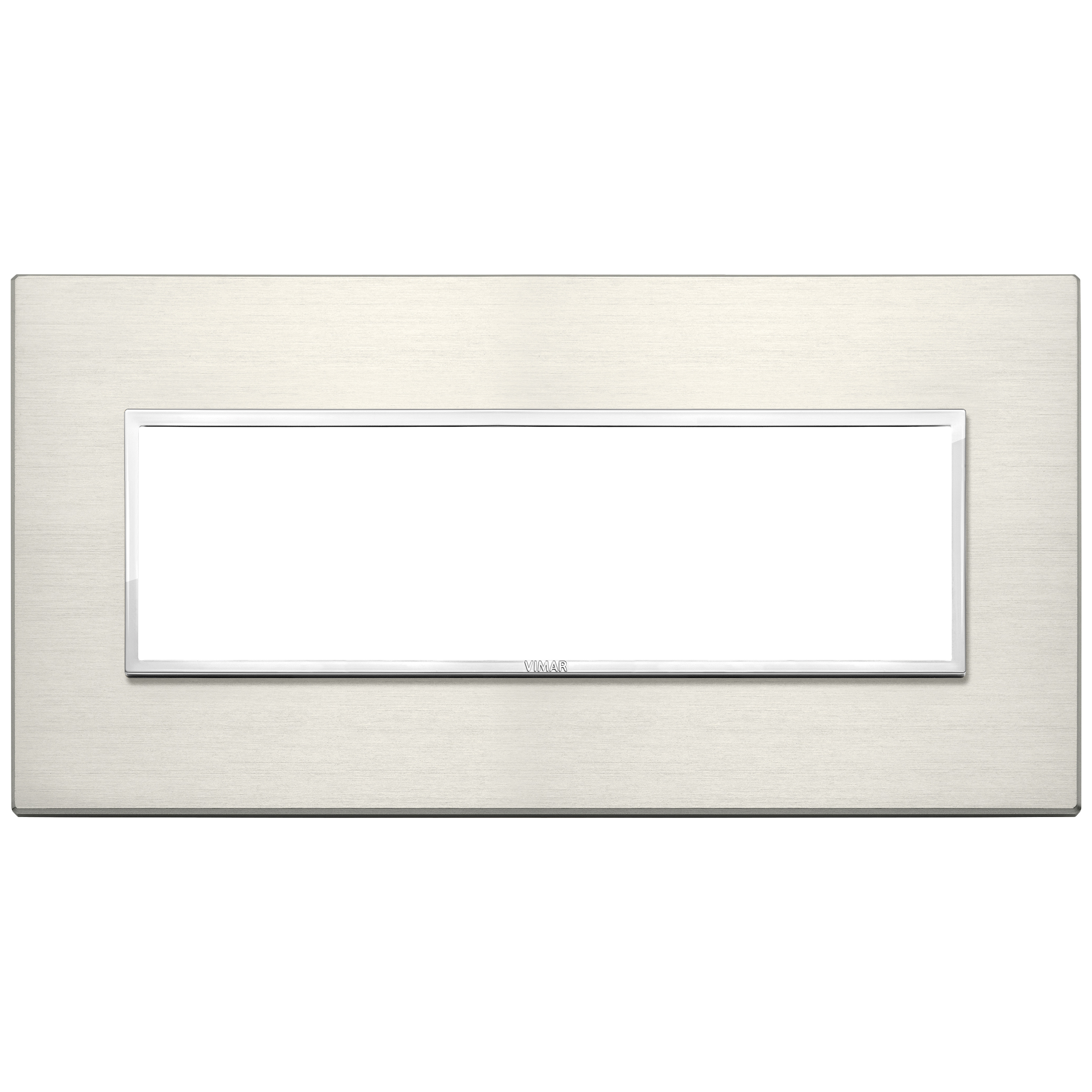

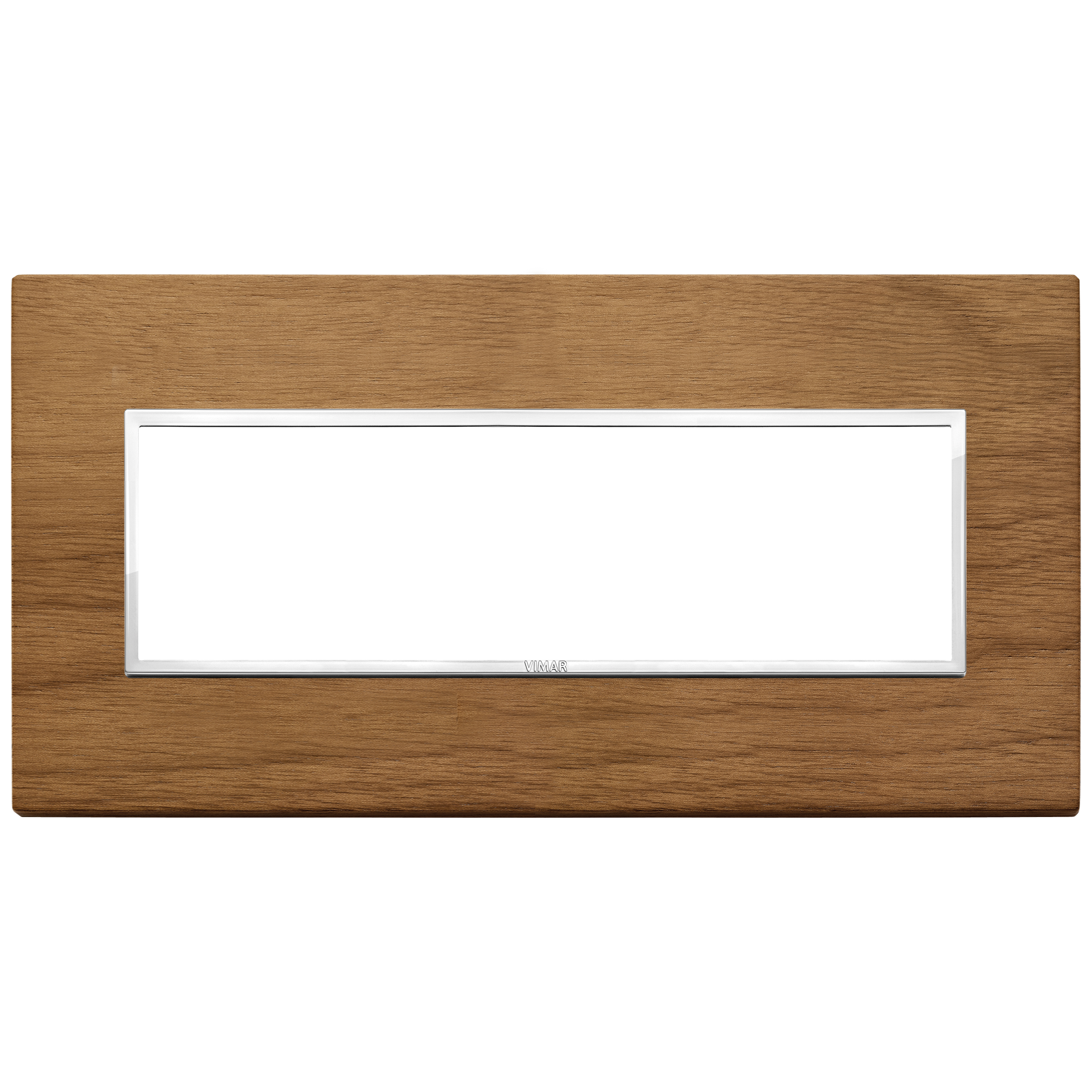

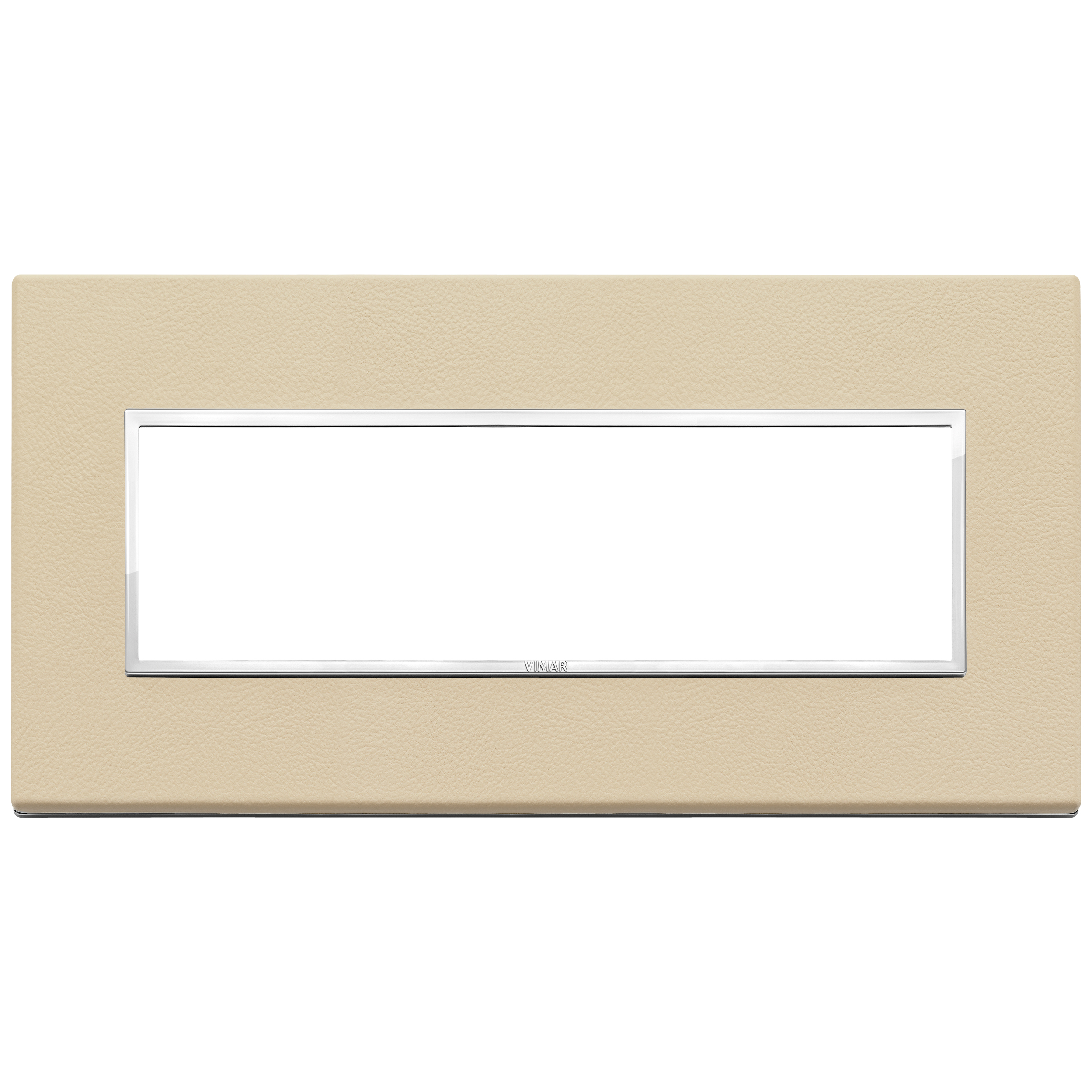

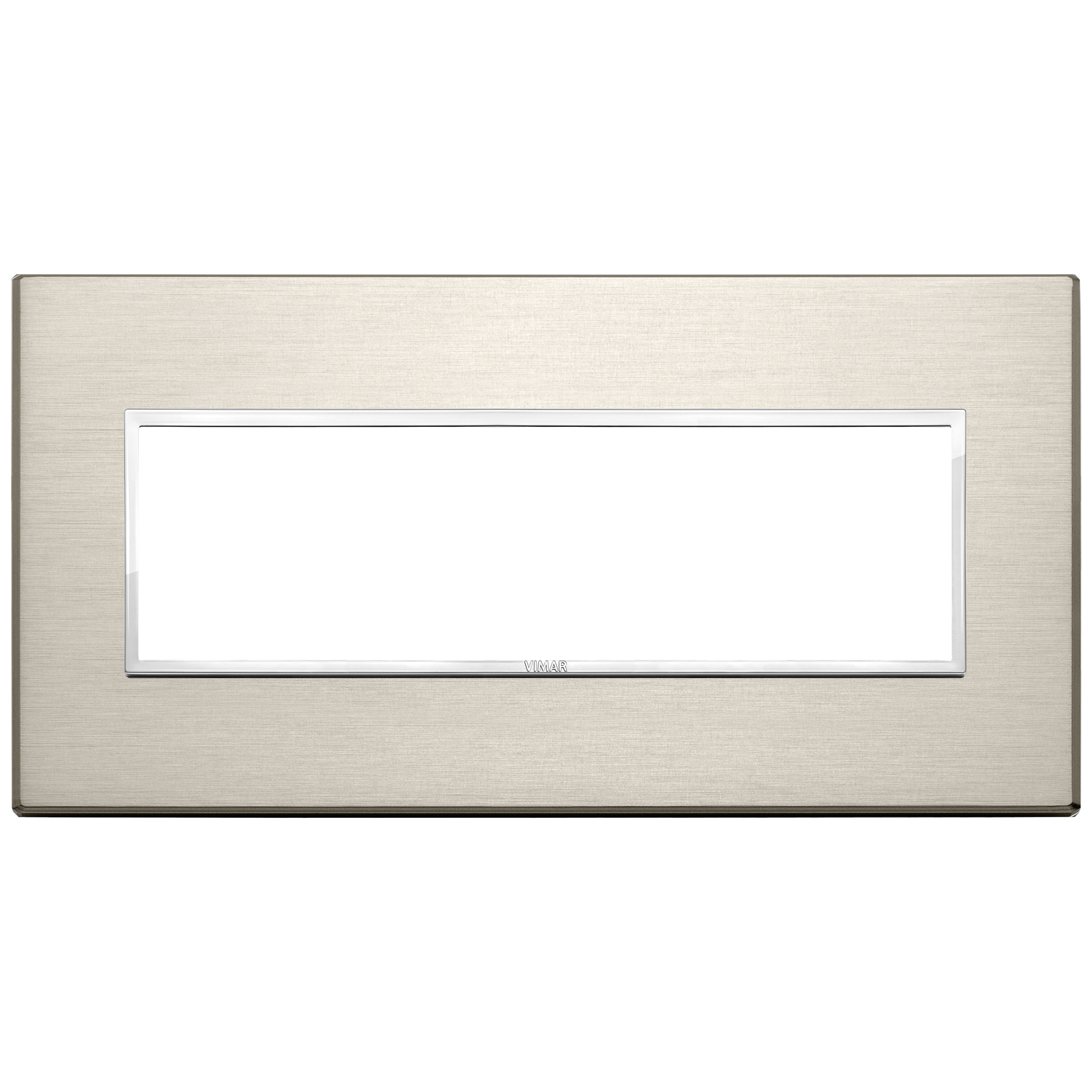

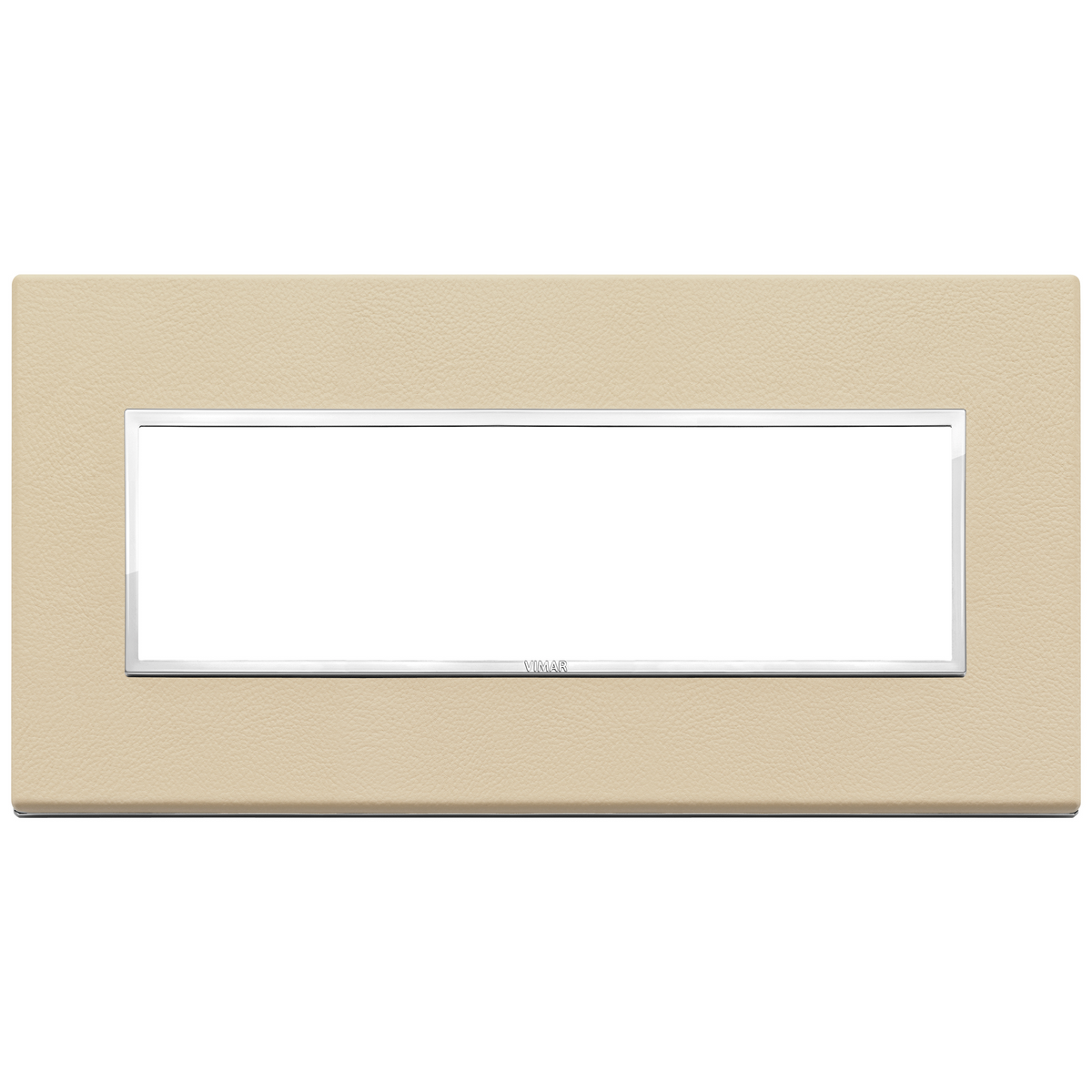

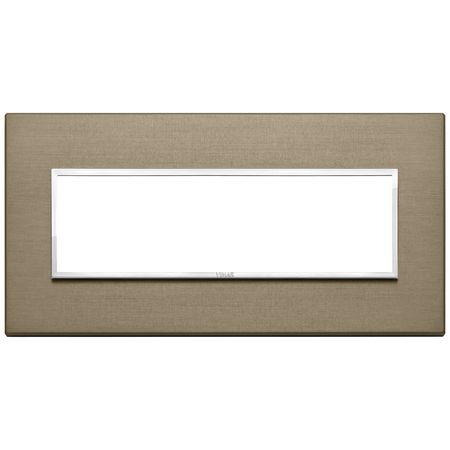

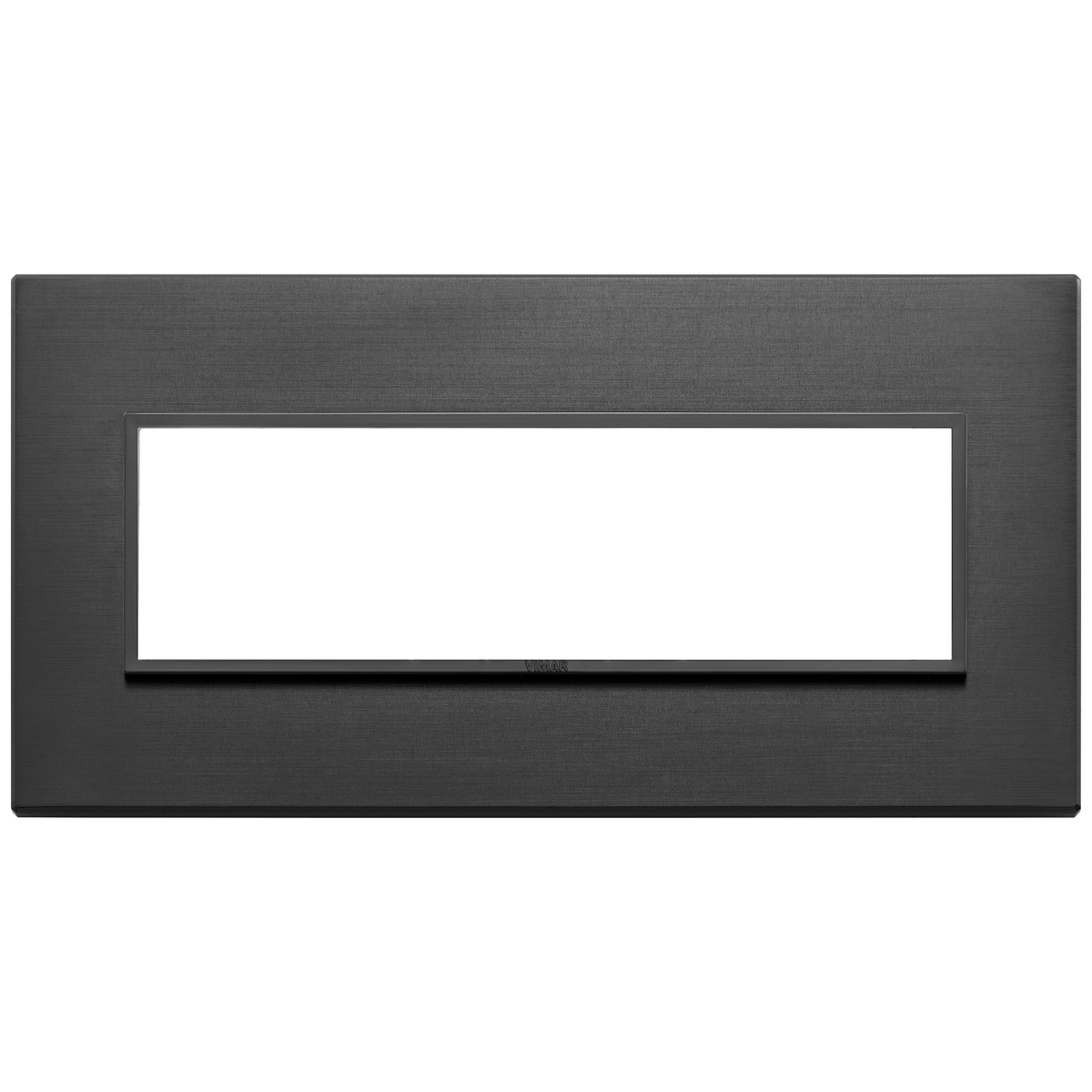

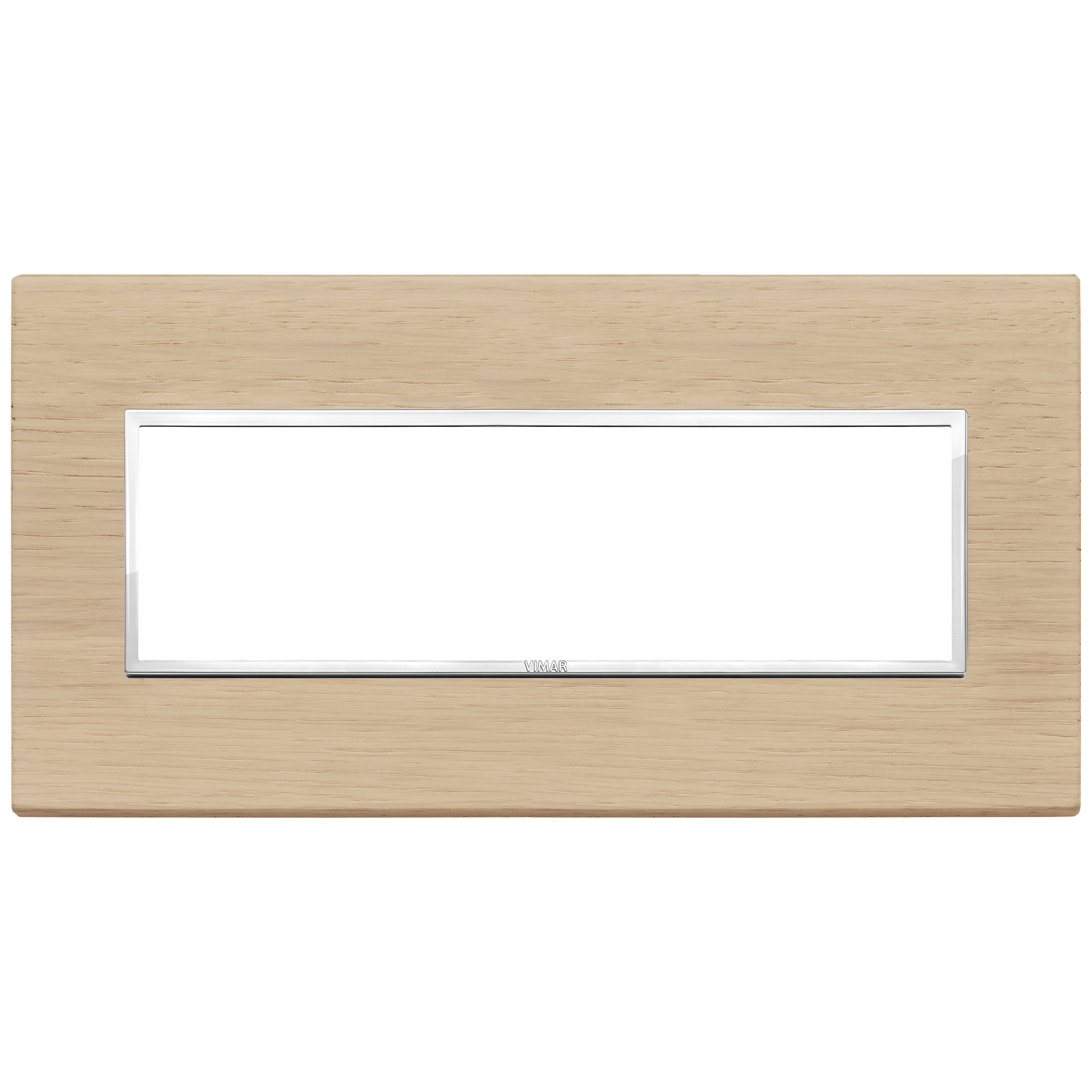

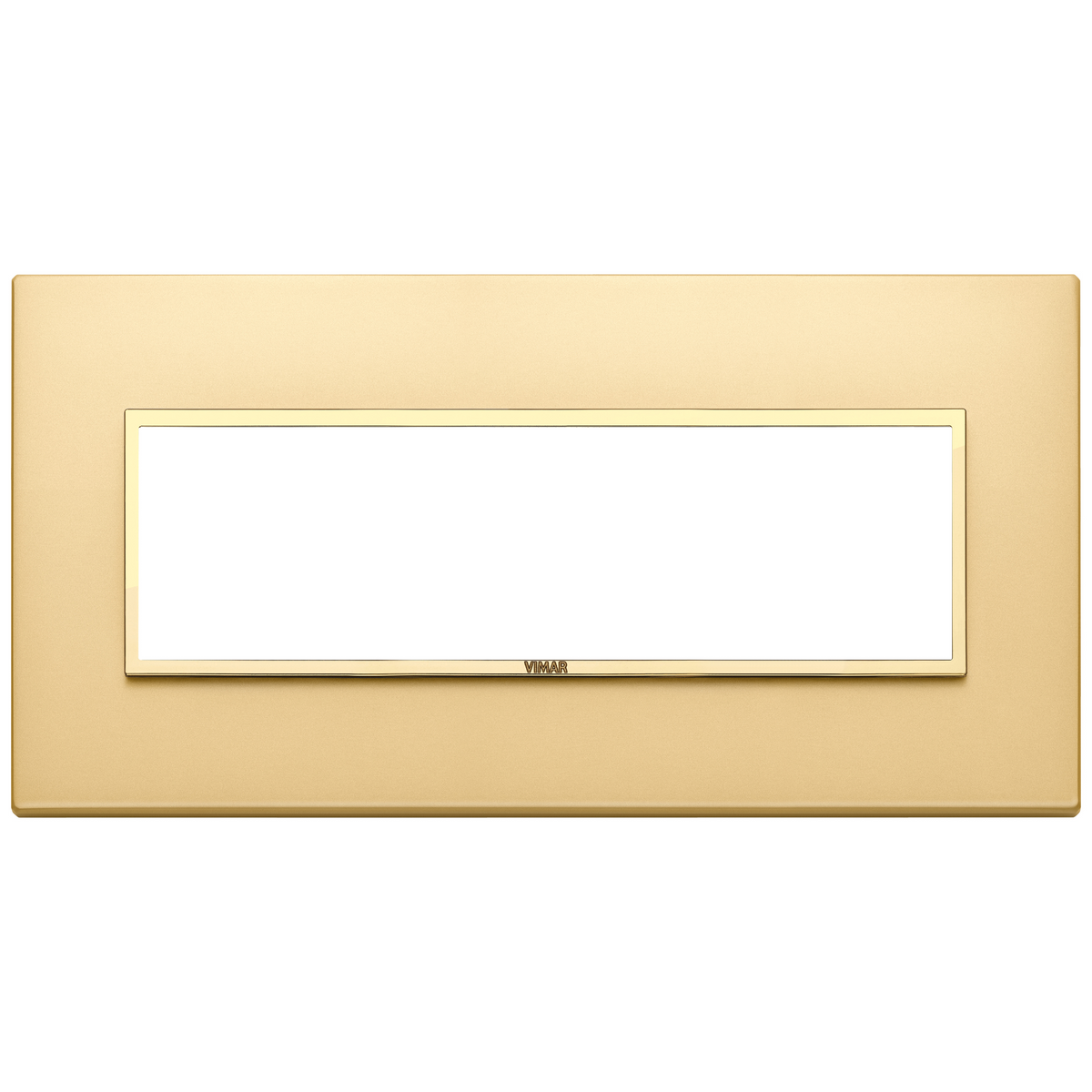

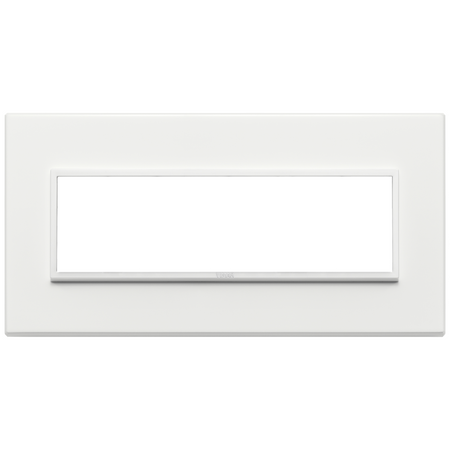

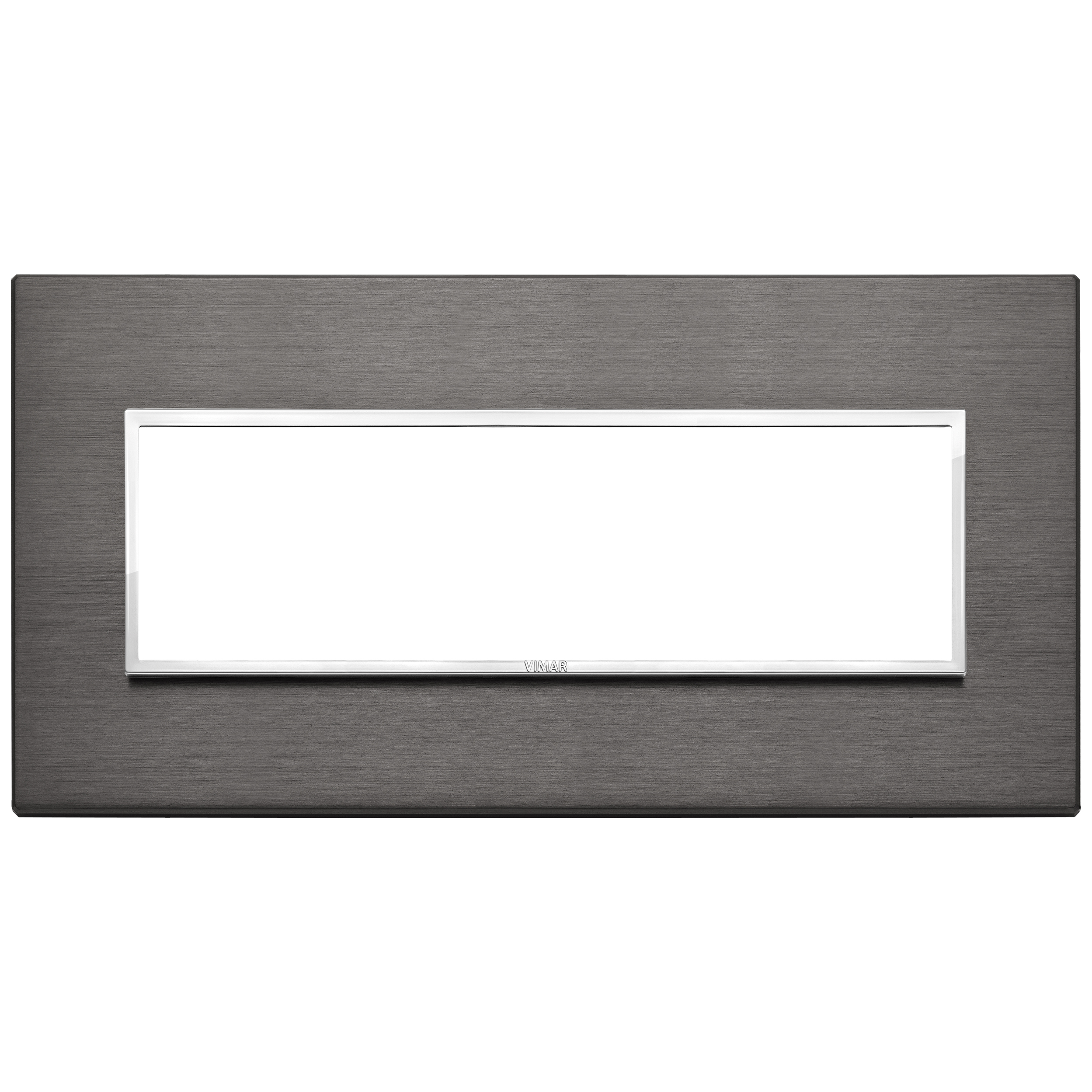

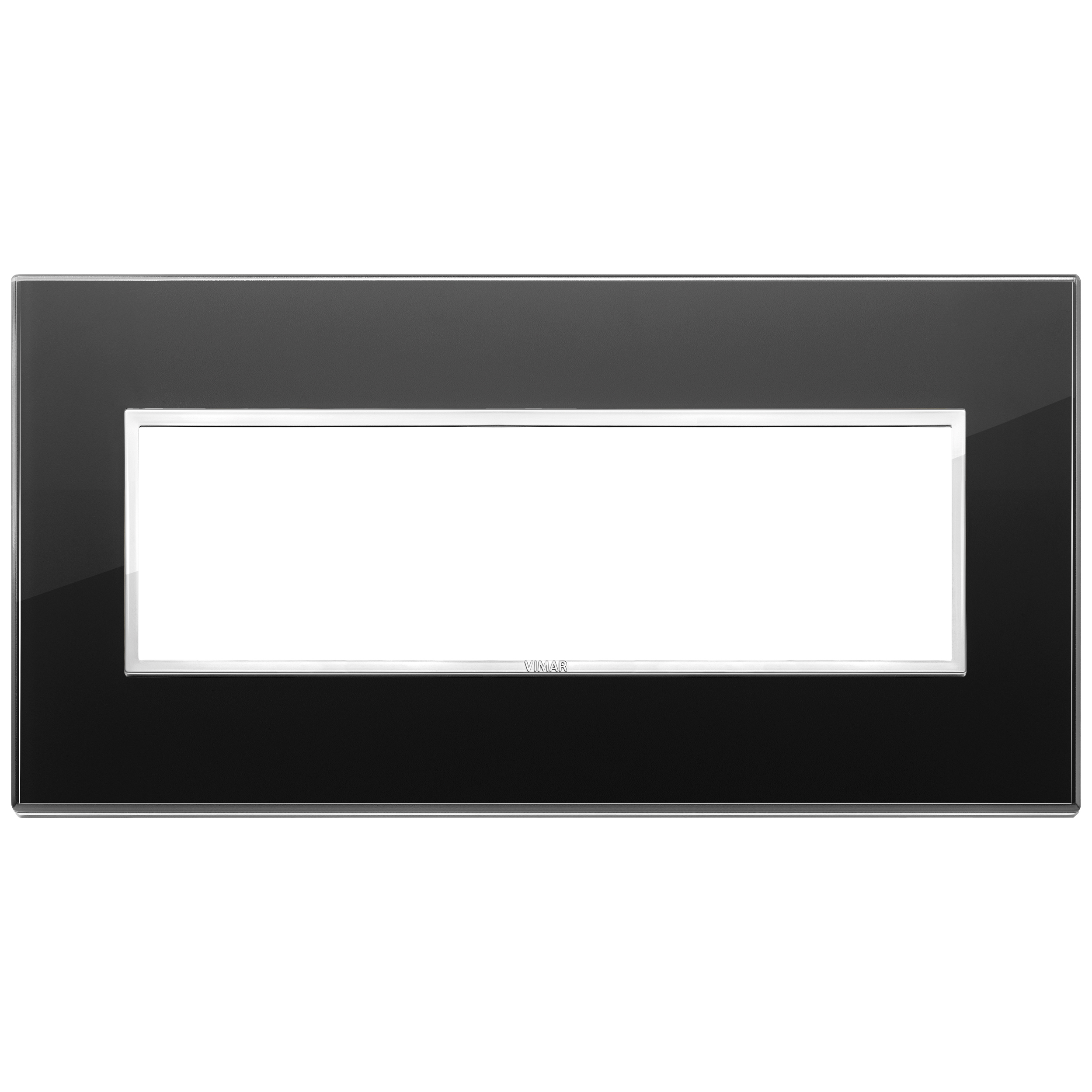

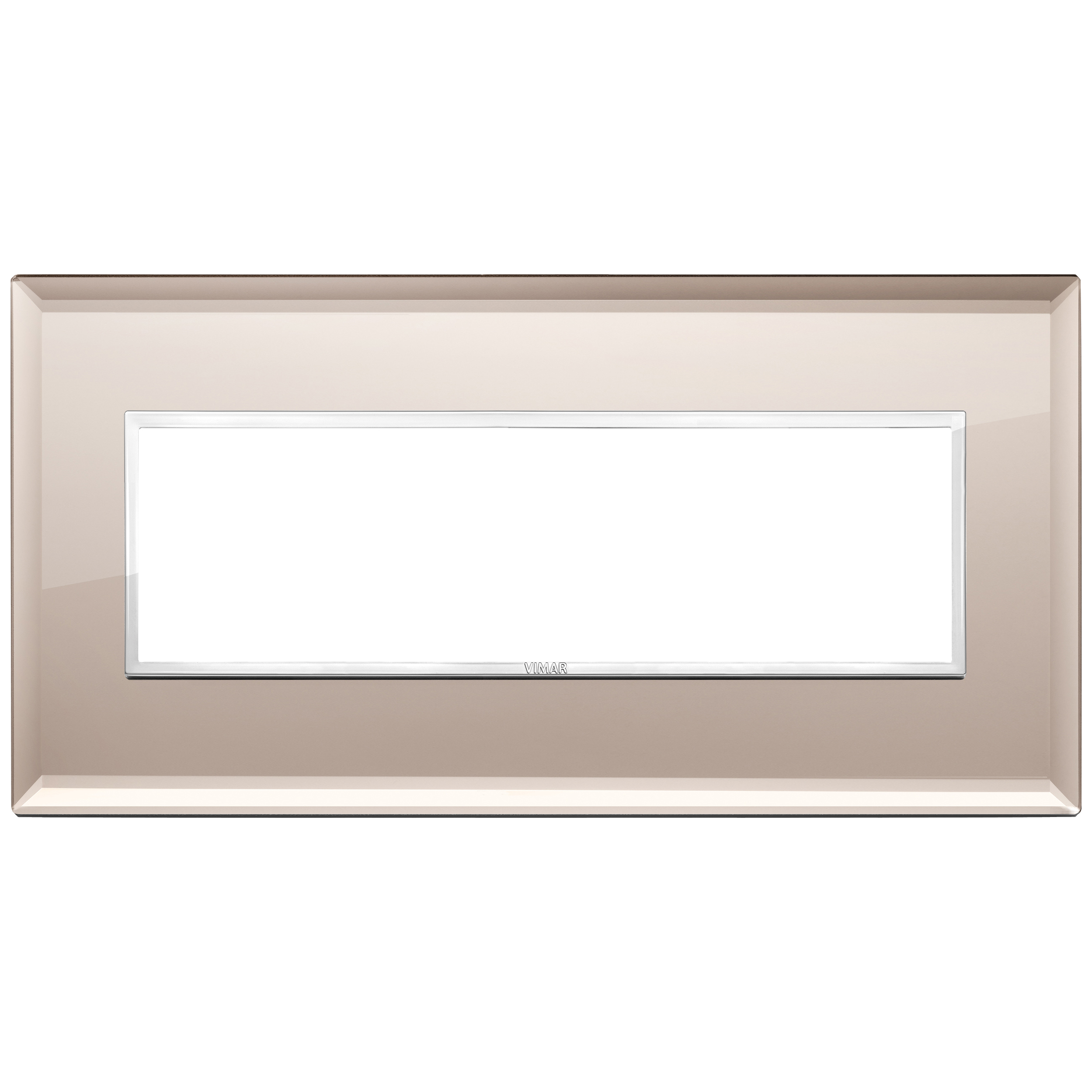

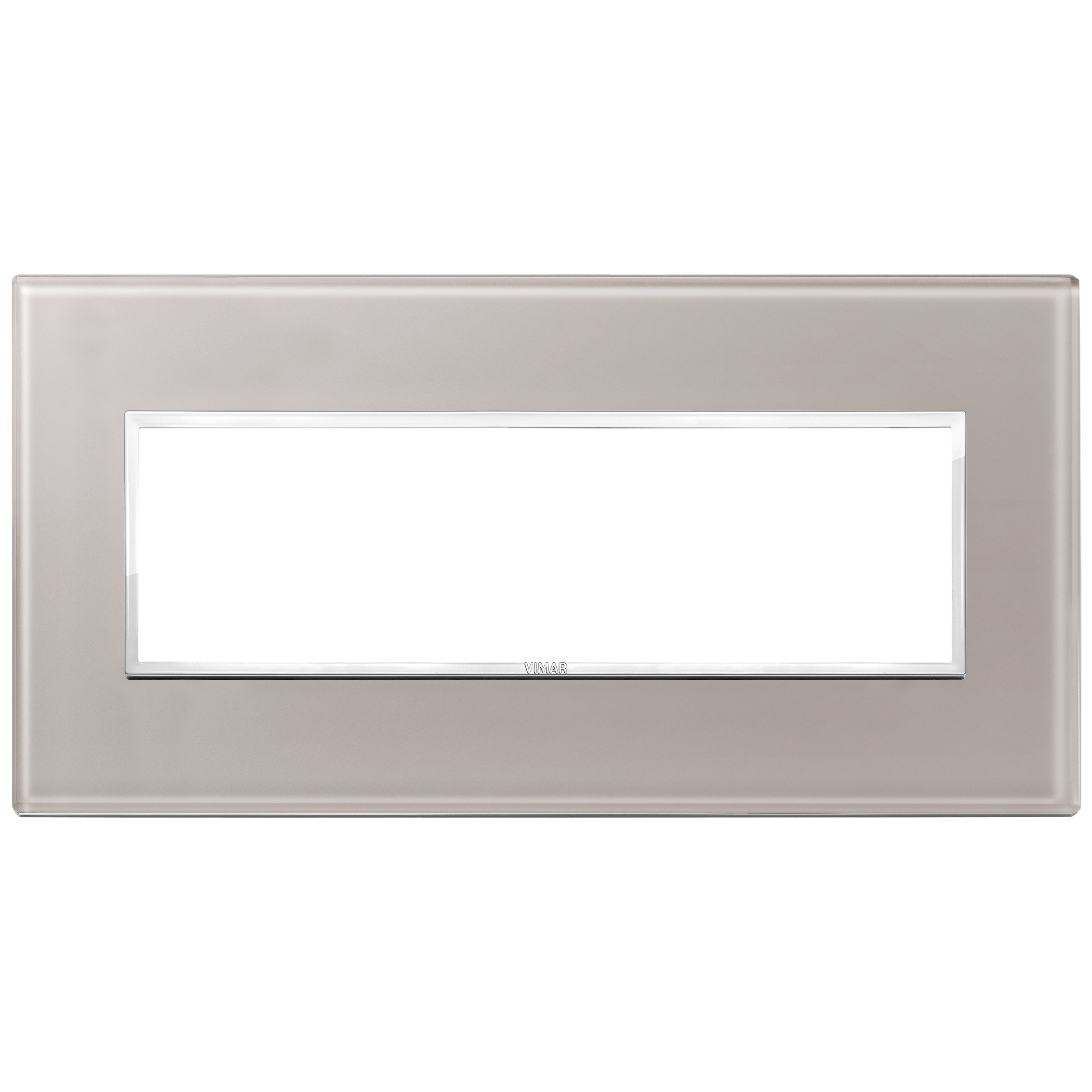

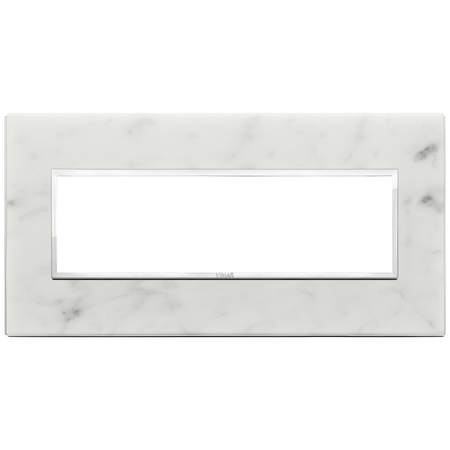

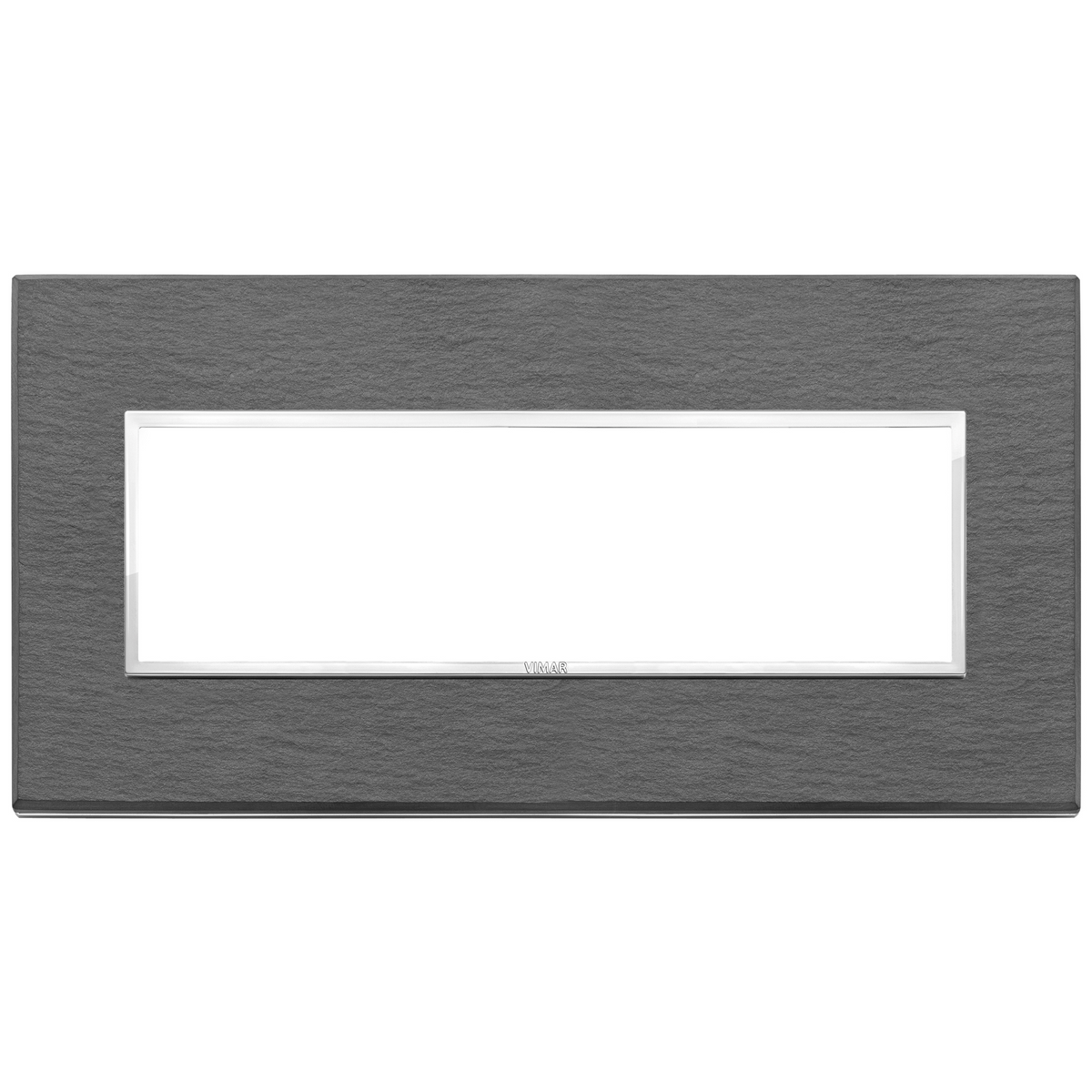

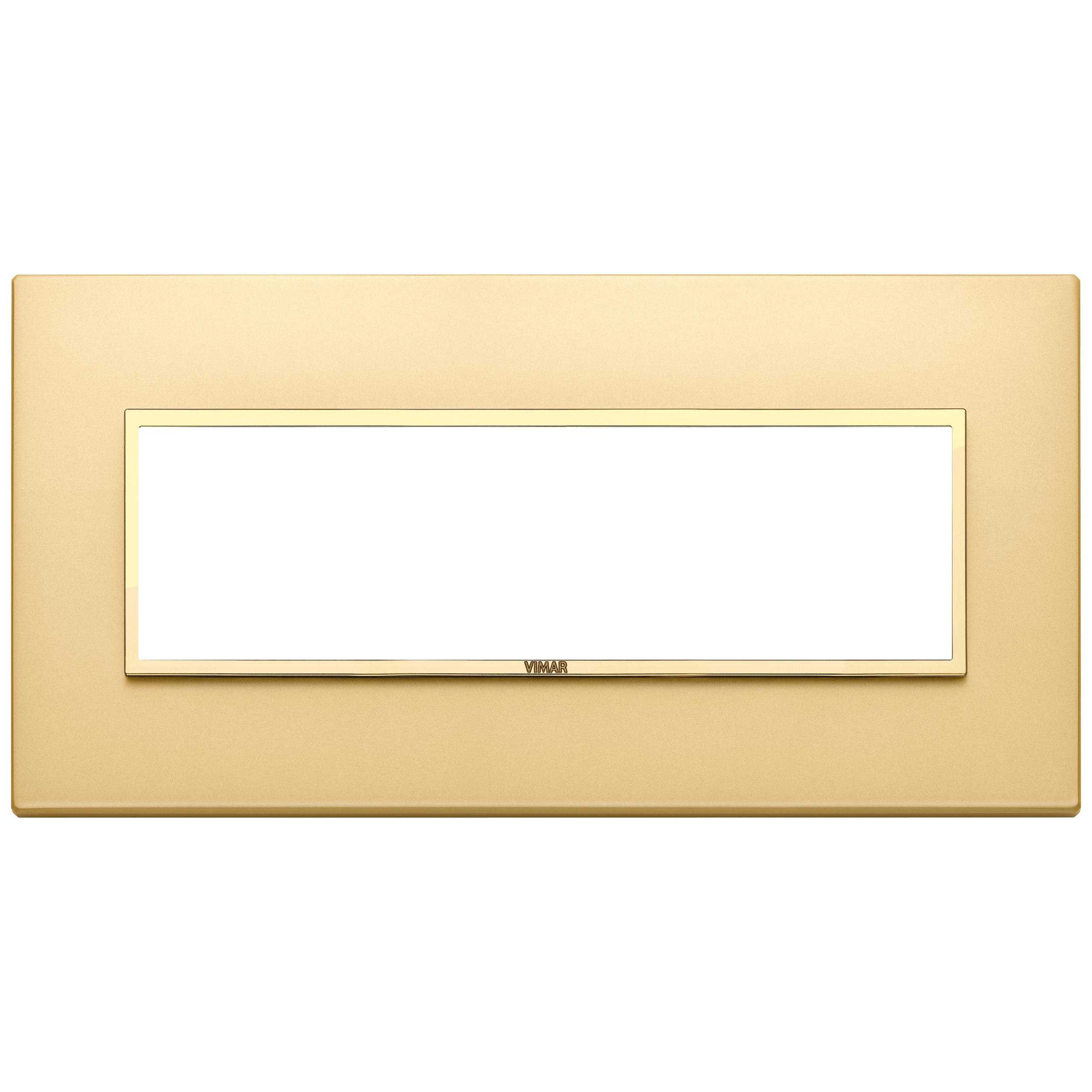

Finish and material are what change across the 21657 range. Options include refined aluminium in multiple colours and surface treatments, along with natural leather (cream or tobacco), solid wood (Italian walnut, white oak, wengé), Corian in glacier ice, carved stone (Carrara white, natural split slate, grey quartzite), and bevelled crystal finishes such as diamant white, crystal aqua, silver ice, pearl grey, opal brown, bronze mirror, black diamond, total white diamond, and total black diamond.

Across the range, the format stays a 7-module cover plate with horizontal or vertical orientation, clamp mounting, and an IP00 rating. Dimensions vary by material family, which matters if you are matching an existing cutout, a pre-made console panel, or a tight join to joinery trim.

Compatibility and fit

This cover plate is intended for Vimar Eikon EVO 7-module layouts and is used with the matching Eikon EVO supports and mounting frame hardware. On refits, it is worth checking the mounting box format and the installed support/frame so the plate can clamp evenly and sit flat without rocking under vibration.

Because the plate is not sealed (IP00), it works best at the nav station, cabins, saloon, or inside protected consoles. In areas that see spray or washdowns, mount the switching gear in a sealed enclosure and keep the cover plate behind a door or on the dry side of the panel.

Installation and setup

Secure the mounting box or duct section firmly so it cannot move when the boat is pounding, then install the support/frame and devices, and finally clamp the cover plate into place. If you use the label window, keep markings short and consistent so crew can find critical functions quickly during night runs or troubleshooting.

Maintenance and care

Clean with a soft cloth and non-abrasive products. Aluminium and crystal finishes handle regular wipe-downs well, while stone, wood, and leather finishes benefit from gentler cleaners and should be kept away from repeated wetting and harsh solvents.

Use cases on board

This plate is a good match for boats standardizing interior switchgear and controls on the Eikon EVO format, where you want consistent labeling across lighting zones, pumps, and accessory circuits without mixing plate styles across the cabin and console.
