Garmin GMR Fantom 6 Antenna Array, 6 ft, Pedestal Not Included
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview

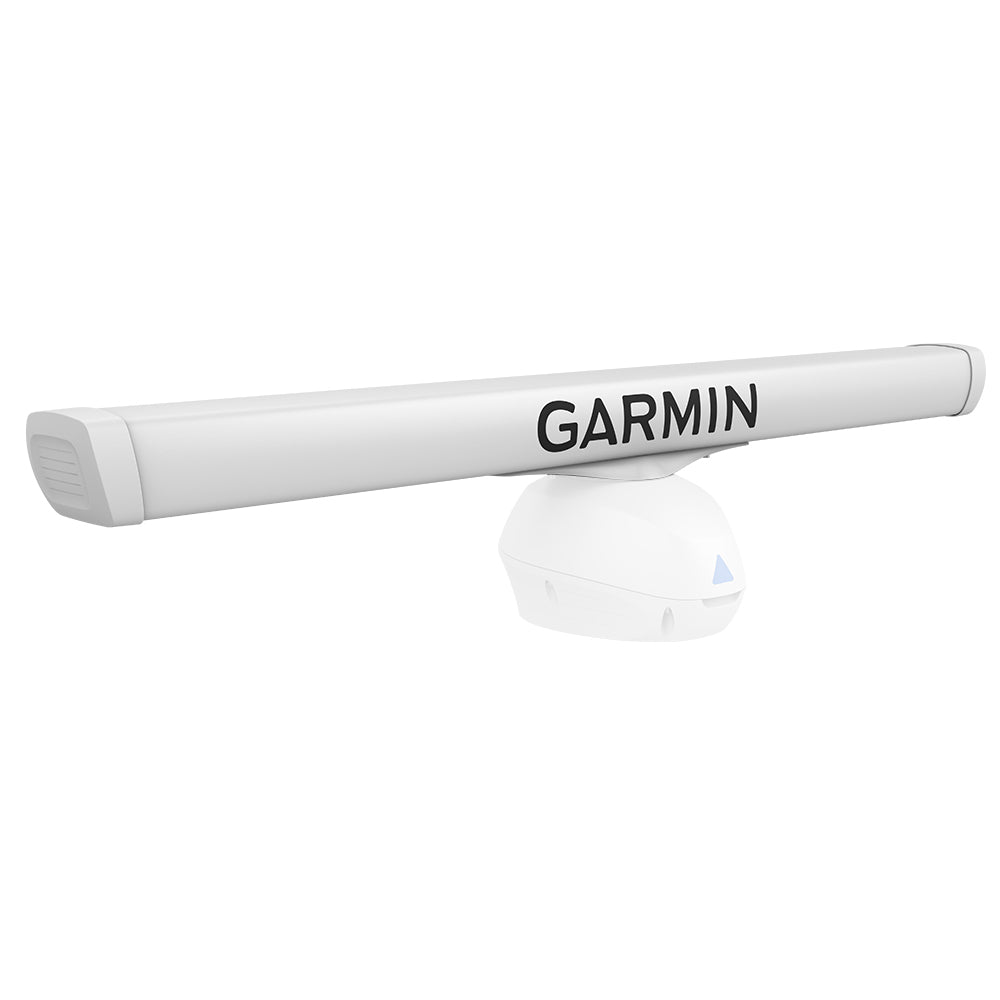

The Garmin 010-01366-00 is a 6 ft open-array radar antenna array that mounts on a compatible GMR Fantom pedestal, and it does not include the pedestal.
Overall length is about 193.8 cm (6 ft 4 5/16 in), and it matches the 6 ft antenna size option used on GMR Fantom 4/6 open-array scanner installations.
When your pedestal and wiring are already in place, swapping the array is a practical way to recover a damaged radar scanner without replacing the entire assembly.
Key features
- 6 ft antenna array (approx. 193.8 cm overall length) for GMR Fantom 4/6 open-array radar pedestals
- End-fed slotted waveguide antenna with a 1.25 degree horizontal beam width for the 6 ft antenna size
- Antenna weight about 7.3 kg (16.0 lb) to help plan mounting loads on a hardtop, arch, or mast
- Array-only component; a compatible pedestal is required for power, networking, and radar operation
- Antenna size is selected during radar setup on the connected Garmin chartplotter after installation
Compatibility and system integration
This array is used with the GMR Fantom 4/6 open-array scanner platform. Confirm your existing pedestal and scanner support the 6 ft antenna size before ordering, especially when replacing parts on an older install.
Power and networking are handled at the pedestal as part of the scanner. In a typical GMR Fantom 4/6 installation the scanner runs on 10 to 32 Vdc with a 15 A fuse, and the radar is controlled from a compatible Garmin chartplotter over the Garmin Marine Network.
Installation and setup
Plan for clearance around the rotating array and mount it on a flat surface that is parallel to the vessel waterline and strong enough to support the antenna. Keeping the antenna above nearby obstructions helps reduce blind sectors caused by rigging, lights, or other hardware.
After the physical install, complete the radar installation steps on your chartplotter and set the antenna size to the 6 ft option so the system is configured for the hardware on board.
Use on board
This is a good match for boats that already have a Fantom pedestal mounted on a hardtop, arch, or mast and need the 6 ft array size for a like-for-like replacement after a strike, corrosion, or shipping damage.
Safety and compliance
Radar equipment transmits RF energy. For the 6 ft antenna size, maintain at least 1.70 m (66.9 in) separation for occupational exposure at 100 W/m2, and 5.35 m (210.6 in) for general public exposure at 10 W/m2, whenever the radar is transmitting.
