Jabsco Major Service Kit, For 580X0 and 582X0 Series Toilets

Overview

The Jabsco 58100-2000 is a major service kit for Jabsco 580X0 and 582X0 series electric marine toilets. It brings together the service parts commonly replaced during a deeper rebuild, including a ceramic seal, ring seal, flush pump inlet hose, pump outlet hose, support pieces, clips, and the small hardware needed to put the pump section back together.

This is a practical kit when the toilet needs more than a quick seal change and you want the key wear items on hand before opening the unit up. It is a parts kit for service work on an existing toilet, not a complete toilet or full pump assembly.

Key features

• Built for Jabsco 580X0 and 582X0 series electric marine toilets.
• Includes both the flush pump inlet hose and pump outlet hose, which helps when older hoses have gone stiff, marked, or difficult to reseal.
• Includes a ceramic seal and ring seal for service work where leaks or loss of sealing at the pump section need attention.
• Also includes support straps, motor support block, hose clips, screws, nuts, and washer so the serviced section can be reassembled with matching small parts.
• Suited to a more complete overhaul than a single gasket or valve replacement.
• Useful for owners and service yards maintaining an existing electric toilet installation instead of replacing the whole unit.

Compatibility and fit

This kit is intended for Jabsco 580X0 and 582X0 series toilets. Listed model references include 58060, 58260, 58080, 58280, 58020, 58220, 58040, and 58240.

Before ordering, match the toilet model carefully and check the production version on older installations. Some earlier toilets in this family can differ in hose and pump details, so confirming the exact unit on board helps avoid opening the system with the wrong kit.

Installation and service

This kit makes sense for a toilet that is already in service and needs fresh internal wear parts and replacement hose sections in the pump area. On a boat, that usually means scheduled maintenance, chasing leaks around the pump section, or refreshing parts that have hardened after years of vibration, heat, and sanitation-system use.

It is a good fit for owners and technicians who already know the toilet model and want the core service items ready before disassembly. Because this is a service kit rather than a full assembly, the existing toilet, motor, and main pump components remain in place unless they are being replaced separately.

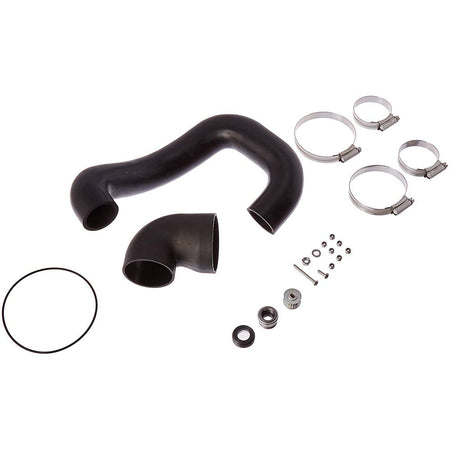

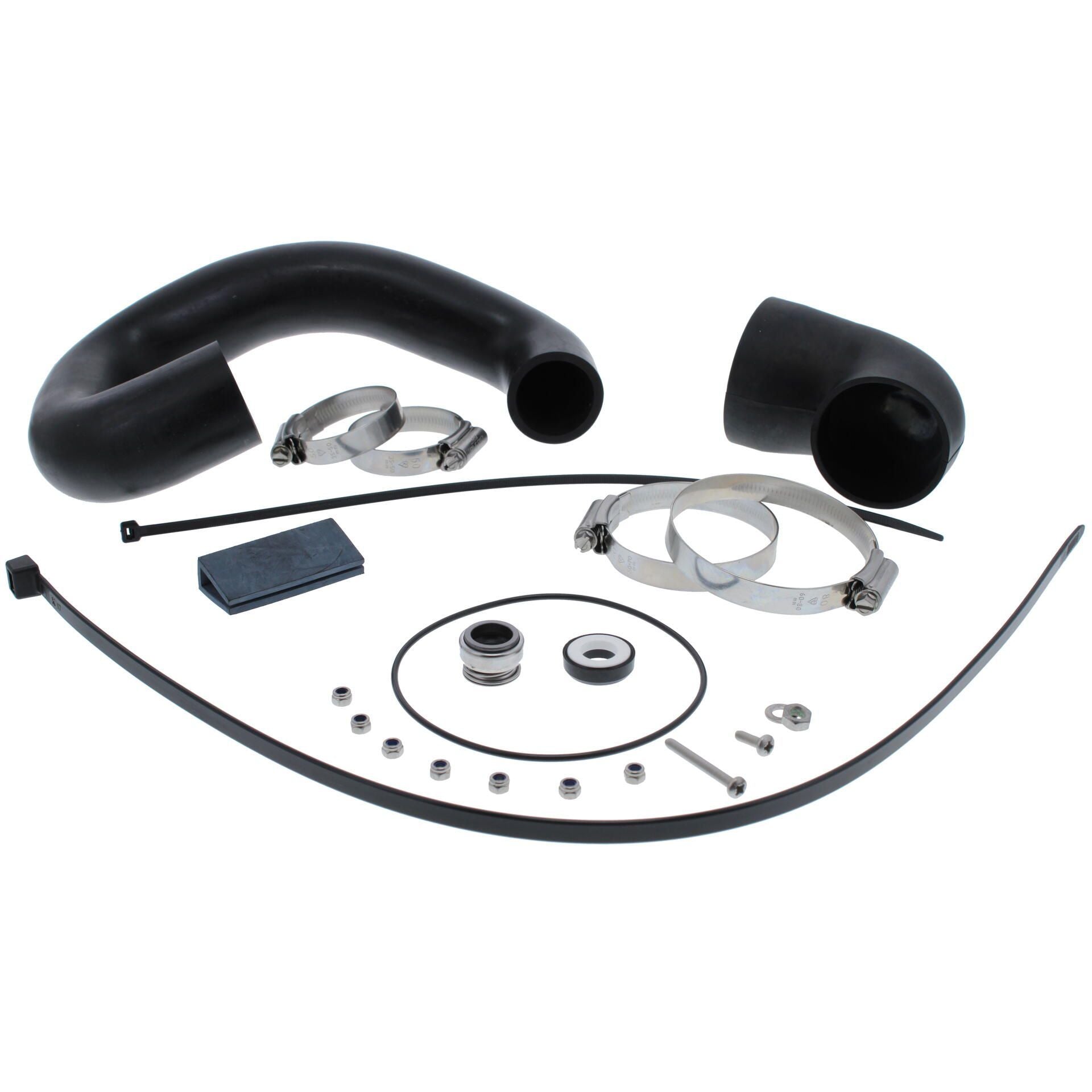

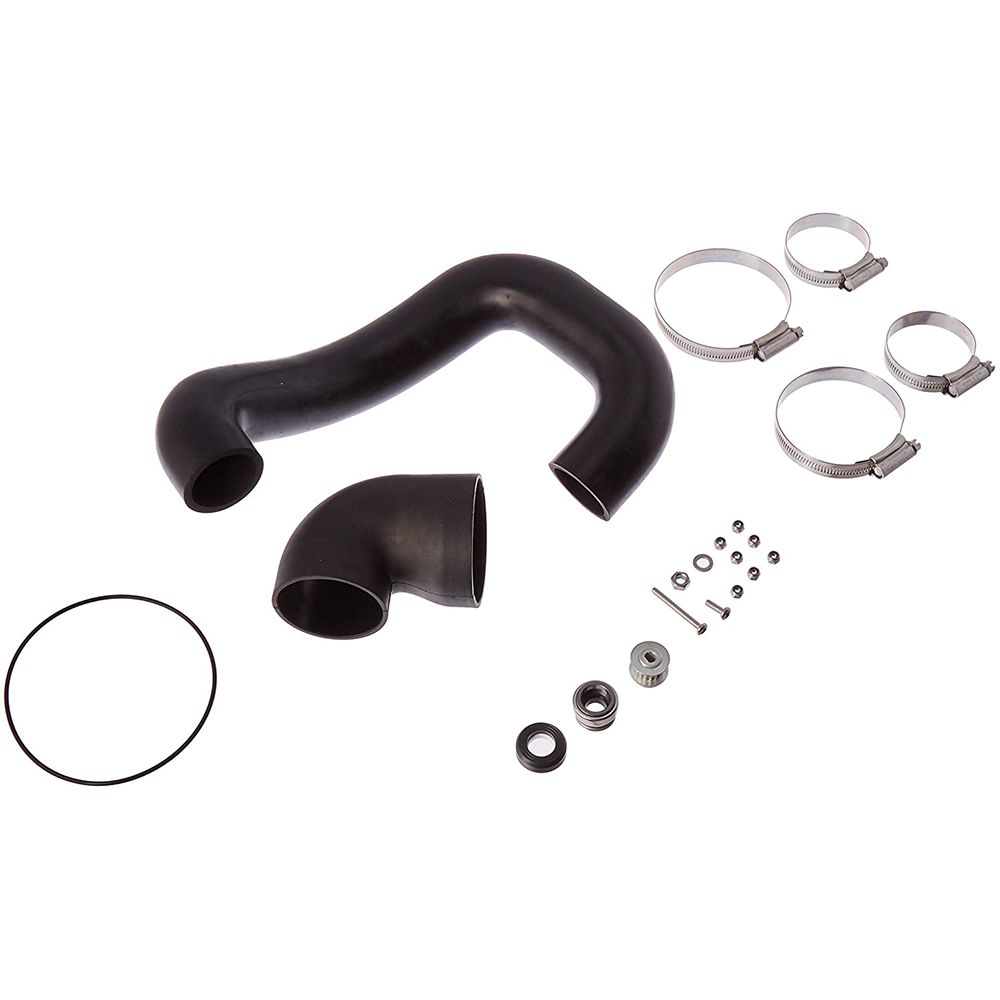

What's included

• Support strap, discharge hole, quantity 1
• Support strap, motor, quantity 1
• Support block, motor, quantity 1
• Hose clip, large, quantity 1
• Inlet hose, flush pump, quantity 1
• Hose clip, medium, quantity 1
• Screw, long, quantity 1
• Screw, short, quantity 1
• Nut, quantity 3
• Ring seal, quantity 1
• Washer, quantity 1
• Ceramic seal, quantity 1
• Outlet hose, pump, quantity 1
• Clip, small, quantity 2
