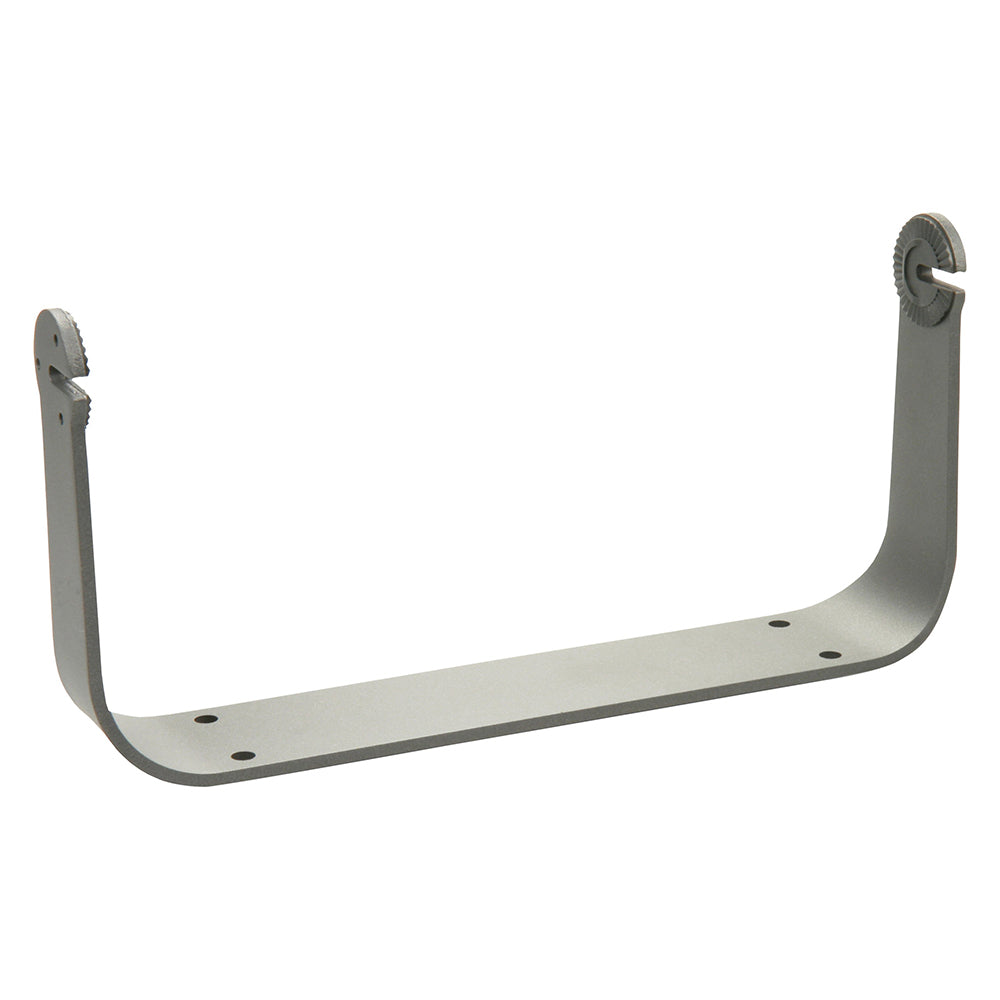

Garmin Bail Mounting Bracket, For GPSMAP 4012/4212

Overview

The Garmin 010-10925-00 is a bail mount bracket for Garmin GPSMAP 4012 and GPSMAP 4212 chartplotters. It lets you surface-mount the display on a flat helm top, electronics box, or dash cap, while keeping the screen easy to angle toward your sightline.

This style of mount is a good fit when you want quick access behind the unit for wiring, or when a flush mount cutout is not an option. Plan for clearance on both sides for the bracket arms and enough space behind the display for cable bends and strain relief.

Key features

• Fits Garmin GPSMAP 4012 and GPSMAP 4212 chartplotters
• Bail mount style for surface mounting on a flat helm or console top
• Angle-adjustable position to help manage glare and improve readability at the wheel
• Keeps the rear of the chartplotter accessible for power, networking, and accessory connections
• Simple mechanical mounting approach that suits typical helm vibration

Installation and setup

Choose a mounting spot where the display can be viewed from your normal helm position and where the screen will not interfere with throttles, windshield frames, or companion seating when you tilt it. If the surface is thin or flexes, a backing plate helps spread load and keeps the mount from working loose over time.

After positioning, mark and drill the mounting holes, then seal any fastener penetrations to keep water out of the core or wiring space below. Leave a gentle service loop in the cabling so the unit can be tilted without pulling on connectors, and secure cables so they do not chafe on sharp fiberglass edges.

Compatibility and fit

This mount is intended for the GPSMAP 4012 and GPSMAP 4212. Confirm the model number on your display and match it to these series before ordering, since different GPSMAP families use different bracket footprints and side-mount geometry.

Use on board

It works well on center consoles, pilothouse helms, and flybridges where you want a clean surface mount and the ability to adjust the screen angle for standing and seated operation. It is also a practical choice for refits where you are replacing an existing 4012 or 4212 and want to reuse the same mounting approach without modifying the dash cutout.
