Uflex Uflex Complete Rotary System - Uflex Usa (Rotech16Fc)

The Rotech's T71FC helm with Planetary Gear Design minimizes steering effort. It provides you with more evenly distributed stresses on the steering wheel. This one-of-a-kind design also provides a larger wear surface, reducing wasted motion and increasing longevity. This helm, centered on the primary drive shaft, takes up less space behind the dash and is a straight "drop-in" replacement for rival systems, requiring no new holes. The M66 Universal Rotary Steering Cable with stainless steel output fittings is included in the Rotech package for optimal lifespan and smooth steering. T71FC helm, X34 90 degree bezel, M66 steering cable are included in the kit.

Key features:

• Installation is straightforward and quick.
• The output ends of the cable are entirely made of stainless steel.
• Materials that are resistant to corrosion
• Especially useful when space is at a premium.
• 3/4 tapered shaft is standard.
• Turns from lock to lock on the steering wheel: about. 3,8
• Stroke: 9” (228 mm)
• The maximum diameter of the steering wheel that may be used is 16 inches (406 mm)
• The bend radius of the steering cable must be at least 7.9 inches (200 mm)
• There is very little feedback.
• For mounting, it's small.
• On boats with engines that exceed the boat's maximum horsepower rating, the T71FC steering system should not be used.
• The T72FC dual cable steering system is suitable for boats traveling faster than 50 mph.
• EN 28848 safety criteria are exceeded.
• ABYC P17 safety criteria are met.

Specifications:

• Brand: Uflex
• Manufacturer Part Number: ROTECH16FC
• Model: ROTECH16FC
• Color: Standard
• Assembled Product Dimensions ( L x W x H): 29” x 7” x 18”

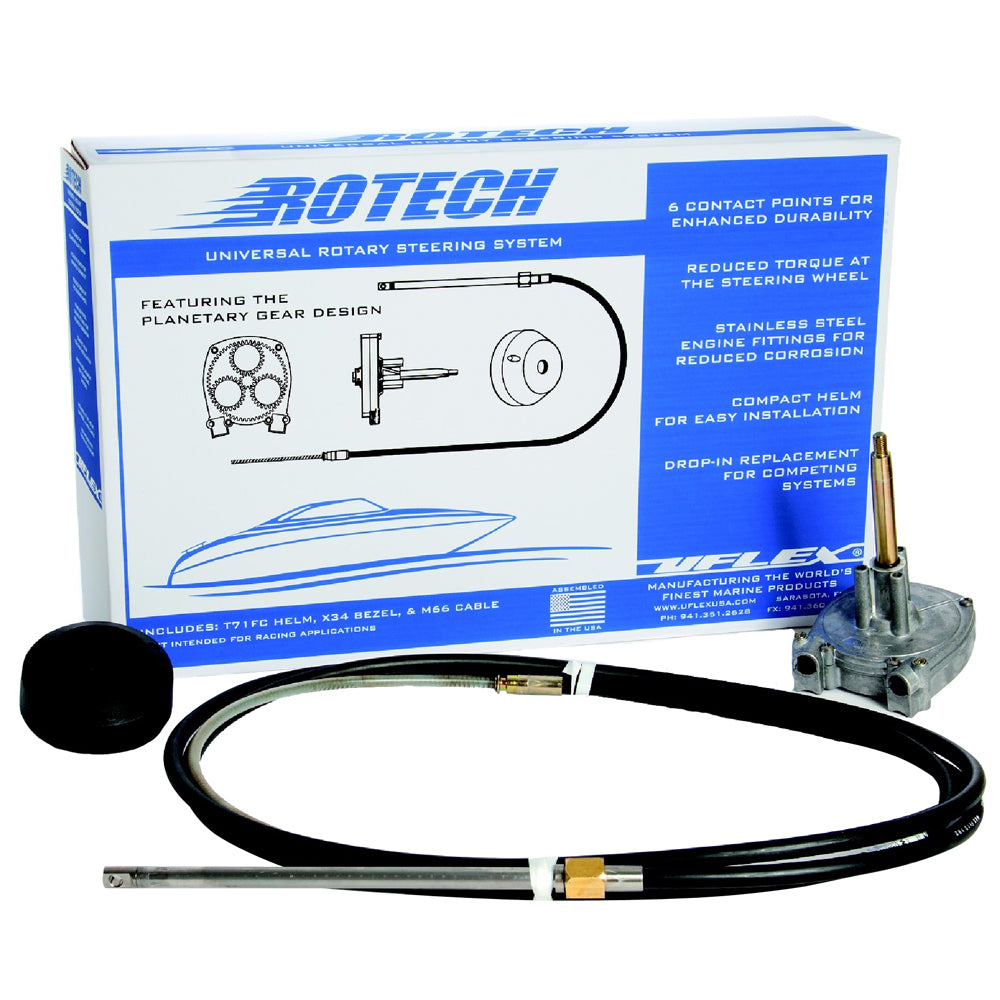

Convenient kit, especially suitable as replacement steering, that includes helm, bezel and cable. The cable is available in 1-ft increments from 8 to 20 feet (specify cable length when ordering). Steering wheel not included. (XX=length)

This product replaces:

• 7-1116, 702755019732, ROTECH16FC, ROTECH-16, RO16, 216-ROTECH16FC
