Vimar Eikon Push Button Switch, 1P NO, 10A 250V, With Indicator Unit, Flush-Mount, IP40, Without Signalling Unit

Overview

The Vimar Eikon 20068 is a 1-pole, normally open momentary push button rated 10 A at 250 V~ with an indicator window for a signalling unit. It is a flush-mounted module that snaps into compatible frames and cover plates, with a front protection rating of IP40 and a compact body size of 22.30 mm wide, 49.00 mm high, and 38.50 mm deep.

This style of push button is commonly used on boats for momentary control and signalling, such as triggering a relay, sounding a buzzer, or sending a control input to another device, while the indicator window can be used to show status once a compatible signalling unit is installed. IP40 is suited to protected interior areas like cabins, nav stations, and inside consoles, not exposed locations where spray, washdowns, or heavy condensation are expected.

Key features

• 1P NO momentary contact (closes only while pressed), rated 10 A at 250 V~
• Integrated indicator window with diffuser; signalling unit is not included
• Flush-mounted module with engage (snap) fastening for modular installations
• IP40 protection for interior, dry mounting locations
• Compact body: 22.30 mm width, 49.00 mm height, 38.50 mm depth
• Single rocker layout with label space to identify the circuit or function

Variants

This push button is offered in multiple configurations so you can match the faceplate finish and the indicator color used in the installation.

The finish and the indicator diffuser color are what change between versions. The contact type and electrical rating (1P NO, 10 A at 250 V~), IP40 protection, and the 22.30 x 49.00 x 38.50 mm body size remain consistent across the range.

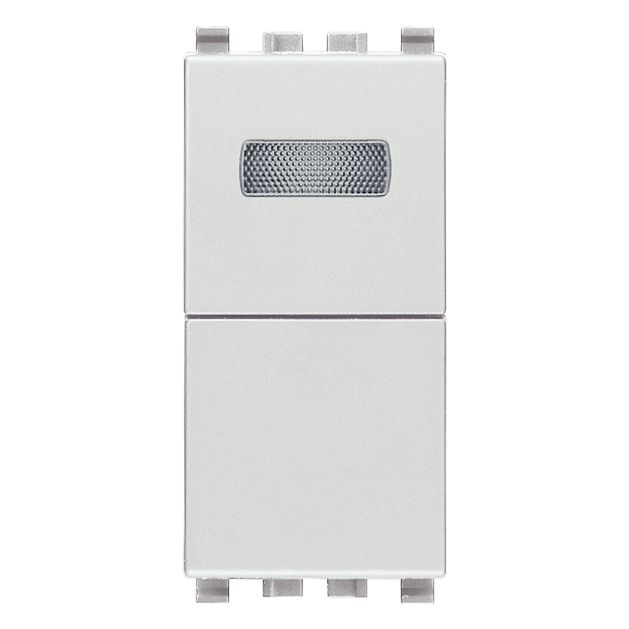

• VM20068.B.N: Finish Silver; Indicator White Indicator. This version matches silver-themed installations and keeps the indicator window a neutral white.

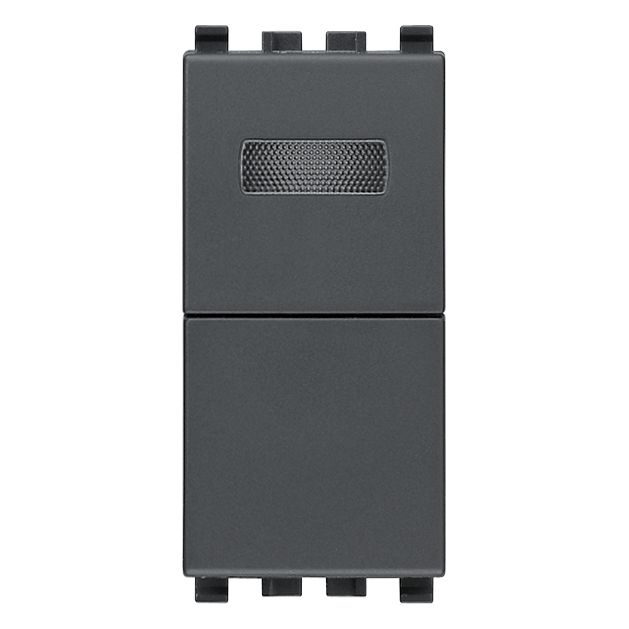

• VM20068.B: Finish Grey; Indicator White Indicator. A grey finish works well in darker panels and helm areas where glare and contrast are a concern.

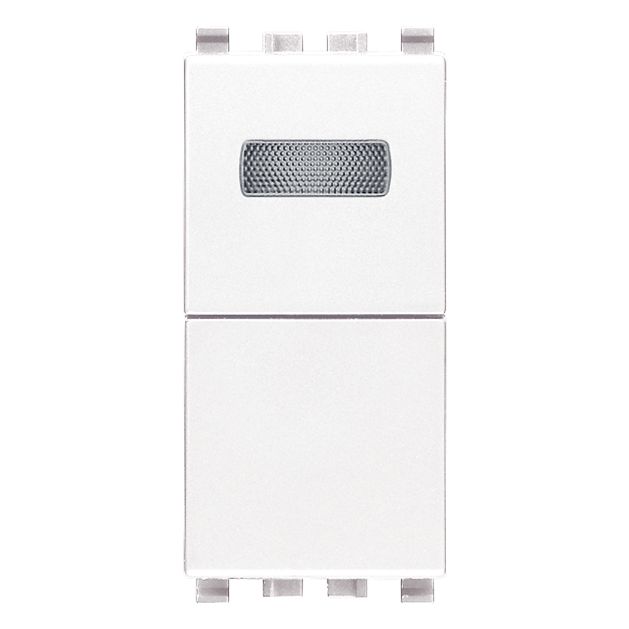

• VM20068.B.B: Finish White; Indicator White Indicator. A white finish blends into light-colored bulkheads and switch panels, with a white diffuser for the indicator window.
• VM20068.V.B: Finish White; Indicator Green Indicator. A green indicator diffuser helps separate a function from other white indicators on the same panel, such as status or enable signals.

Installation and setup

Plan this as a flush-mounted installation in a suitable back box, then snap the module into the compatible frame before fitting the cover plate. Allow for the 38.50 mm device depth and enough room for wire bends and terminations behind the switch.

If you want the indicator to illuminate, the unit is supplied without the signalling unit, so the lighting component needs to be selected and installed separately as part of the system.

Electrical and on-board use

With a 10 A rating at 250 V~, this push button can be used on onboard AC circuits within that limit, and it is also commonly used as a low-current control input for relays or contactors when you do not want the load current passing through the panel device. Because it is normally open and momentary, any function that needs to stay on typically relies on the controlled equipment, a relay, or a separate latching circuit.

Typical uses on board

This is a good match for interiors that already use Vimar Eikon modular switchgear and need a clean momentary control with an optional status indicator. It fits well for refits where you are standardizing panel controls across cabins, galley, nav station, and protected helm areas.

Maintenance and care

Keep the front face clean with a soft cloth and avoid solvents that can haze plastics. In humid environments, place the device in a protected panel location and keep wiring compartments ventilated to reduce condensation around electrical terminations.
