Vimar IDEA 2-Way Switch, 1P, 16AX 250V~, IP40
Got questions? Ask an expert!
Know someone who needs this?
Share it with your crew or mechanic.
Overview
The Vimar Idea 17003 is a 1-pole, 16AX, 250 V~ two-way rocker switch in the IDEA reduced-module format, with IP40 protection for interior mounting. It is used when one circuit needs control from two locations, such as cabin lights at both the berth and the entry.
It mounts flush in compatible IDEA support frames and cover plates, with versions that occupy either 1 module or 2 modules. Luminous versions add the provision for a signalling unit so the rocker can be found in low light.
Key features
- 1P 16AX switching at 250 V~; max 200 W for self-ballasted lamps
- Two-way (changeover) wiring for controlling one circuit from two positions
- IDEA reduced-module sizing offered in 1-module and 2-module formats
- IP40 protection suited to dry, protected interior areas
- Thermoplastic body that is halogen-free, with a matt surface finish
- Flush-mounted unit with snap fastening to the support frame
- Screw terminals for secure wiring terminations

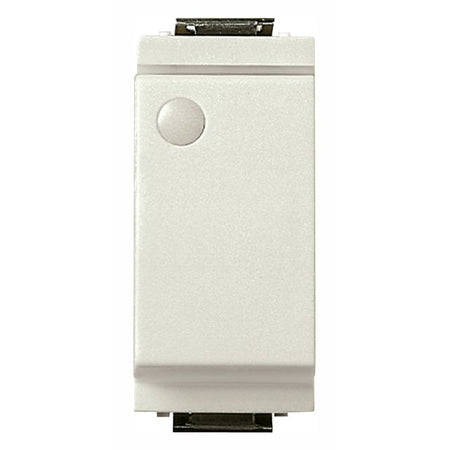

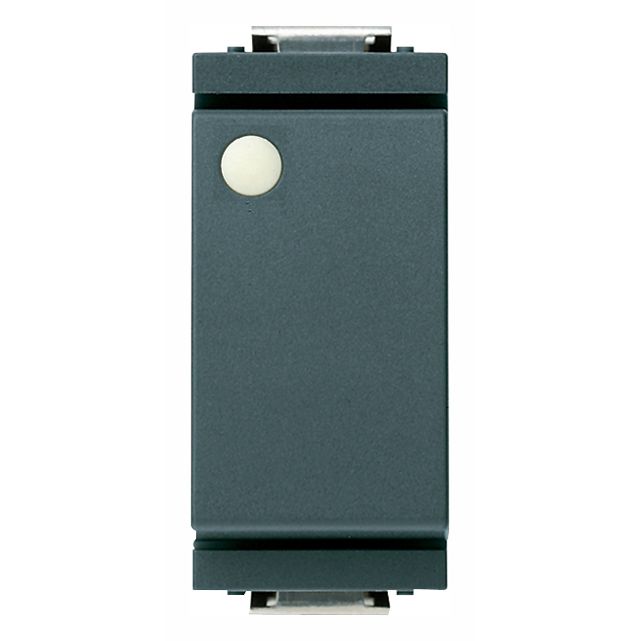

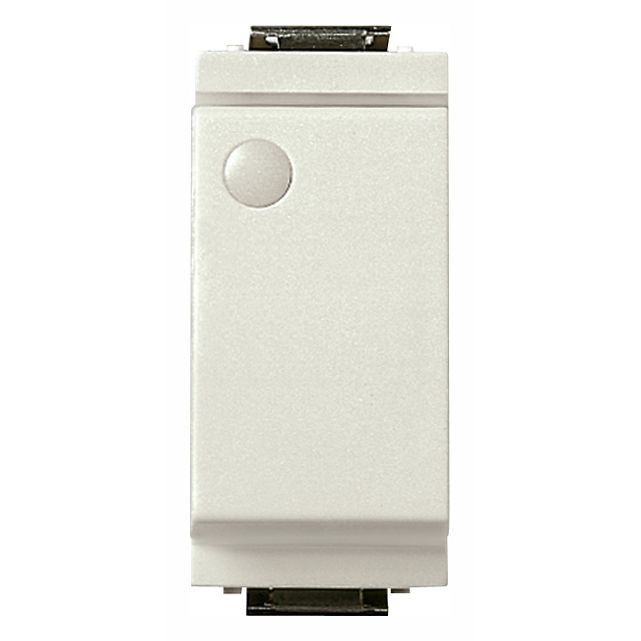

- Optional luminous versions accept an exchangeable LED signalling unit for control and orientation; signalling unit not included
- Label space on the rocker for circuit identification
Variants

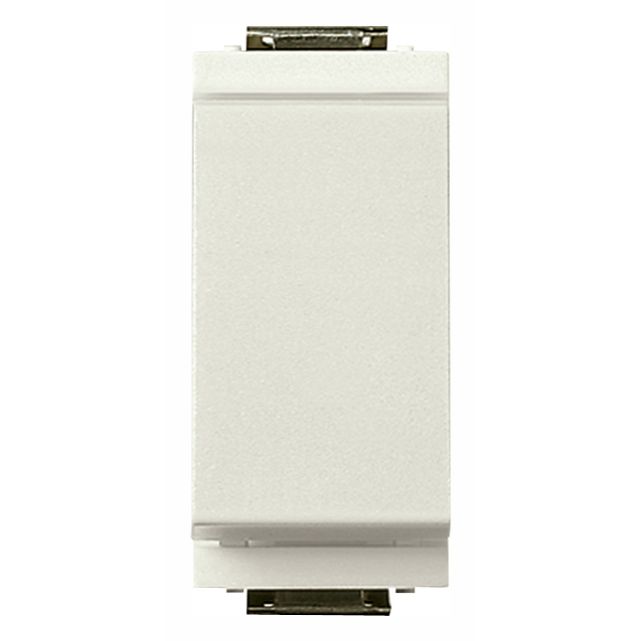

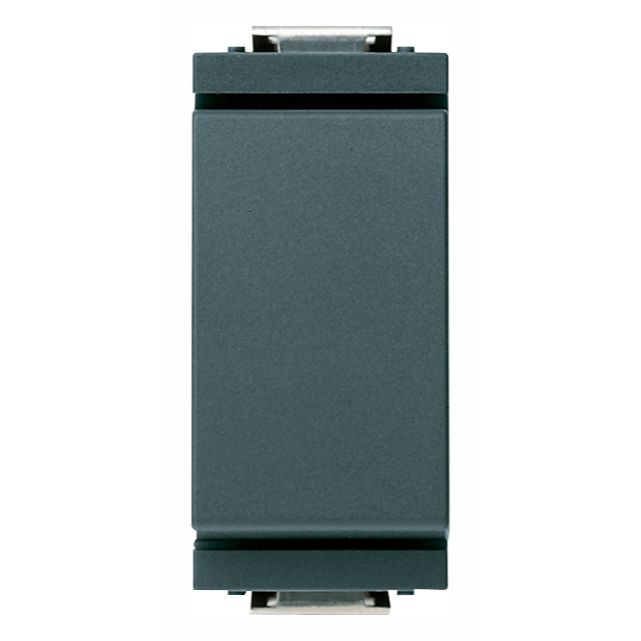

The range varies by rocker color and module footprint. Options include Gray and Ivory, along with Luminous Gray and Luminous Ivory versions for installations where the switch needs to be easy to locate at night.

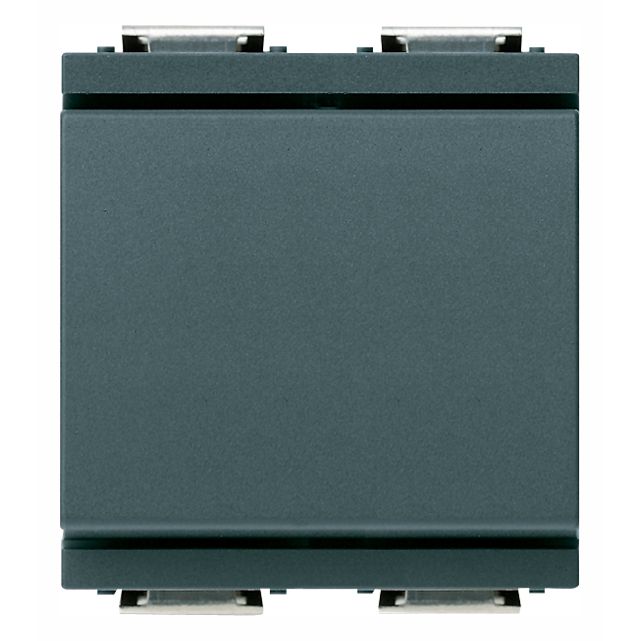

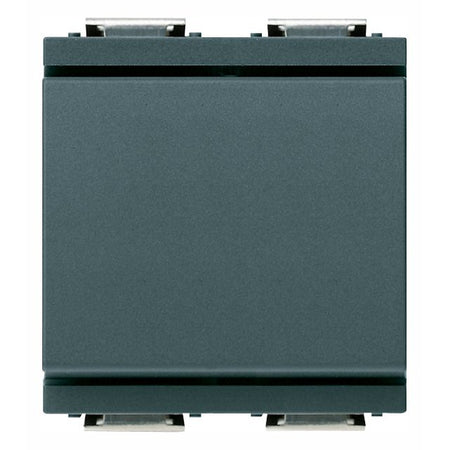

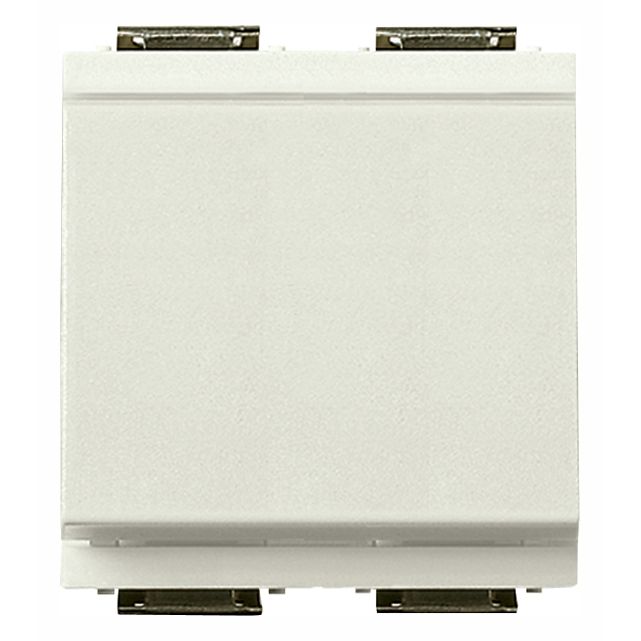

Module choice affects the opening required in the IDEA plate and support frame (1 module or 2 modules). Across the range, the switch function remains 1P two-way at 16AX and 250 V~, with IP40 protection and screw-terminal connections; luminous versions are supplied without the signalling unit.
Compatibility and fit
This device is part of the Vimar IDEA modular system and is intended for flush mounting in compatible boxes, support frames, and cover plates that accept reduced modules. Match the module count to the plate layout on your boat, especially when mixing switches, outlets, and blanks on the same panel.
Front size is 21.8 mm wide by 50.1 mm high, with a built-in depth of 23.3 mm. Overall depth can vary by version, so allow clearance behind the panel for wiring bends and terminal access.
Installation and setup
Wiring is made on screw terminals. On a boat, it helps to leave a small service loop and to re-check terminal tightness during commissioning so vibration does not loosen connections.
Because IP40 does not seal against spray or washdowns, place the switch where it stays dry, such as cabins, salons, and protected service areas. For damp lockers or exposed bulkheads, use a suitable enclosure or a higher-protection mounting location.
On-board use notes
Use this style of two-way switch when a single load is controlled from two points, for example a cabin light that is switched at the companionway and again at the berth. It also fits well on boats that standardize on Vimar IDEA plates for a consistent look across cabins and service spaces.
Maintenance and care
Wipe the rocker with a soft cloth and avoid aggressive solvents that can mark the matt finish. During seasonal checks, inspect the mounting and terminals so the unit stays seated in the frame and the wiring remains secure.
