Vimar Eikon 2P 1-Way Switch, 20AX, 250V, IP40, Lightable

Overview

The Vimar EIKON Series is a family of 2-pole 1-way switches for AC circuits in protected interior spaces on board. Across the checked variants, the switches are rated 20 AX at 250 V, mount flush, use screw terminals, and carry an IP40 rating.

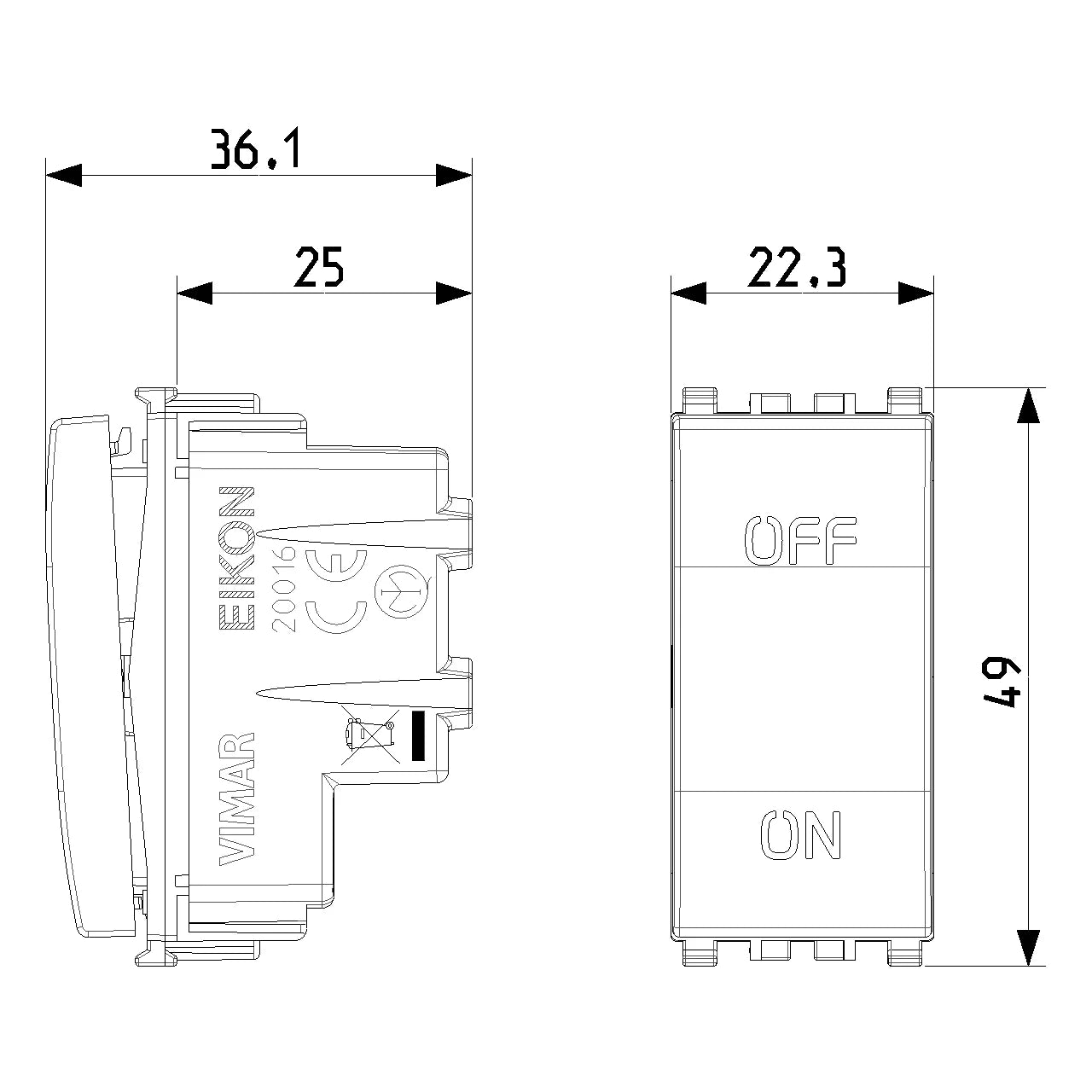

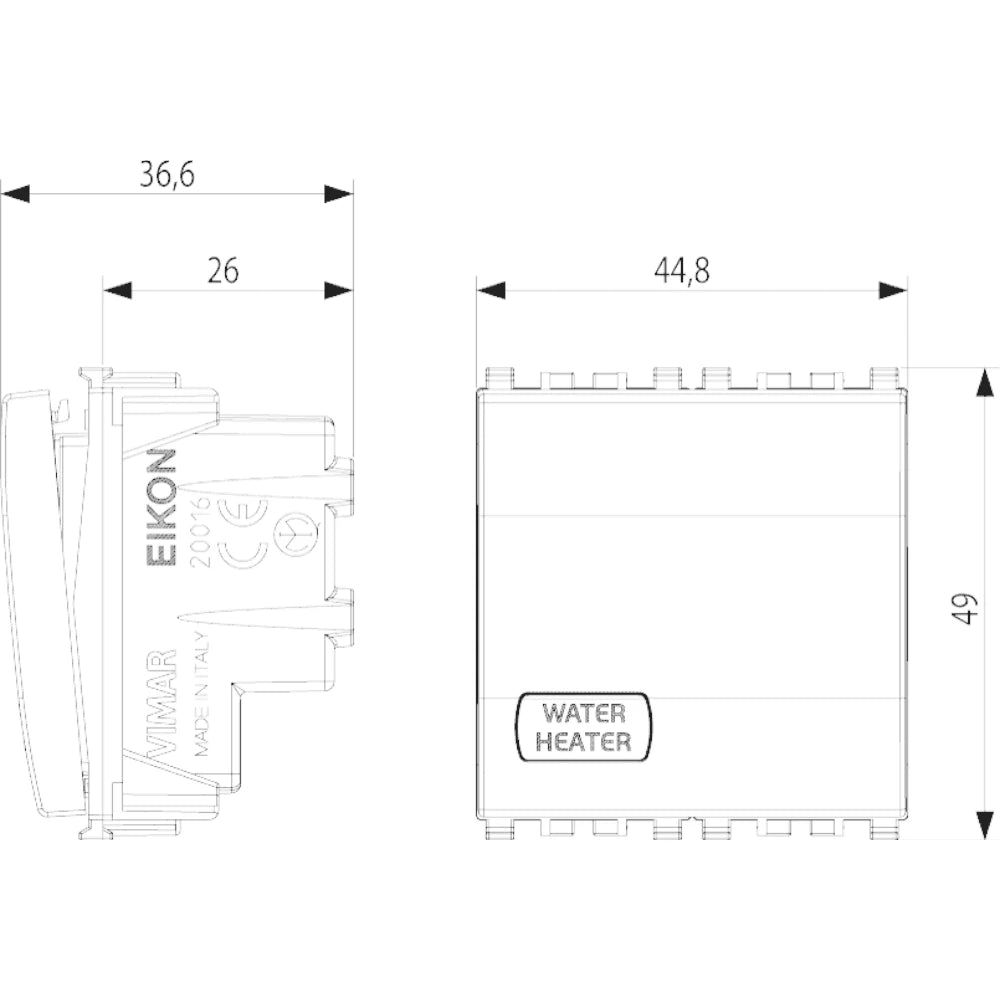

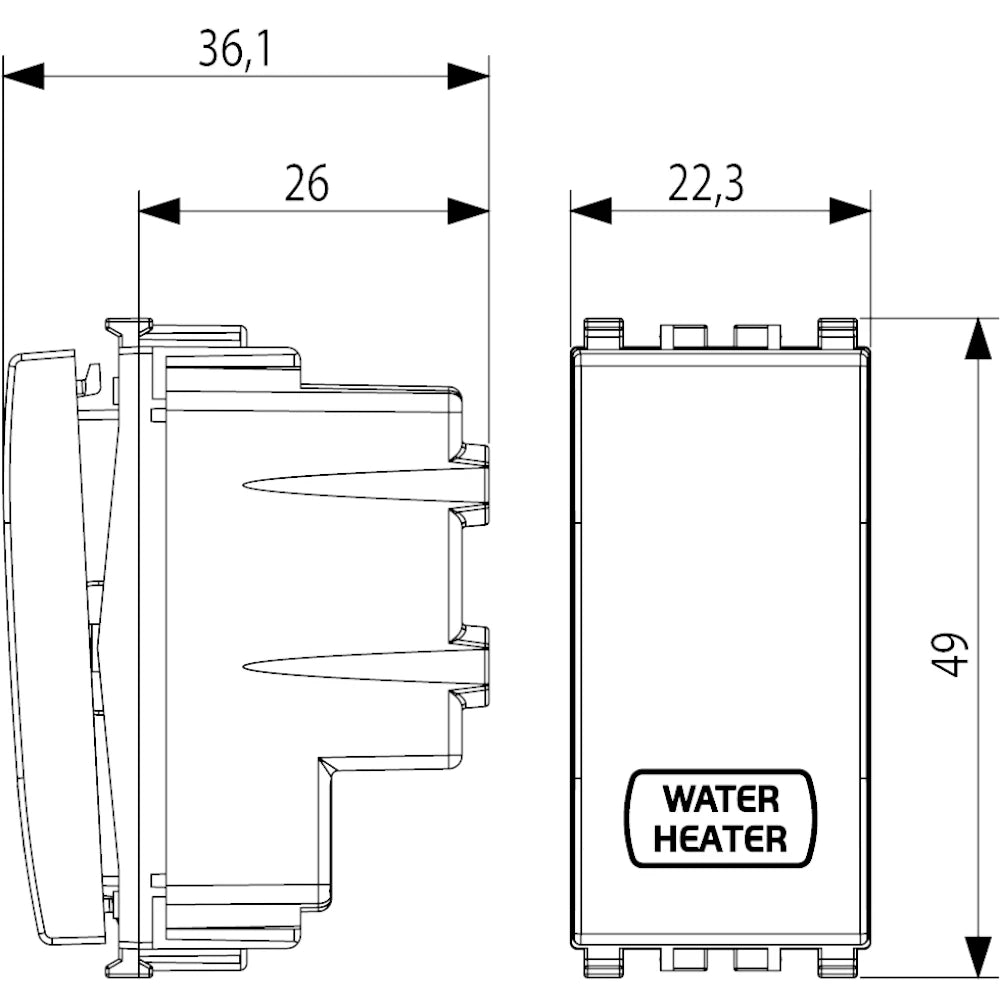

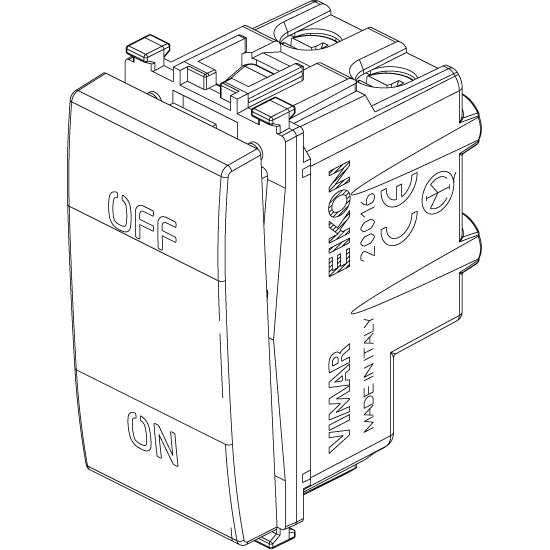

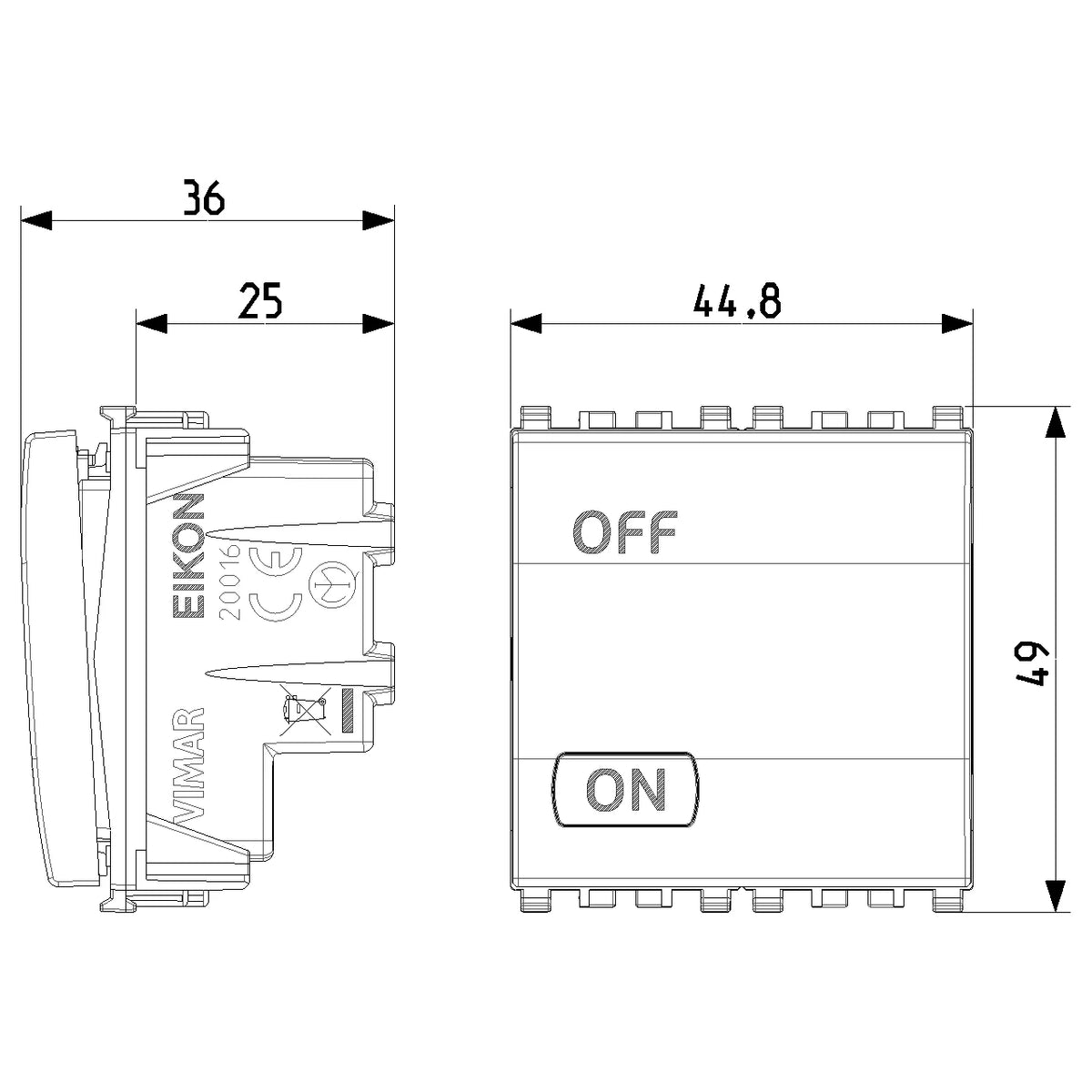

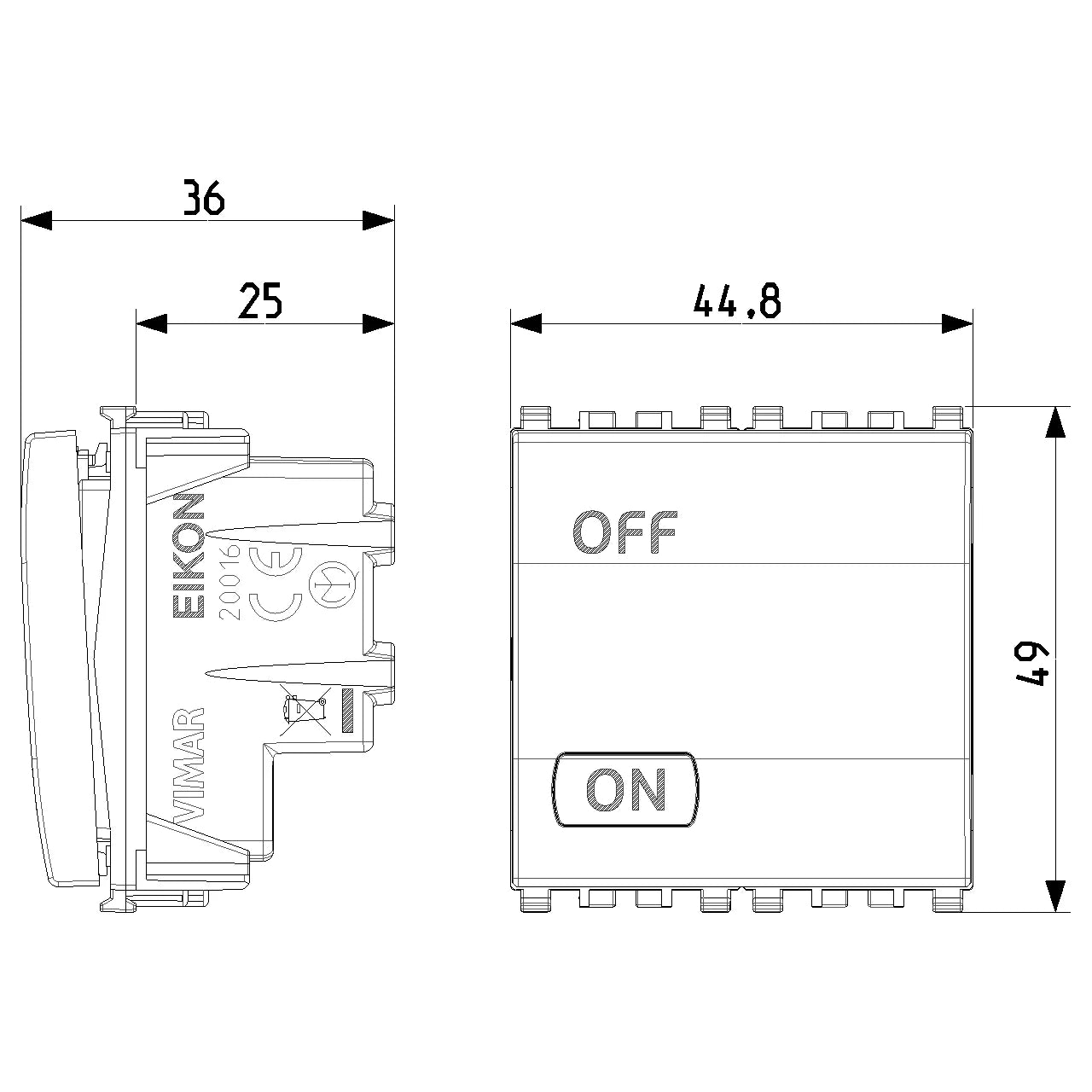

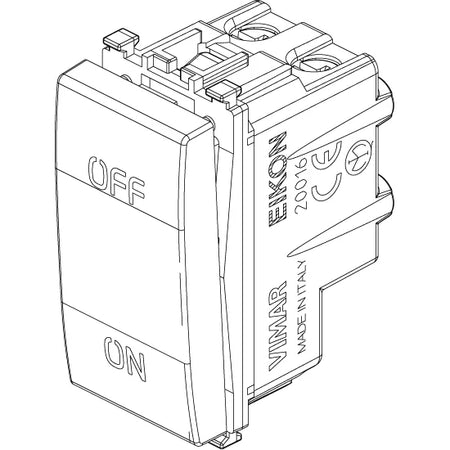

The range uses a modular format with 1-module and 2-module versions. The 1-module body is 22.3 mm wide and the 2-module body is 44.8 mm wide; both share a 49 mm height, 36.1 mm depth, and 25 mm built-in depth. The button is lightable and replaceable, with optional LED lighting for control or orientation.

This switch family fits cabin, galley, utility, or enclosed head panels where you want a clean wall switch for a dedicated load such as a water heater or another AC branch circuit. It is better suited to dry, protected locations than exposed deck or washdown areas.

Key features

• 2-pole 1-way switching, rated 20 AX at 250 V for mains circuits
• Flush-mounted modular format available in 1-module and 2-module versions

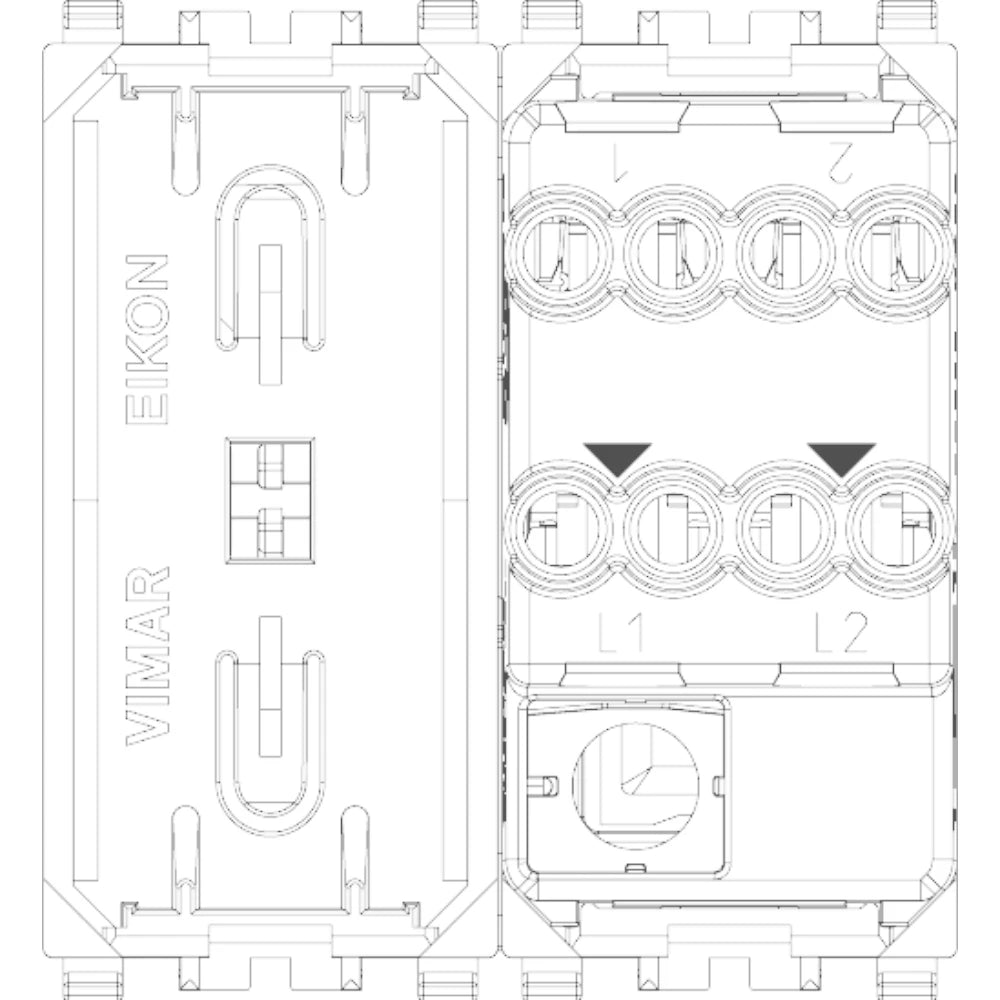

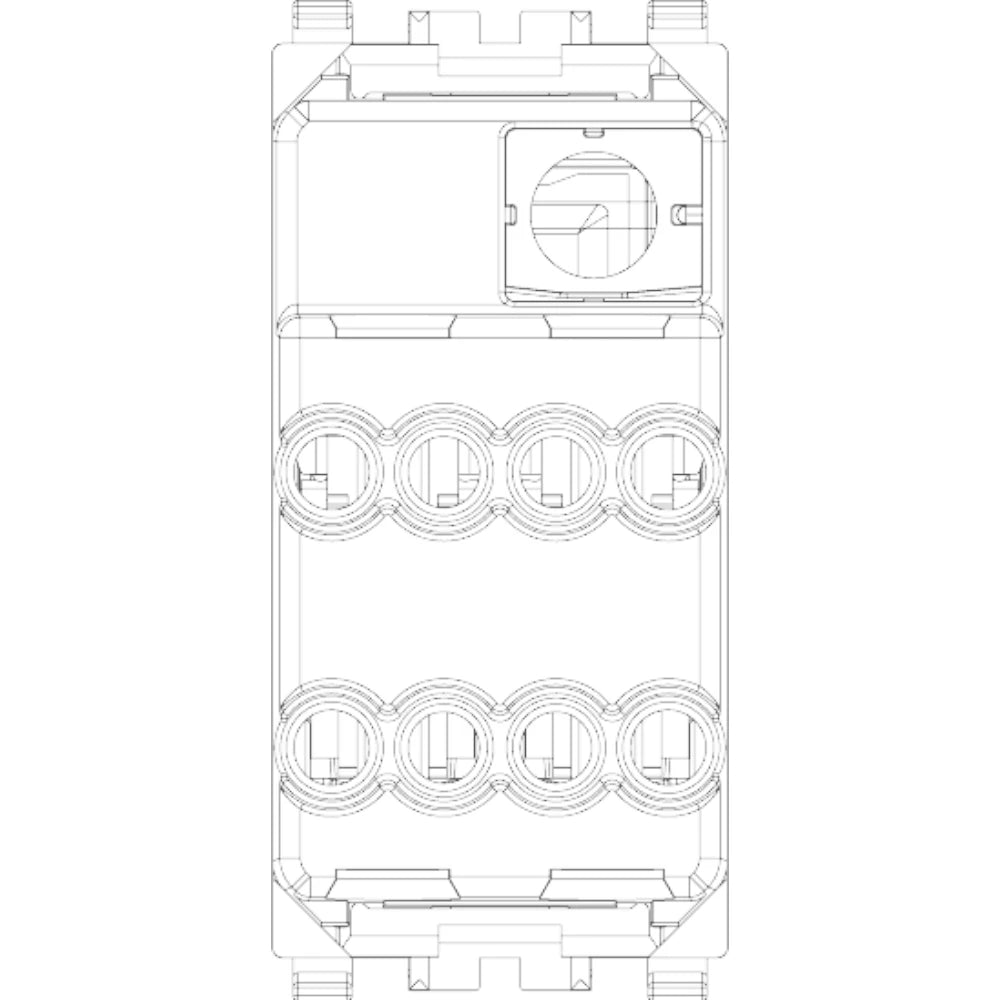

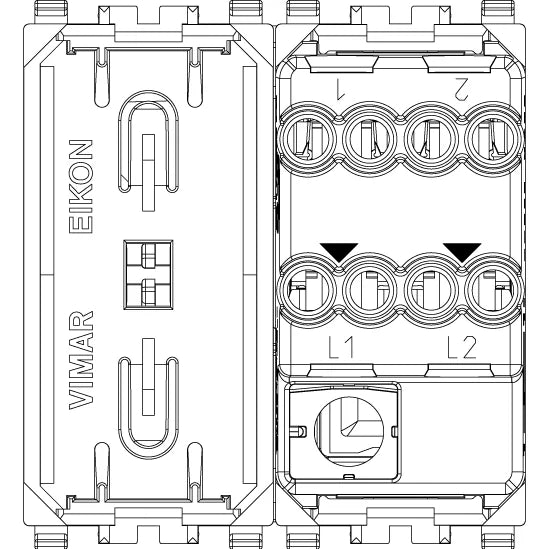

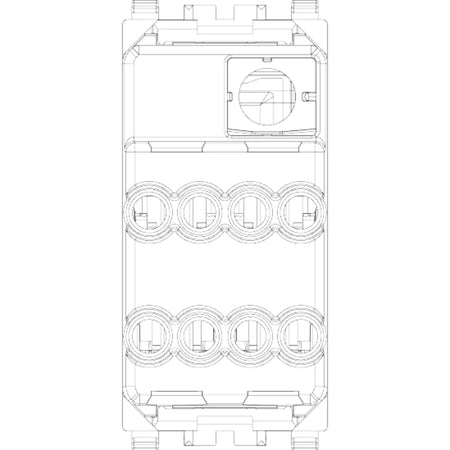

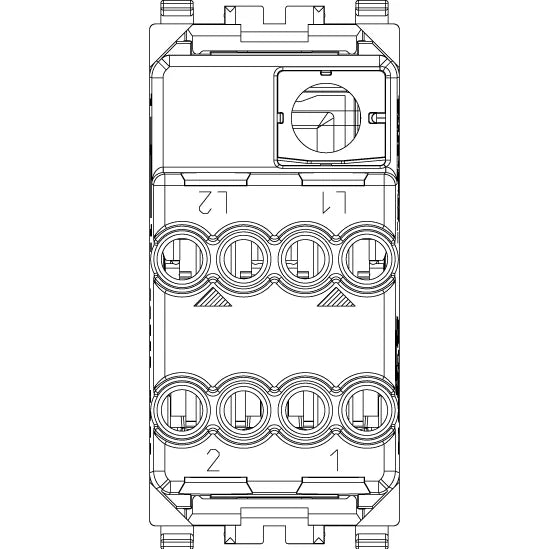

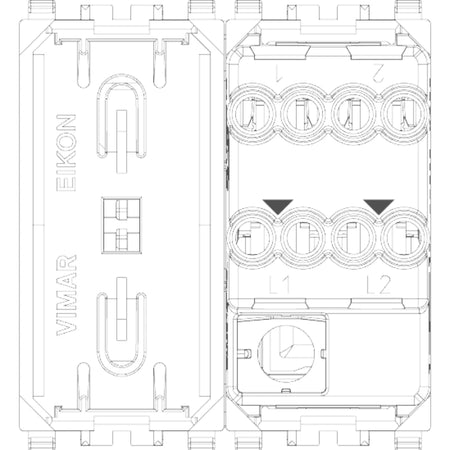

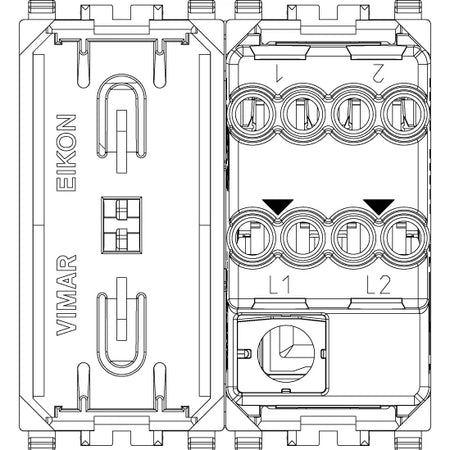

• Screw terminal connection with snap fastening for panel integration
• Lightable, replaceable button with optional exchangeable LED for orientation or control lighting
• IP40 protection for protected interior installations
• Thermoplastic, halogen-free construction

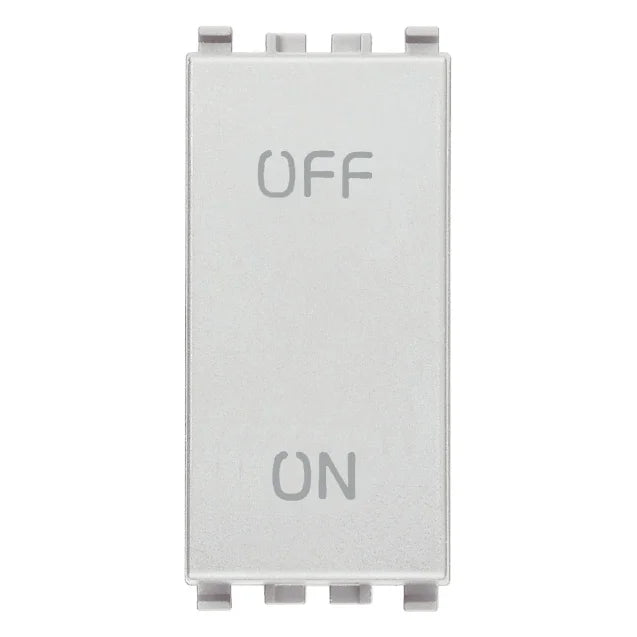

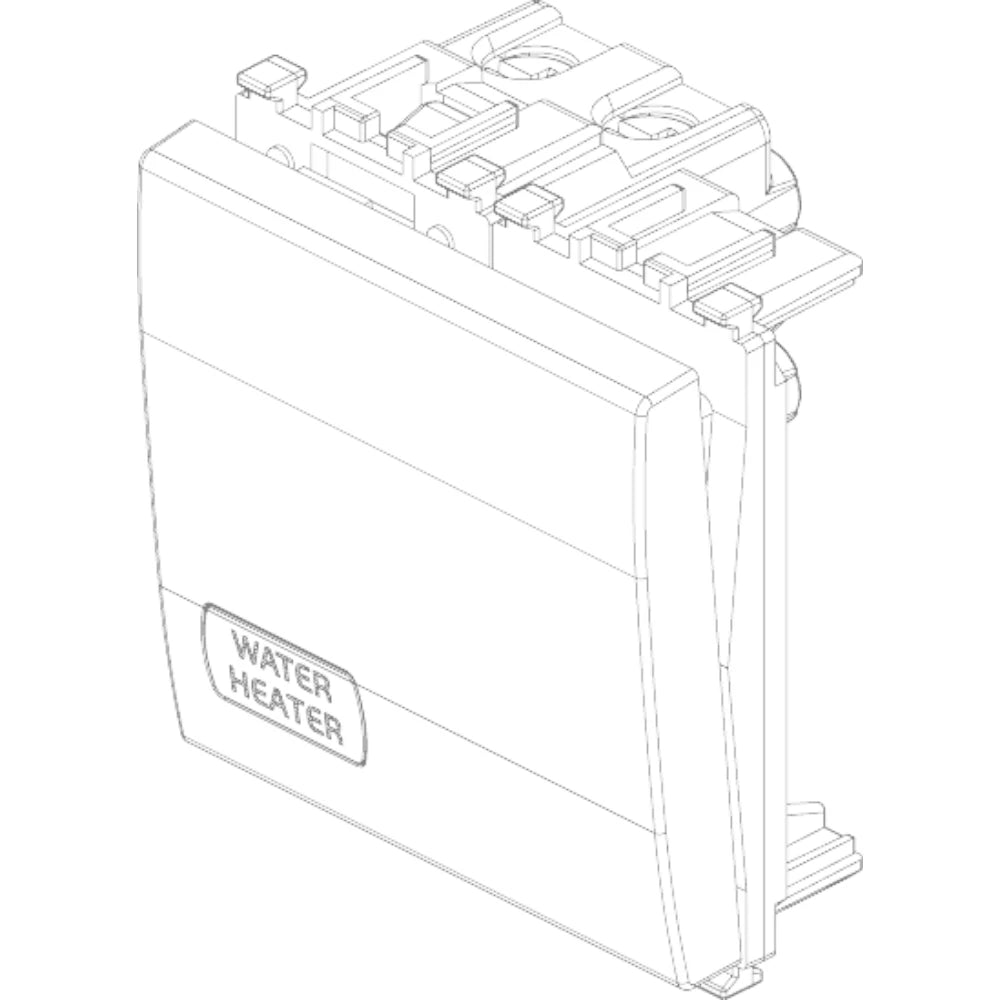

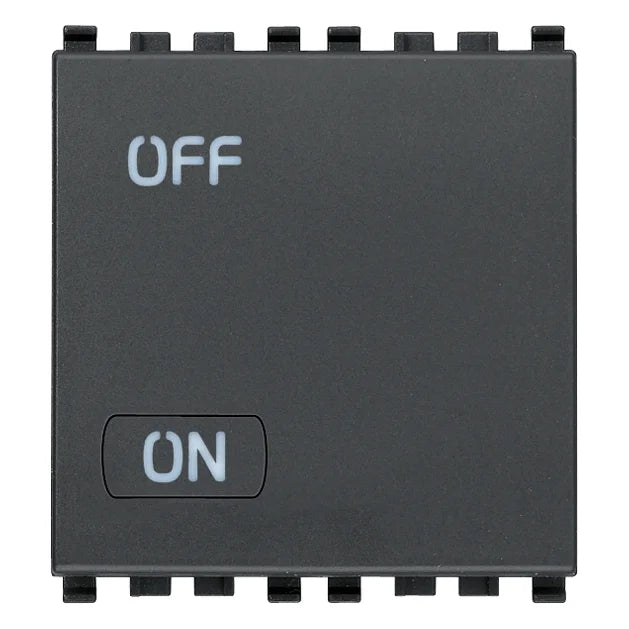

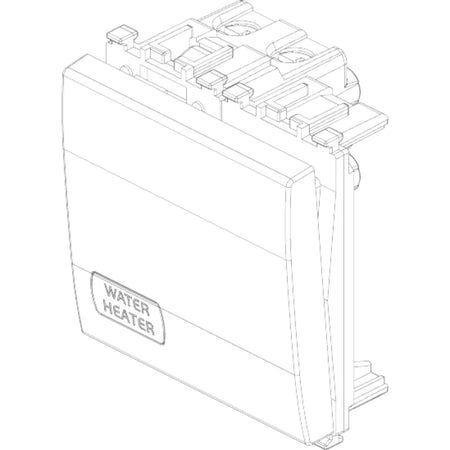

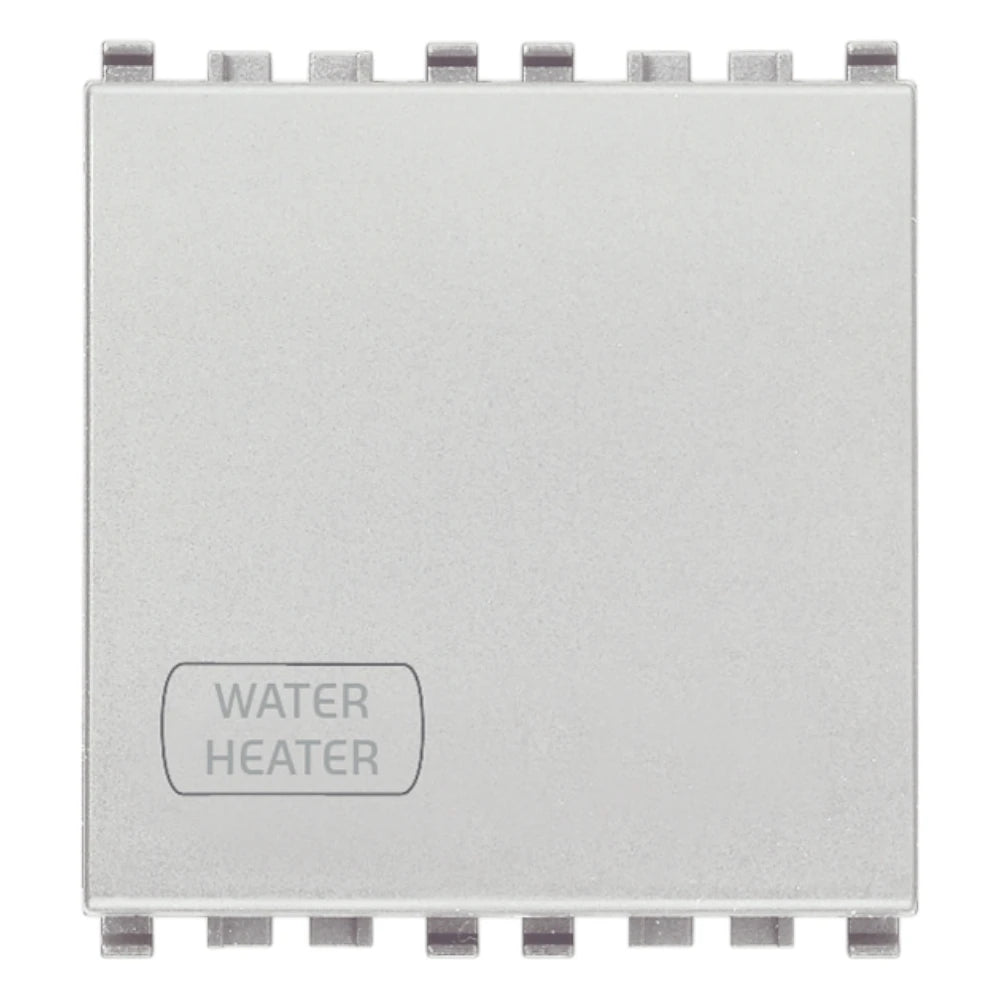

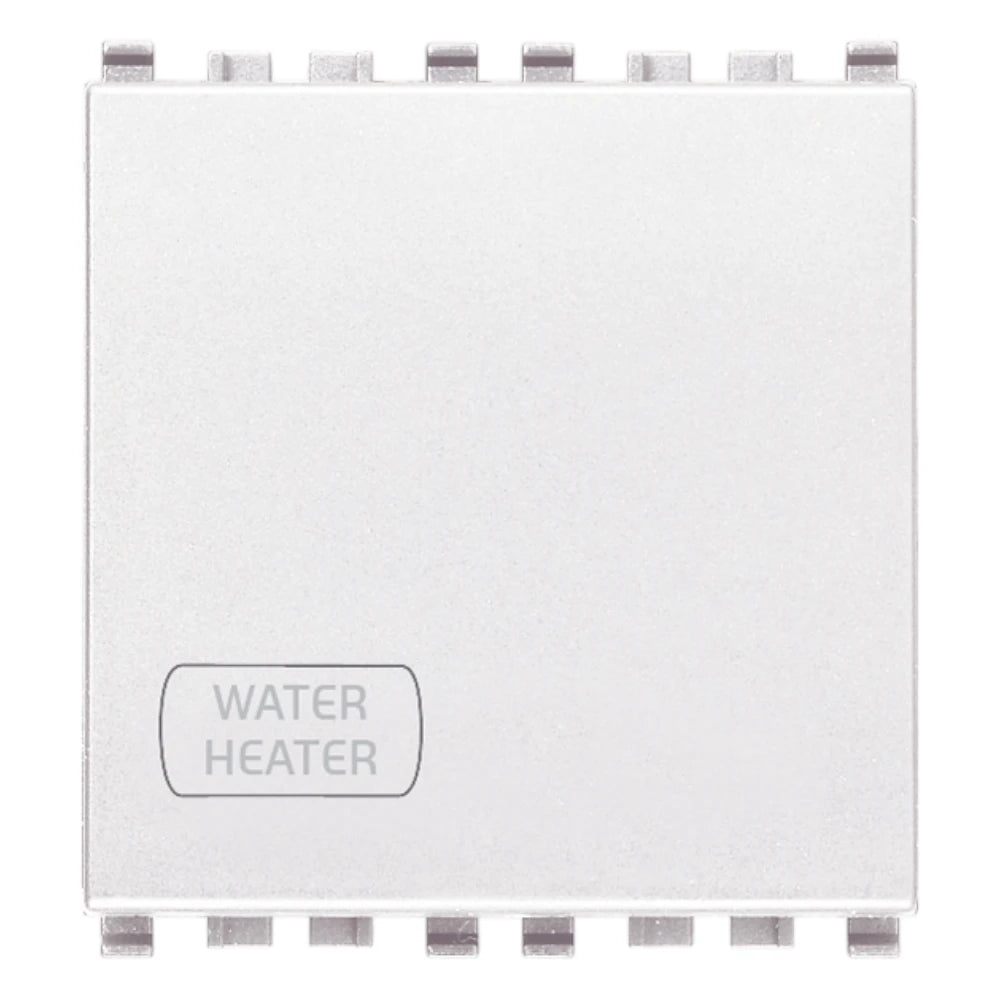

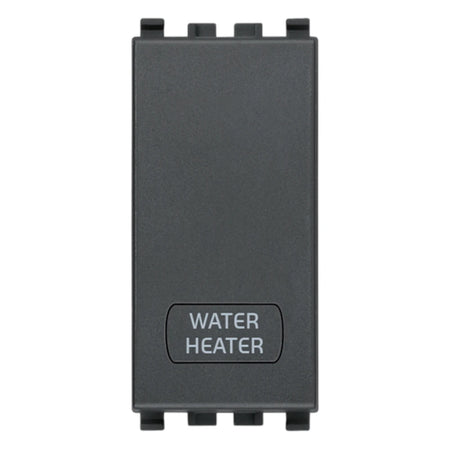

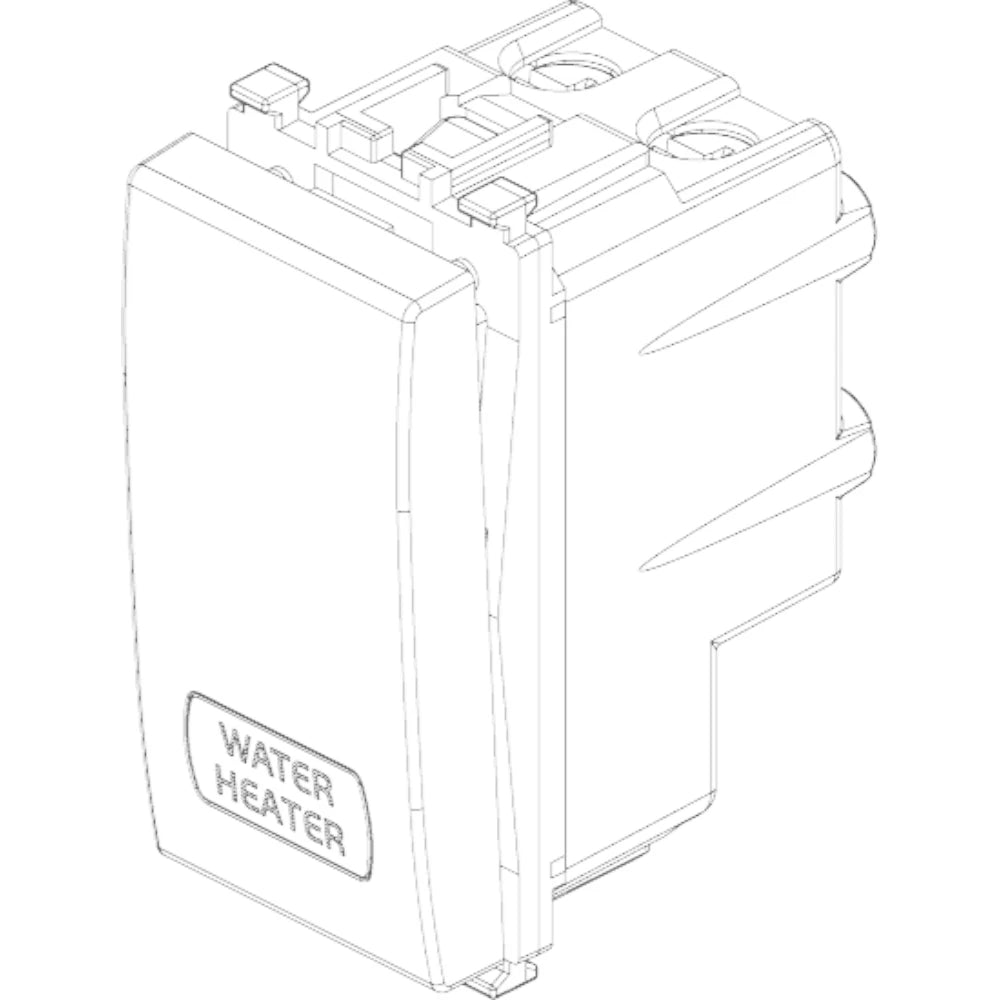

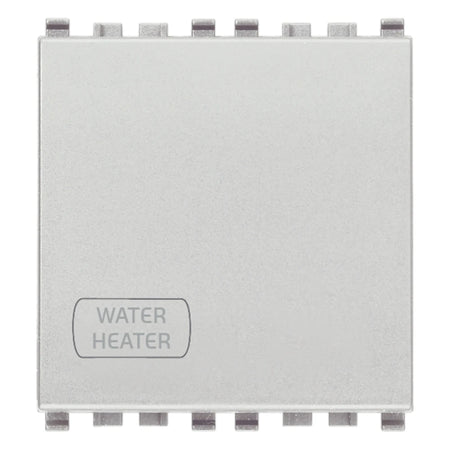

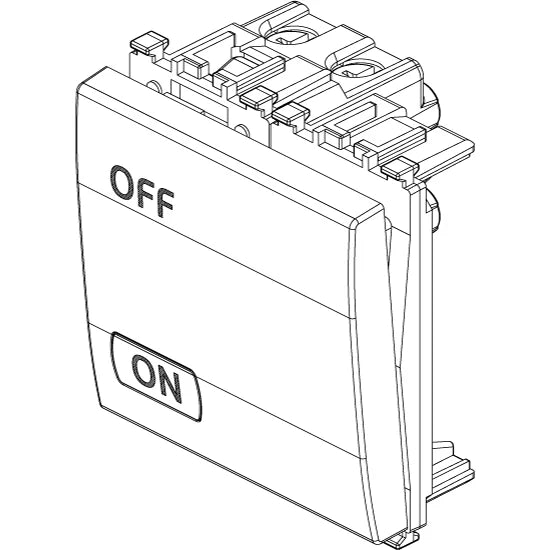

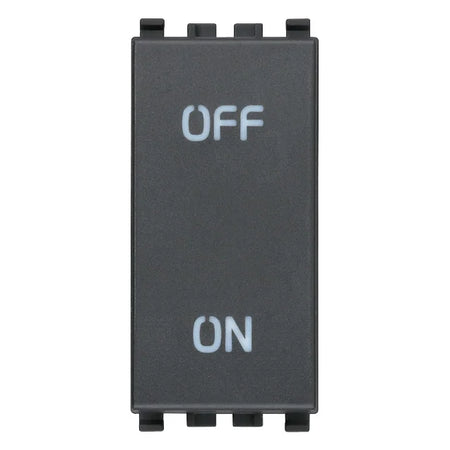

• Available with plain ON/OFF marking or a WATER/HEATER symbol, depending on variant

Variants

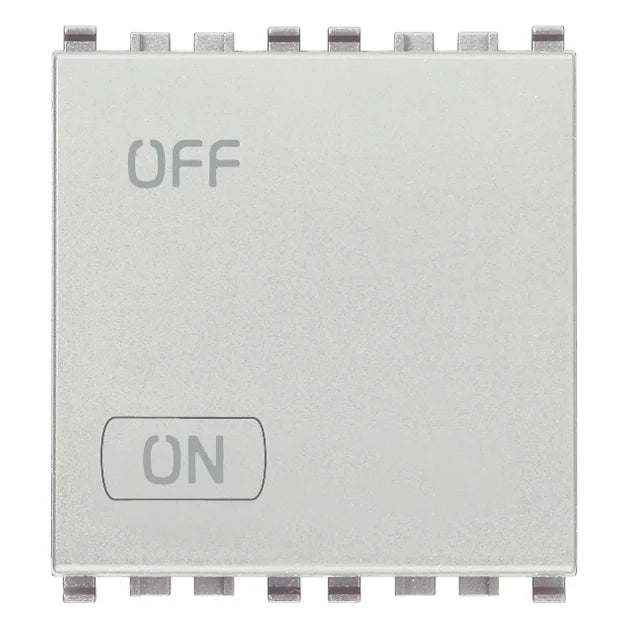

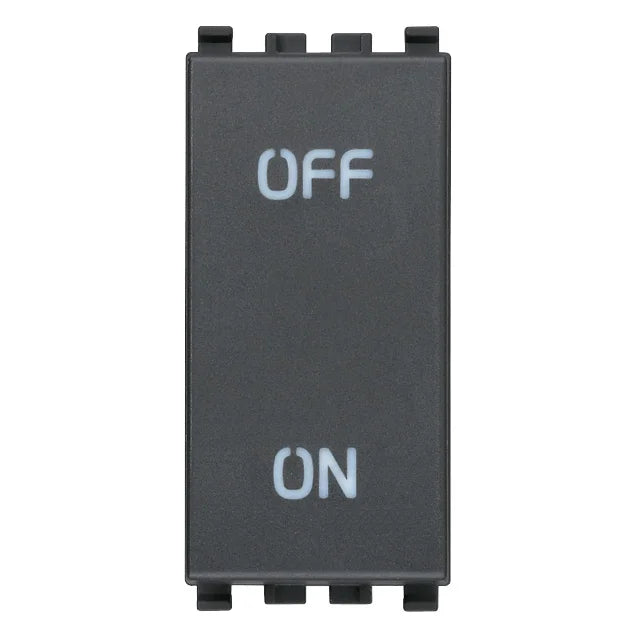

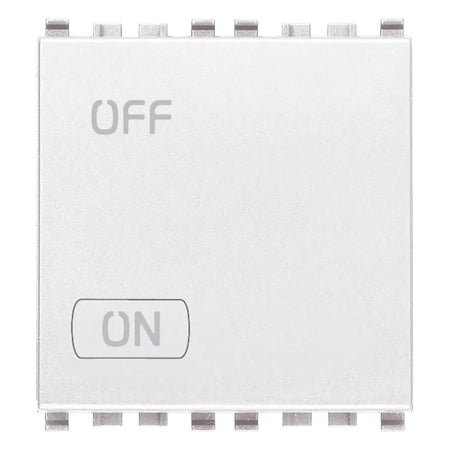

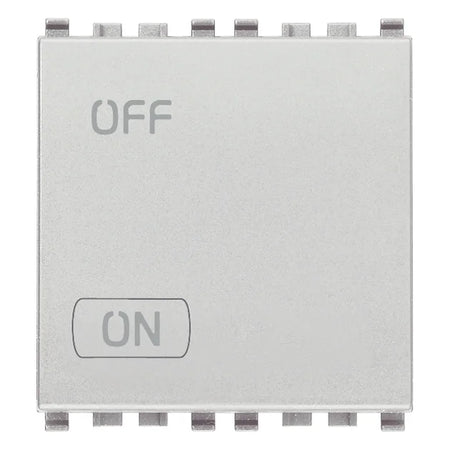

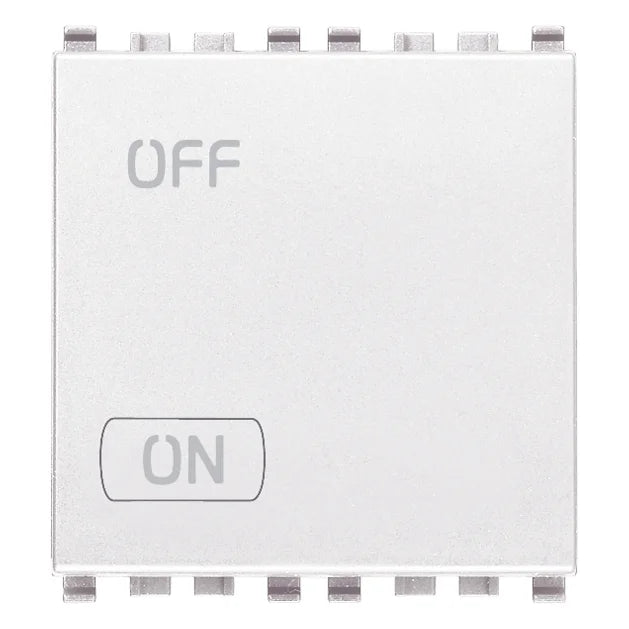

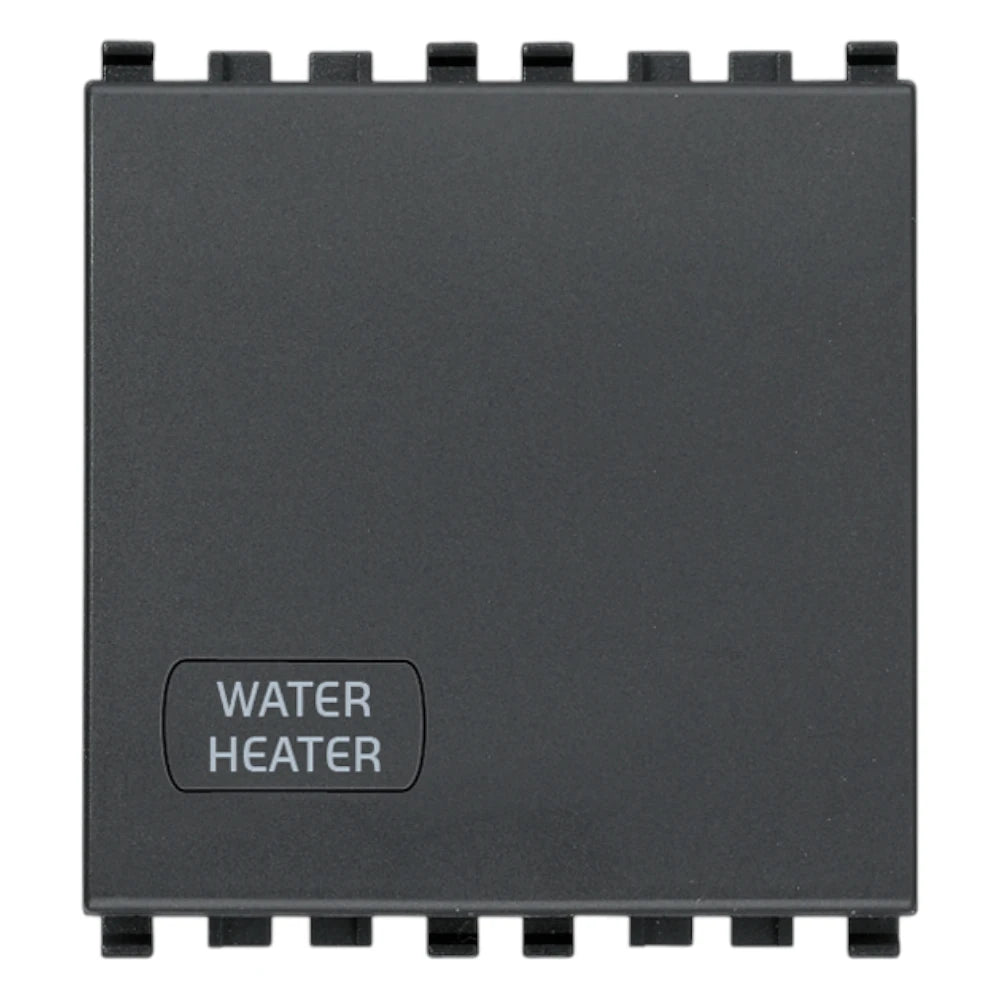

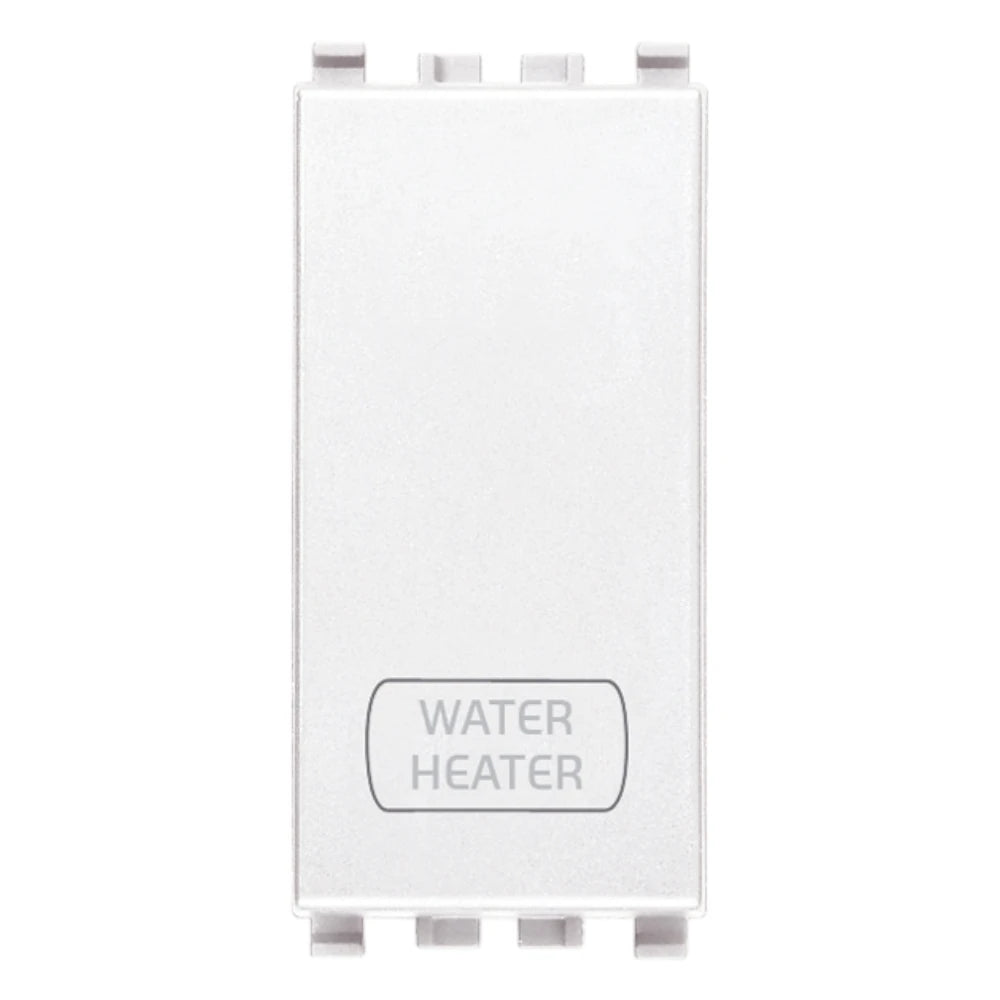

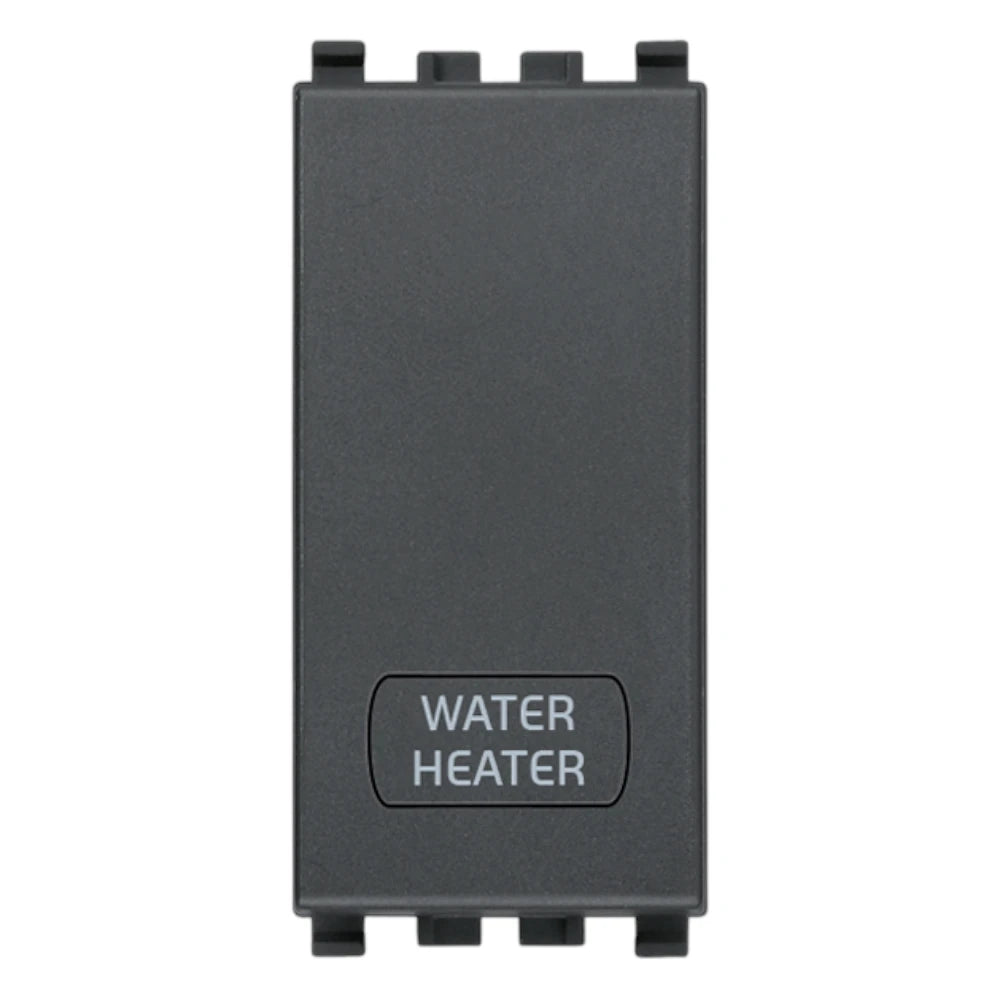

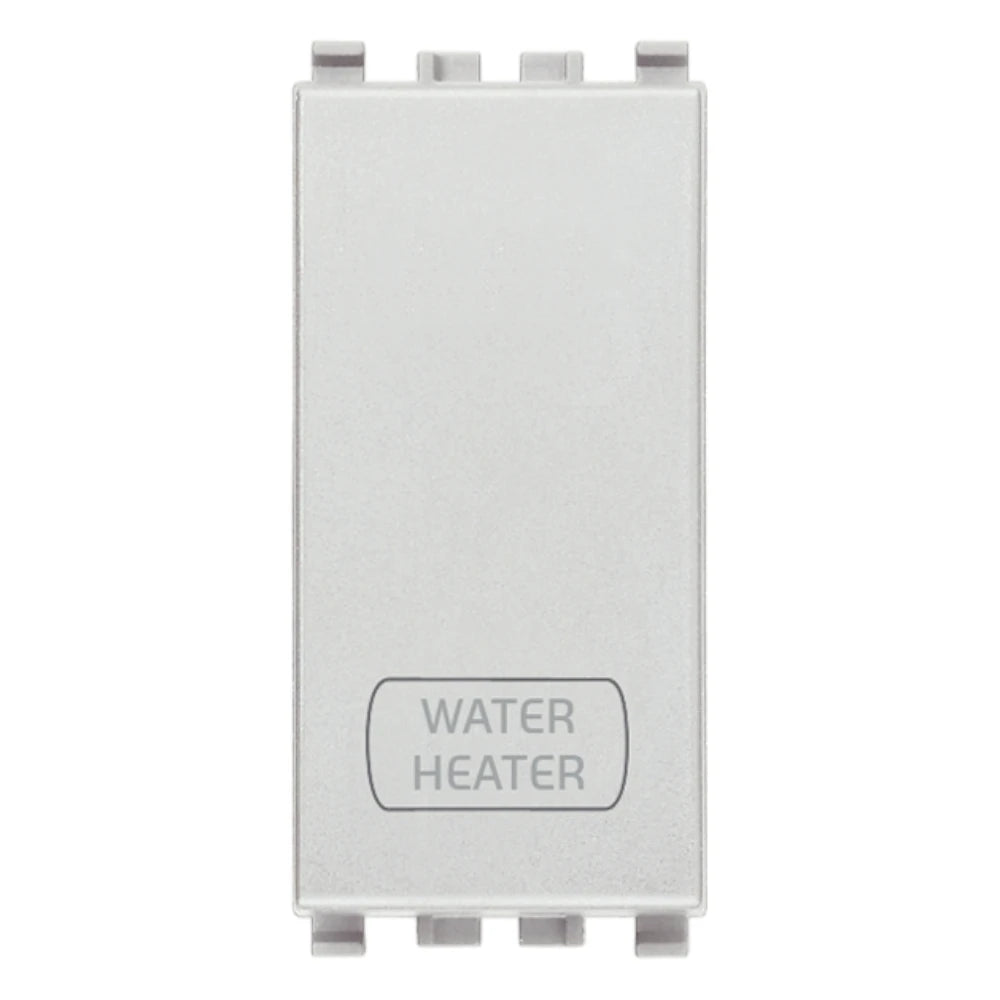

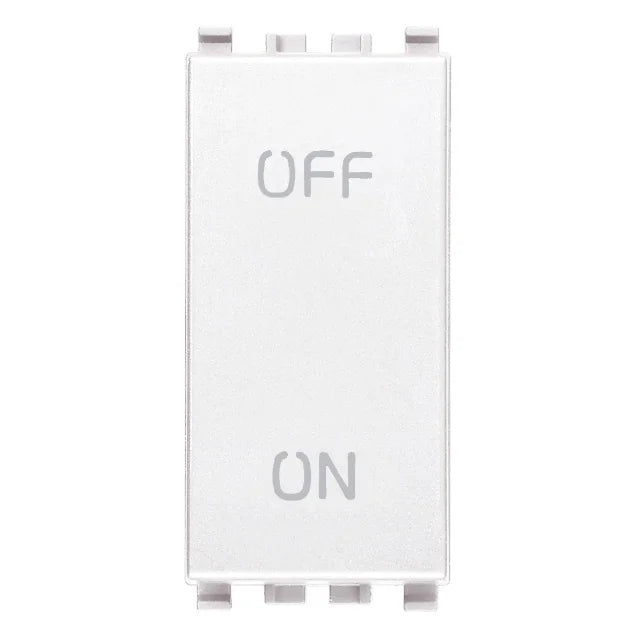

This range varies by finish, module width, and button marking. Available finishes include grey, white, and silver, and the button can be supplied with a plain ON/OFF symbol or a WATER/HEATER symbol.

Module size changes the front width from 22.3 mm in the 1-module versions to 44.8 mm in the 2-module versions. Across the variants checked, the core switch format stays the same: 2-pole 1-way switching, 20 AX at 250 V, flush mounting, screw terminals, optional lighting, and IP40 protection.

Compatibility and fit

This switch family is for mains-voltage switching, not low-voltage 12 V or 24 V DC control at the helm. Before ordering, match the module count to the frame opening and confirm the rest of the Vimar EIKON modular parts used in your panel.

The 25 mm built-in depth helps in interior bulkheads and furniture panels where rear clearance is limited, but you still need room for the conductors and terminal bends. Because the connection is by screw terminal, it suits installations where the wiring can be properly secured against vibration.

Use on board

This range works well in cabin spaces and utility areas where the switch is seen and used every day. The WATER/HEATER marked versions help identify a dedicated load quickly, while the plain versions suit general AC switching where a cleaner front is preferred.
